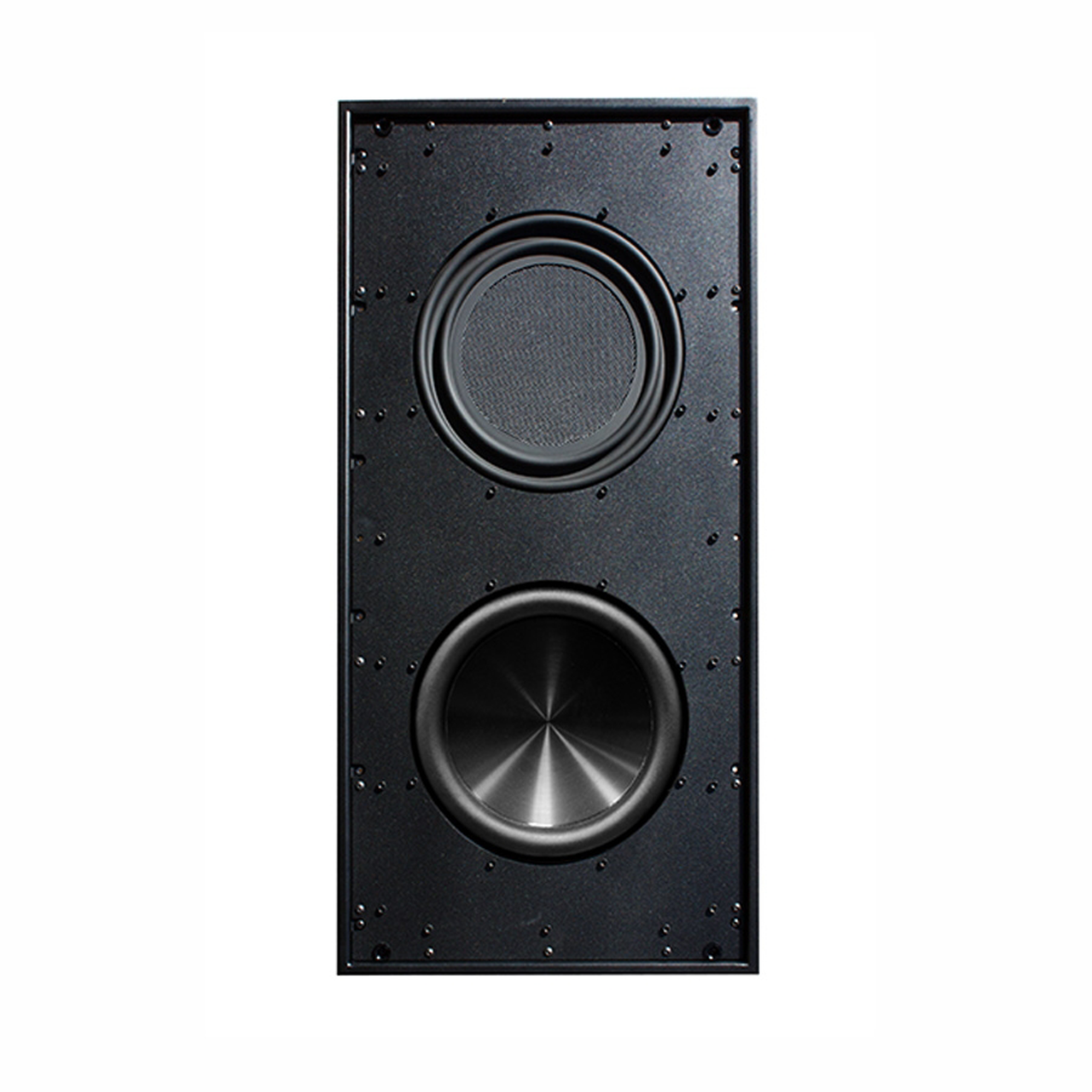

The James Loudspeaker QX1020 is a compact in-wall subwoofer featuring a 10" active woofer and 10" passive radiator. Constructed from aircraft-grade aluminum, it offers deep bass while maintaining a discreet, space-saving design. Versatile for mounting behind displays with minimal visual impact.
Key Features
- Quad Tweeter Array for crisp fidelity and wide dispersion
- Available in round and square in-ceiling, or rectangle in-wall
- Also available in marine grade if specified when ordering (for a nominal upcharge)
- QX and QXC subwoofer options to match QX and QXC speaker models
- Flexible trim options for standard grille or optional TRUFIG flush mounted grille design
- TAA Compliant
Specifications
SKU | Color
QX1020
Speaker Woofer
(2) 10" (254mm) Active/Passive Laminated Aluminum Honeycomb
Frequency Response (+/- 3db)
22Hz - 140Hz
Sensitivity
90dB (2.83V/1m)
Recommended Power Range
150 - 500W
Enclosure
Aircraft Marine Grade Aluminum
Nominal Impedance (Ohms)
8 Ohms
Dimensions (WxHxD)
14.32" x 28.46" x 4.13" (363.73mm x 722.88mm x 104.78mm)
Cut-Out Dimensions (WxH)
13.56" x 27.75" (344.5mm x 704.85mm)
Mounting Depth
3.875" (98.43mm)
