Invisible Series
PowerZone™ Connect 2U Amplifiers
PowerZone Connect 4008

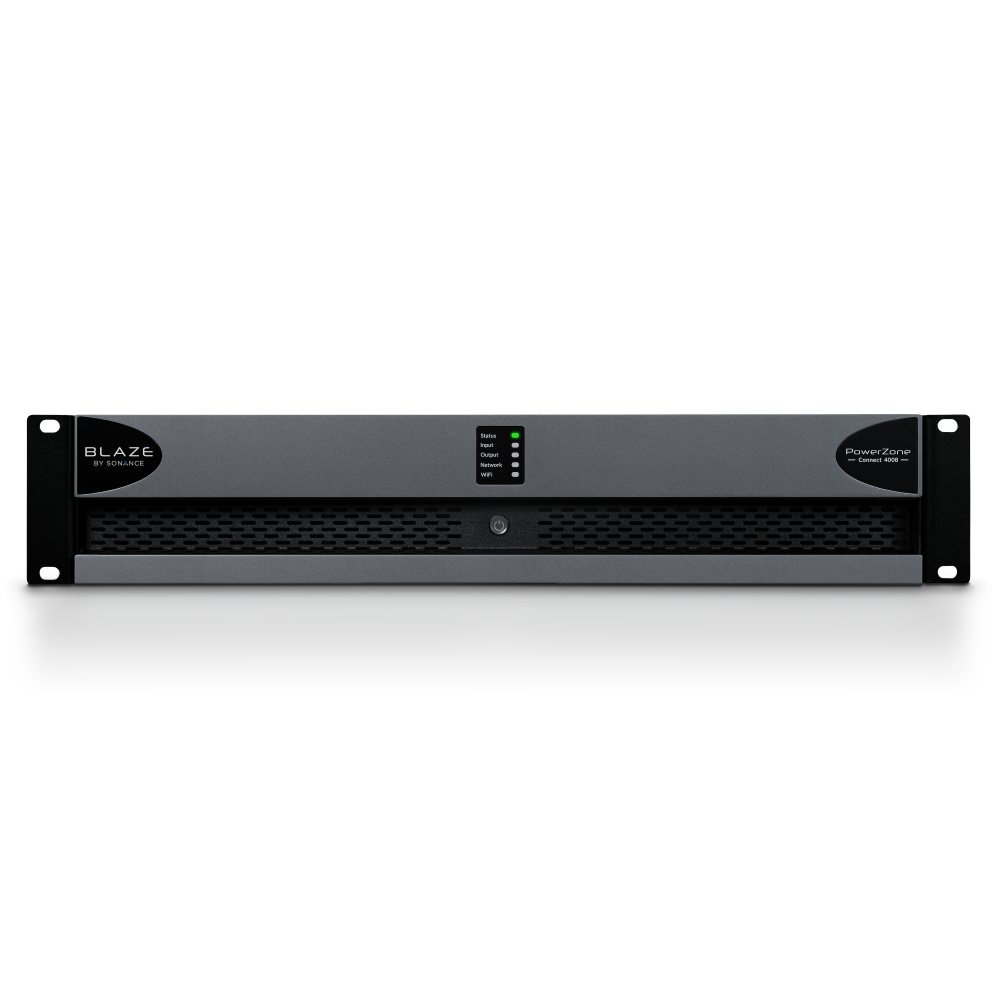

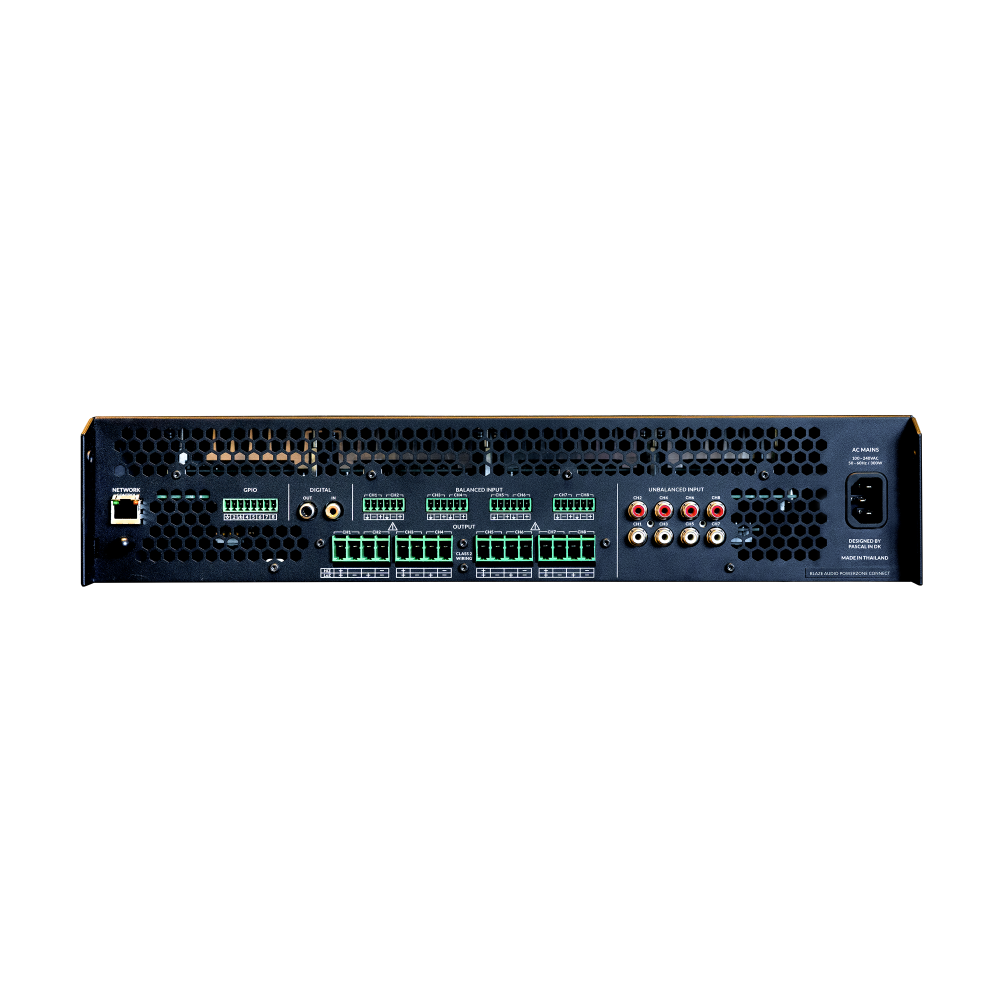

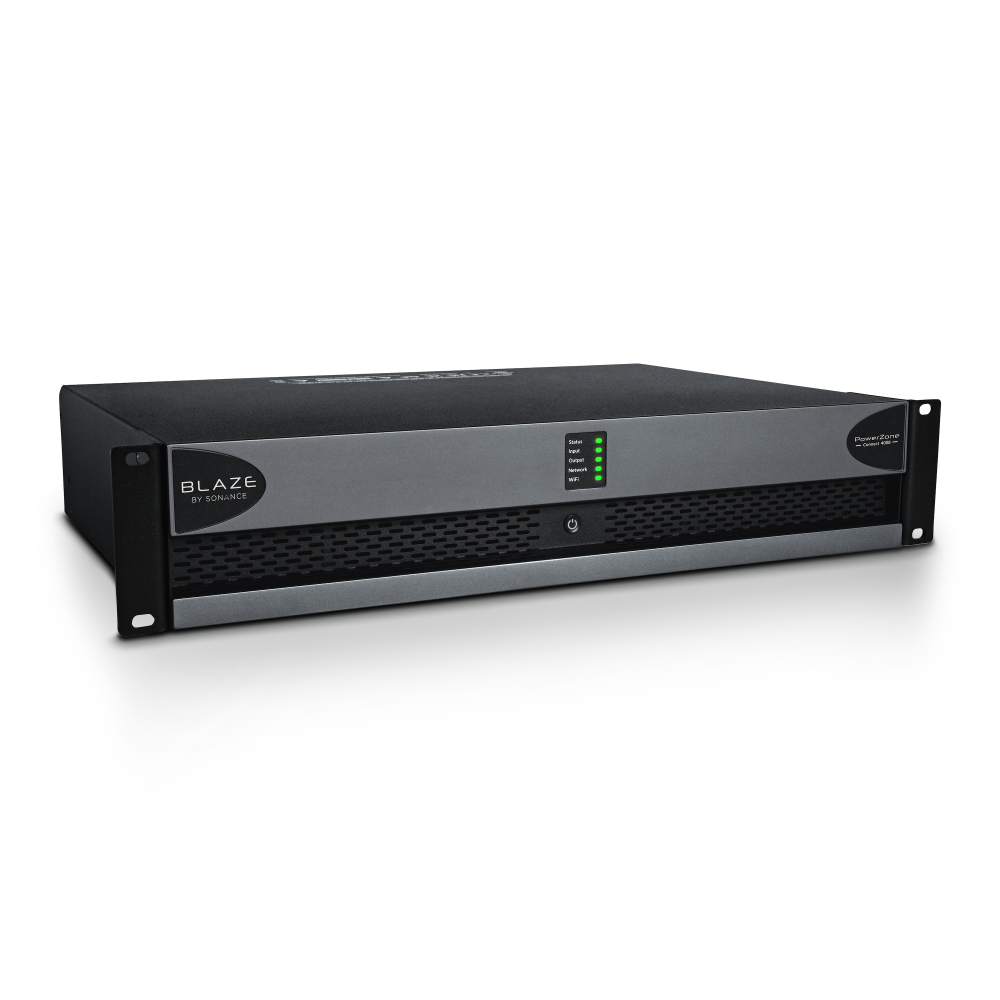

PowerZone Connect 4008
Blaze Amplifiers
4000 W DSP-enabled Class-D amplifier with 8 channels
Key Features
- Full rack 2U form factor
- Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC™ Class-D technology
- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- UREC™ universal power supply with PFC
- 5 Year warranty
Specifications
SKU | Color
LBX-888-010 (PowerZone Connect 4008), LBX-888-017 (PowerZone Connect 4008 JPN)
Dimensions (WxHxD)
17.3" x 3.5" x 16.3" (439.42mm x 88.9mm x 414.02mm)
Weight
25.6 lbs. (11.61kg)
Channel Configuration
Lo-Z: 8x500W @2/4Ω Hi-Z: 4x 1000W @70V
Total System Power
4000 W
Output Power @ 2 ohms
8 x 500 W (SE)
Output Power @ 4 ohms
8 x 500 W (SE) 4 x 1000 W (BTL)
Output Power @ 8 ohms
8 x 250 W (SE) 4 x 1000 W (BTL)
Output Power @ 70V
4 x 1000 W (BTL)
Output Power @ 100V
4 x 1000 W (BTL)
Powersharing
BTL
Power Consumption
1400 W
Dante Compatibility
No
