PowerZone Connect | DSP Commercial Amplifiers

The PowerZone Connect is a family of full-matrix DSP-enabled Class-D amplifiers, spanning twelve models across compact 1U and full-rack 2U chassis. Total system power across the family ranges from 125 W to 6000 W, giving installers a single amplifier platform for jobs from a single-zone retail space to large-scale distribution.

The 1U lineup delivers 125 W to 1000 W across 2, 4, and 8-channel configurations in a compact full-rack or half-rack chassis, built for space-constrained installs. The 2U lineup delivers 1000 W to 6000 W across 2, 4, and 8-channel configurations in a full-rack 2U chassis, built for larger-scale system requirements.

key features:

Available in 1U (full-rack and half-rack) and 2U (full-rack) chassis
Total system power: 125 W – 6000 W across the family
Full-matrix DSP configuration via PowerZone Control web app (built-in)
Built-in Wireless Access Point for setup via Wi-Fi, or RJ45 network port
Flexible power sharing across output channels (1U series)
S/PDIF digital input/output
Configurable GPIO
ErP and Energy Star compliant
5 year warranty

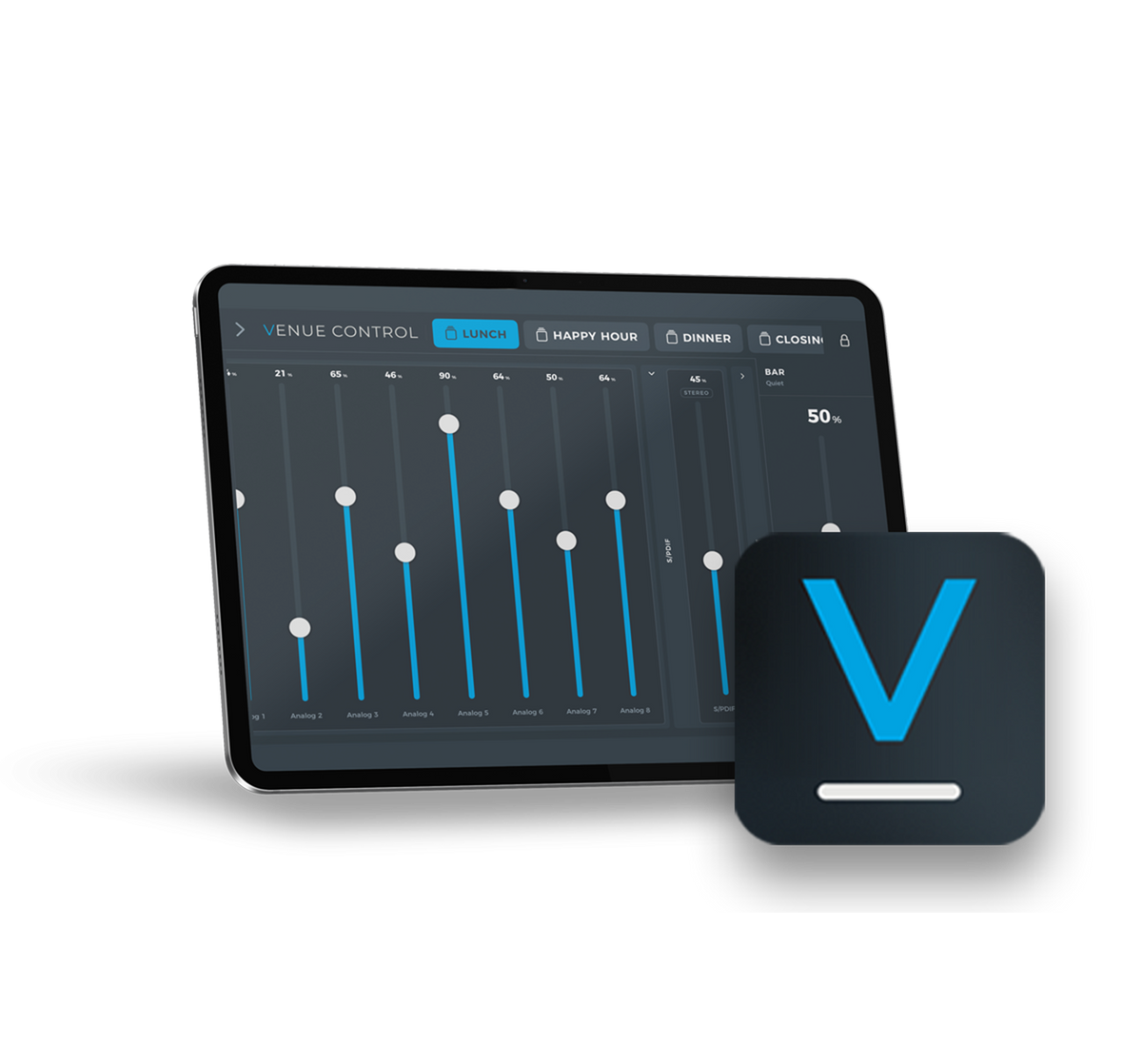

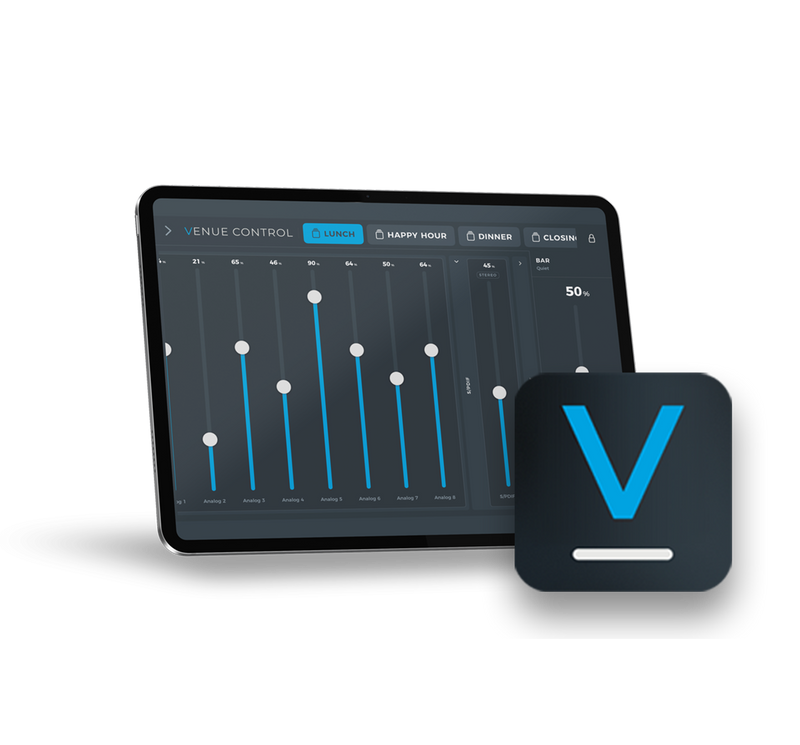

SIMPLE DSP SETUP

Unlock the full potential of your PowerZone Connect amp with PowerZone Control built-in DSP.

Learn more

PowerZone Connect Series

DSP-enabled amplifier Models

Compare Models

Channel Configuration

Total System Power

Output Power @ 4 ohms

Output Power @ 8 ohms

Output Power @ 70V

Output Power @ 100V

Power Consumption

Dante Compatibility

PowerZone Connect 122

125 W DSP-enabled Class-D amplifier with 2 channels

Lo-Z: 2x60W @4/8Ω Hi-Z: 1x 125W @70/100V Powersharing <= 1x 125W

125 W

2 x 60 W

1 x 125 W

75 W

No

Compare

PowerZone Connect 122D

125 W DSP-enabled Class-D amplifier with 2 channels and Dante

Lo-Z: 2x60W @4/8Ω Hi-Z: 1x 125W @70/100V Powersharing <= 1x 125W

125 W

2 x 60 W

1 x 125 W

75 W

Yes

Compare

PowerZone Connect 252

250 W DSP-enabled Class-D amplifier with 2 channels

Lo-Z: 2x 125W @4/8Ω Hi-Z: 1x 250W @70/100V Powersharing <= 1x 250W

250 W

2 x 125 W

1 x 250 W

75 W

No

Compare

PowerZone Connect 254

250 W DSP-enabled Class-D amplifier with 4 channels

Lo-Z: 4x60W @4/8Ω Hi-Z: 2x 125W @70/100V Powersharing <= 1x 250W

250 W

4 x 60 W

2 x 125 W

75 W

No

Compare

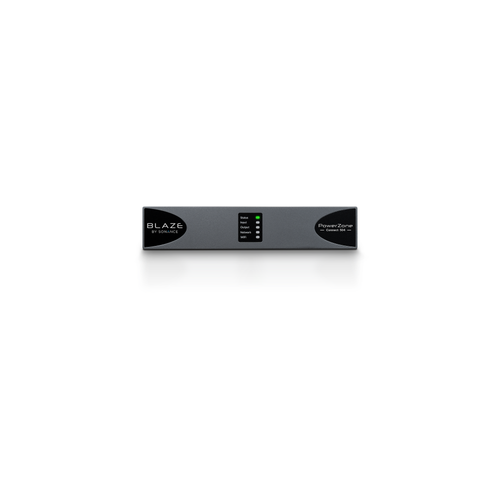

PowerZone Connect 504

500 W DSP-enabled Class-D amplifier with 4 channels

Lo-Z: 4x 125W @4/8Ω Hi-Z: 2x 250W @70/100V Powersharing <= 2x 250W

500 W

4 x 125 W

2 x 250 W

150 W

No

Compare

PowerZone Connect 504D

500 W DSP-enabled Class-D amplifier with 4 channels and Dante

Lo-Z: 4x 125W @4/8Ω Hi-Z: 2x 250W @70/100V Powersharing <= 2x 250W

500 W

4 x 125 W

2 x 250 W

150 W

Yes

Compare

PowerZone Connect 508

500 W DSP-enabled Class-D amplifier with 8 channels

Lo-Z: 8x60W @4/8Ω Hi-Z: 4x 125W @70/100V Powersharing <= 2x 250W

500 W

8 x 60 W

4 x 125 W

150 W

No

Compare

PowerZone Connect 1008

1000 W DSP-enabled Class-D amplifier with 8 channels

Lo-Z: 8x125W @4/8Ω Hi-Z: 4x 250W @70/100V Powersharing <= 4x 250W

1000 W

8 x 125 W

4 x 250 W

300 W

No

Compare

PowerZone Connect 1008D

1000 W DSP-enabled Class-D amplifier with 8 channels and Dante

Lo-Z: 8x125W @4/8Ω Hi-Z: 4x 250W @70/100V Powersharing <= 4x 250W

1000 W

8 x 125 W

4 x 250 W

300 W

Yes

Compare

PowerZone Connect 1002

1000 W DSP-enabled Class-D amplifier with 2 channels

Lo-Z: 2x500W @2/4Ω Hi-Z: 1x 1000W @70/100V

1000 W

2 x 500 W (SE) 1 x 1000 W (BTL)

2 x 250 W (SE) 1 x 1000 W (BTL)

1 x 1000 W (BTL)

350 W

No

Compare

PowerZone Connect 1502

1500 W DSP-enabled Class-D amplifier with 2 channels

Lo-Z: 2x750W @2/4Ω Hi-Z: 1x 1200W @70v

1500 W

2 x 750 W (SE) 1 x 1500 W (BTL)

2 x 400 W (SE) 1 x 1500 W (BTL)

1 x 1200 W (BTL)

1 x 1500 W (BTL)

350 W

No

Compare

PowerZone Connect 2004

2000 W DSP-enabled Class-D amplifier with 4 channels

Lo-Z: 4x500W @2/4Ω Hi-Z: 2x 1000W @70/100V

2000 W

4 x 500 W (SE) 2 x 1000 W (BTL)

4 x 250 W (SE) 2 x 1000 W (BTL)

2 x 1000 W (BTL)

700 W

No

Compare

PowerZone Connect 2004D

2000 W DSP-enabled Class-D amplifier with 4 channels and Dante

Lo-Z: 4x500W @2/4Ω Hi-Z: 2x 1000W @70/100V

2000 W

4 x 500 W (SE) 2 x 1000 W (BTL)

4 x 250 W (SE) 2 x 1000 W (BTL)

2 x 1000 W (BTL)

700 W

Yes

Compare

PowerZone Connect 3004

3000 W DSP-enabled Class-D amplifier with 4 channels

Lo-Z: 4x750W @2/4Ω Hi-Z: 2x 1200W @70V

3000 W

4 x 750 W (SE) 2 x 1500 W (BTL)

4 x 400 W (SE) 2 x 1500 W (BTL)

2 x 1200 W (BTL)

2 x 1500 W (BTL)

700 W

No

Compare

PowerZone Connect 3004D

3000 W DSP-enabled Class-D amplifier with 4 channels and Dante

Lo-Z: 4x750W @2/4Ω Hi-Z: 2x 1200W @70V

3000 W

4 x 750 W (SE) 2 x 1500 W (BTL)

4 x 400 W (SE) 2 x 1500 W (BTL)

2 x 1200 W (BTL)

2 x 1500 W (BTL)

700 W

Yes

Compare

PowerZone Connect 4008

4000 W DSP-enabled Class-D amplifier with 8 channels

Lo-Z: 8x500W @2/4Ω Hi-Z: 4x 1000W @70V

4000 W

8 x 500 W (SE) 4 x 1000 W (BTL)

8 x 250 W (SE) 4 x 1000 W (BTL)

4 x 1000 W (BTL)

1400 W

No

Compare

PowerZone Connect 6008

6000 W DSP-enabled Class-D amplifier with 8 channels

Lo-Z: 8x750W @2/4Ω Hi-Z: 4x 1200W @70V

6000 W

8 x 750 W (SE) 4 x 1500 W (BTL)

8 x 400 W (SE) 4 x 1500 W (BTL)

4 x 1200 W (BTL)

4 x 1500 W (BTL)

1400 W

No

Compare

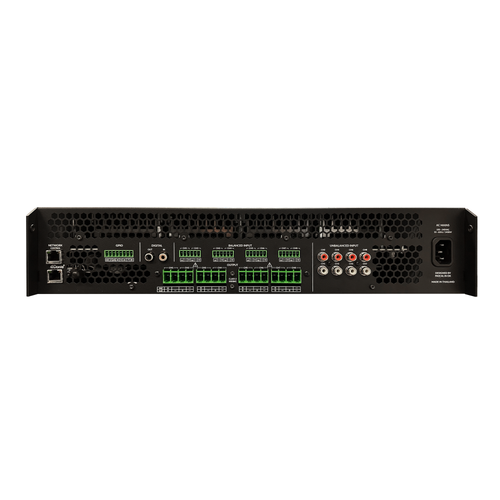

PowerZone Connect 6008D

6000 W DSP-enabled Class-D amplifier with 8 channels and Dante

Lo-Z: 8x750W @2/4Ω Hi-Z: 4x 1200W @70V

6000 W

8 x 750 W (SE) 4 x 1500 W (BTL)

8 x 400 W (SE) 4 x 1500 W (BTL)

4 x 1200 W (BTL)

4 x 1500 W (BTL)

1400 W

Yes

Compare
