Invisible Series
PowerZone™ Connect 1U Amplifiers

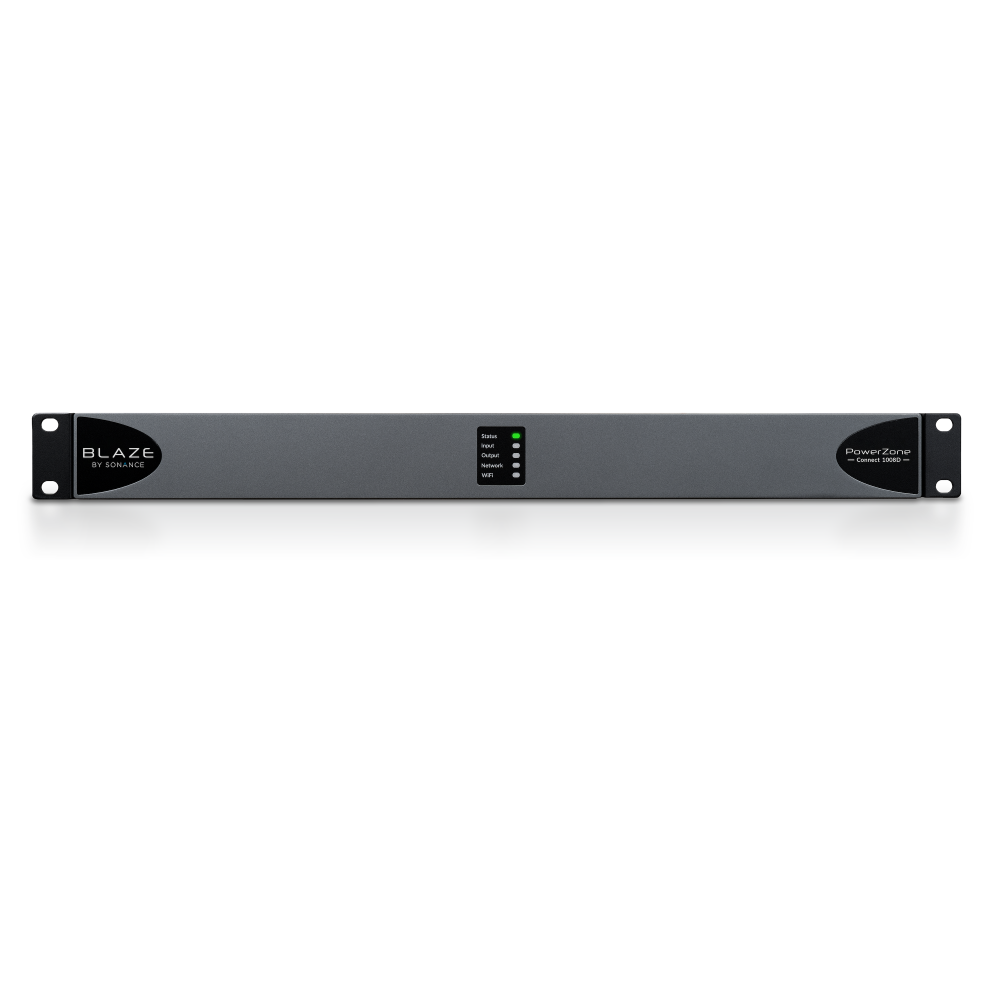

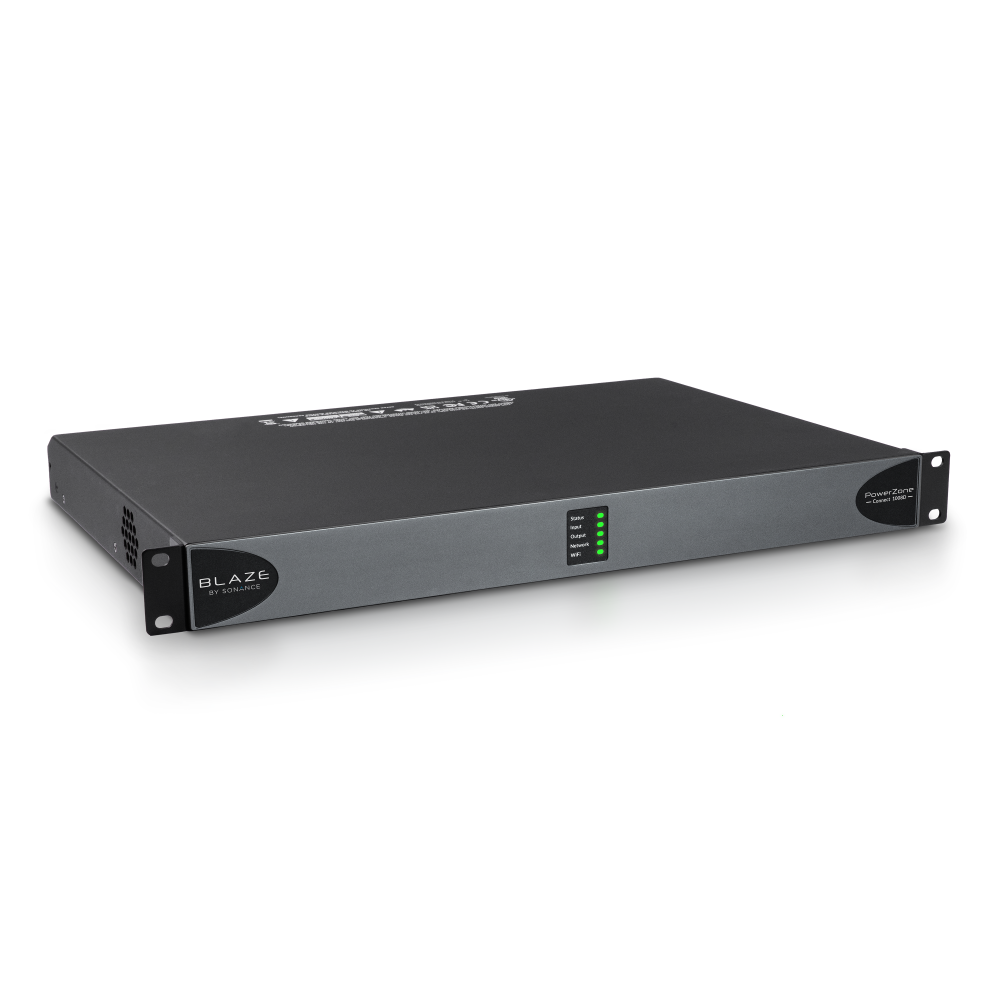

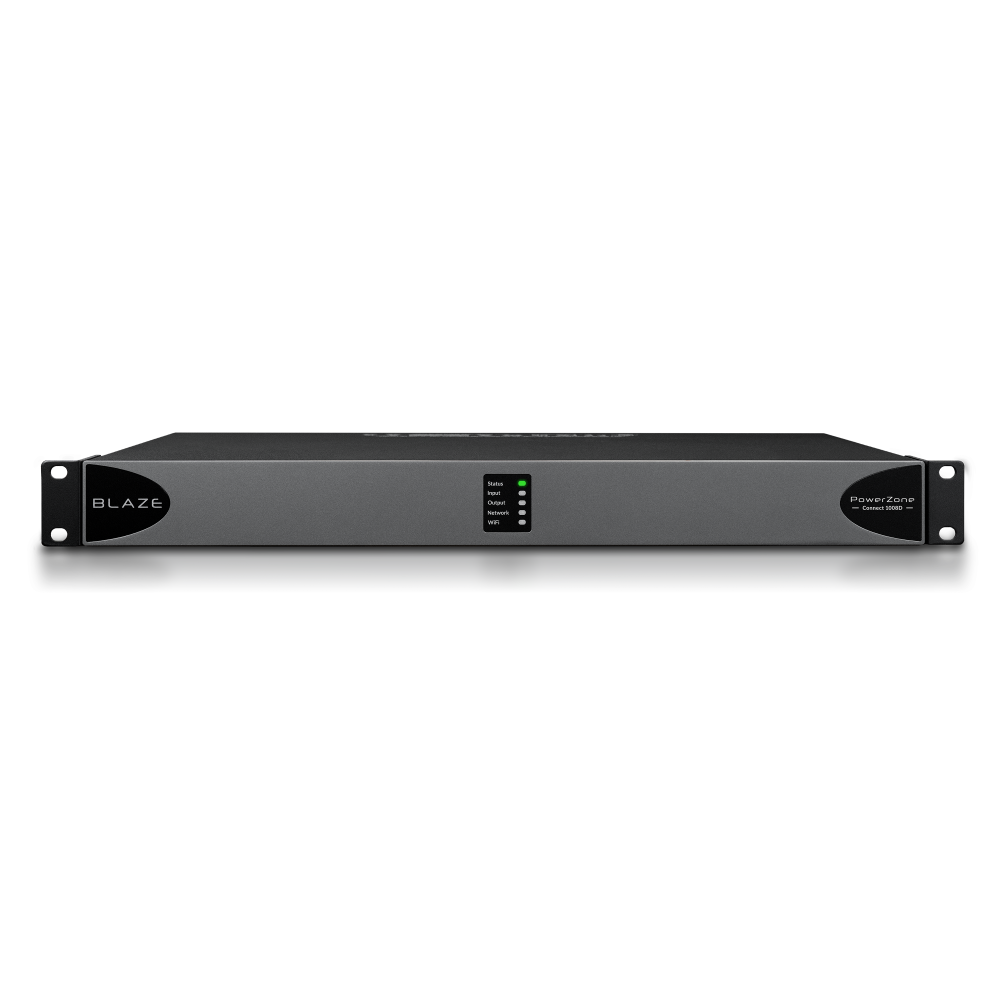

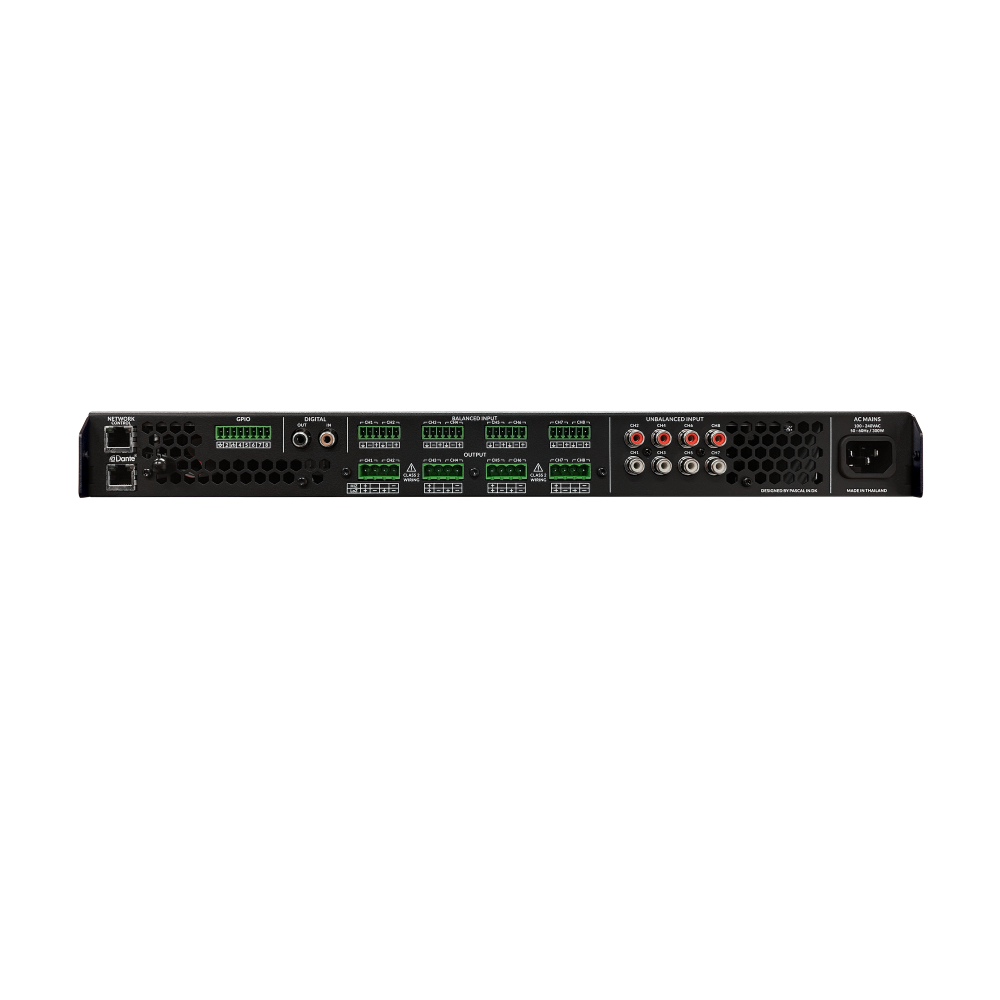

PowerZone Connect 1008D
PowerZone Connect 1008D
Blaze Amplifiers
1000 W DSP-enabled Class-D amplifier with 8 channels and Dante™
Key Features
- 1RU form factor
- Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC™ Class-D technology
- Dante™ Ultimo™ chip 4×4 (4-channels)
- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- UREC™ universal power supply with PFC
- 5 Year warranty
Specifications
SKU | Color
UBX-888-031 (PowerZone Connect 1008D), UBX-888-042 (PowerZone Connect 1008D JPN)
Dimensions (WxHxD)
17.3" x 1.7" x 12.6" (439.42mm x 43.18mm x 320.04mm)
Weight
8.4 lbs. (3.81kg)
Channel Configuration
Lo-Z: 8x125W @4/8Ω Hi-Z: 4x 250W @70/100V Powersharing ≤4x 250W
Total System Power
1000 W
Output Power @ 2Ω
0
Output Power @ 4Ω
8 x 125 W
Output Power @ 8Ω
8 x 125 W
Output Power @ 70V
4 x 250 W
Output Power @ 100V
4 x 250 W
Powersharing
≤ 2 X 250 W
Power Consumption
300 W
