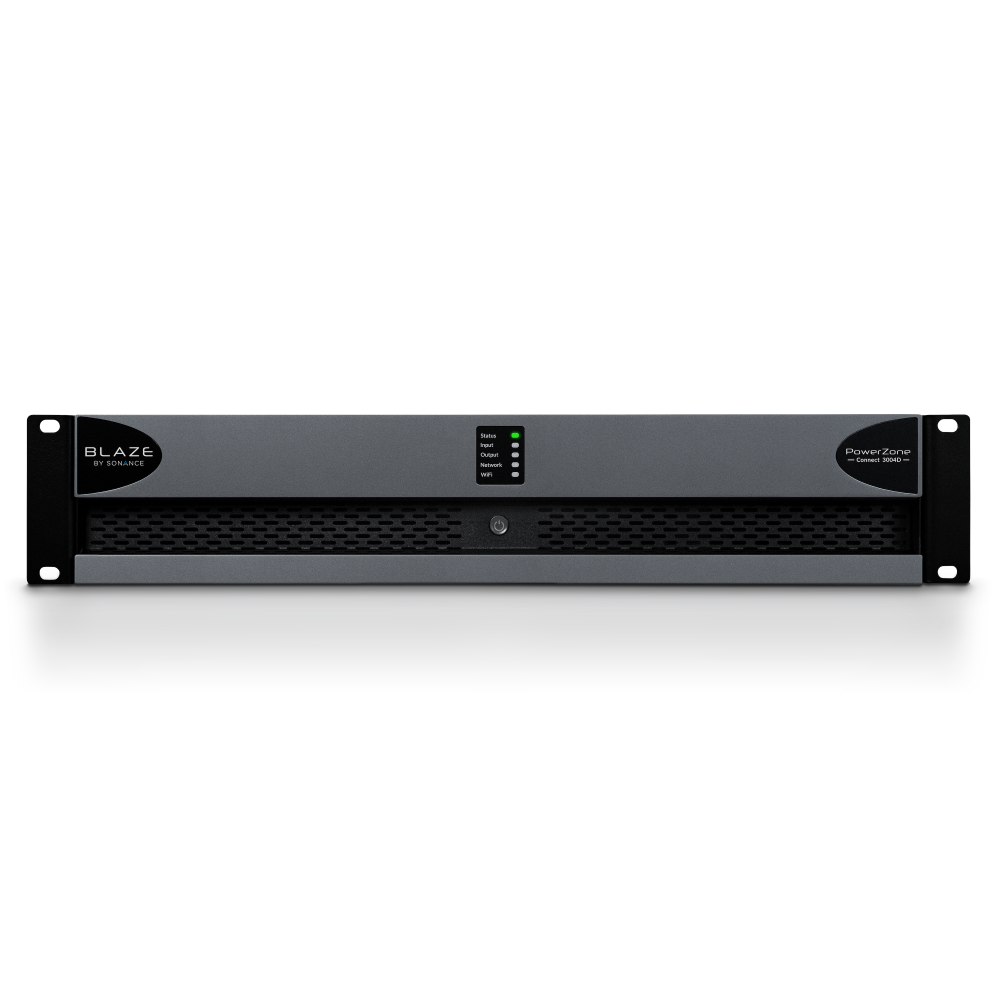

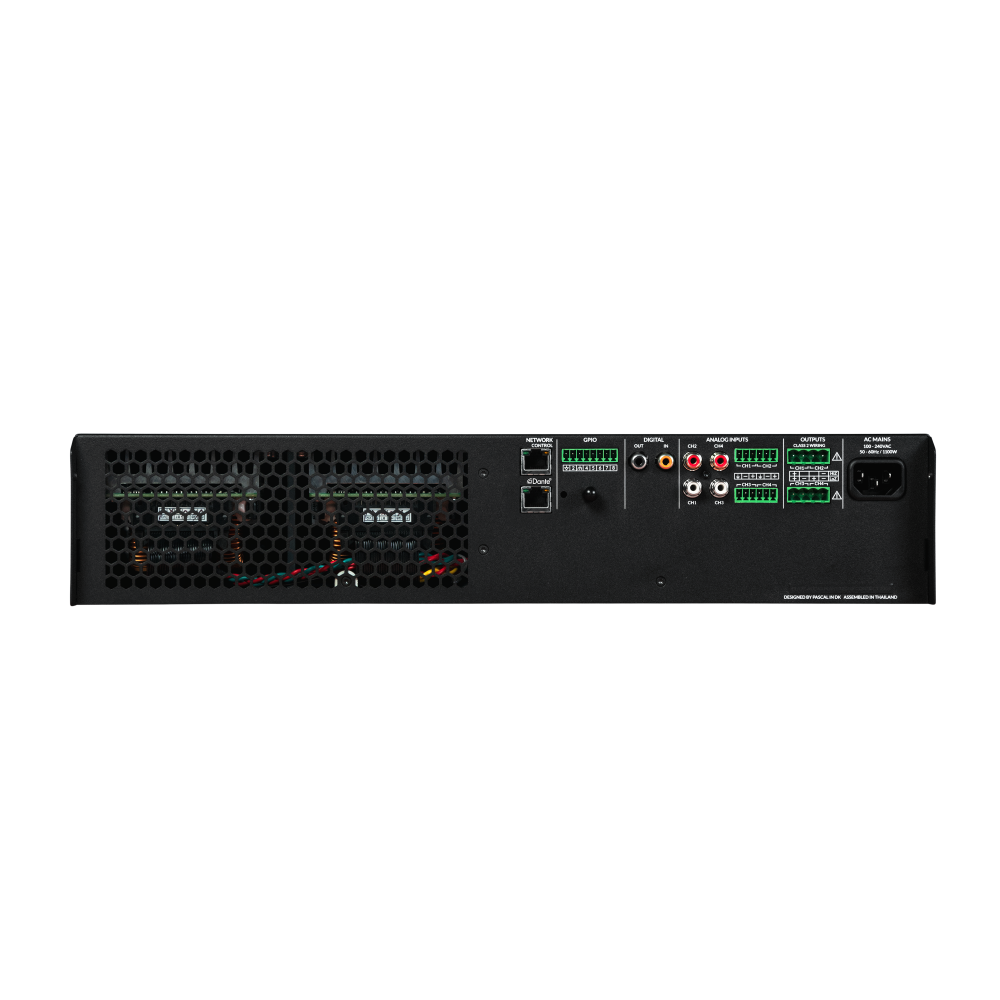

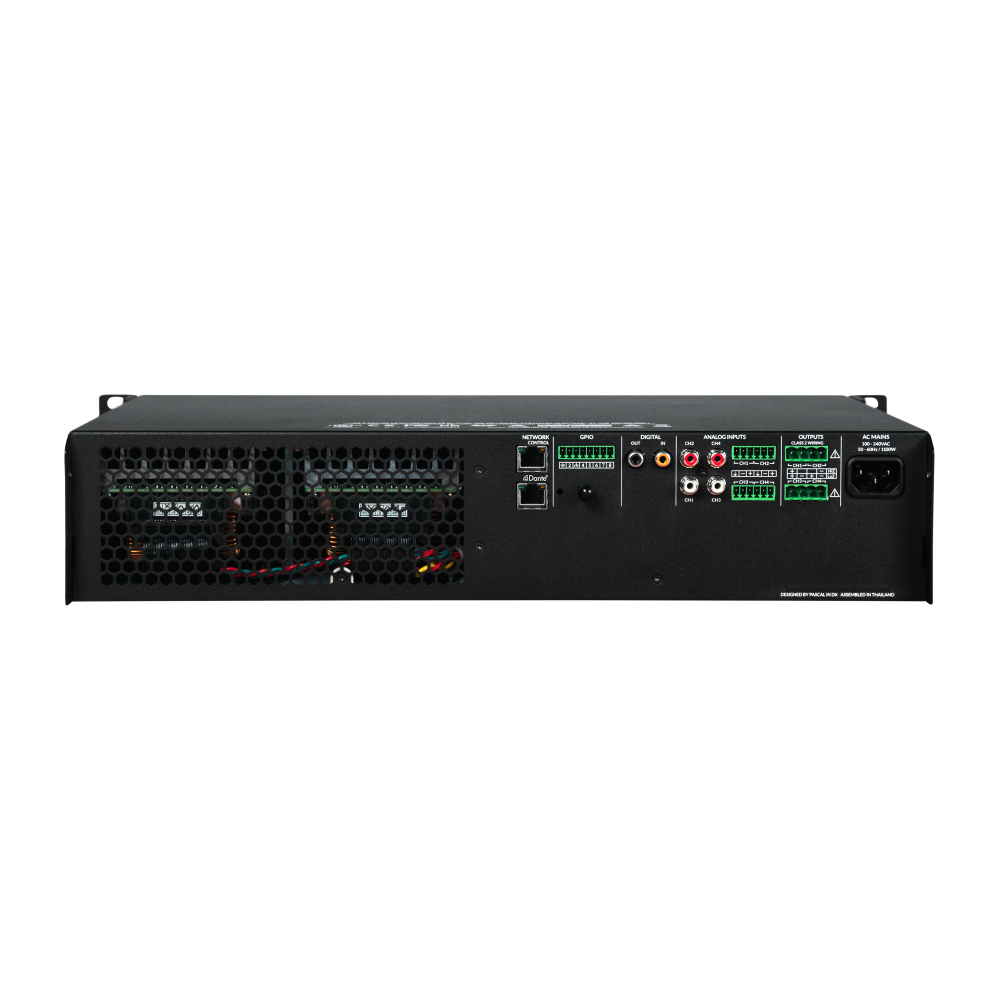

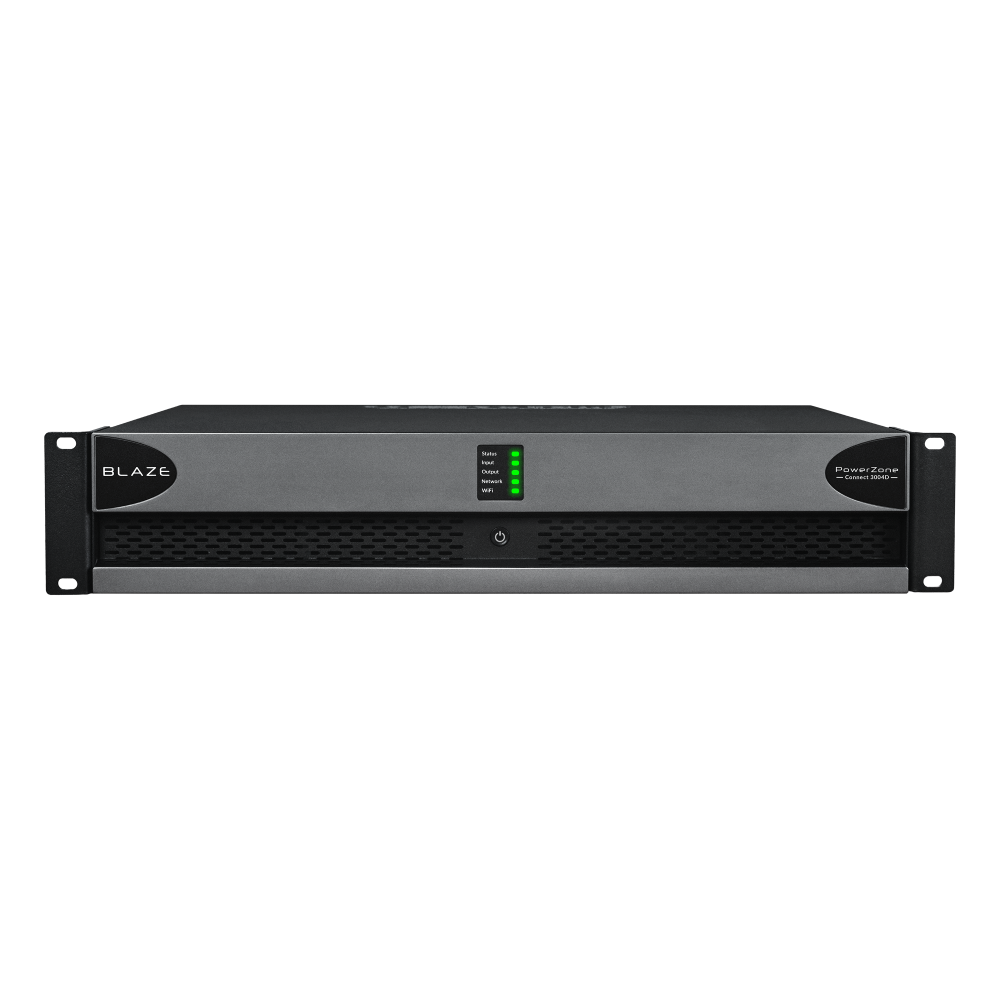

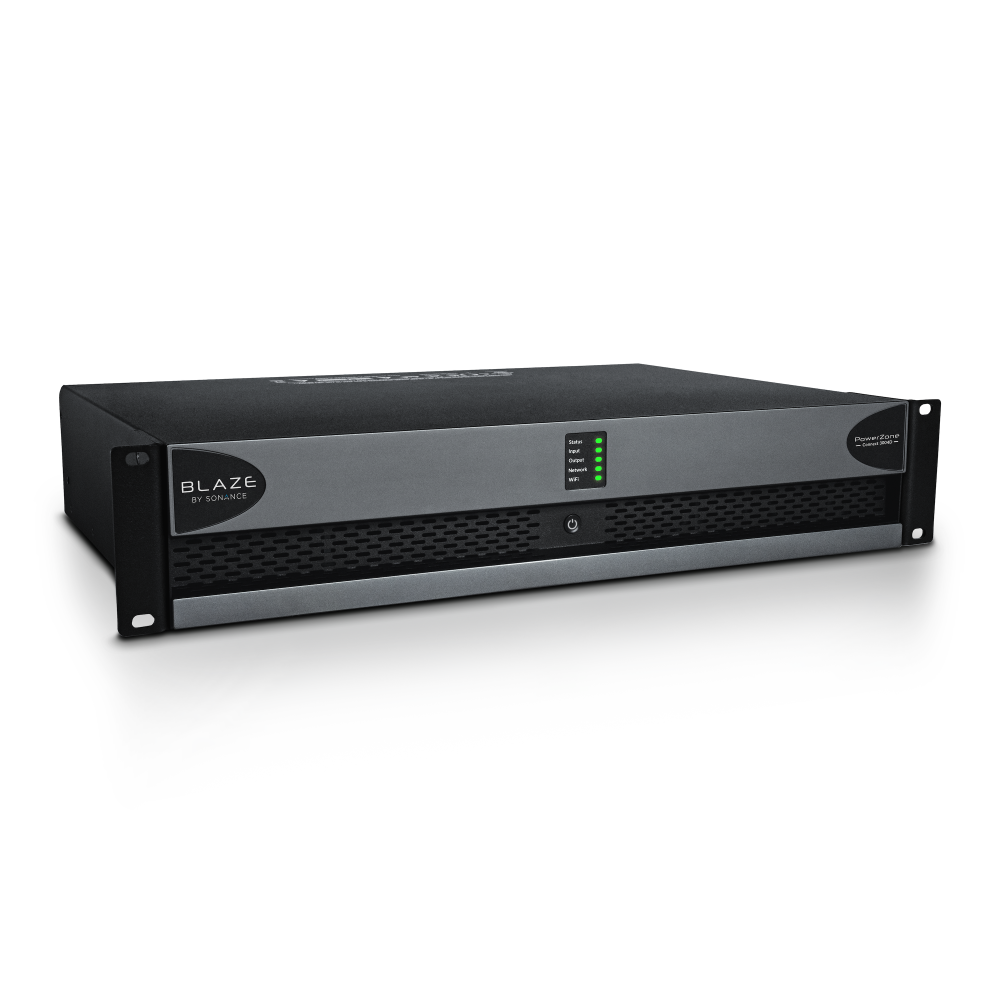

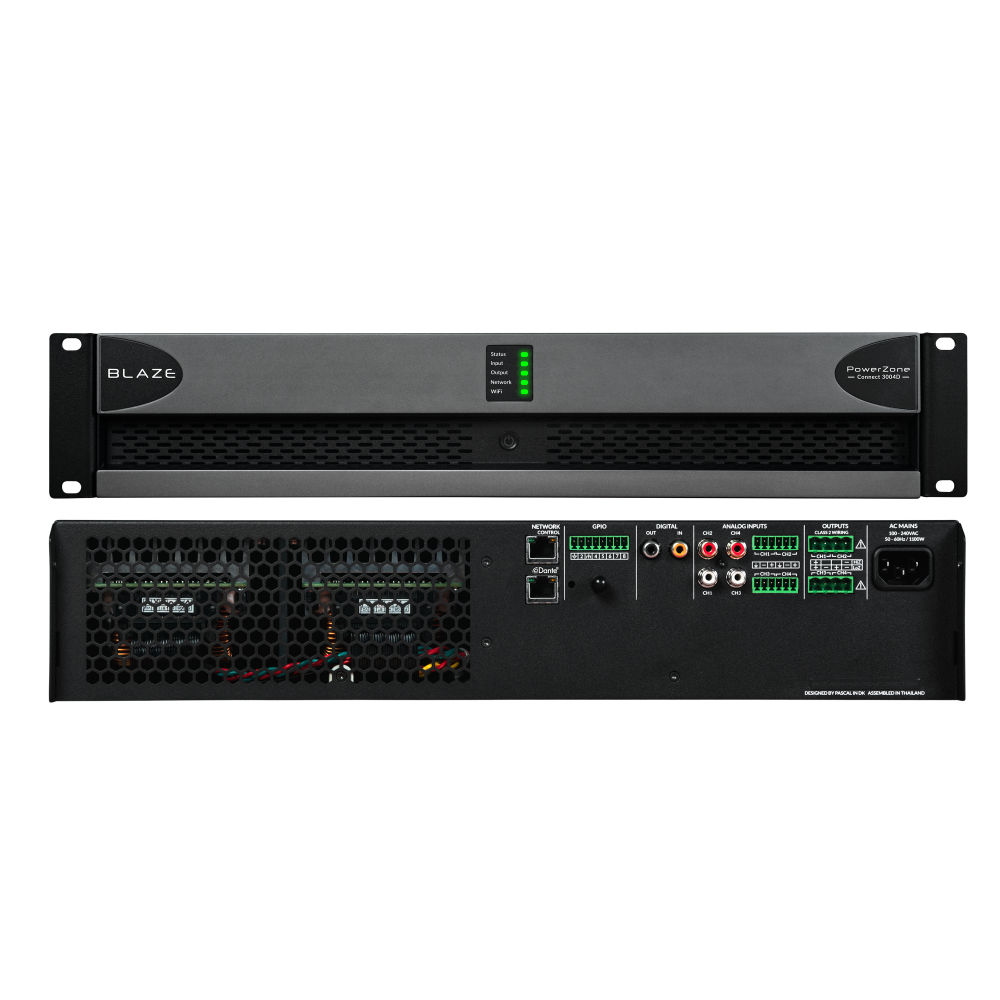

PowerZone Connect 3004D
Amplifiers
Unlock the full potential of your PowerZone Connect amp with PowerZone Control built-in DSP. Learn more.
Key Features
- Full rack 2U form factor
- Full-matrix DSP configuration via PowerZone Control web app (built-in)
- Dante Ultimo chip 4×4 (4-channels)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC Class-D technology
- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- UREC universal power supply with PFC
- 5 Year warranty
Specifications
SKU
LBX-888-008 (PowerZone Connect 3004D)
Dimensions (WxHxD)
17.3" x 3.5" x 12.6" (439.42mm x 88.9mm x 320.04mm)
Weight
16.31 lbs. (7.4kg)
Channel Configuration
Lo-Z: 4x750W @2/4Ω Hi-Z: 2x 1200W @70V
Total System Power
3000 W
Output Power @ 2 ohms
4 x 750 W (SE)
Output Power @ 4 ohms
4 x 750 W (SE) 2 x 1500 W (BTL)
Output Power @ 8 ohms
4 x 400 W (SE) 2 x 1500 W (BTL)
Output Power @ 70V
2 x 1200 W (BTL)
Output Power @ 100V
2 x 1500 W (BTL)
Powersharing
BTL
Power Consumption
700 W
Dante Compatibility
Yes
Rack Units
2U
