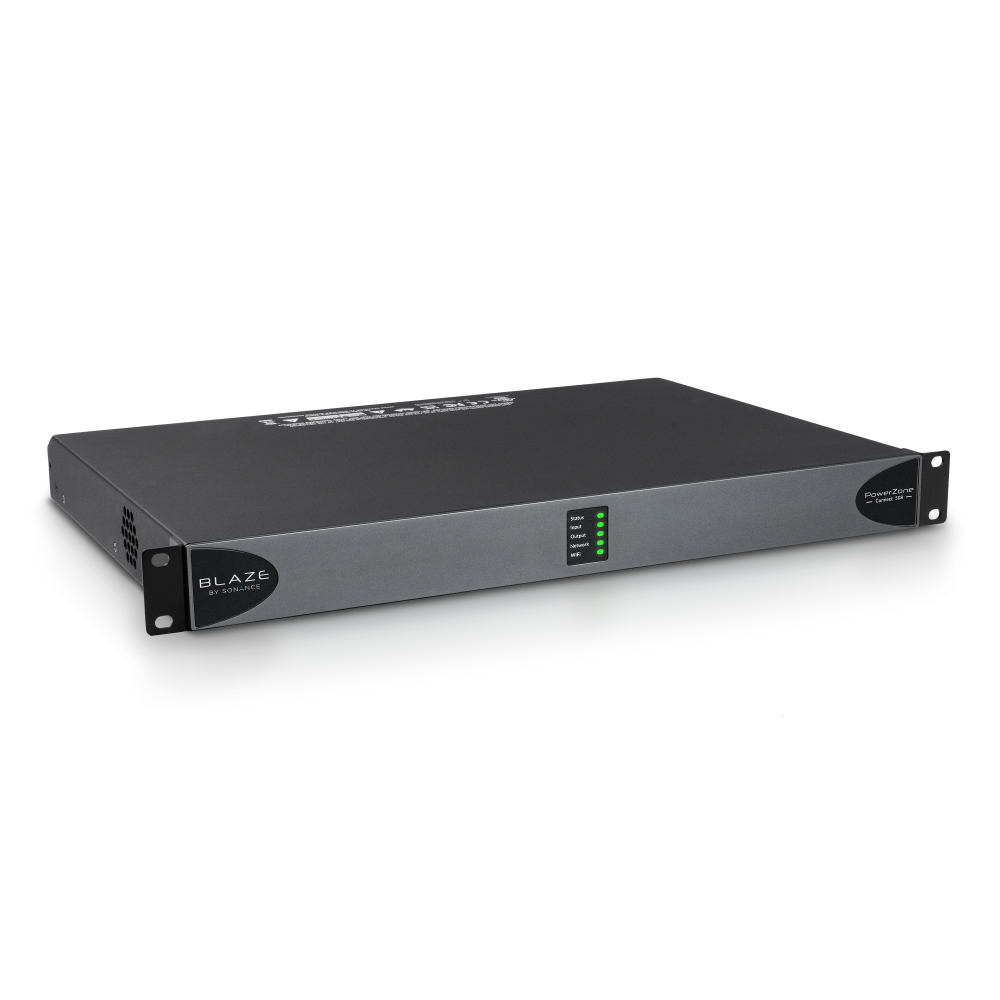

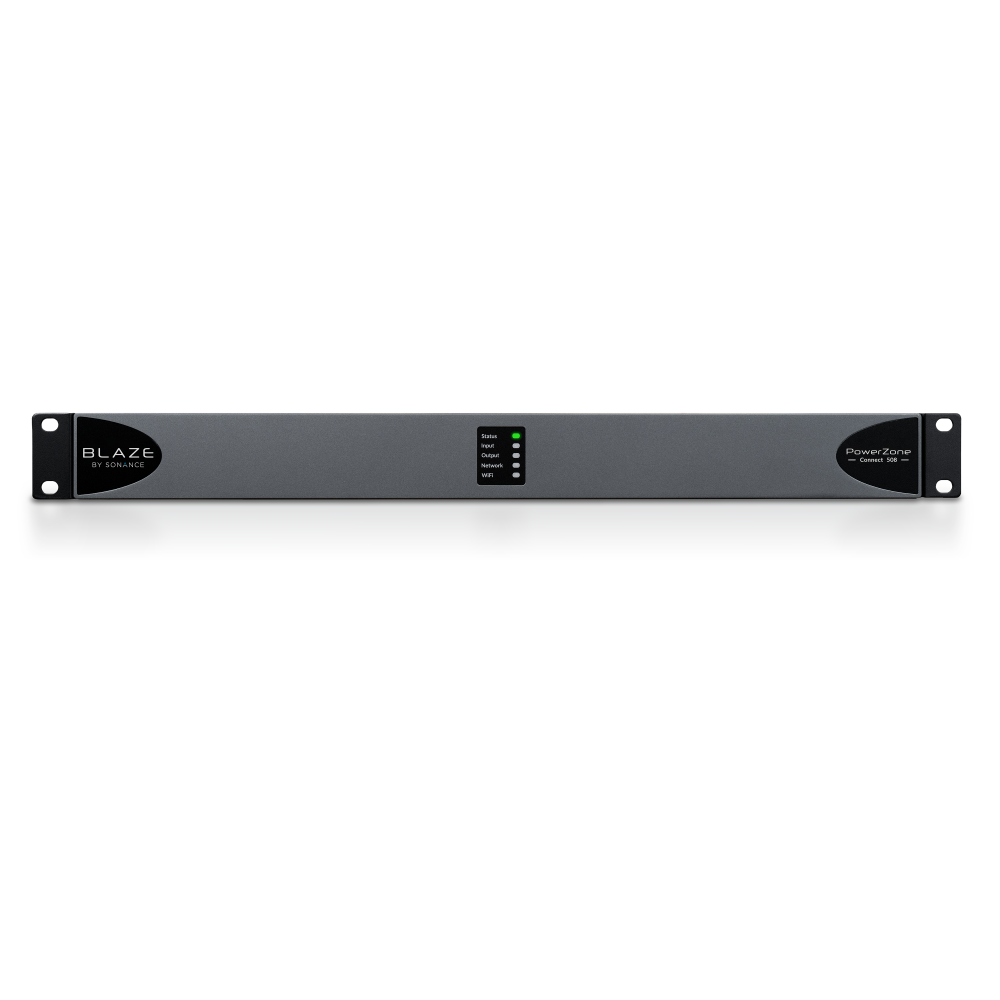

PowerZone Connect 508
PowerZone Connect 508
Blaze Amplifiers
500 W DSP-enabled Class-D amplifier with 8 channels
Key Features
- 1RU form factor
- Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC™ Class-D technology
- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- UREC™ universal power supply with PFC
- 5 Year warranty
Specifications
SKU | Color

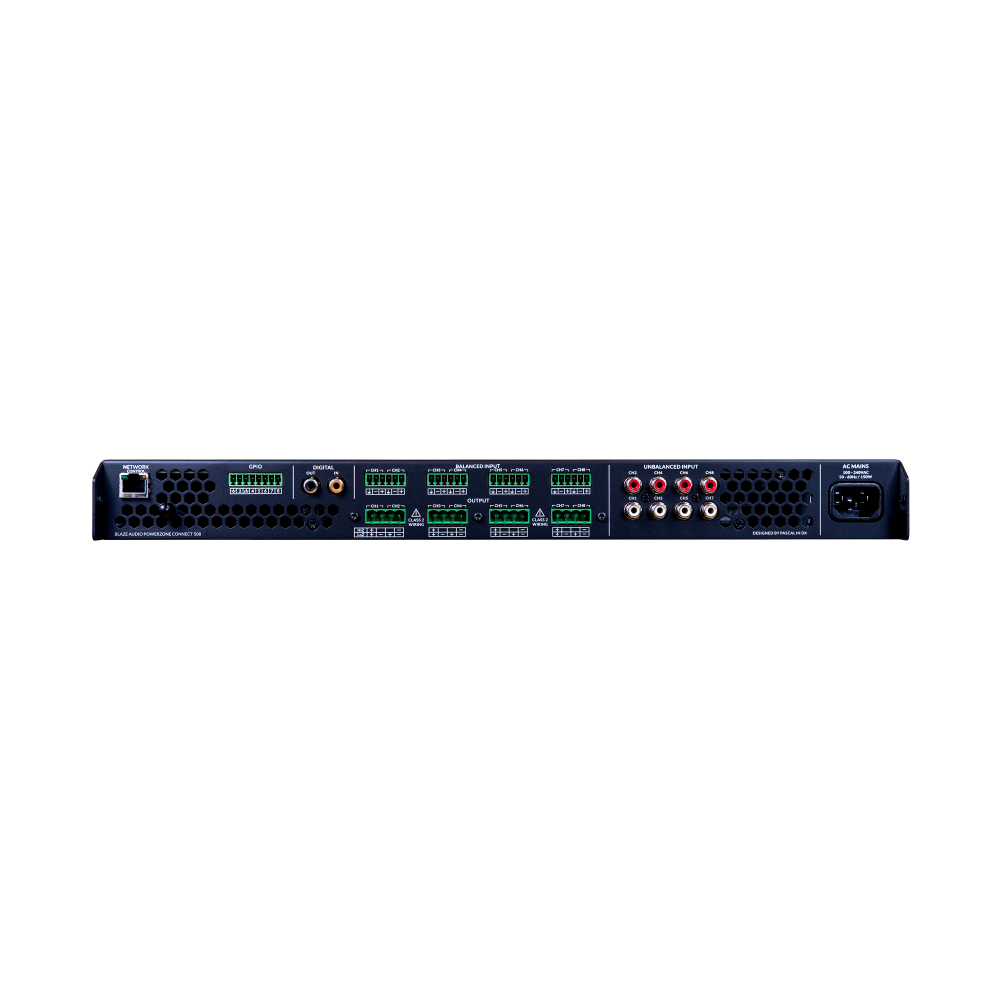

UBX-888-024 (PowerZone Connect 508), UBX-888-038 (PowerZone Connect 508 JPN)
Dimensions (WxHxD)
17.3" x 1.7" x 12.6" (439.42mm x 43.18mm x 320.04mm)
Weight
7.7 lbs. (3.49kg)
Channel Configuration
Lo-Z: 8x60W @4/8Ω Hi-Z: 4x 125W @70/100V Powersharing ≤2x 250W
Total System Power
500 W
Output Power @ 2Ω
0
Output Power @ 4Ω
8 x 60 W
Output Power @ 8Ω
8 x 60 W
Output Power @ 70V
4 x 125 W
Output Power @ 100V
4 x 125 W
Powersharing
≤ 2 X 250 W
Power Consumption
150 W
