PowerZone™ Connect 1U Amplifiers

PowerZone™ Connect 1U Amplifiers
PowerZone™ Connect 1U Amplifiers

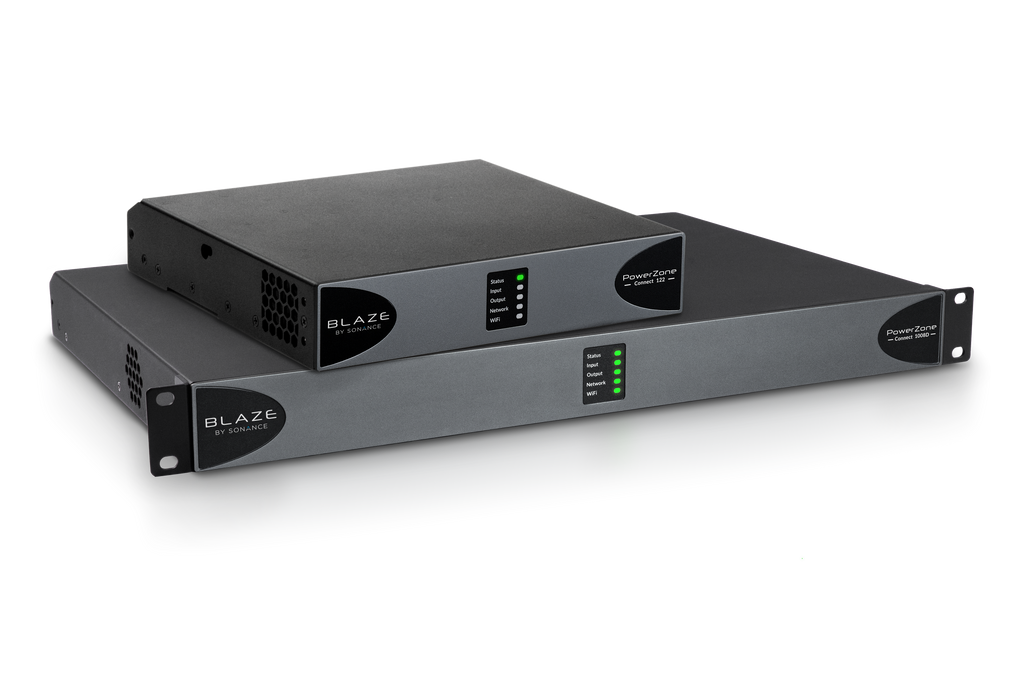

The PowerZone™ Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to make system installers’ lives easier, offering unparalleled reliability and efficiency, along with exceptional system configuration. The amplifiers have a built-in wireless access point for simple connection and easy system setup via Wi-Fi. Select models offer compatibility with Audinate Dante™ AoIP networks and installations.

Key Features

  • Compact 1U full and half-rack form factor
  • Built-in full-matrix DSP
  • Hybrid power distribution in both Lo-Z/Hi-Z
  • Powered by Pascal UMAC™ Class-D technology
  • Flexible power sharing across output channels
  • Dante™: Ultimo™ chip 4×4 (selected models)
  • S/PDIF digital input/output
  • Configurable GPIO
  • ErP and Energy Star compliant
  • UL listed audio equipment

PowerZone™ Connect 1U Series

DSP-enabled amplifier Models

Compare Models

Channel Configuration
Total System Power
Output Power @ 4 ohms
Output Power @ 8 ohms
Output Power @ 70V
Output Power @ 100V
Power Consumption
Dante Compatibility
POWERZONE CONNECT 122 (US POWERCORD ONLY) POWERZONE CONNECT 122 (US POWERCORD ONLY)

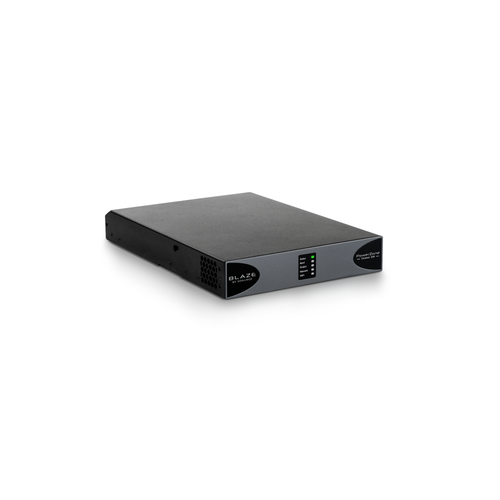

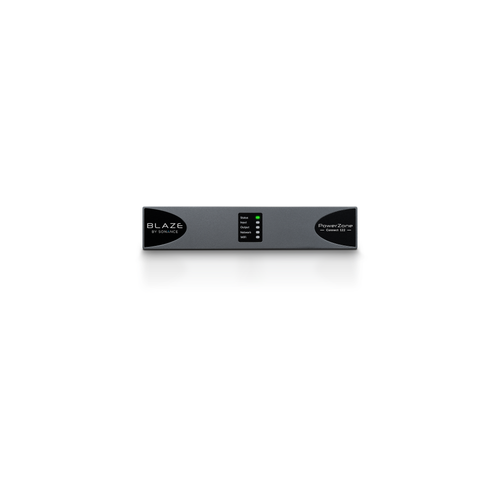

PowerZone Connect 122
125 W DSP-enabled Class-D amplifier with 2 channels
Lo-Z: 2x60W @4/8Ω Hi-Z: 1x 125W @70/100V Powersharing <= 1x 125W
125 W
2 x 60 W
2 x 60 W
1 x 125 W
1 x 125 W
75 W
No
POWERZONE CONNECT 122D (UNIVERSAL POWERCORD) POWERZONE CONNECT 122D

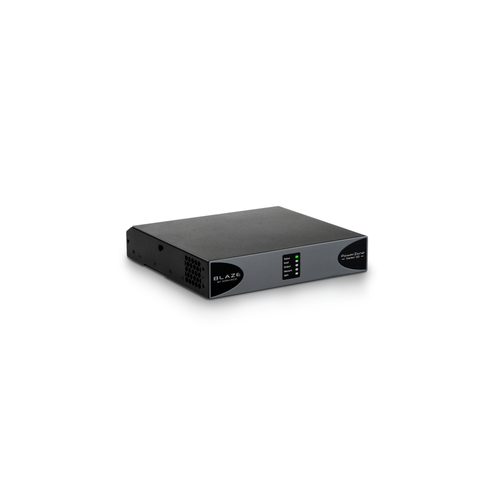

PowerZone Connect 122D
125 W DSP-enabled Class-D amplifier with 2 channels and Dante™
Lo-Z: 2x60W @4/8Ω Hi-Z: 1x 125W @70/100V Powersharing <= 1x 125W
125 W
2 x 60 W
2 x 60 W
1 x 125 W
1 x 125 W
75 W
Yes
POWERZONE CONNECT 252 (US POWERCORD ONLY) POWERZONE CONNECT 252 (US POWERCORD ONLY)

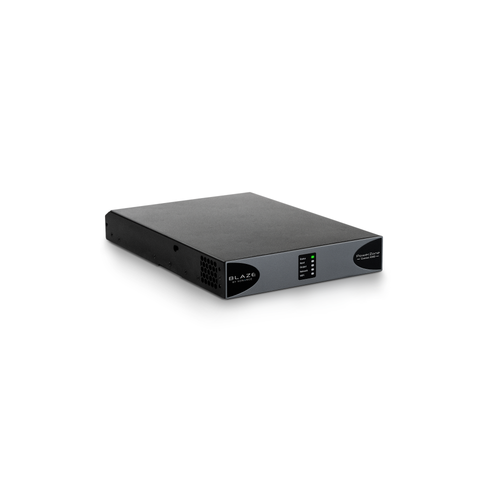

PowerZone Connect 252
250 W DSP-enabled Class-D amplifier with 2 channels
Lo-Z: 2x 125W @4/8Ω Hi-Z: 1x 250W @70/100V Powersharing <= 1x 250W
250 W
2 x 125 W
2 x 125 W
1 x 250 W
1 x 250 W
75 W
No
POWERZONE CONNECT 254 (US POWERCORD ONLY) POWERZONE CONNECT 254 (US POWERCORD ONLY)
PowerZone Connect 254
250 W DSP-enabled Class-D amplifier with 4 channels
Lo-Z: 4x60W @4/8Ω Hi-Z: 2x 125W @70/100V Powersharing <= 1x 250W
250 W
4 x 60 W
4 x 60 W
2 x 125 W
2 x 125 W
75 W
No
POWERZONE CONNECT 504 (US POWERCORD ONLY) POWERZONE CONNECT 504 (US POWERCORD ONLY)
PowerZone Connect 504
500 W DSP-enabled Class-D amplifier with 4 channels
Lo-Z: 4x 125W @4/8Ω Hi-Z: 2x 250W @70/100V Powersharing <= 2x 250W
500 W
4 x 125 W
4 x 125 W
2 x 250 W
2 x 250 W
150 W
No
POWERZONE CONNECT 504D (UNIVERSAL POWERCORD) POWERZONE CONNECT 504D
PowerZone Connect 504D
500 W DSP-enabled Class-D amplifier with 4 channels and Dante™
Lo-Z: 4x 125W @4/8Ω Hi-Z: 2x 250W @70/100V Powersharing <= 2x 250W
500 W
4 x 125 W
4 x 125 W
2 x 250 W
2 x 250 W
150 W
Yes
POWERZONE CONNECT 508 JPN POWERZONE CONNECT 508 JPN
PowerZone Connect 508
500 W DSP-enabled Class-D amplifier with 8 channels
Lo-Z: 8x60W @4/8Ω Hi-Z: 4x 125W @70/100V Powersharing <= 2x 250W
500 W
8 x 60 W
8 x 60 W
4 x 125 W
4 x 125 W
150 W
No
POWERZONE CONNECT 1008 (UNIVERSAL POWERCORD) POWERZONE CONNECT 1008 (UNIVERSAL POWERCORD)

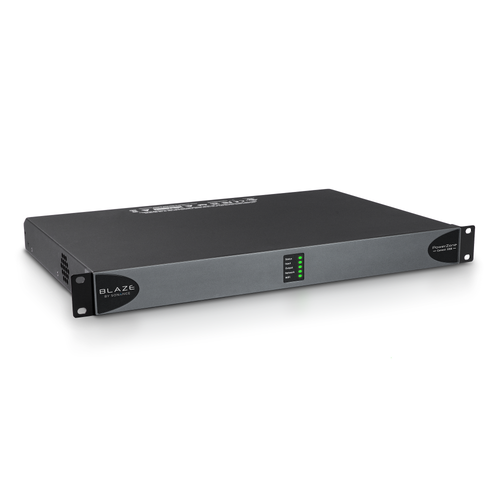

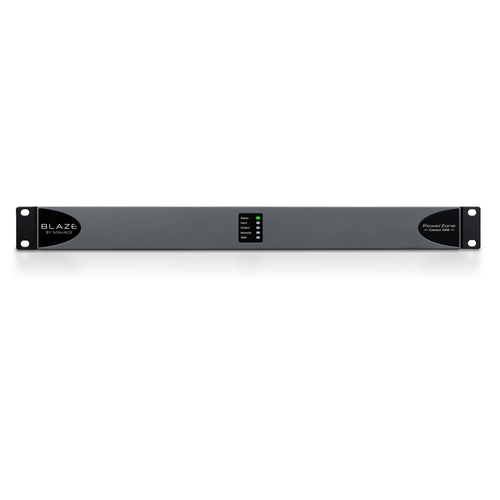

PowerZone Connect 1008
1000 W DSP-enabled Class-D amplifier with 8 channels
Lo-Z: 8x125W @4/8Ω Hi-Z: 4x 250W @70/100V Powersharing <= 4x 250W
1000 W
8 x 125 W
8 x 125 W
4 x 250 W
4 x 250 W
300 W
No
POWERZONE CONNECT 1008D POWERZONE CONNECT 1008D
PowerZone Connect 1008D
1000 W DSP-enabled Class-D amplifier with 8 channels and Dante™
Lo-Z: 8x125W @4/8Ω Hi-Z: 4x 250W @70/100V Powersharing <= 4x 250W
1000 W
8 x 125 W
8 x 125 W
4 x 250 W
4 x 250 W
300 W
Yes
