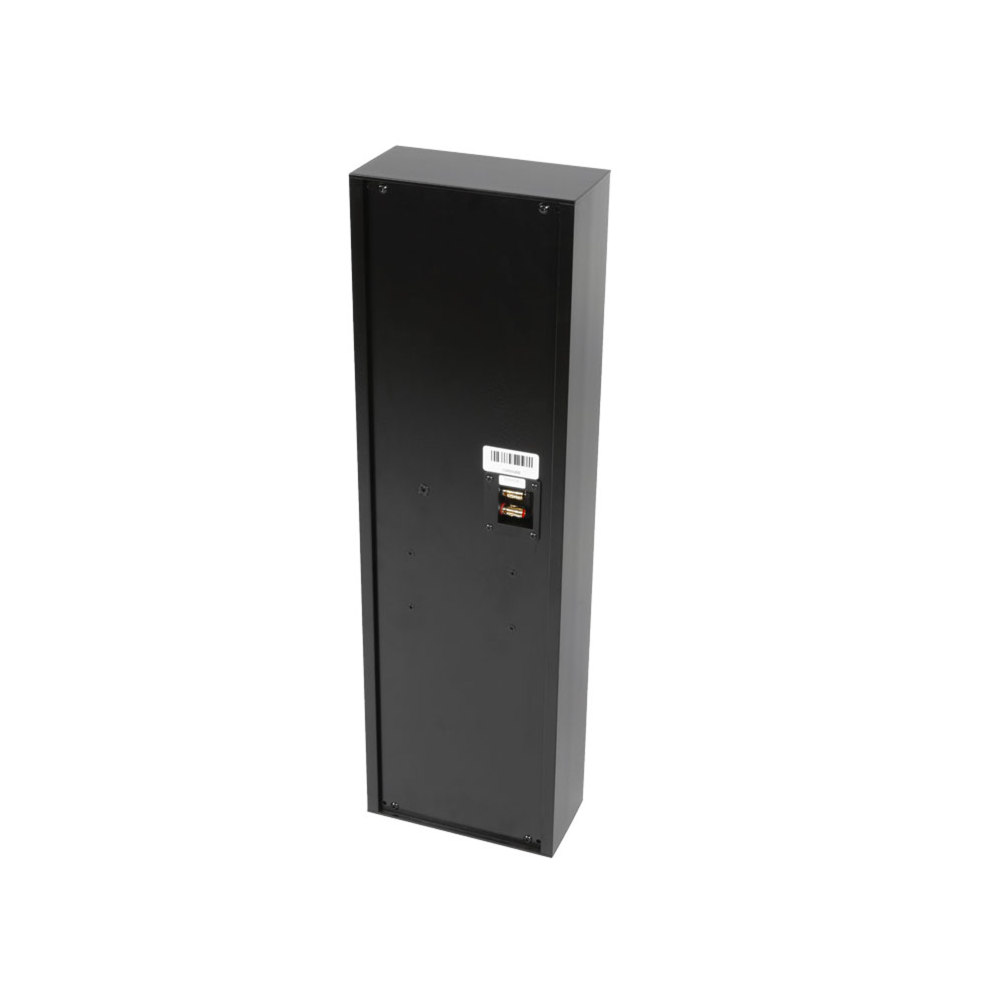

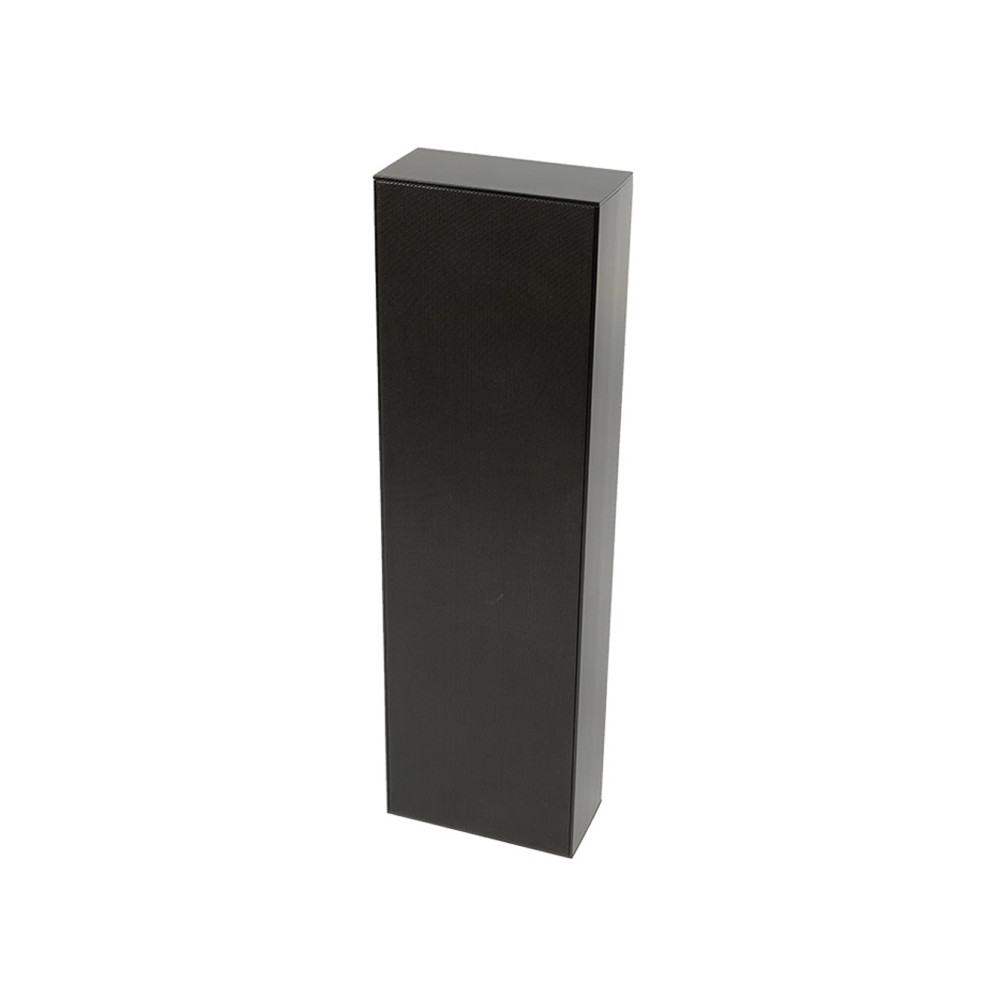

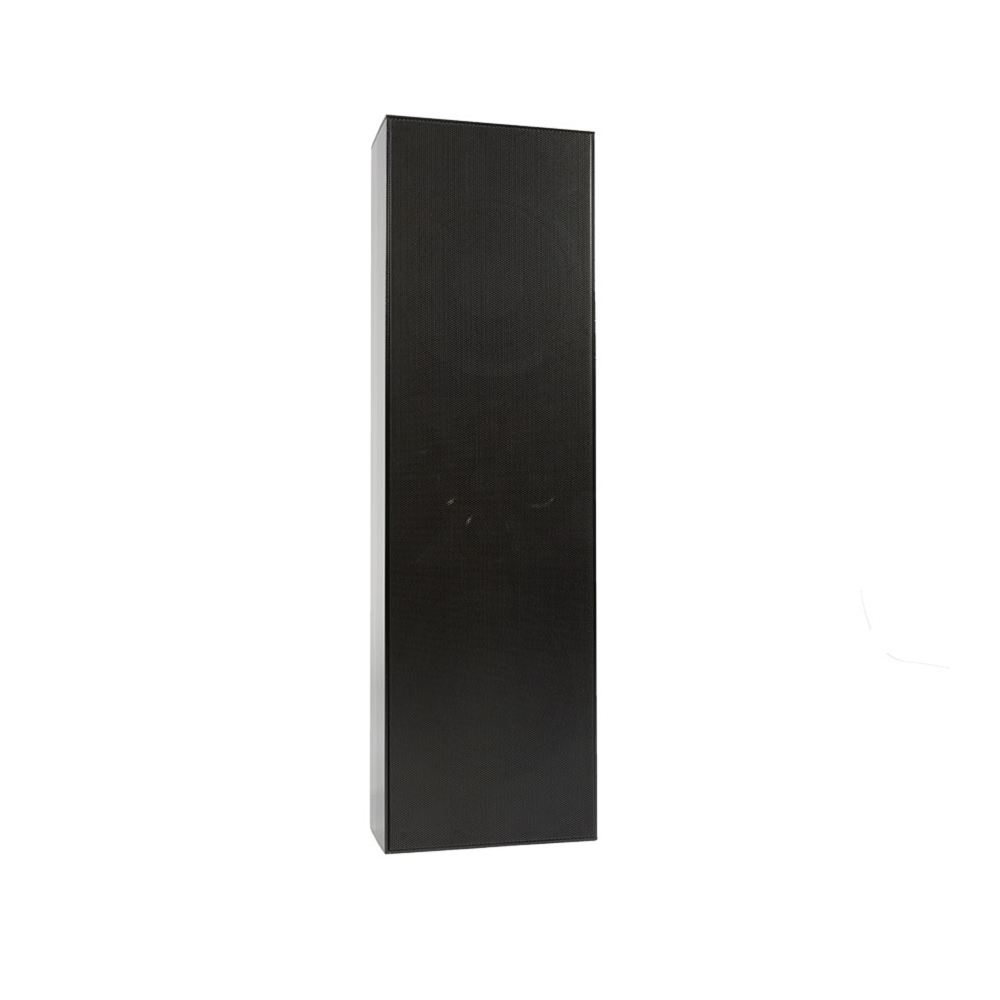

OW66QBE
OW66QBE
On Wall

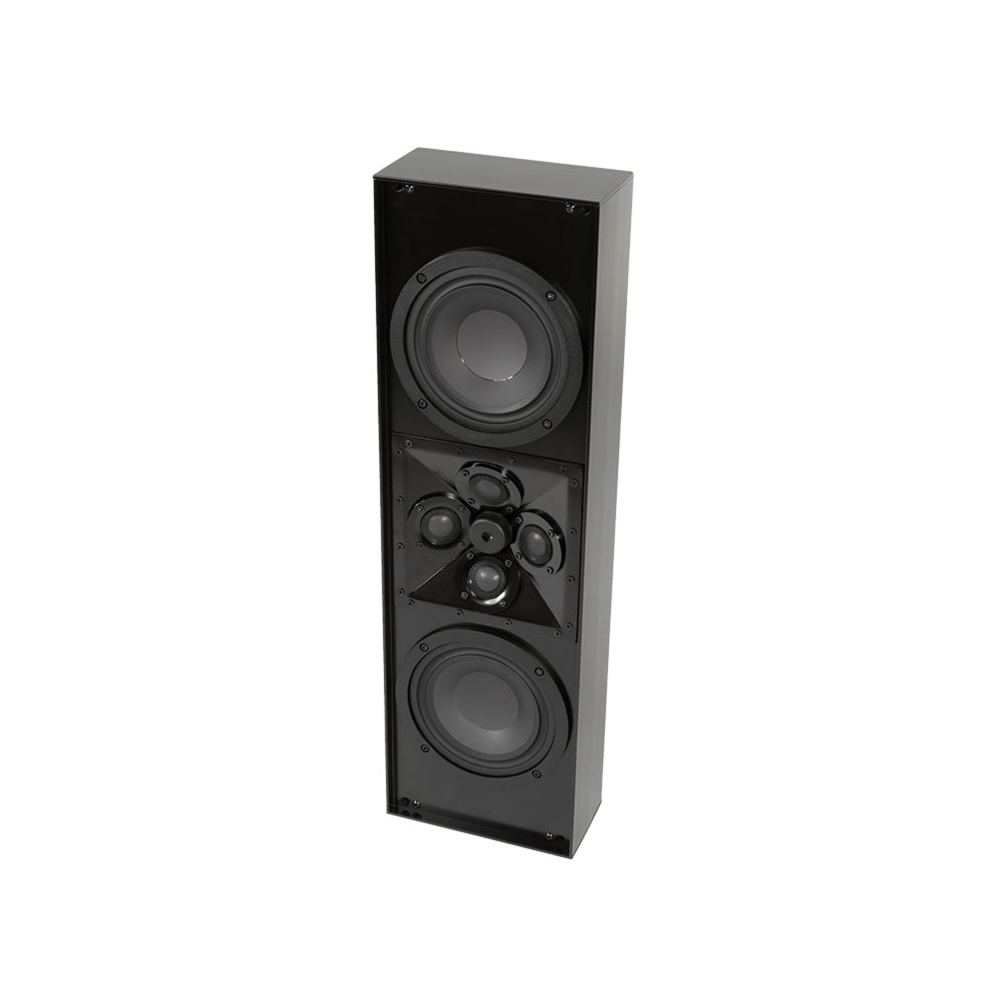

The OW66QBE features dual 6.5" proprietary woofers delivering bass down to 75 Hz and four 1" Beryllium dome tweeters for smooth response up to 40kHz. A James-designed network ensures seamless integration between the woofers and tweeters, providing excellent performance on and off-axis for an immersive audio experience.
Key Features
- Quad Tweeter Array for wide dispersion and crisp fidelity (“Q” models only)
- Marine grade aluminum construction with fluoropolymer coating for solid, secure, and long-lasting performance indoors or outdoors (marine models only; must be specified when ordering)
- Available in low impedance or 70V configurations
- Simple through-hole installation
- Optional Mason Box installation accessories available
- TAA Compliant
Specifications
SKU | Color
OW66QBE
Speaker Tweeter
(4) 1" (25mm) Beryllium dome
Speaker Woofer
(2) 6.5" (165mm) Aluminum
Frequency Response (+/- 3db)
75Hz - 40kHz
Sensitivity
95dB (2.83V/1m)
Recommended Power Range
25 - 200W
Enclosure
Aircraft Marine Grade Aluminum
Nominal Impedance (Ohms)
4 Ohms
Dimensions (WxHxD)
8.13" x 27.0" x 4.0" (206.38mm x 685.8mm x 101.6mm)
