Invisible Series
Ci4V
Blaze Speakers

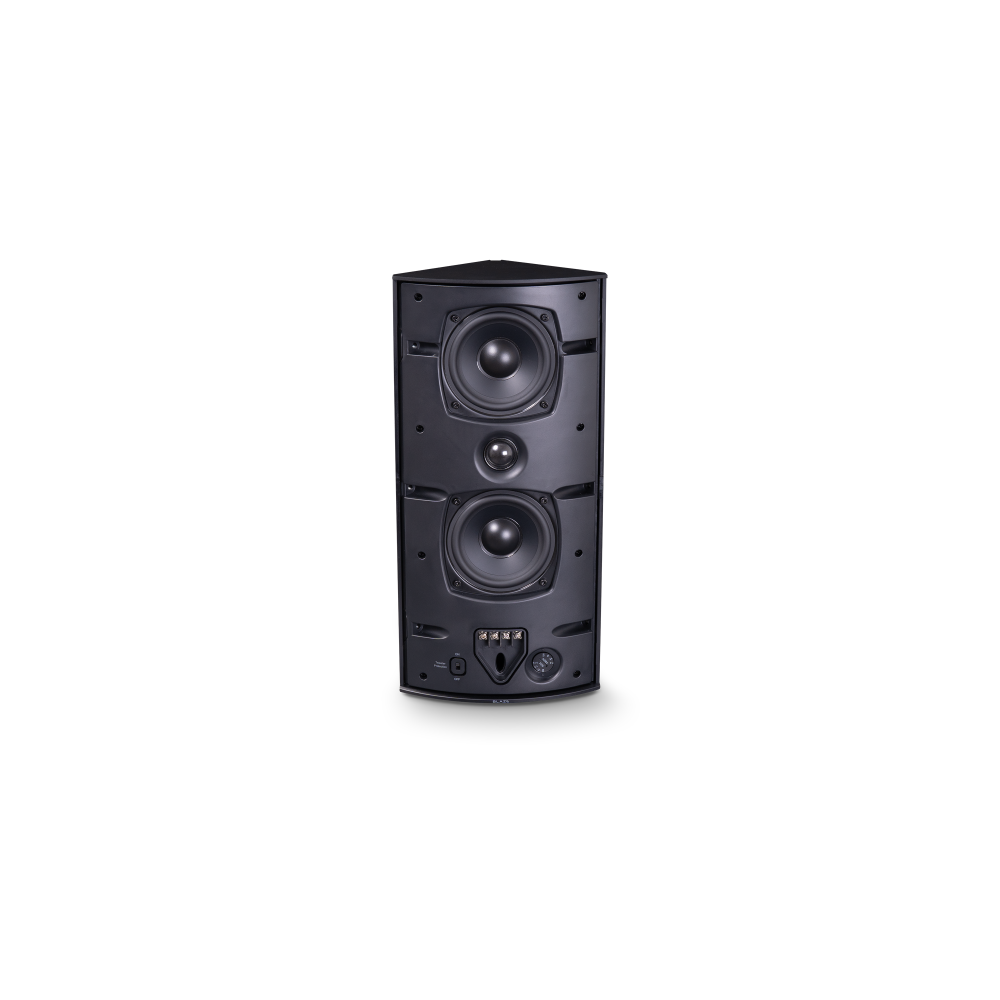

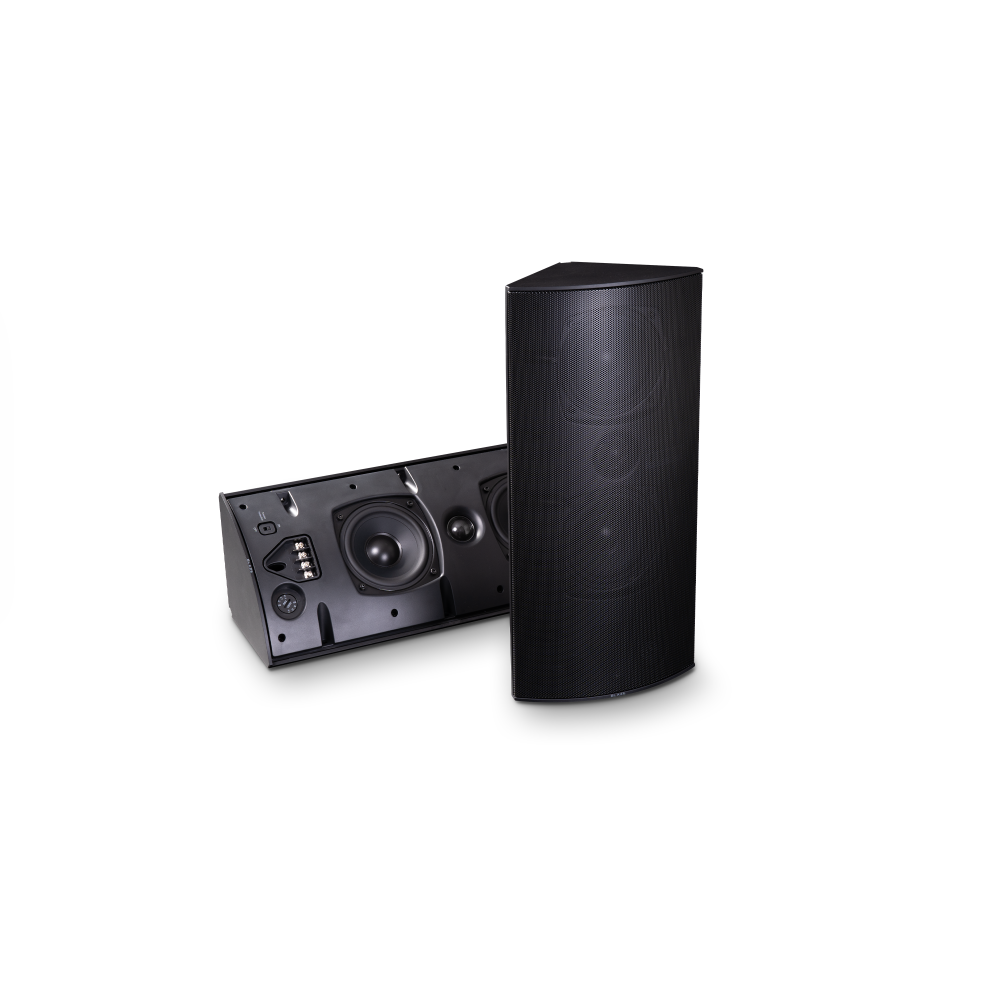

4" passive, 2-way, full-range loudspeaker w/ switchable high-impedance mode
Key Features
- 4" woofer + 4" passive radiator. 1" silk dome tweeter. Switchable 100/70V mode/8 Ω mode. IP65 rated. Switchable limiting circuit for tweeter.
- Triangular ABS cabinet. Metal grille. Mounts without brackets or with hidden sliders. Hidden cable connection. Screw terminals.
- Couples together for 180° or 270° coverage.
- Placement: Indoors or outdoors, walls/ceilings including corners or hanging from the ceiling.
- Compatible with Blaze Audio’s C8S and C12S subwoofers.
- Available in black or white.
Specifications
SKU | Color
BGM-888-009 (Black), BGM-888-010 (White)
HF Driver
1" silk dome tweeter
LF Driver
4" woofer + 4" passive radiator
Frequency Response (+/- 10db)
60 - 20 Hz
Sensitivity
86dB
Recommended Power Range
25 - 50 W / 8ohms x 70v x 100v
Enclosure
ABS
Dimensions (WxHxD)
7.48" x 15.75" x 5.71" (189.99mm x 400.05mm x 145.03mm)
Weight
5.95 lbs. (2.7kg)
Grille
Perforated Steel
Suspension Points
Indoors or outdoors, walls/ceilings incl. corners or hanging from ceiling, coupled.
Coverage (-6dB)
100 Degrees vertical / 100 Degrees horizontal
Maximum SPL (Peak)
111 dB
Horizontal Nominal Dispersion (-6 dB)
100 Degrees
