OW64QT
OW64QT
On Wall

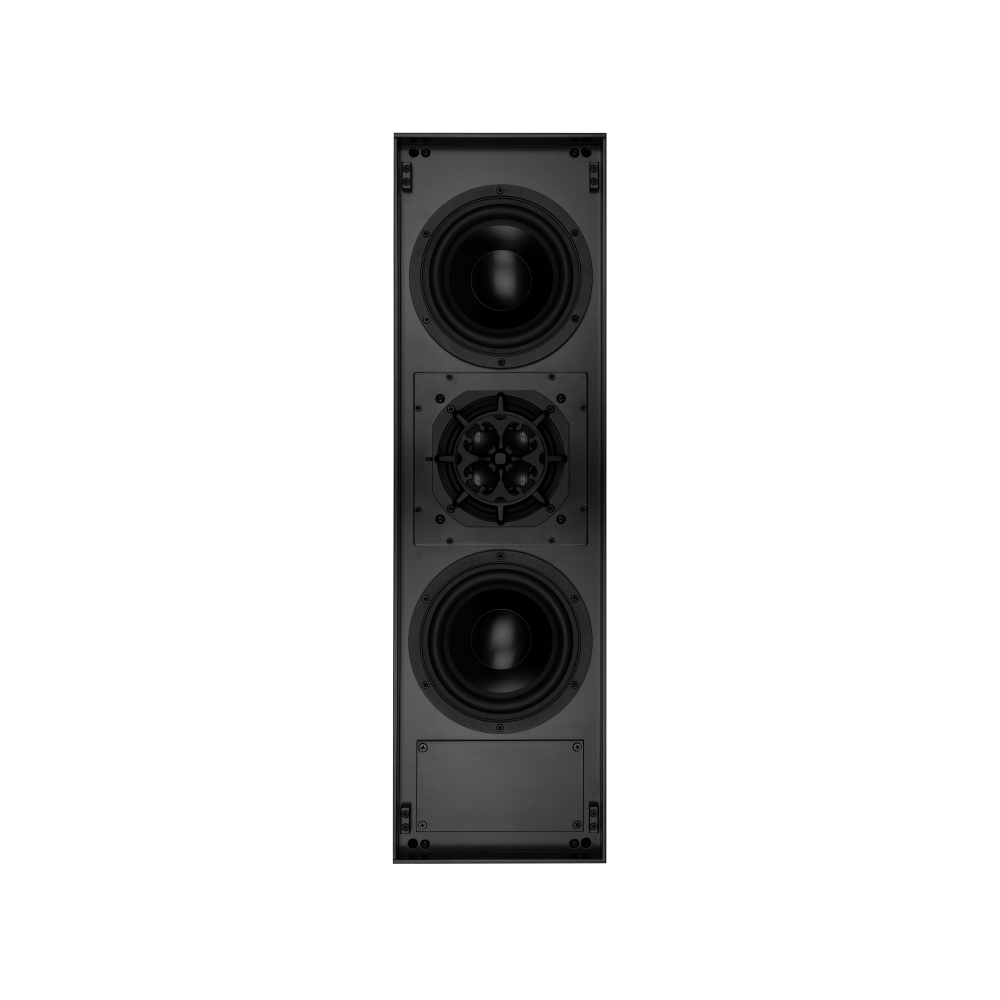

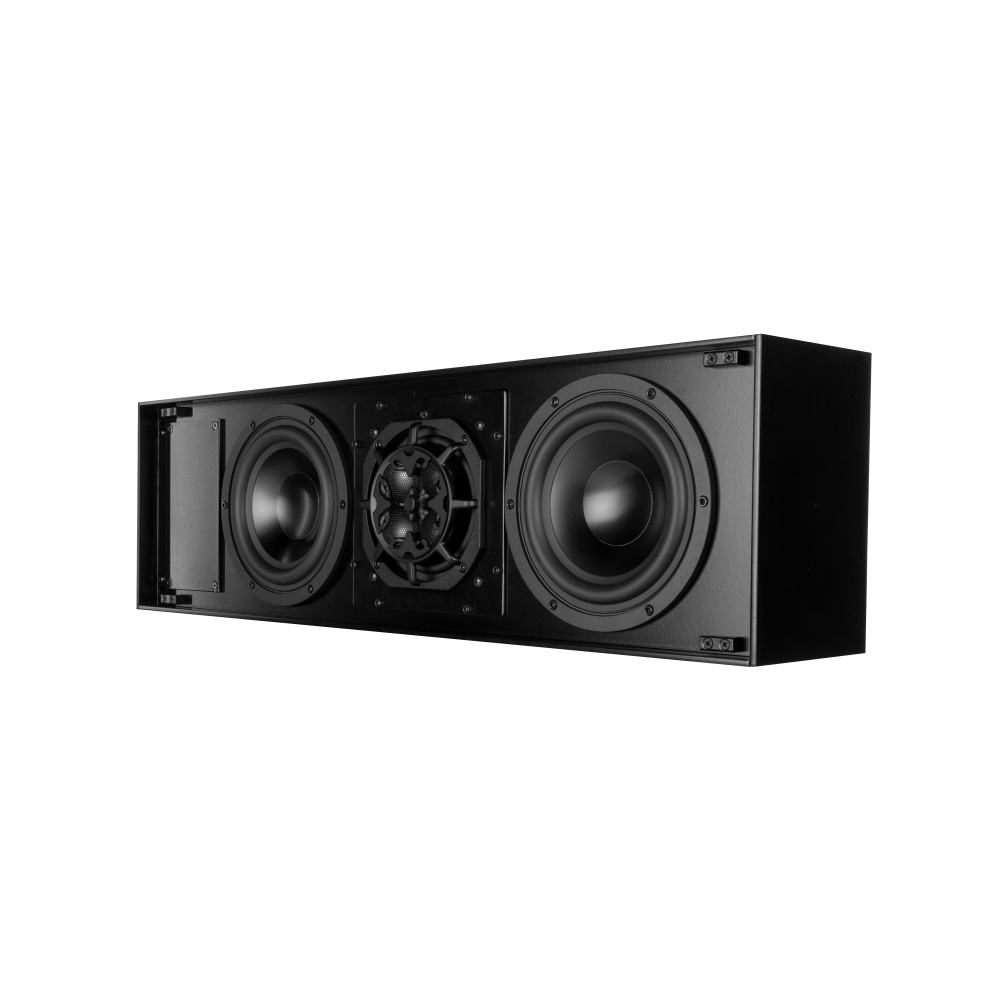

The James OW64QT is the Series' high performance full-range model, featuring the James Quadratech tweeter technology, a 5.25" midrange driver, and two 6" woofers. The cabinet is 5.5" deep and can be installed on wall using the built in mounting through holes or into hardscape surfaces using a James Loudspeaker Mason Box.
Key Features
- Quad Tweeter Array for wide dispersion and crisp fidelity (“Q” models only)
- Marine grade aluminum construction with fluoropolymer coating for solid, secure, and long-lasting performance indoors or outdoors (marine models only; must be specified when ordering)
- Available in low impedance or 70V configurations
- Simple through-hole installation
- Optional Mason Box installation accessories available
- TAA Compliant
Specifications
SKU | Color
OW64QT
Speaker Tweeter
(4) 0.75" Aluminum Dome Tweeters
Speaker Woofer
(2) 6.5" Aluminum Cone Woofers
Speaker Mid Range
(1) 5.25" Aluminum Cone Driver
Frequency Response (+/- 3db)
45Hz - 24kHz
Sensitivity
91dB (2.83V/1m)
Recommended Power Range
100 - 300W
Enclosure
Aircraft Marine Grade Aluminum
Nominal Impedance (Ohms)
4 Ohms or 70V
Dimensions (WxHxD)
8.25" x 28.0" x 5.5" (209.55mm x 711.2mm x 139.7mm)
