C6R
C Series
Key Features
- Feature Sonance RotoLock® mounting system for quick mounting directly into existing ceilings
- Available in standard stereo pairs
- Trimless magnetic grille
- Sold in master pack or pallet quantities only
- Limited Lifetime Warranty valid on C Series (Contractor Series) products purchased from an authorized Sonance dealer or distributor (excludes grilles which have a limited 5 Year Warranty)
Specifications
SKU
93124
Speaker Tweeter
1.0" (25mm) cloth dome, Ferrofluid-cooled, pivoting
Speaker Woofer
6.5" (165mm) Polypropylene cone with a rubber surround
Frequency Response (+/- 3db)
50Hz - 20kHz
Power Handling (RMS)
5 watts minimum; 85 watts maximum
Sensitivity
88dB (2.83V/1m)
Nominal Impedance (Ohms)
8 ohms
Dimensions (Diameter x D)
9.0" x 3.75" (228.6mm x 95.25mm)
Cut-Out Dimensions (Diameter)
8.25" (209.55mm)
Mounting Depth
3.75" (95.25mm)
Weight
3.25 lbs. (1.47kg)
Grille
Perforated Steel

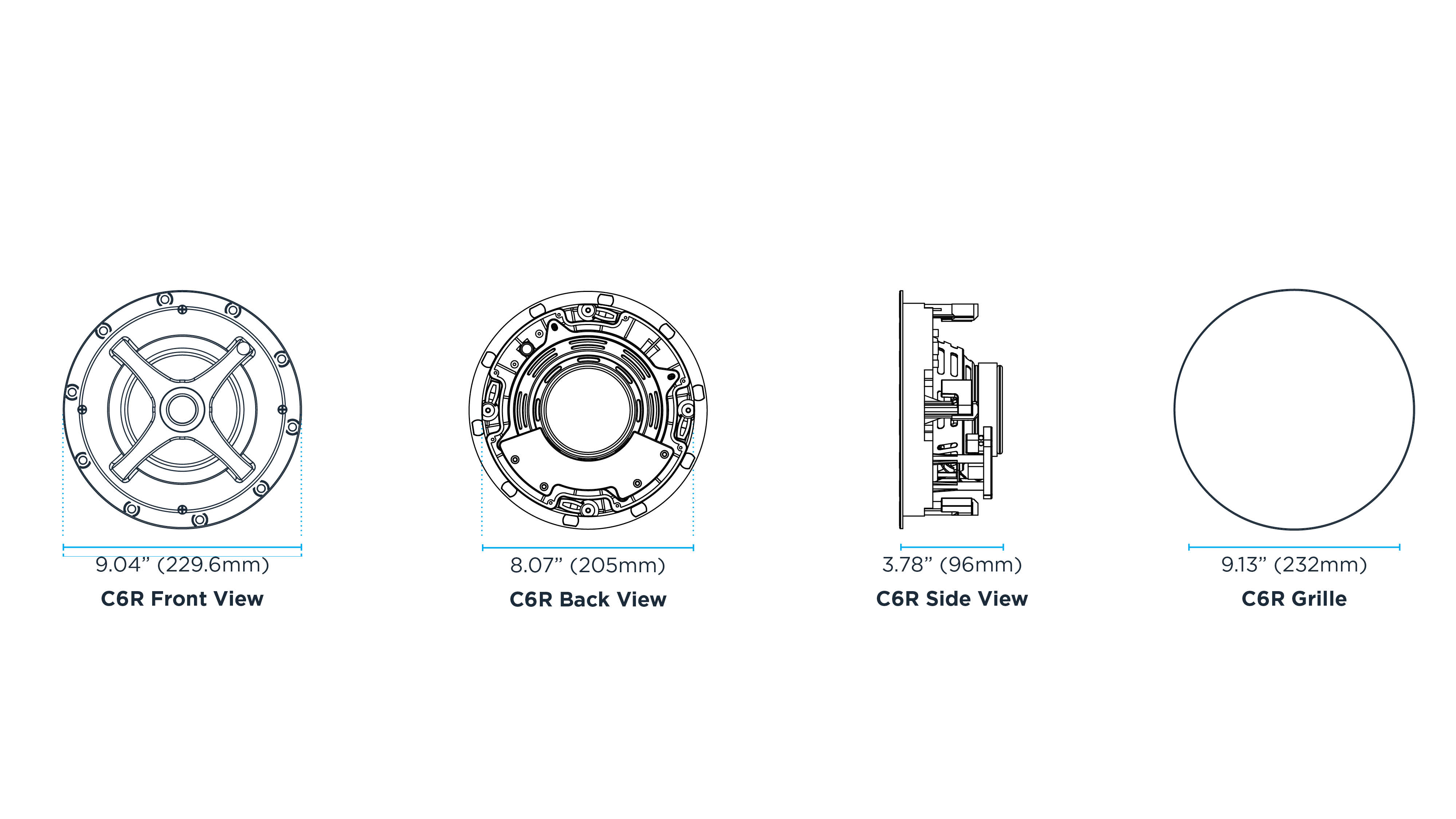

Dimensional Drawings
