CBL523
Blaze Speakers
Key Features

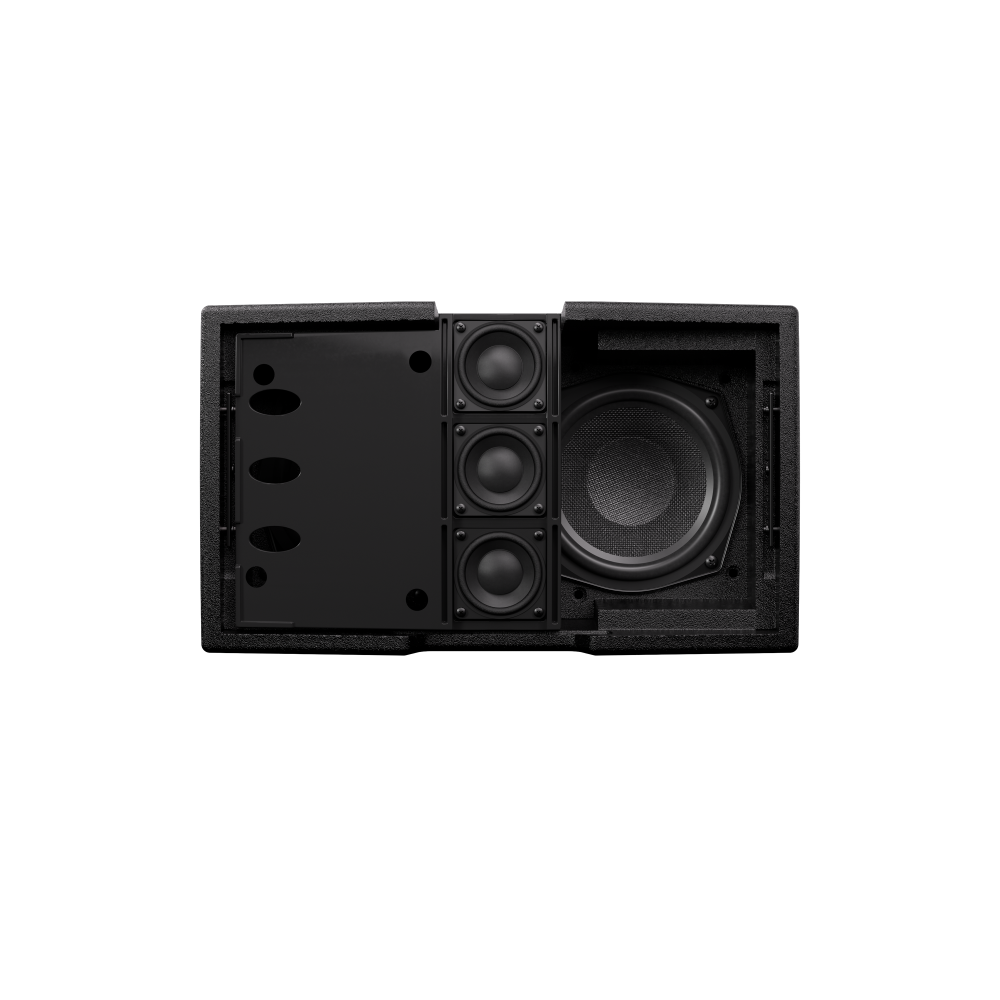

- Two x 5" custom low-frequency drivers.
- Three x 2" mid-high frequency drivers.
- 160° x 55° Constant Beamwidth pattern. (Average beamwidth, 500 Hz – 5 kHz)
- 119 dB maximum SPL.

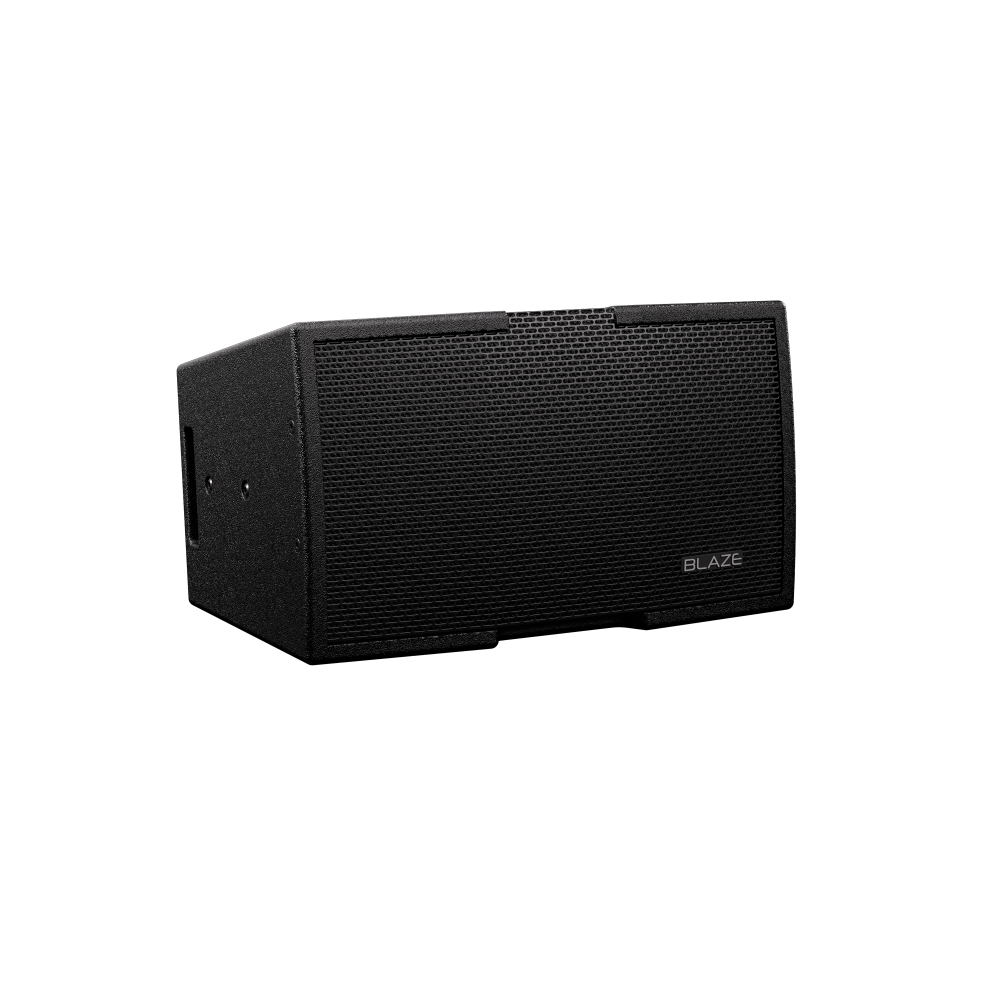

- Symmetrical and compact trapezoidal design.

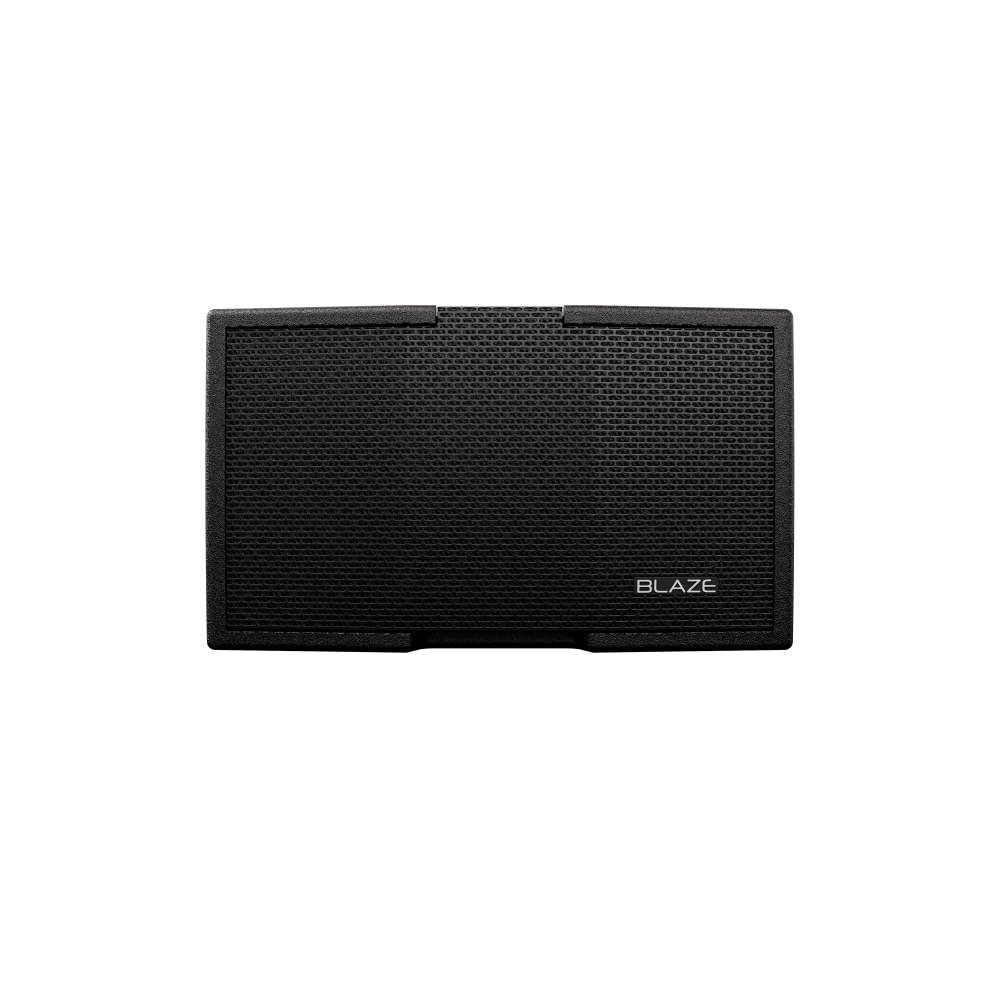

- Powder coated steel grille with a high transmission ratio.
- Tuned with a passive crossover and integration with Blaze Audio.
Specifications
SKU

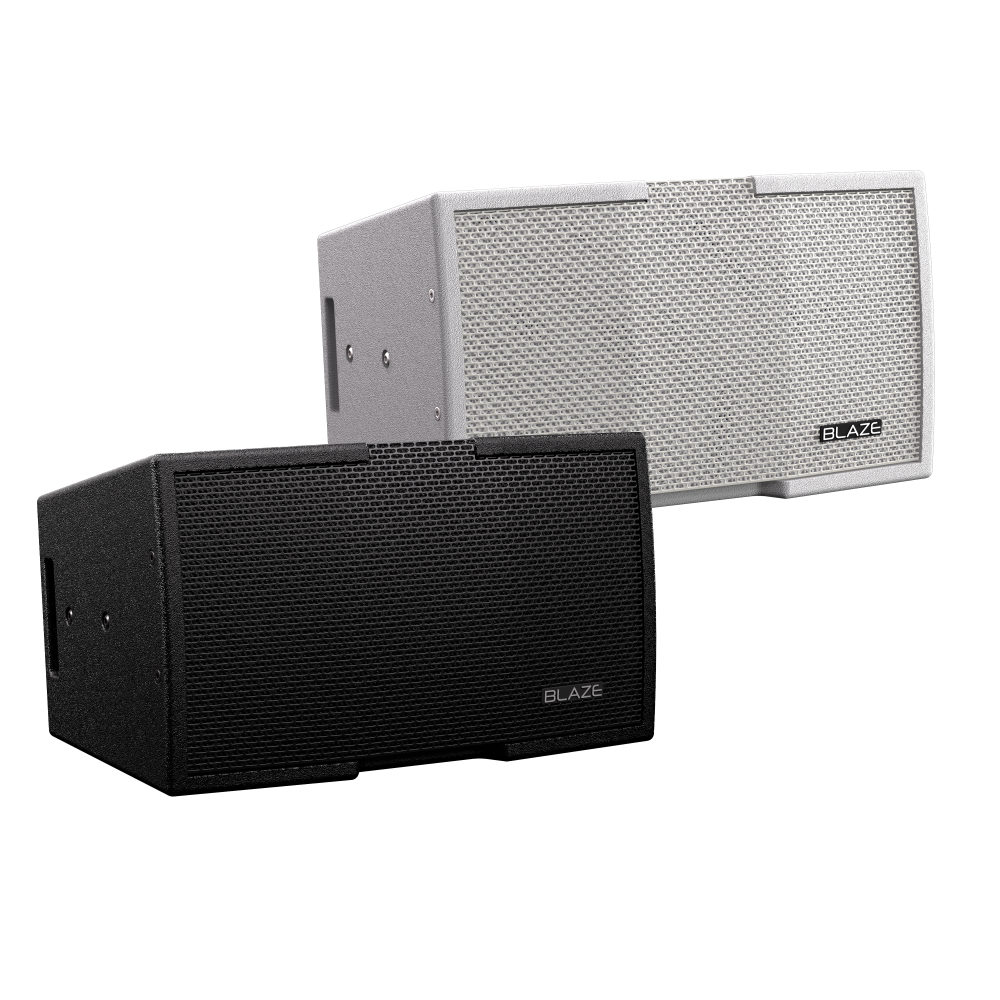

FGM-888-008 (Black), FGM-888-009 (White)
HF Driver
Coaxial: Three 2" mid- HF vertically arrayed
LF Driver
Two 5" LF drivers w/ Acoustic Centering
Frequency Response (+/- 10db)
55 Hz - 18 kHz
Frequency Response (+/- 3db)
71 Hz - 18 kHz
Power Handling (RMS)
160W Long Term Power Handling Full Range @4Ω
Sensitivity
91dB
Enclosure
12 mm birch plywood, engineered plastics
Dimensions (WxHxD)
13.78" x 8.08" x 8.9" (350.01mm x 205.23mm x 226.06mm)
Weight
15 lbs. (6.8kg)
Grille
16-gauge (1.6mm) perforated steel, powder-coated finish, black
Suspension Points

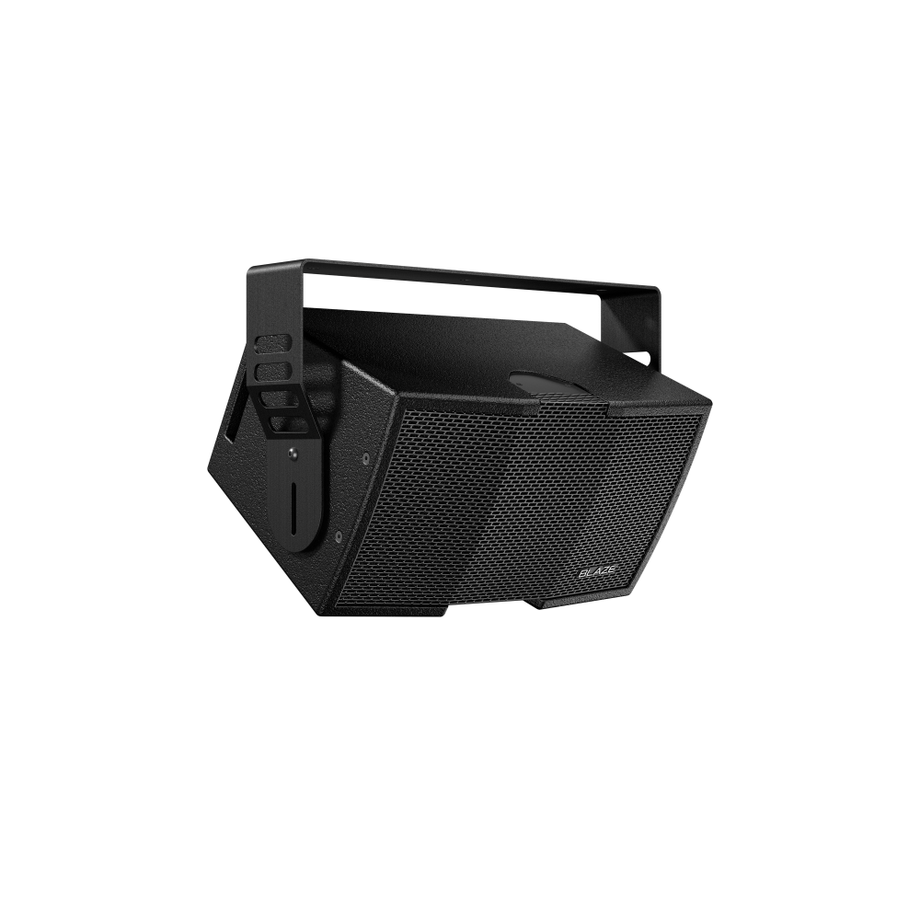

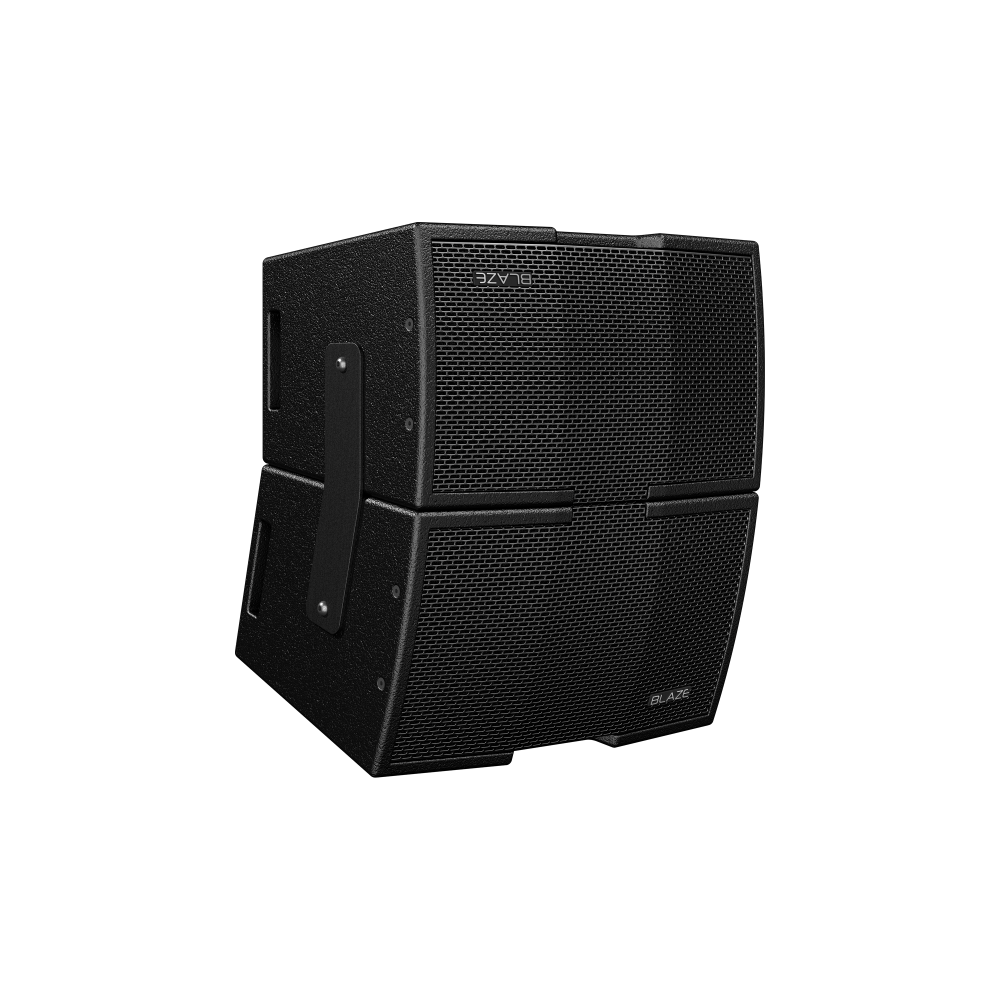

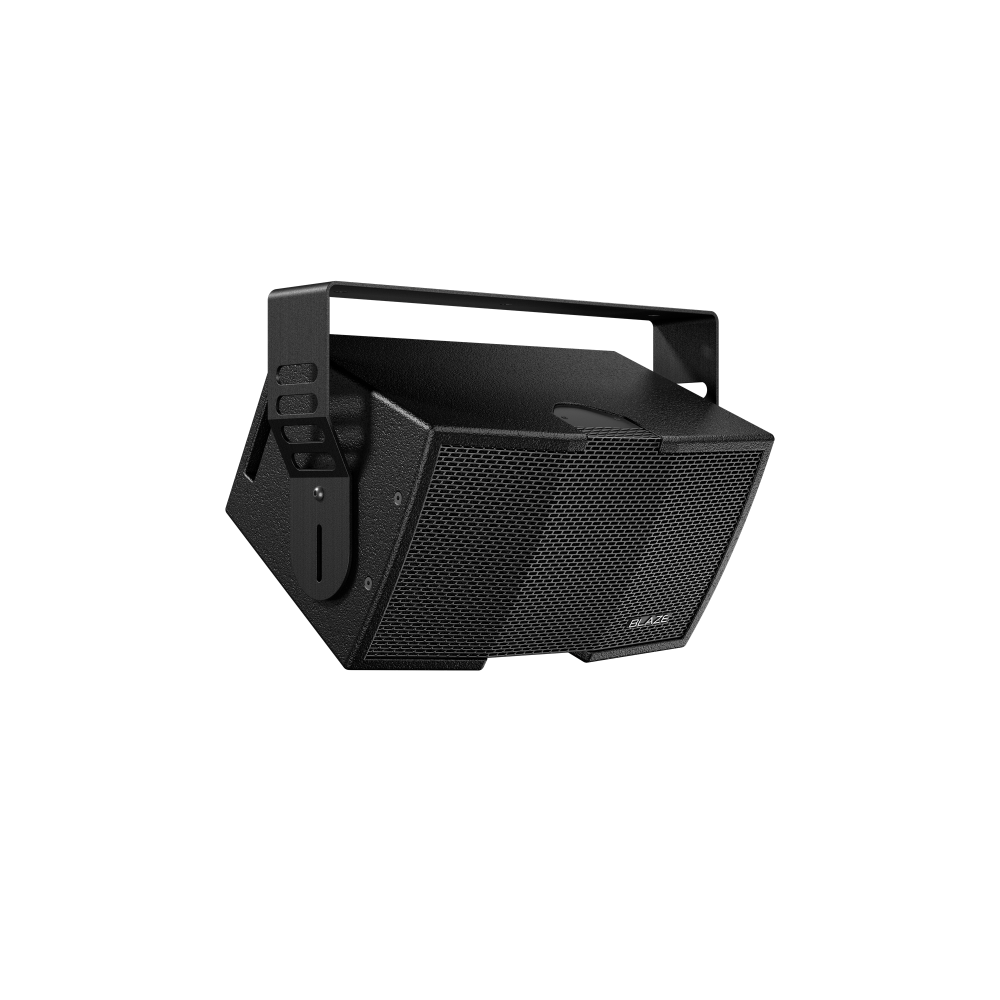

Sold Separately: U-bracket; dual-suspension fly kit
Coverage (-6dB)
Horizontal: 160 Degrees Vertical: 55 Degrees
Maximum SPL (Peak)
119 dB
Horizontal Nominal Dispersion (-6 dB)
160 Degrees
