Invisible Series
QX In-Wall with Quadratech
QX830QT
QX830QT
QX

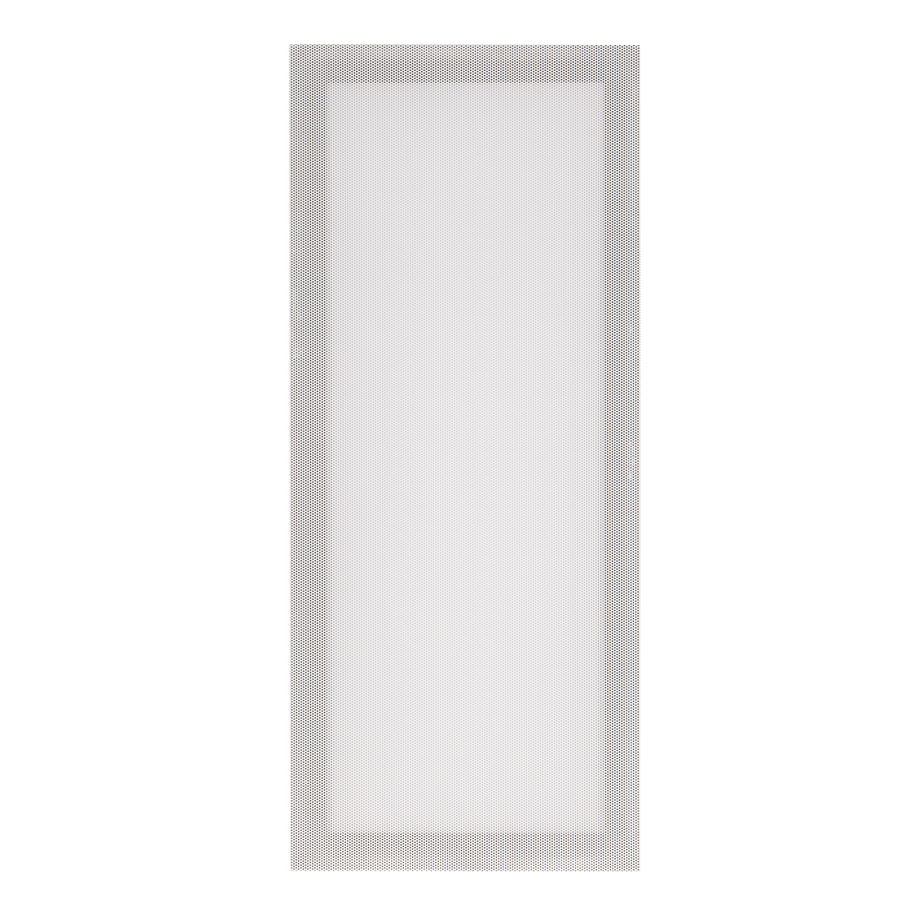

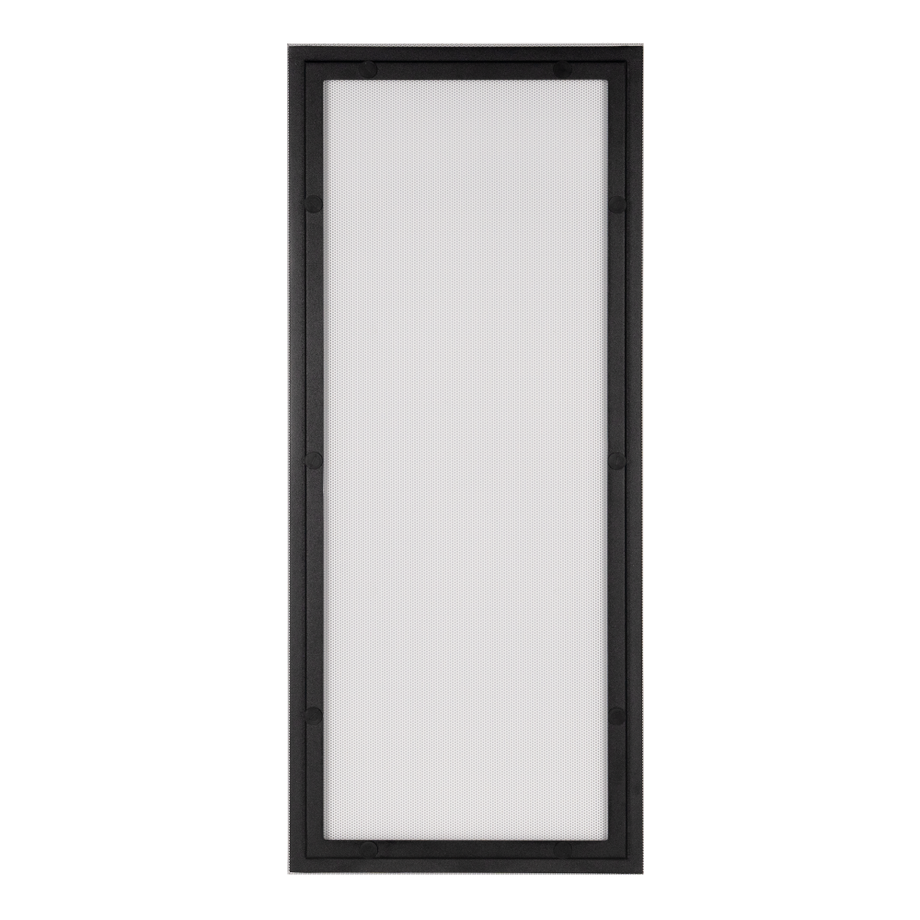

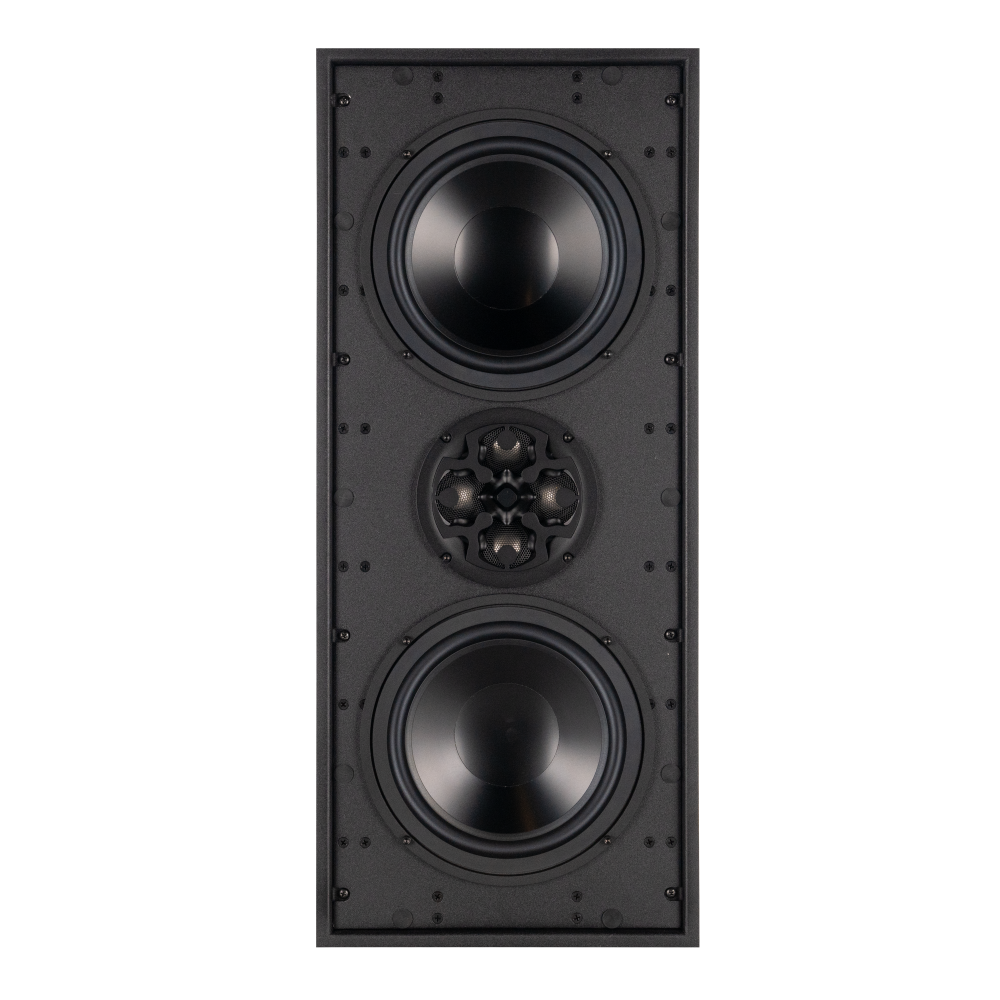

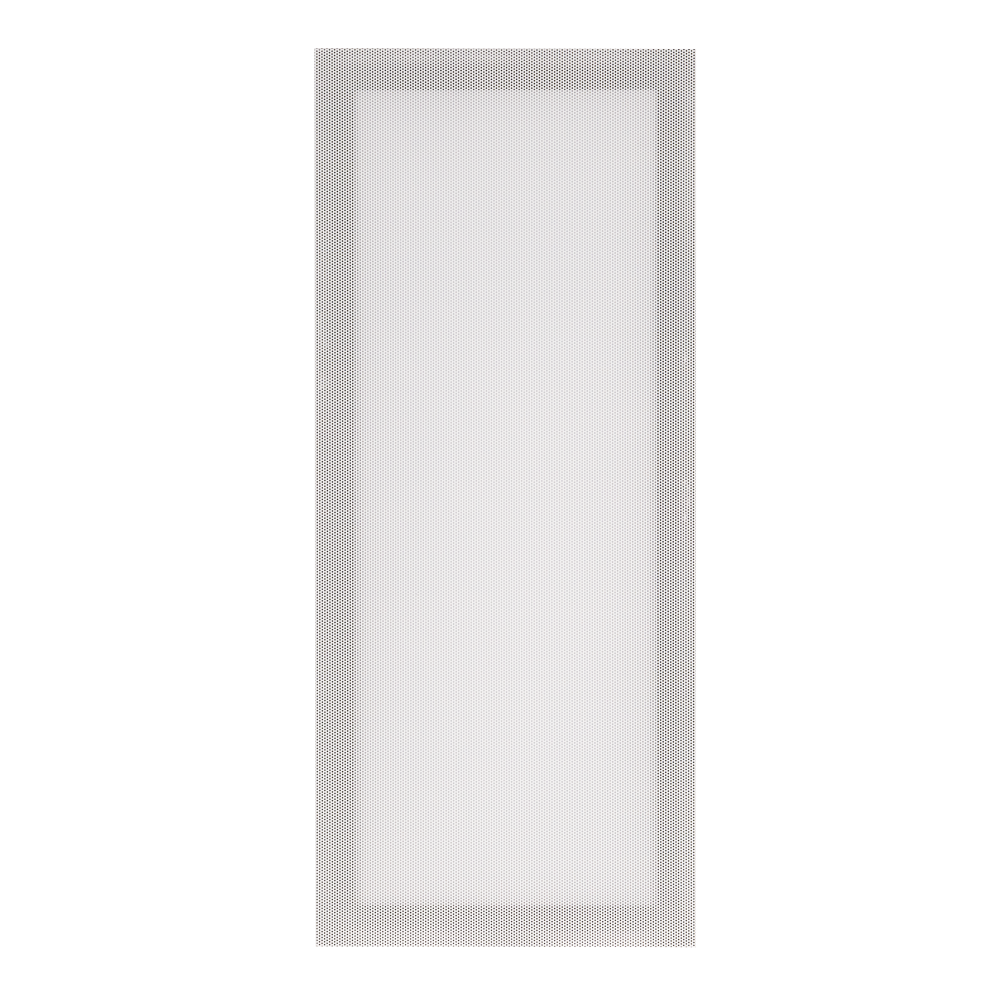

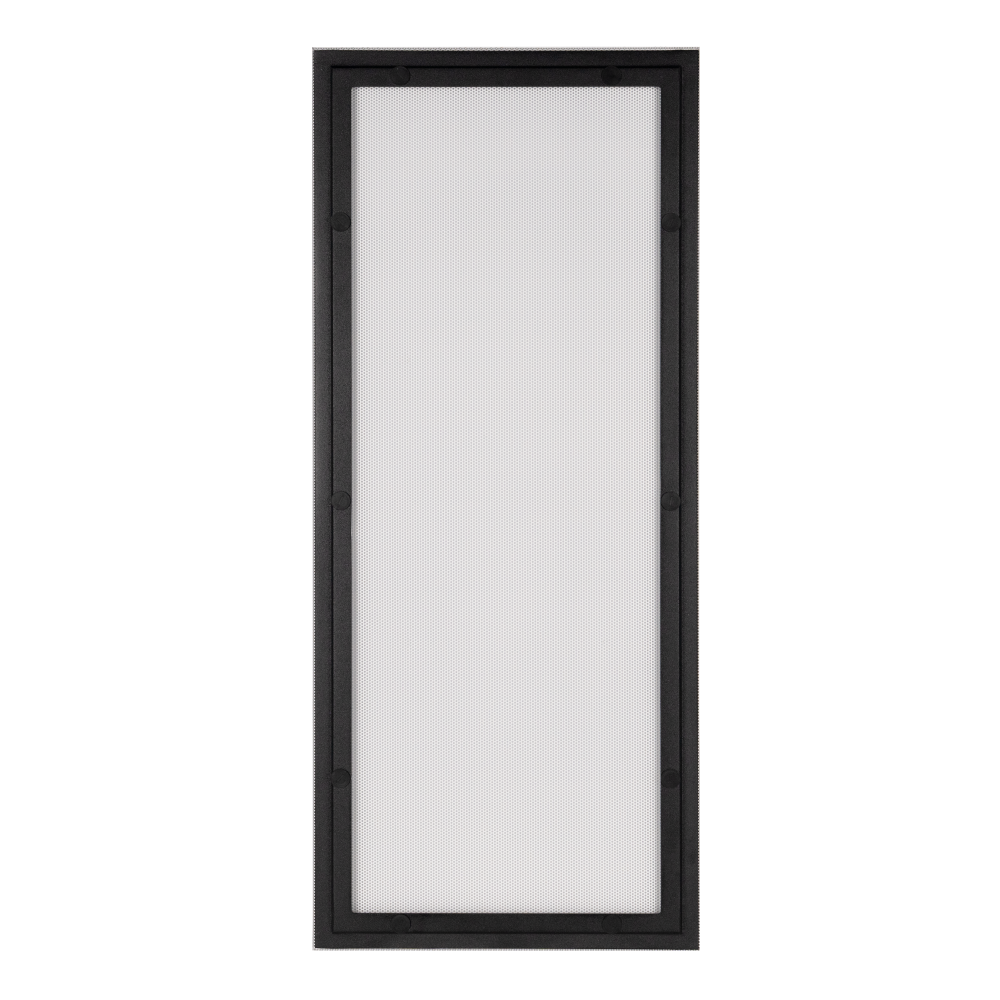

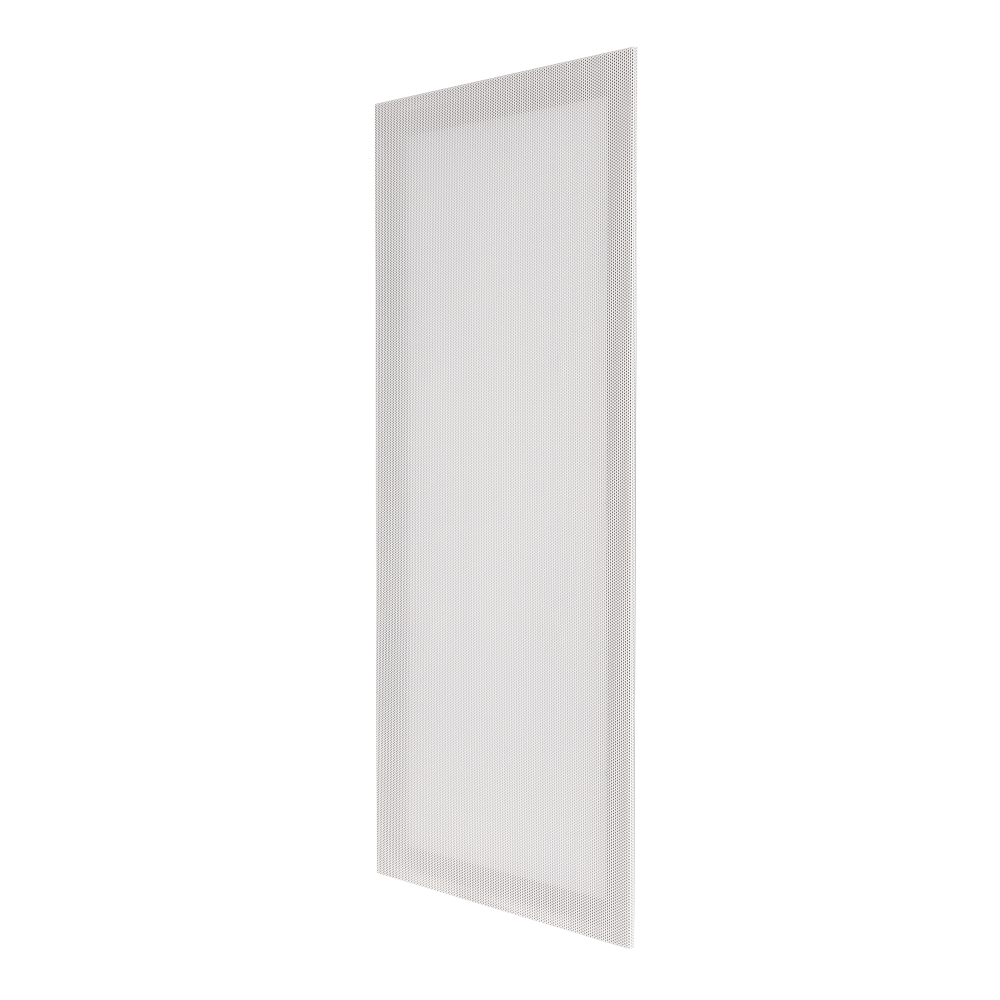

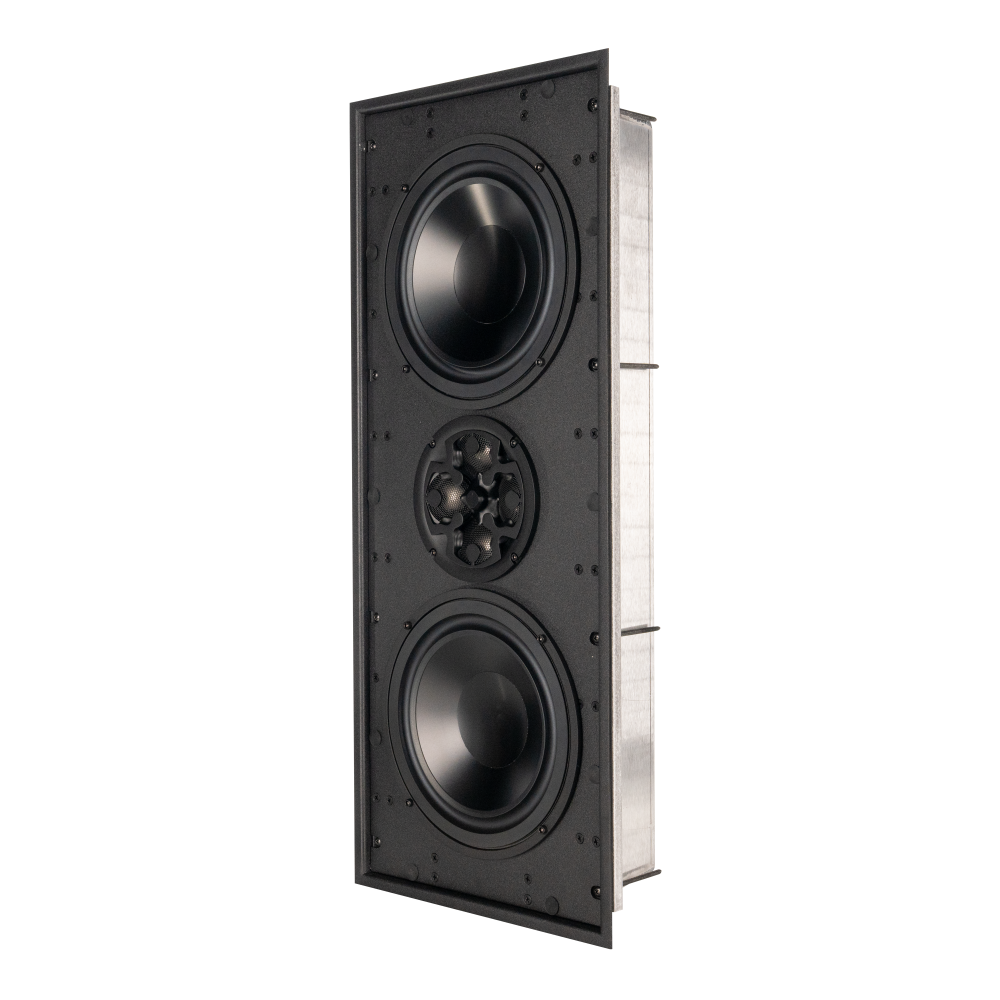

The James QX830QT in-wall speaker features the latest James Quadratech tweeter technology for sonic detail and wide audio dispersion. Its dual 8" aluminum woofers deliver impressive 95dB sensitivity and bass below 60Hz in an all-aluminum sealed cabinet and a sleek aluminum grille protruding just 3/16" from the wall.
Key Features
- Quadratech tweeter technology for crisp fidelity and wide dispersion
- Marine grade configuration available
- Flexible trim options for standard grille or optional TRUFIG flush mounted grille design
- TAA Compliant
Specifications
SKU | Color
QX830QT
Speaker Tweeter
(4) Quadratech 1" (25mm) titanium dome tweeters, Ferrofluid-cooled
Speaker Woofer
(2) 8" (203mm) Aluminum
Frequency Response (+/- 3db)
60Hz - 24kHz
Nominal Coverage Angle
92 degrees horizontal, 56 degrees vertical
Sensitivity
95dB (2.83V/1m)
Recommended Power Range
50 - 300W
Enclosure

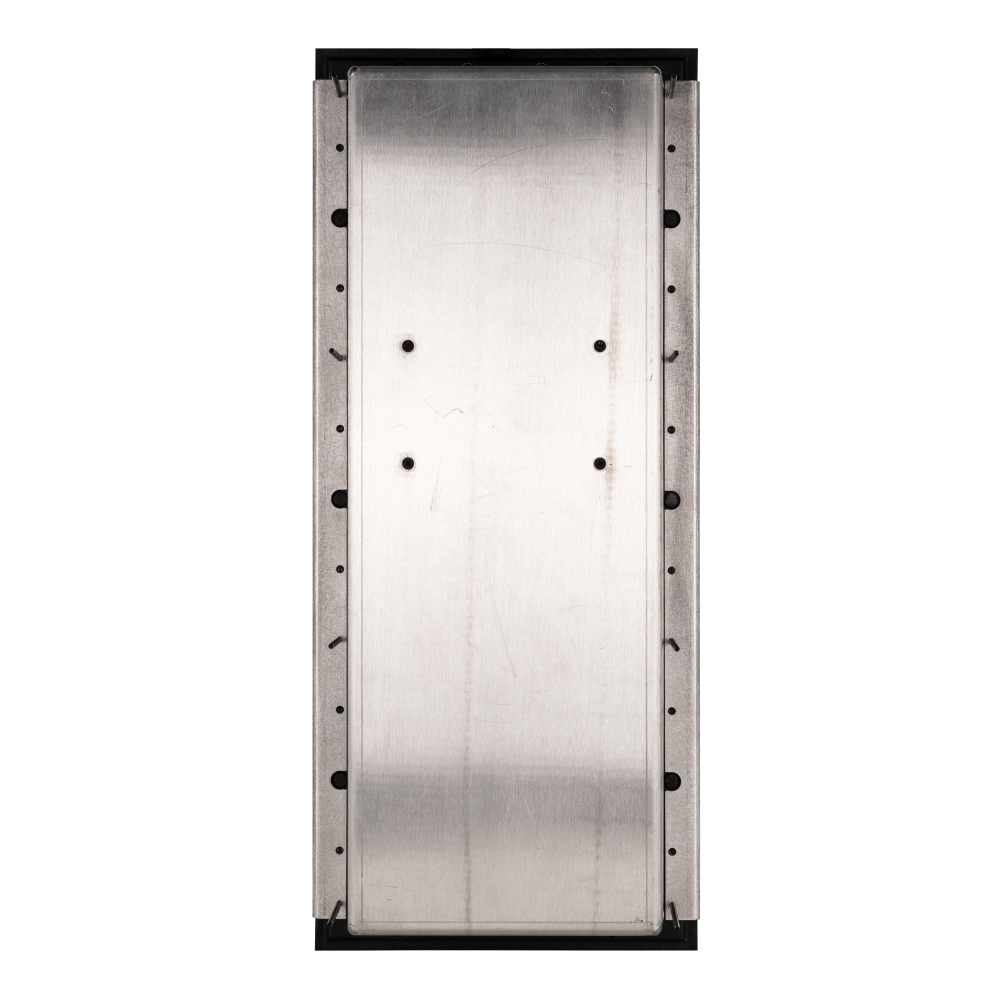

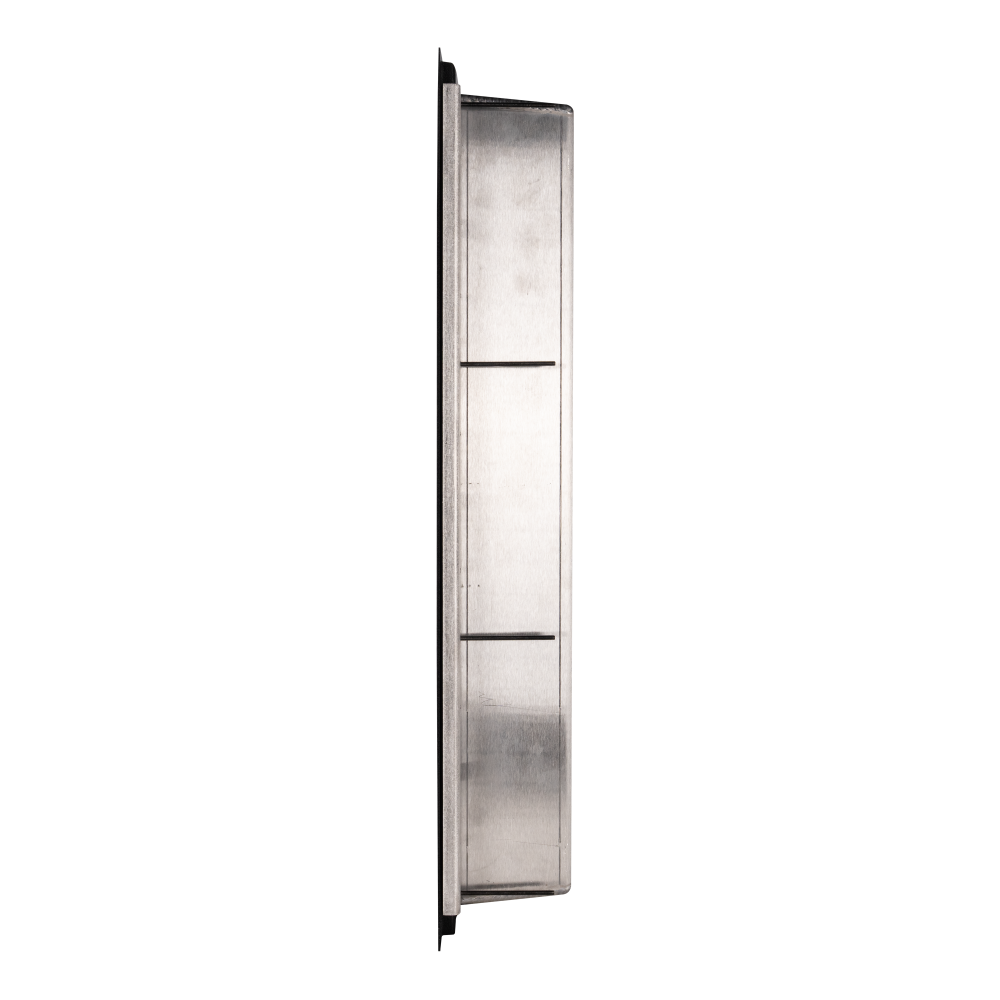

Aircraft Marine Grade Aluminum
Nominal Impedance (Ohms)
4 ohms
Dimensions (WxHxD)
11.11" x 26.09" x 4.13" (282.19mm x 662.69mm x 104.78mm)
Cut-Out Dimensions (WxH)
10.38" x 25.5" (263.53mm x 647.7mm)
Mounting Depth
3.875" (98.43mm)
