Invisible Series
QX In-Wall with Quadratech
QX530QT
QX530QT
QX

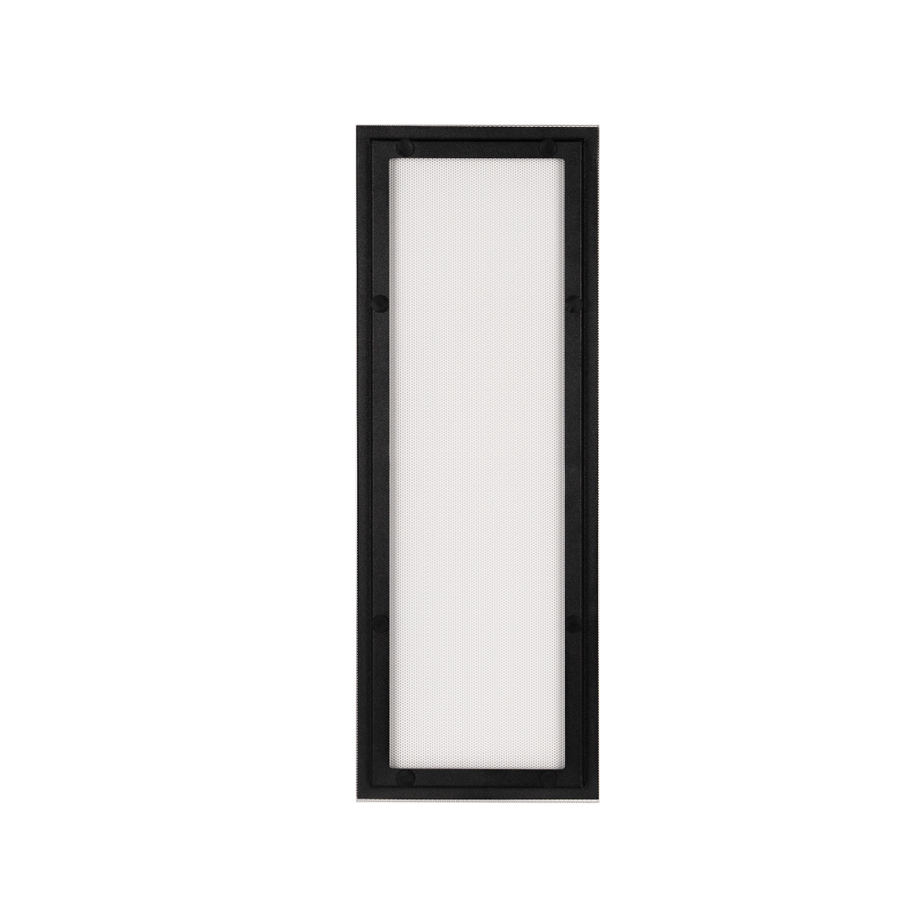

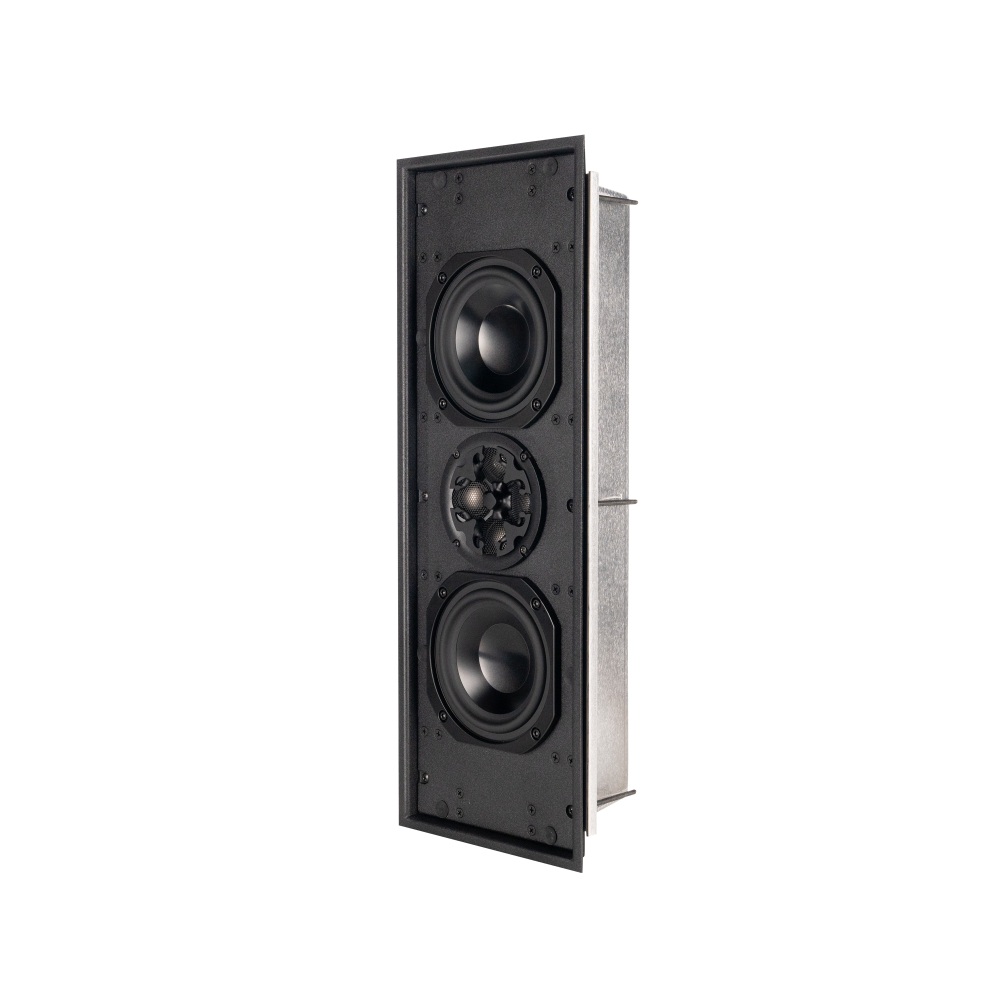

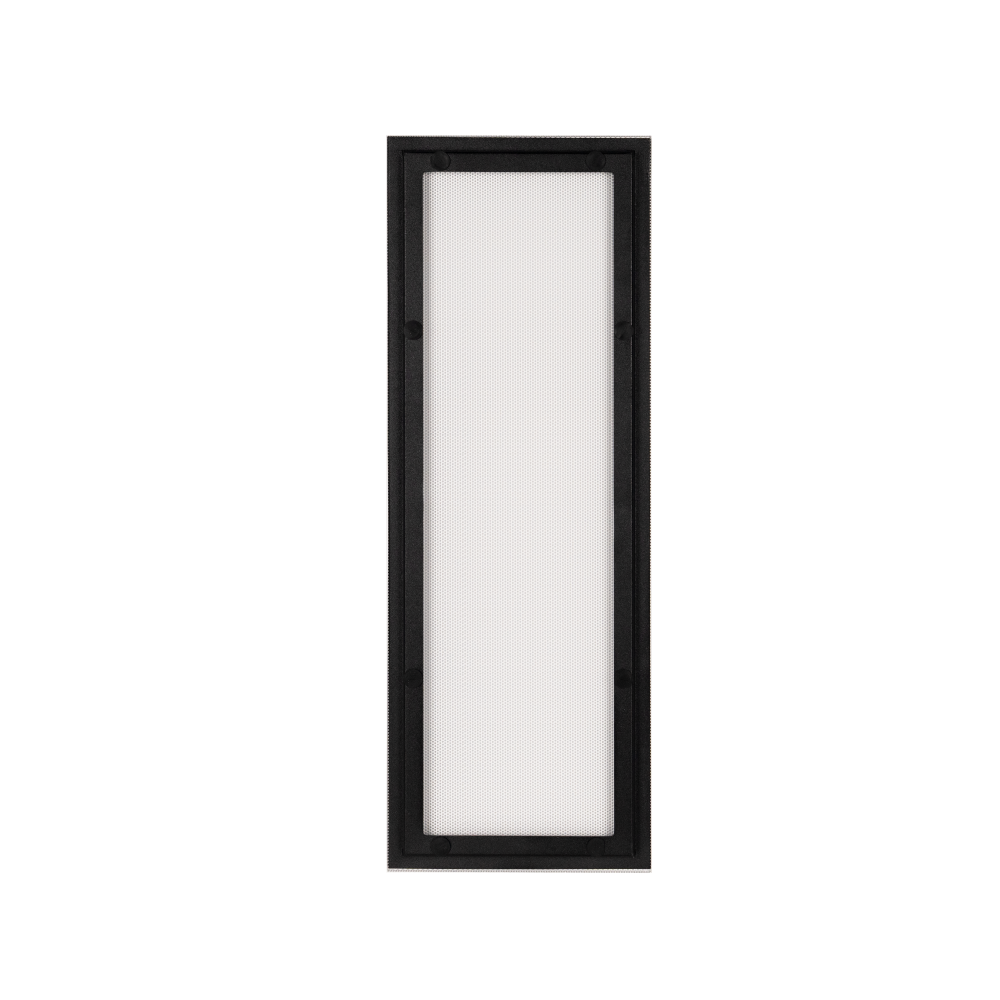

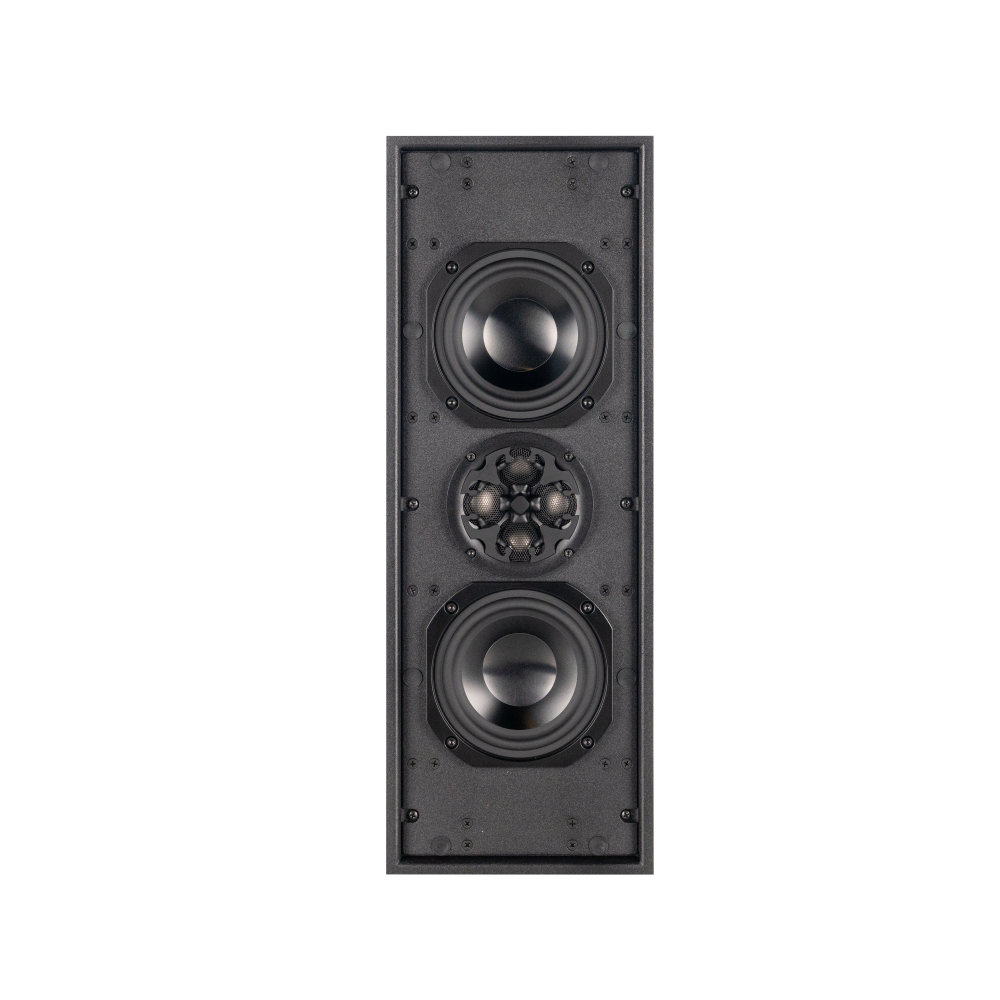

The James QX530QT in-wall LCR speaker features the latest James Quadratech tweeter technology to deliver crisp sonic detail and wide audio dispersion. Its dual 5.25" aluminum woofers achieve 90dB sensitivity with bass down to 68Hz, delivering audiophile-quality sound. Its trimless aluminum grille protrudes just 3/16" from the wall.
Key Features
- Quadratech tweeter technology for crisp fidelity and wide dispersion
- Marine grade configuration available

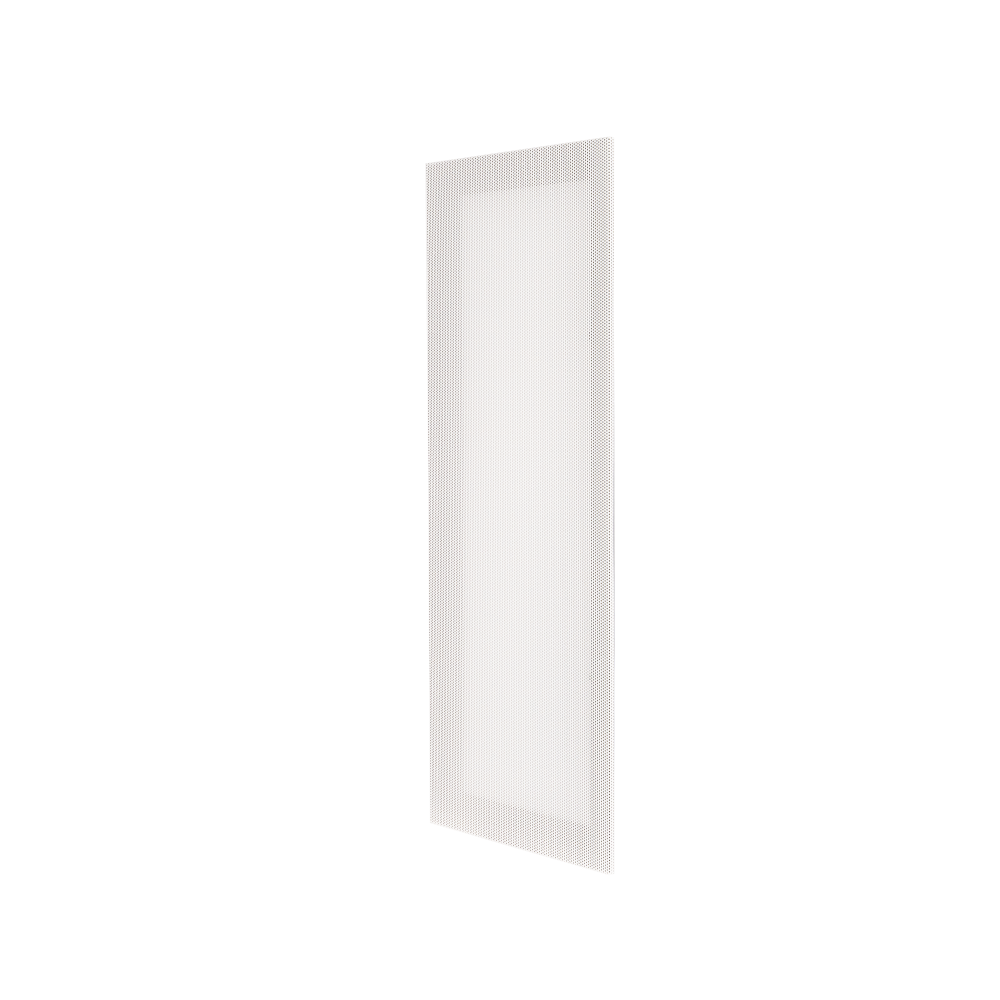

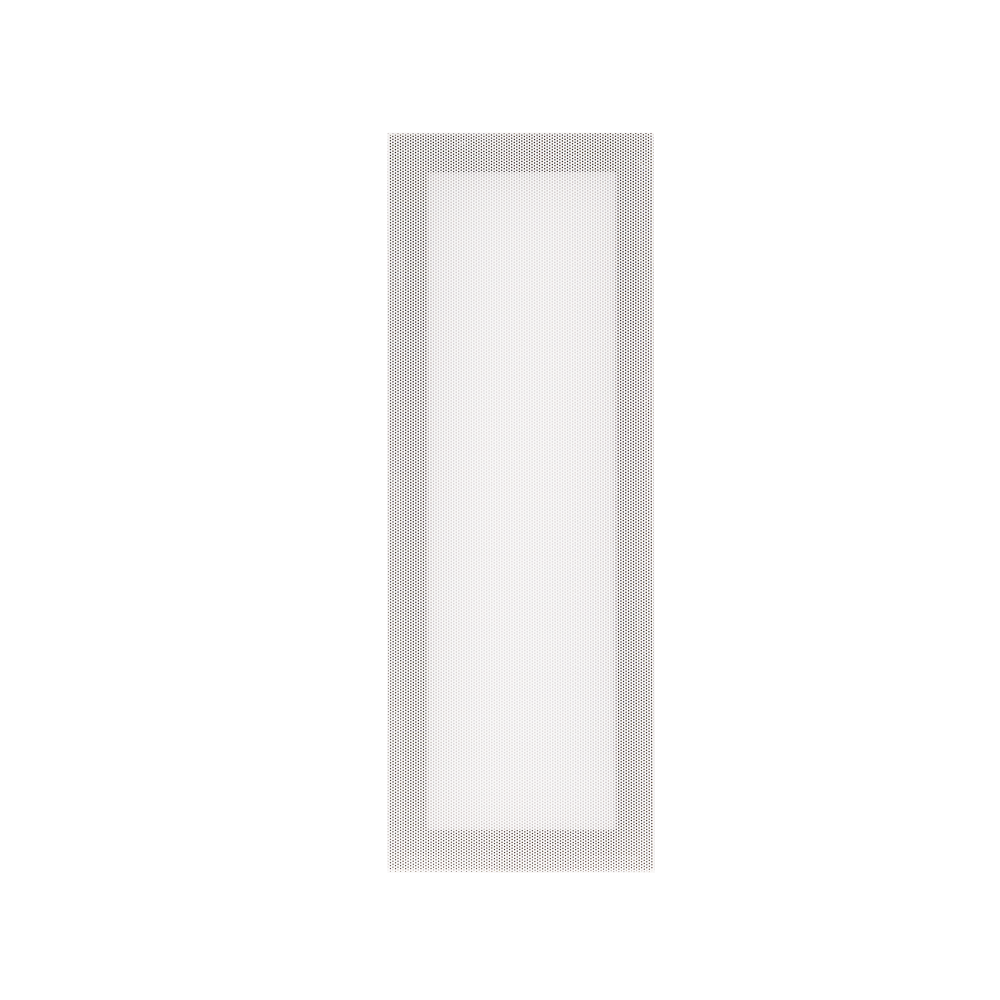

- Flexible trim options for standard grille or optional TRUFIG flush mounted grille design
- TAA Compliant
Specifications
SKU | Color
QX530QT
Speaker Tweeter
(4) Quadratech 0.75" (19mm) titanium dome tweeters, Ferrofluid-cooled
Speaker Woofer
(2) 5.25" (133mm) Aluminum
Frequency Response (+/- 3db)
68Hz - 24kHz
Nominal Coverage Angle
106 degrees horizontal, 65 degrees vertical
Sensitivity
90dB (2.83V/1m)
Recommended Power Range
50 - 200W

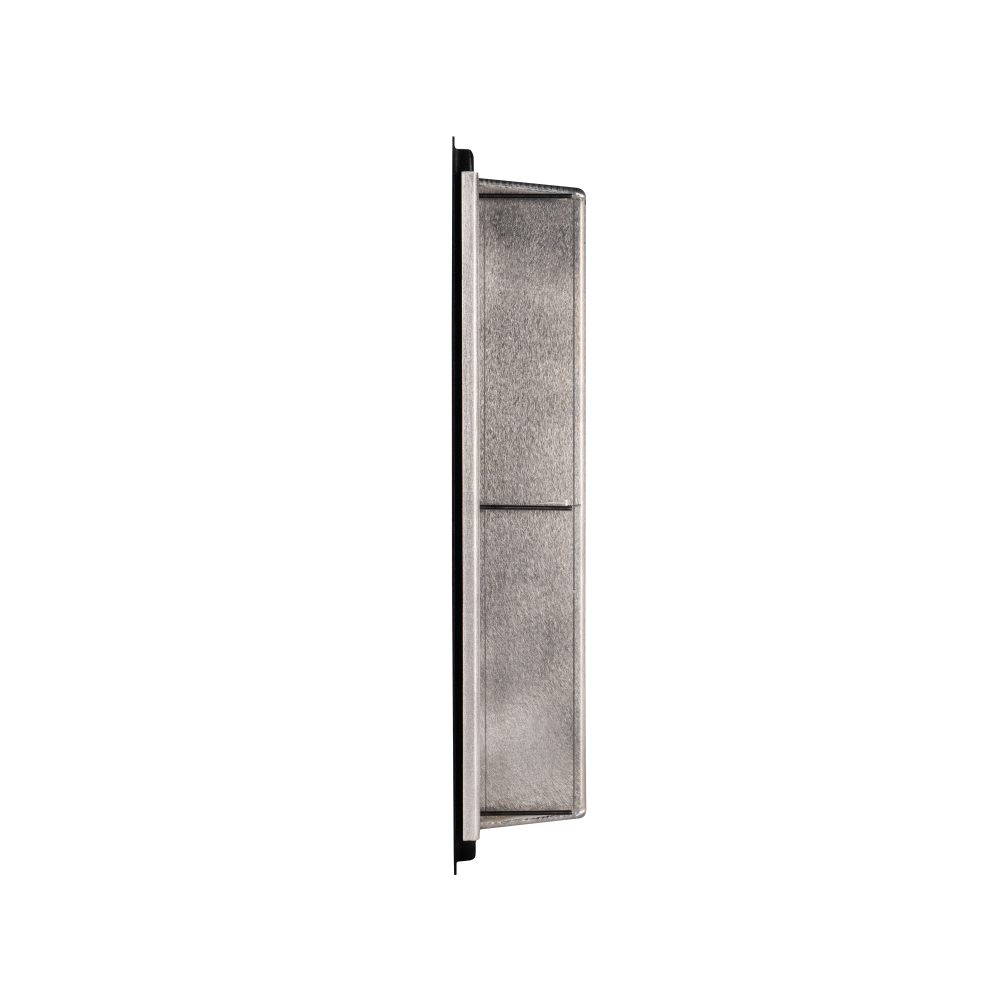

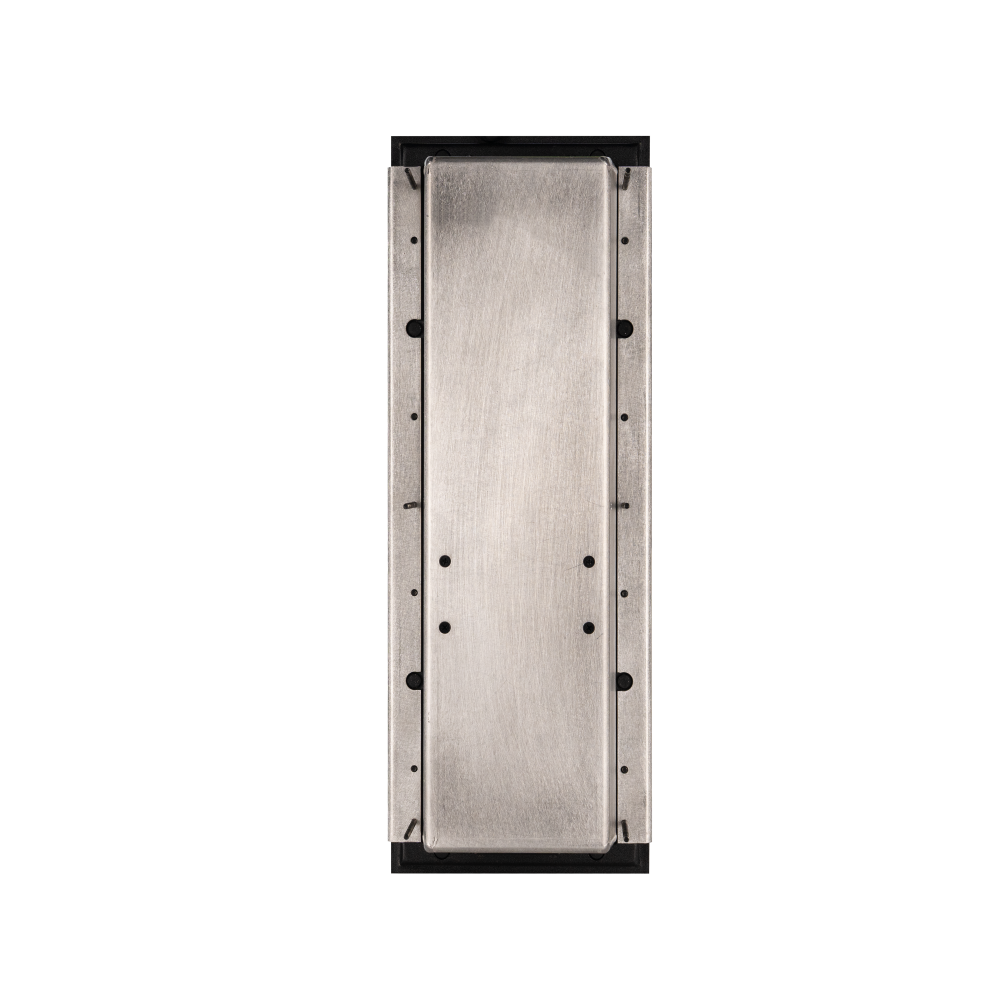

Enclosure
Aircraft Marine Grade Aluminum
Nominal Impedance (Ohms)
4 Ohms
Dimensions (WxHxD)
7.75" x 21.33" x 4.13" (196.85mm x 541.66mm x 104.78mm)
Cut-Out Dimensions (WxH)
7.11" x 20.68" (180.47mm x 525.27mm)
Mounting Depth
3.875" (98.43mm)
