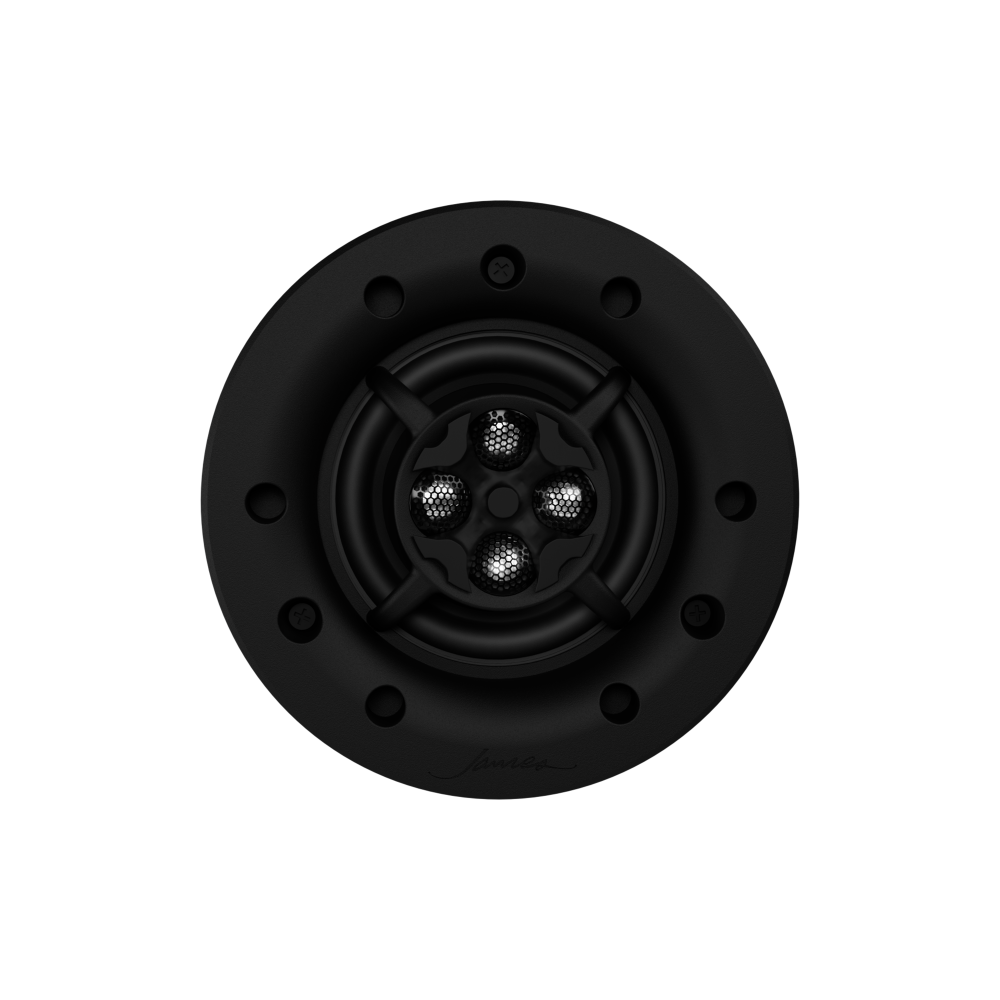

VXQ48R_hero_product_image_JAMES_Front_NoGrille.tiff

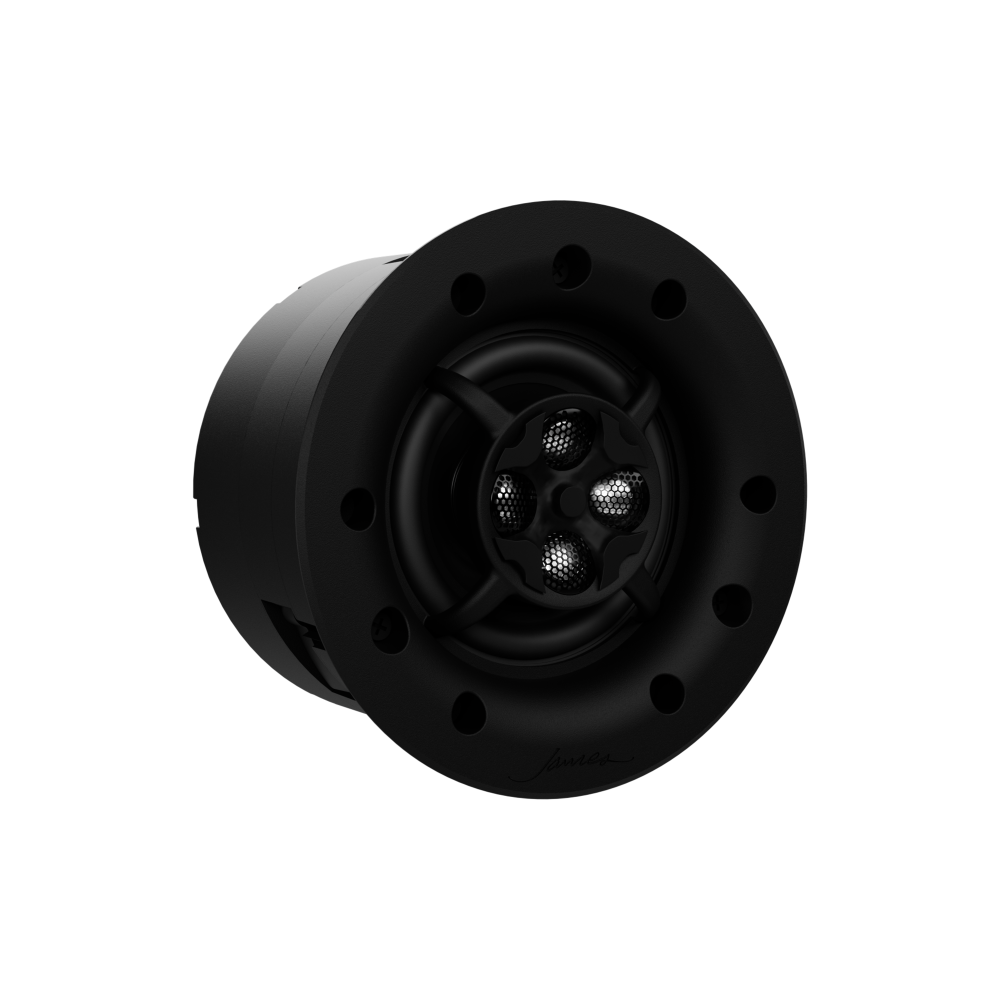

VXQ48R_product_image_JAMES_Front_Right_45.tiff

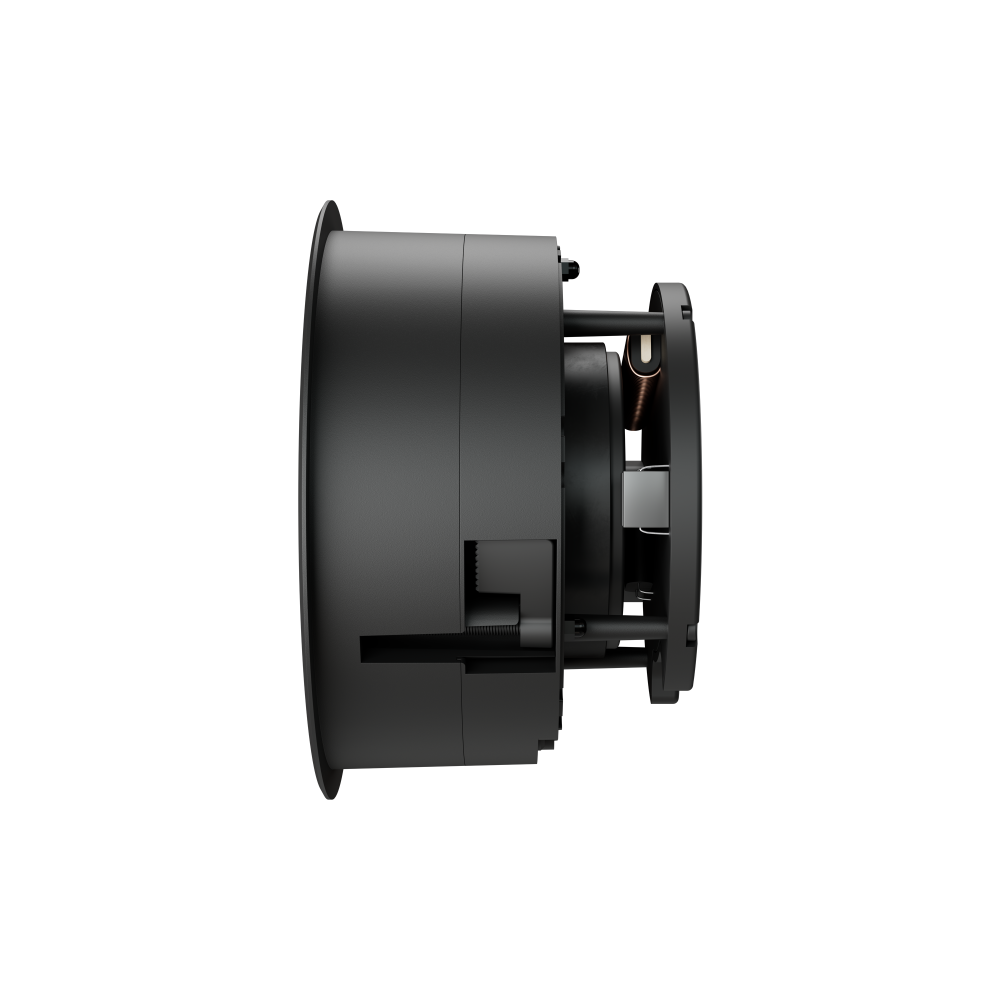

VXQ48R_product_image_JAMES_Right_Side.tiff

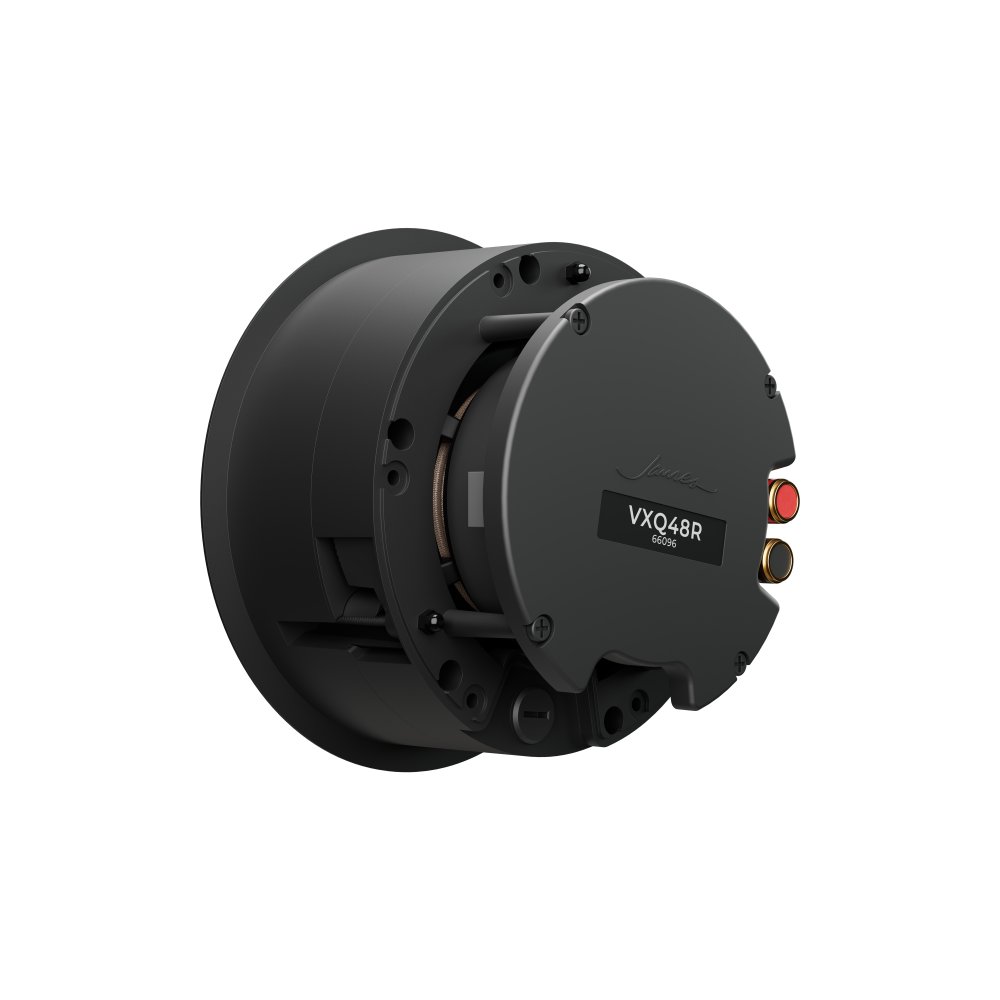

VXQ48R_product_image_JAMES_Back_Right_45.tiff
VXQ48R_product_image_JAMES_Back.tiff

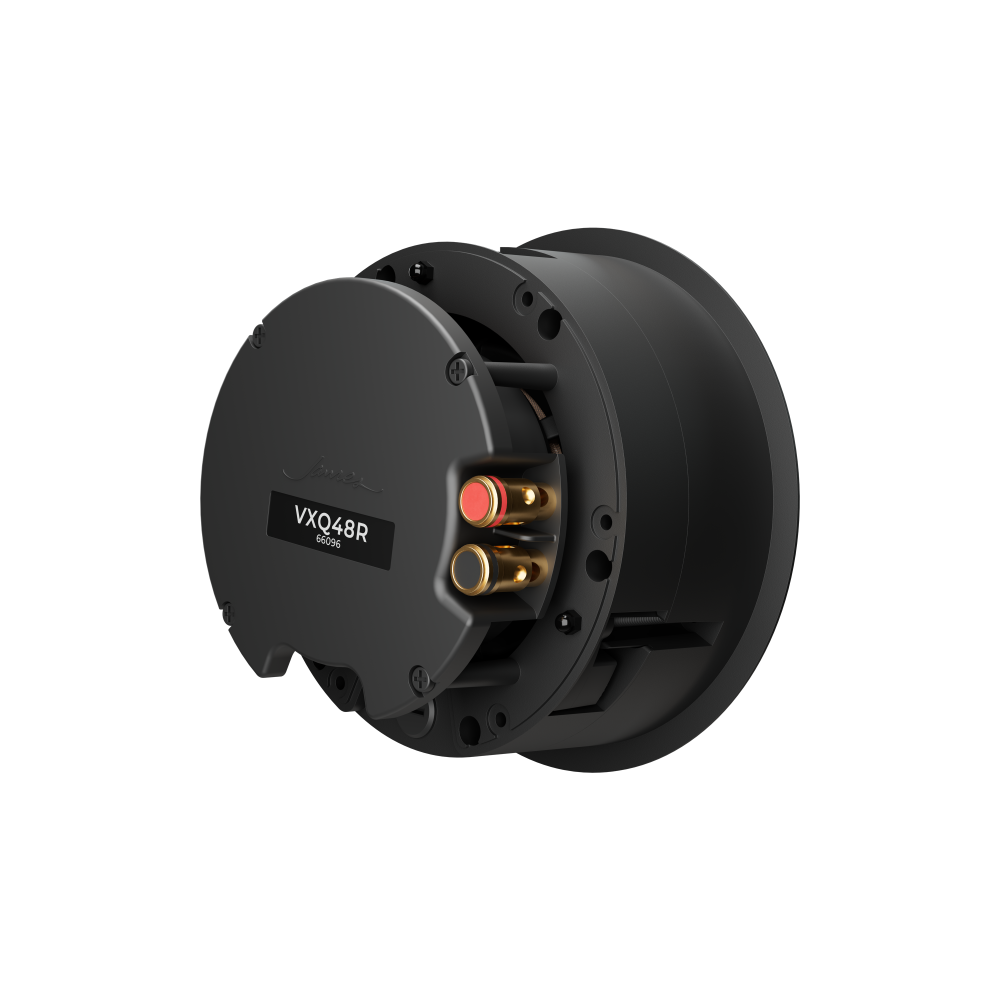

VXQ48R_product_image_JAMES_Back_Left_45.tiff

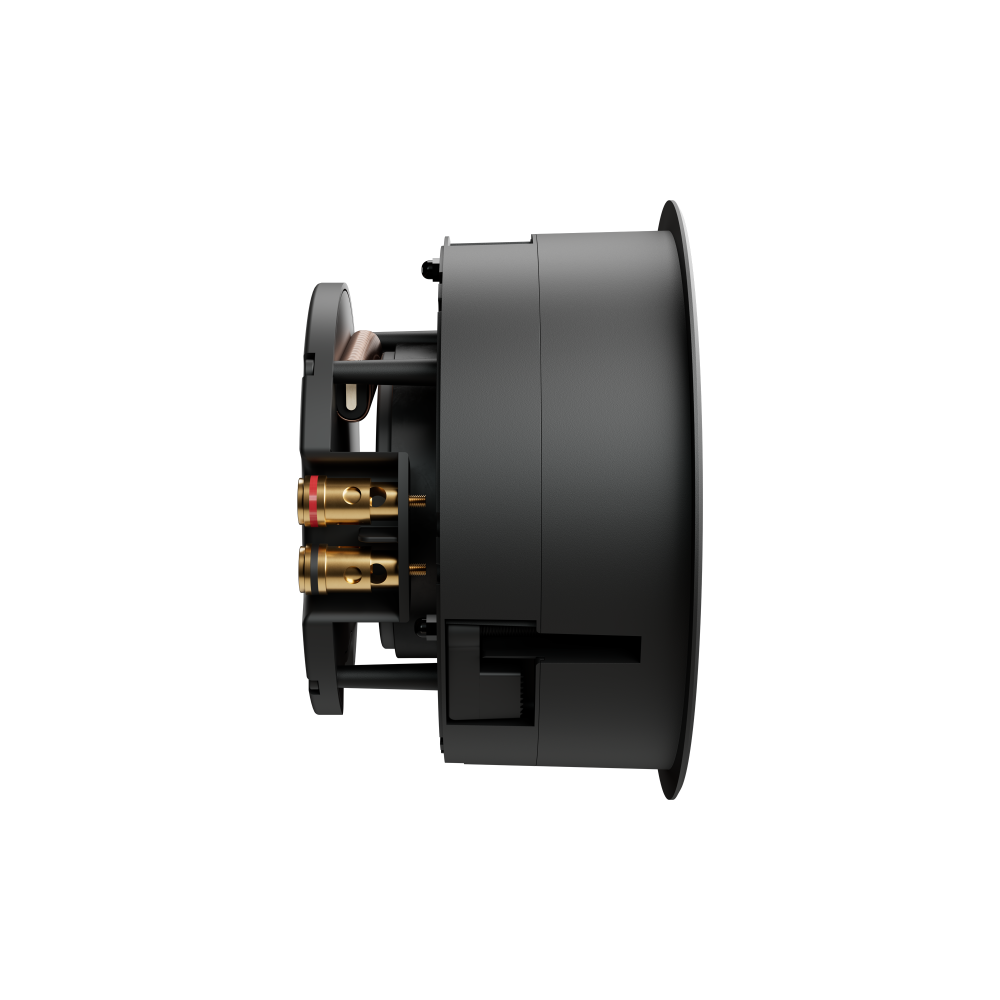

VXQ48R_product_image_JAMES_Left_Side.tiff
VXQ48R_product_image_JAMES_Front_Left_45.tiff
60476_product_image_XPC-4R-NT-B.tiff
60476_hero_product_image_XPC-4R-NT_F.tiff
60475_product_image_XPC-4R-T-B.tiff
60475_hero_product_image_XPC-4R-T-F.tiff
VXQ48R_hero_product_image_JAMES_Front_NoGrille.tiff
VXQ48R_product_image_JAMES_Front_Right_45.tiff
VXQ48R_product_image_JAMES_Right_Side.tiff
VXQ48R_product_image_JAMES_Back_Right_45.tiff
VXQ48R_product_image_JAMES_Back.tiff
VXQ48R_product_image_JAMES_Back_Left_45.tiff
VXQ48R_product_image_JAMES_Left_Side.tiff
VXQ48R_product_image_JAMES_Front_Left_45.tiff
60476_product_image_XPC-4R-NT-B.tiff
60476_hero_product_image_XPC-4R-NT_F.tiff
60475_product_image_XPC-4R-T-B.tiff
60475_hero_product_image_XPC-4R-T-F.tiff
VXQ48R_hero_product_image_JAMES_Front_NoGrille.tiff
VXQ48R_product_image_JAMES_Front_Right_45.tiff
VXQ48R_product_image_JAMES_Right_Side.tiff
VXQ48R_product_image_JAMES_Back_Right_45.tiff
VXQ48R_product_image_JAMES_Back.tiff
VXQ48R_product_image_JAMES_Back_Left_45.tiff
VXQ48R_product_image_JAMES_Left_Side.tiff
VXQ48R_product_image_JAMES_Front_Left_45.tiff
60476_product_image_XPC-4R-NT-B.tiff
60476_hero_product_image_XPC-4R-NT_F.tiff
60475_product_image_XPC-4R-T-B.tiff
60475_hero_product_image_XPC-4R-T-F.tiff

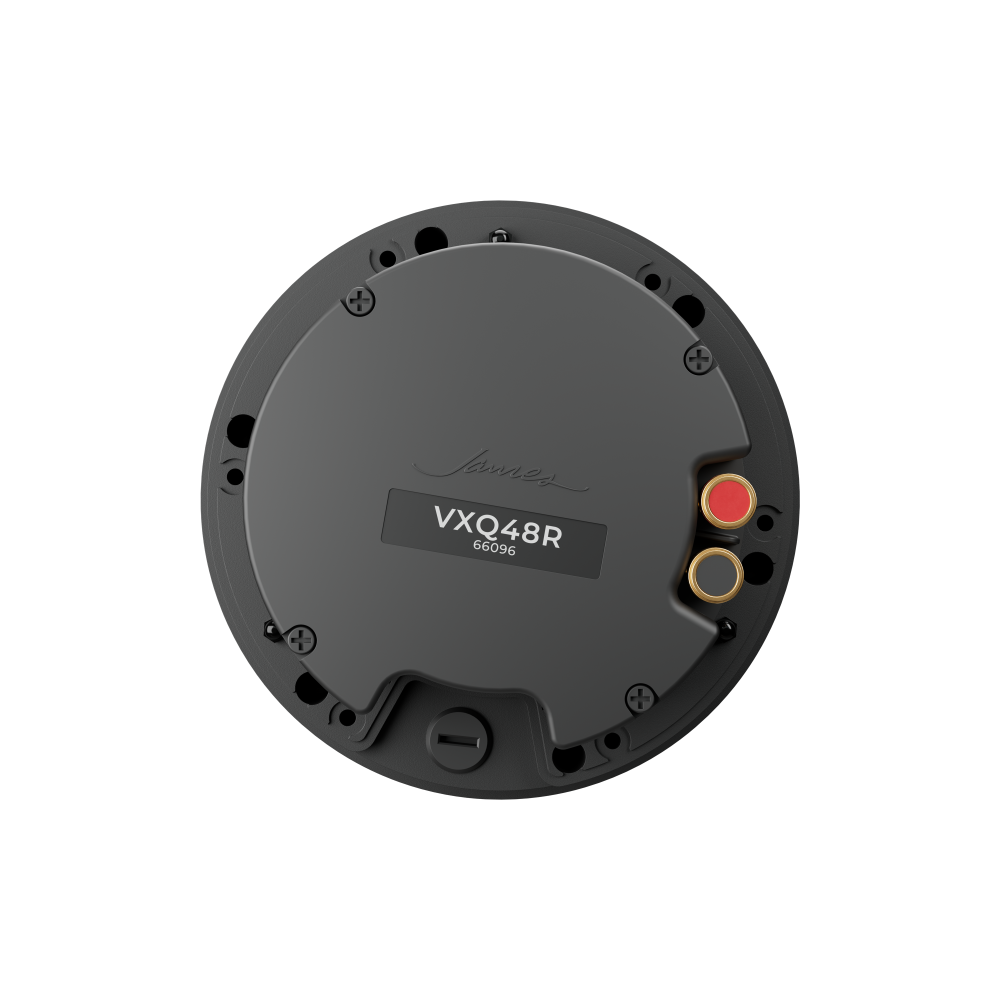

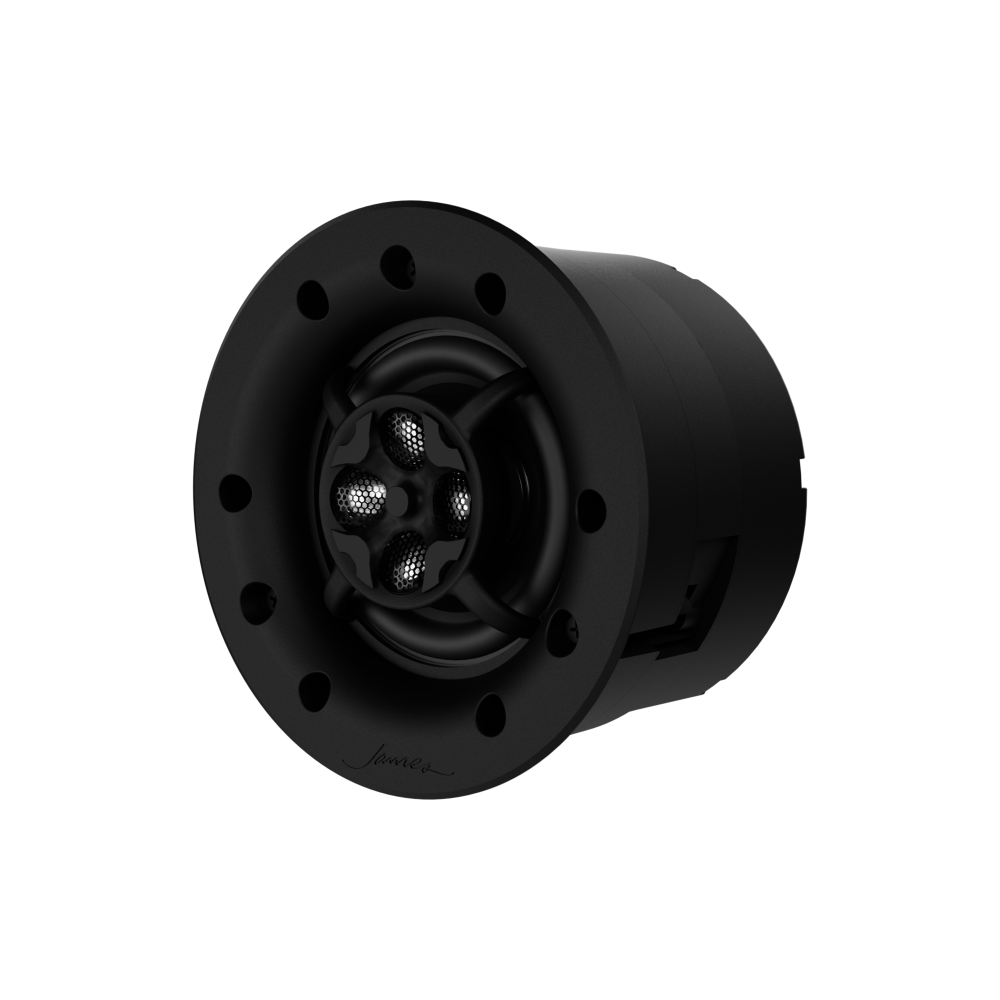

VXQ48R

Visual Experience

IP67 rated Visual Experience Series in-ceiling speaker featuring James Quadratech and Cymatic diffuser technology for ultimate performance for architectural applications requiring a small footprint. The VXQ48R can be ordered with a standard round Micro Trim grille, round Trimless grille, square Micro Trim grille, or square Trimless grille. These speakers can also be configured to include a shallow or deep enclosure to suit whatever the application demands.
Configurable Product
IP67 Rated
Marine Grade

VXQ48R

Specifications

SKU

VXQ48R

Speaker Tweeter

.50" (12mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber

Speaker Woofer

4.5" (114mm) Aluminum cone, Santoprene surround

Frequency Response (+/- 3db)

50Hz - 20kHz

Power Handling (RMS)

5 watts minimum; 100 watts maximum

Sensitivity

90dB (2.83V/1m)

Dispersion

Quadratech Tweeter with Cymatic Diffuser

Cut-Out Dimensions (Diameter)

5.875" (149.23mm)

Mounting Depth

3.74" (95.0mm)

Copy All Specs

Related Products

40172_hero_product_image_PS-43_C-Bracket_Tile_Bridge_F-01.tiff

PS-C41/PS-C43 C-Bracket & Tile Bridge

SKU: 45172

More
60466_hero_product_image_VX4_Round_Shallow_Enclosure_Back45_Right.tiff

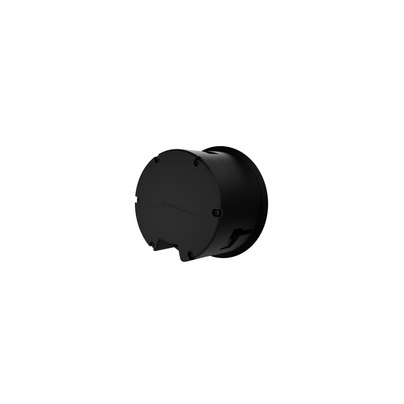

VXQ 4" ROUND SHALLOW ENCLOSURE

SKU: 60466

More

VXQ 4" ROUND DEEP ENCLOSURE

SKU: 60467

More
60475_hero_product_image_XPC-4R-T-F.tiff

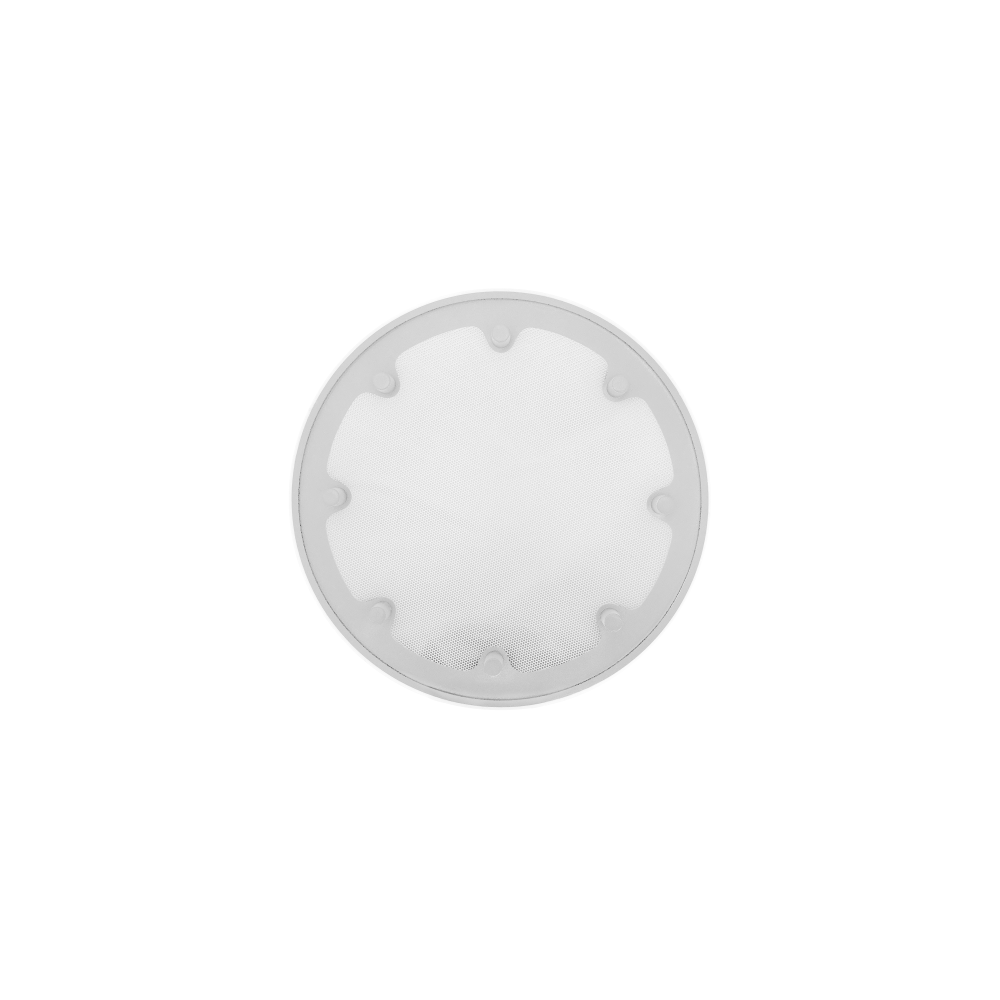

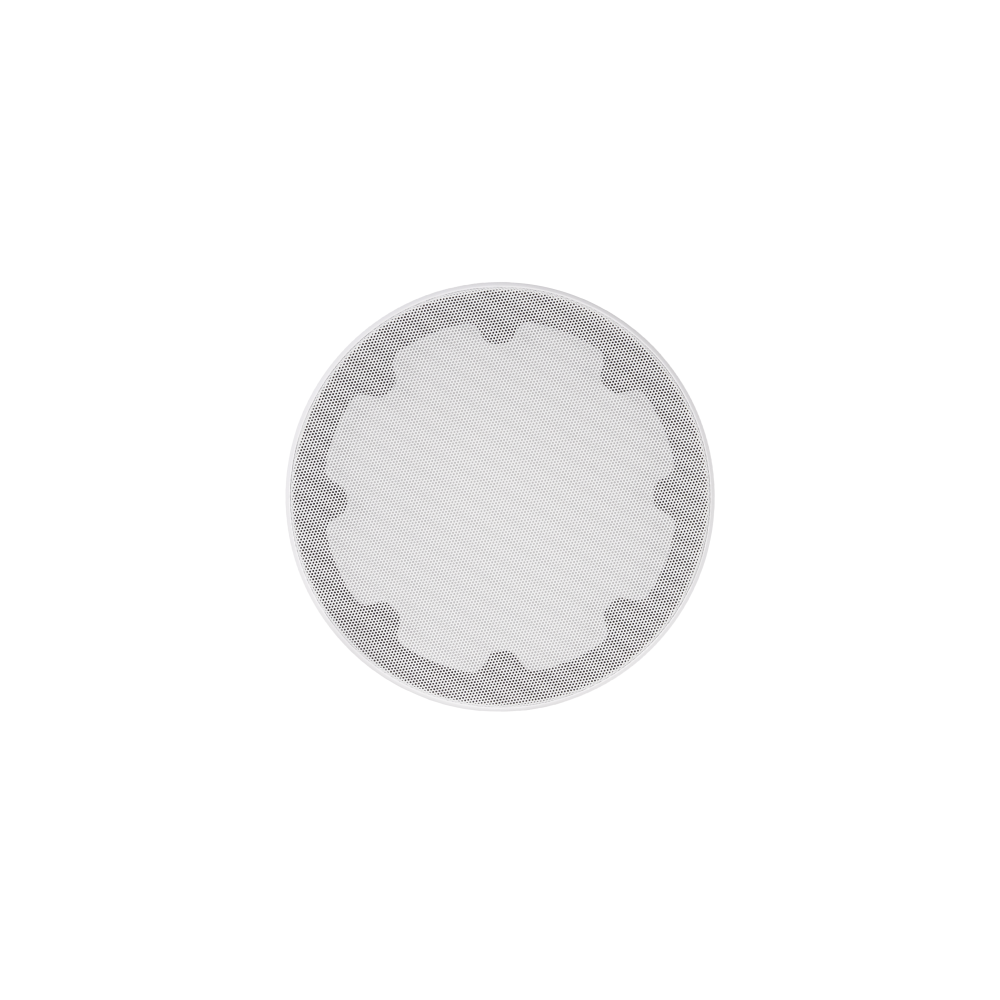

4" ROUND XPC MICRO TRIM GRILLE

SKU: 60475

More
60476_hero_product_image_XPC-4R-NT_F.tiff

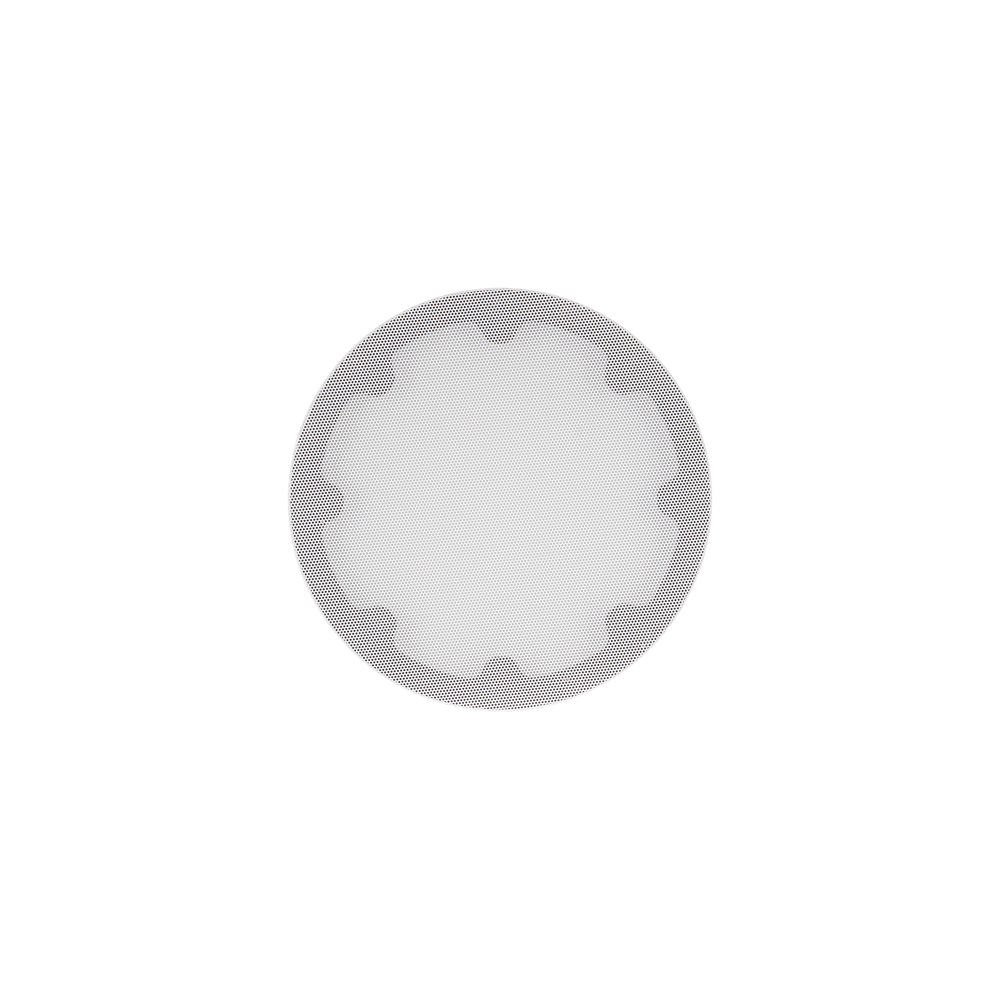

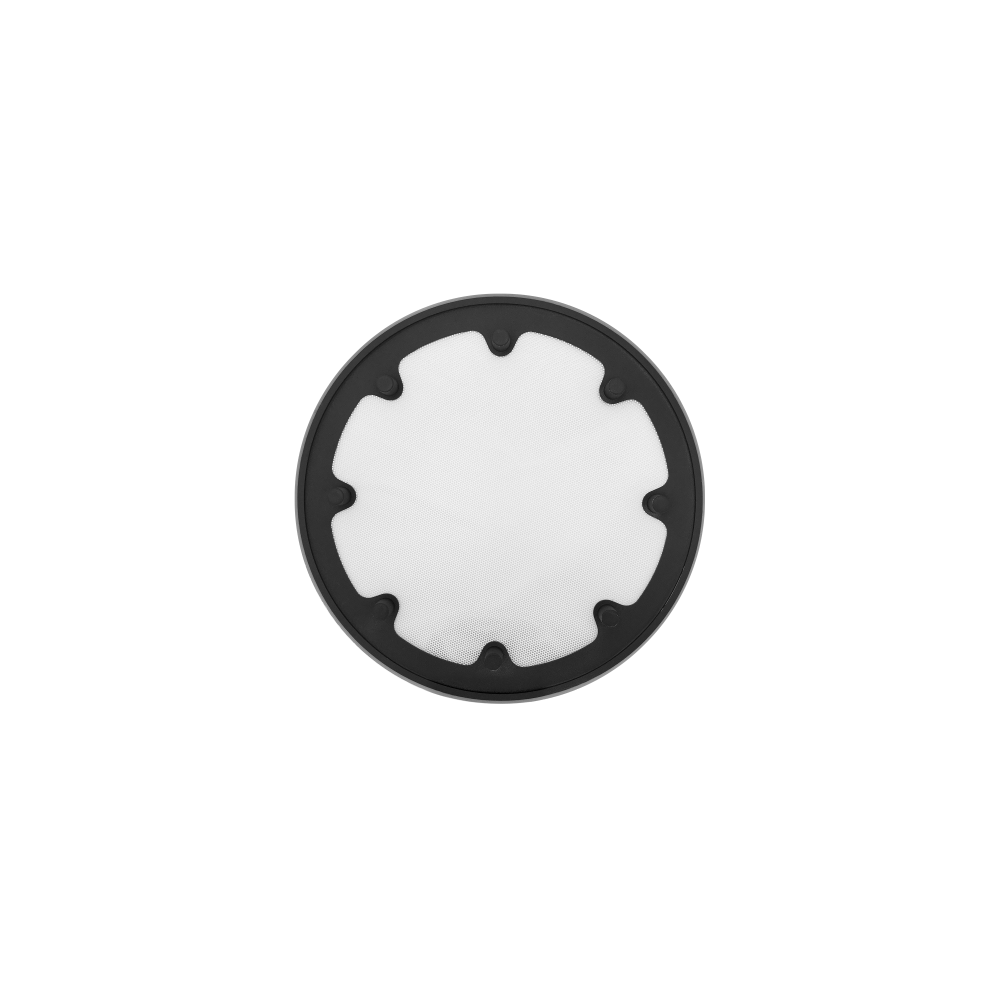

4" ROUND XPC TRIMLESS GRILLE

SKU: 60476

More
60487_hero_product_image_VXQ4_Square_Microtrim_Front.tiff

4" SQUARE ADAPTER W/ XPC MICRO TRIM GRILLE

SKU: 60487

More
60488_hero_product_image_VXQ4_Square_Trimless_Grille_Front.tiff

4" SQUARE ADAPTER W/ XPC TRIMLESS GRILLE

SKU: 60488

More
92471_hero_product_image_Small_Round_Flex_Bracket_F-01.tiff

Small Round Flex Bracket

SKU: 92471

More
92808_hero_product_image_Fire-Rated_Deep_Backcan_F-01.tiff

Fire-Rated Listed Deep Backcan

SKU: 92808

More
93660_hero_product_image_VX-VXQ_4Inch_Round_Gypsum_Mounting Platform_TRUFIG_Front_Right_45.tiff

VX-VXQ-TRUFIG 4" RND 5/8" GYP

SKU: 93660

More
93661_hero_product_image_VX-VXQ_4Inch_1.5_Round_Gypsum_Mounting Platform_TRUFIG_Angle.tiff

VX-VXQ-TRUFIG 4" RND 1/2" GYP

SKU: 93661

More
93662_hero_product_image_VX-VXQ_4Inch_Square_Gypsum_Mounting Platform_TRUFIG_Front_Right_45.tiff

VX-VXQ-TRUFIG 4" SQR 5/8" GYP

SKU: 93662

More
93663_hero_product_image_VX-VXQ_4Inch_1.5_Square_Gypsum_Mounting Platform_TRUFIG_Angle.tiff

VX-VXQ-TRUFIG 4" SQR 1/2" GYP

SKU: 93663

More
93666_hero_product_image_4IN_RND_RTR_TEMPLATE_45.tiff

VX-VXQ-TRUFIG RTR TMP 4" RND

SKU: 93666

More
93713_hero_product_image_4IN_SQR_RTR_TEMPLATE_45.tiff

VX-VXQ-TRUFIG RTR TMP 4" SQR

SKU: 93713

More
JAMES_PLACEHOLDER_HERO.tiff

XPC-GRILLE

SKU: VXQ-GRILLE

More

Downloads

Sales & Data Sheets

VXQ48R_DataSheet.pdf
VXQ_Accessory_DataSheet_05302025.pdf
James_Standard_Colors_Sell_Sheet_NO_PRICING.pdf
2024_QXC_VXQ_UTB-NYB.pdf
2024_VX-VXQ_UTB-NYB.pdf
VX_VXQ_Brochure_SONANCE_2024.pdf
2023_VXQ_HandyToo_V2.pdf
VXQ_JAMES_Visual Experience Quadratech_SellSheet_2024.pdf

Instructions

VXQ_Manual_JAMES_Visual Experience Quadratech_2025.pdf
XPC_Grille_Painting_Tech_Note.pdf

Drawings & Images

VXQ48R_JAMES_cad_file_with_Deep Enclosure.pdf
VXQ48R_JAMES_cad_file_with_Shallow Enclosure.pdf
VXQ48R_JAMES_cad_file.pdf
VXQ48R_JAMES_cad_file_with_square adapter.pdf
VX-VXQ 4IN ROUND TRUFIG CUT FILE.pdf
VX-VXQ 4IN SQUARE TRUFIG CUT FILE.pdf
VXQ48R_JAMES_cad_file_with_Deep Enclosure
VXQ48R_JAMES_cad_file_with_Shallow Enclosure
VXQ48R_JAMES_cad_file_with_square adapter
VXQ48R_JAMES_cad_file
VX-VXQ 4IN ROUND TRUFIG CUT FILE.DXF
VX-VXQ 4IN ROUND TRUFIG CUT FILE.DWG
VX-VXQ 4IN SQUARE TRUFIG CUT FILE.DXF
VX-VXQ 4IN SQUARE TRUFIG CUT FILE.DWG

Ease Files & Speaker Presets

VXQ48R_JAMES_EASE_file_v2.1.gll
VXQ48R_JAMES_EASE_file.CF2
PowerZone Connect Speaker Preset Library_BlazebySonance_SpeakerPresets.zip
Download All Share All
