CBL528

Blaze Speakers

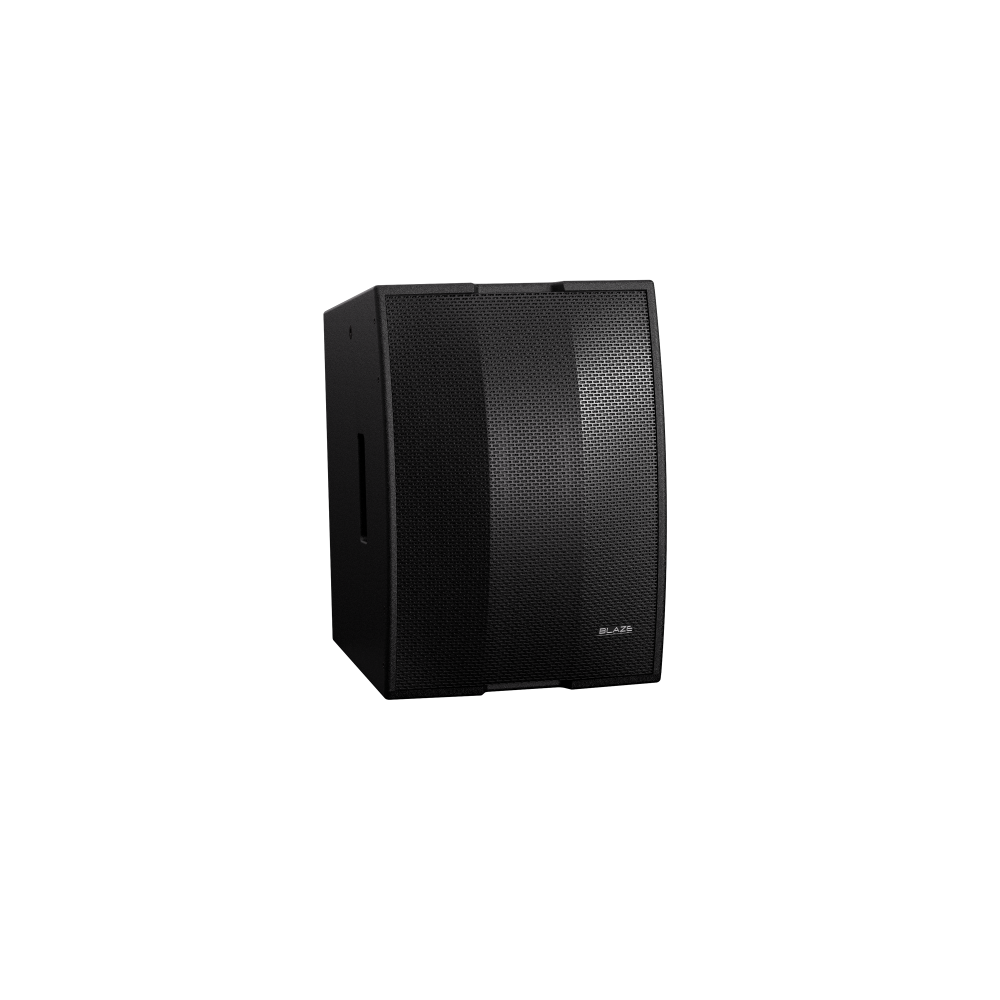

Passive, Bi-amped Constant Beamwidth Loudspeaker

CBL528

Key Features

  • Highly focused pattern with consistent frequency response throughout the frequency range, on and off-axis.
  • Symmetrical dispersion pattern.

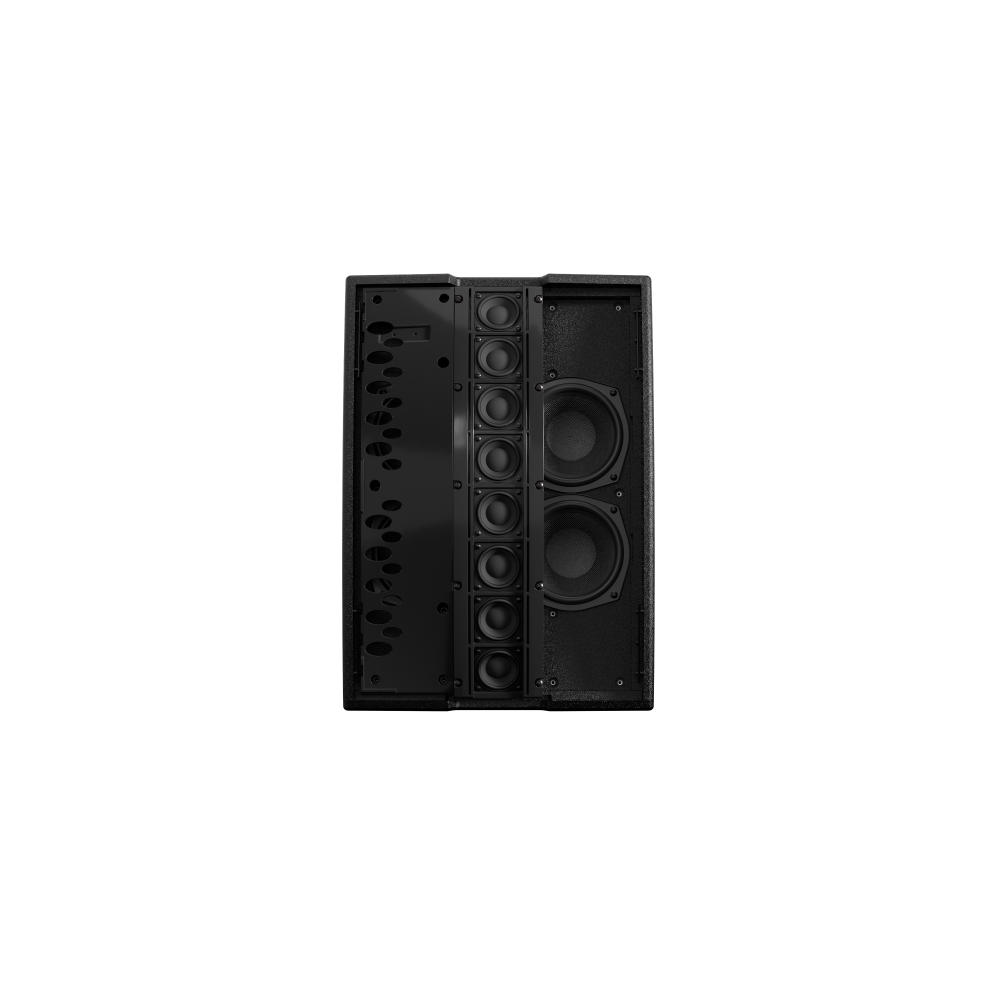

  • Four 5" low-frequency drivers, with tightly designed acoustic centers, minimize comb-filtering with a frequency response down to 54 Hz.
  • Eight vertically mounted 2" mid-high frequency drivers.
  • Patent pending mid-high frequency gain shading provides a smooth and controlled 45° vertical pattern from 420 Hz to 18 kHz.
  • Bi-Amped design for system integration with Blaze Amplifiers.
  • 180° symmetrical horizontal pattern control.
  • Ultra low-distortion drivers
  • System range 54 Hz – 18 kHz

Specifications

SKU | Color

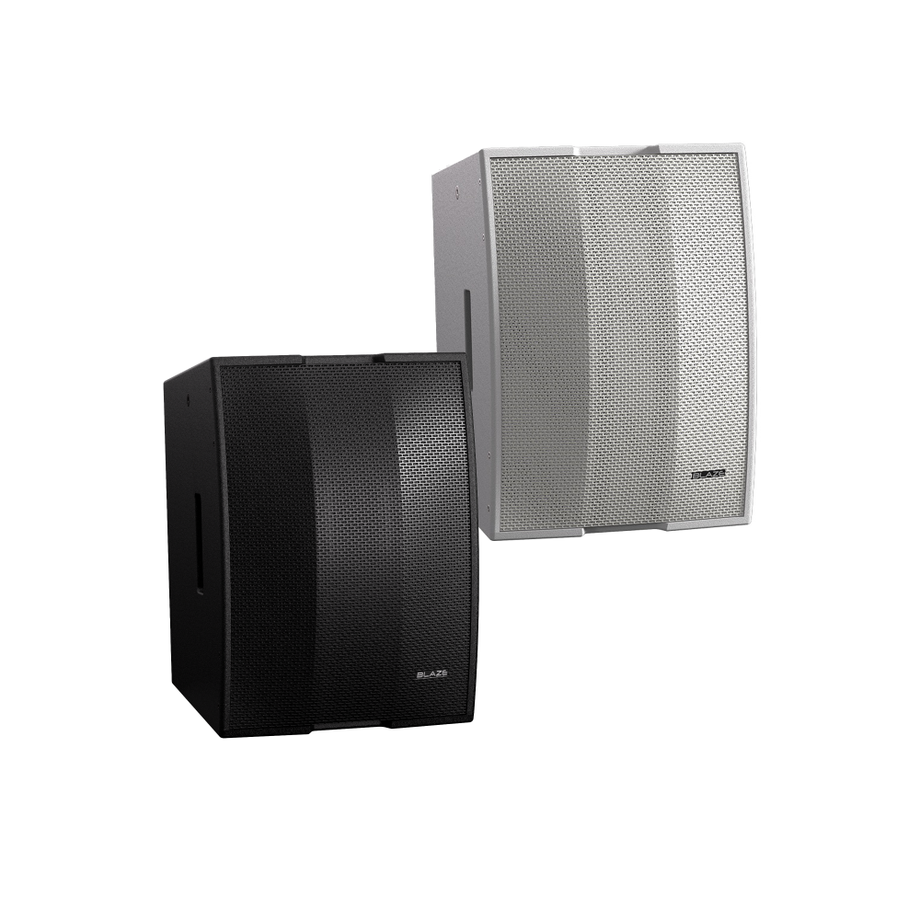

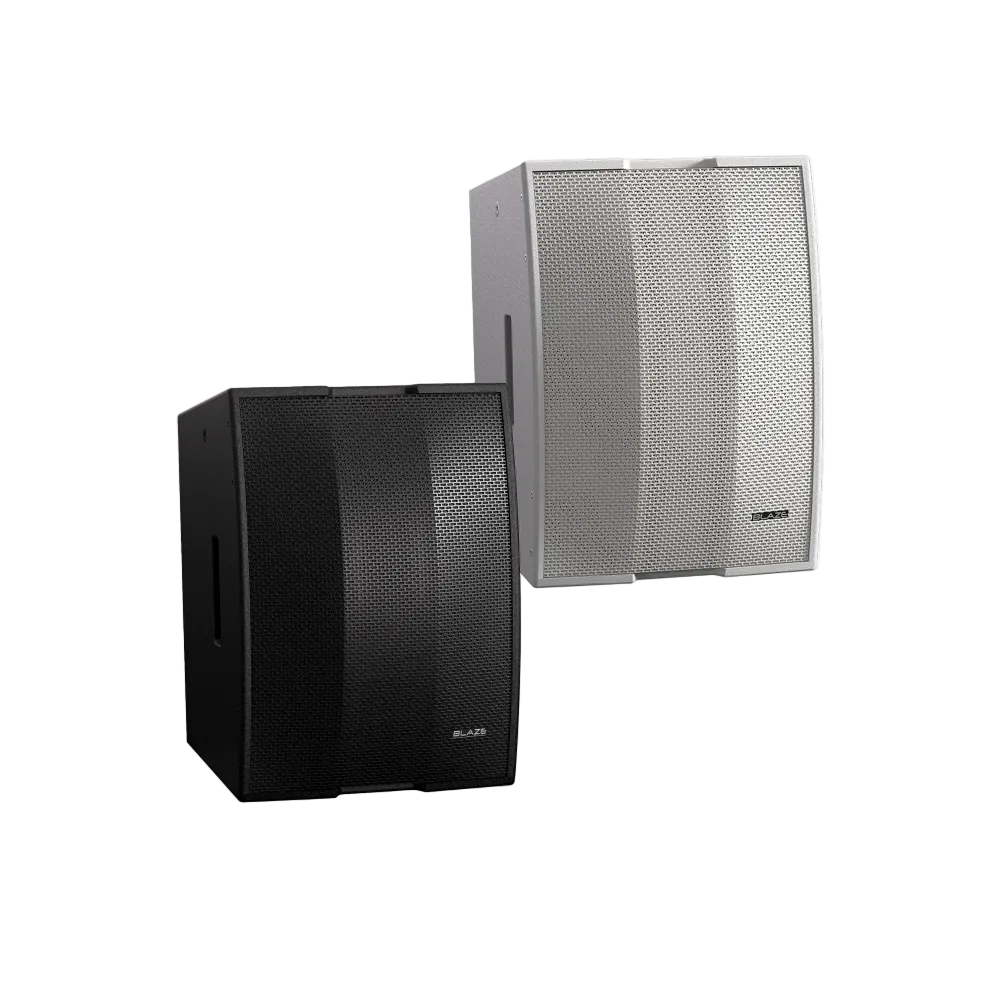

FGM-888-005 (Black), FGM-888-006 (White)

HF Driver

Coaxial: Eight 2" mid-HF drivers vertically arrayed

LF Driver

Four 5" LF drivers w/ Acoustic Centering

Frequency Response (+/- 10db)

48 Hz - 18 kHz

Frequency Response (+/- 3db)

54 Hz - 18 kHz

Power Handling (RMS)

LF: 320W AES (1280W peak) @5.2Ω HF: 200W AES (800W peak)  @8Ω

Enclosure

12 mm birch plywood, engineered plastics

Dimensions (WxHxD)

19.45" x 19.46" x 15.99" (494.03mm x 494.28mm x 406.15mm)

Weight

38.5 lbs. (17.46kg)

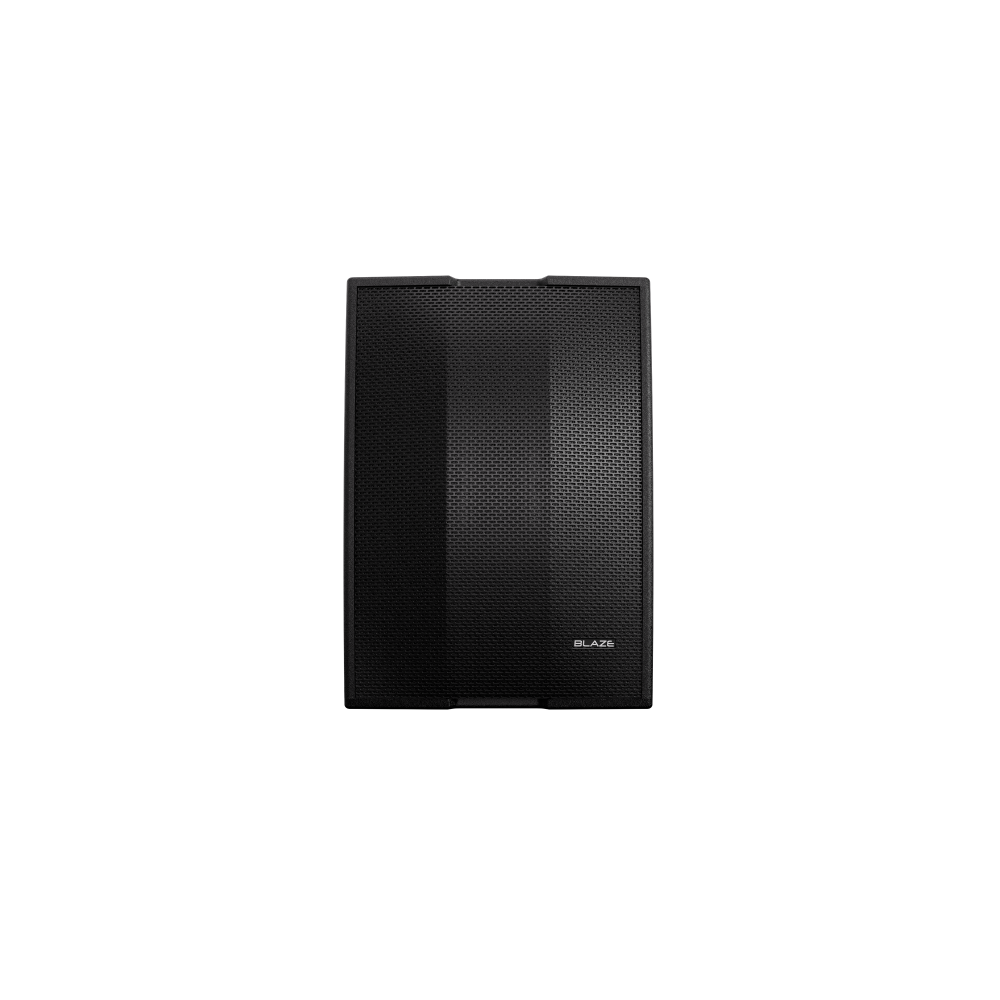

Grille

14-gauge (2mm) perforated steel powder-coated finish, black

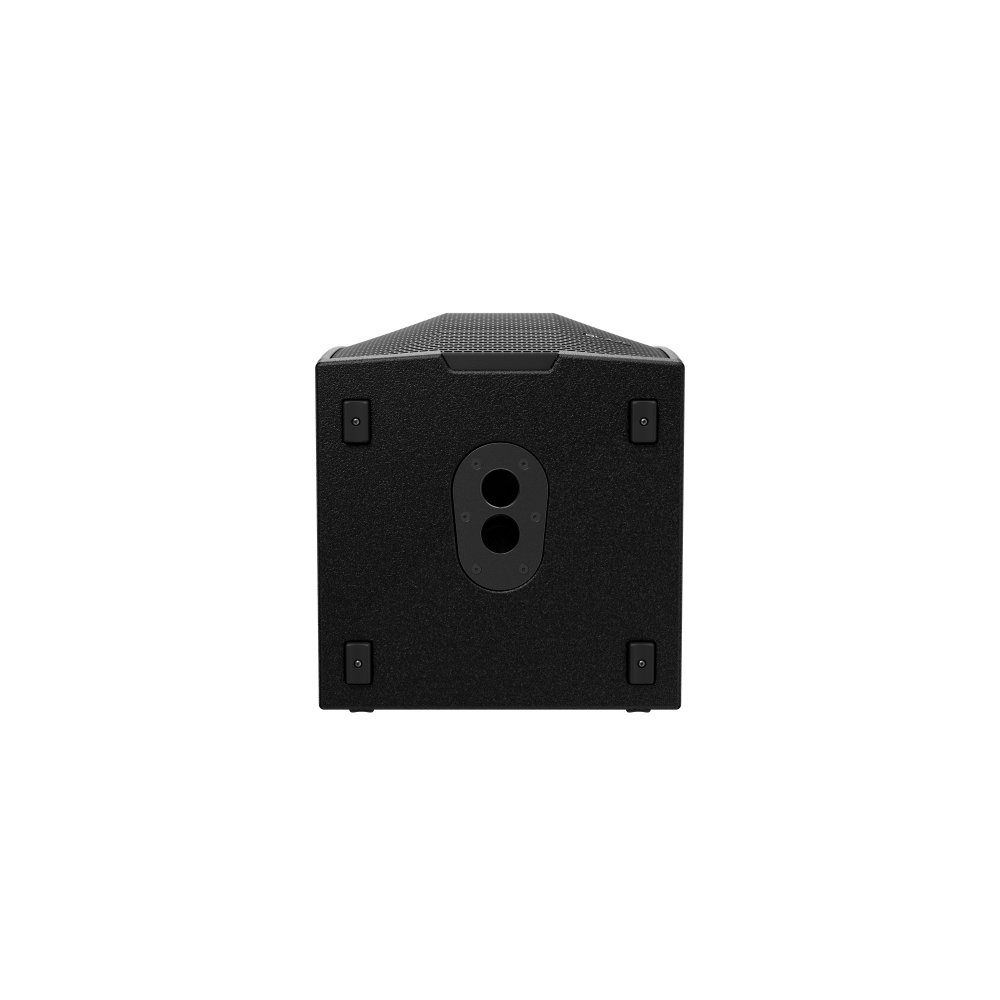

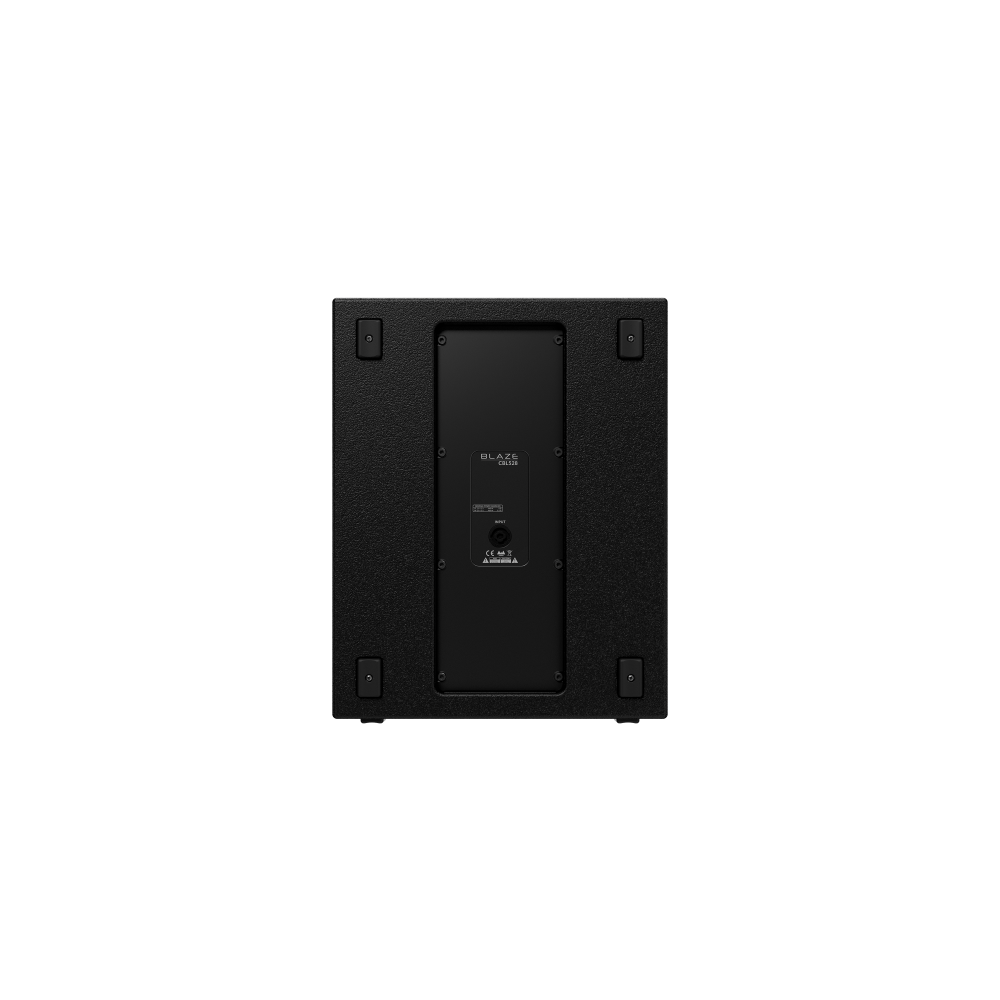

Suspension Points

M10 x 4, projector mount, two-position (CMA-395®) pole mount

Coverage (-6dB)

Horizontal: 180° Vertical: 45°

Pressure Sensitivity @ 1W/1m

LF: 93 dB HF: 95.5 dB

Maximum SPL (Peak)

131 dB
