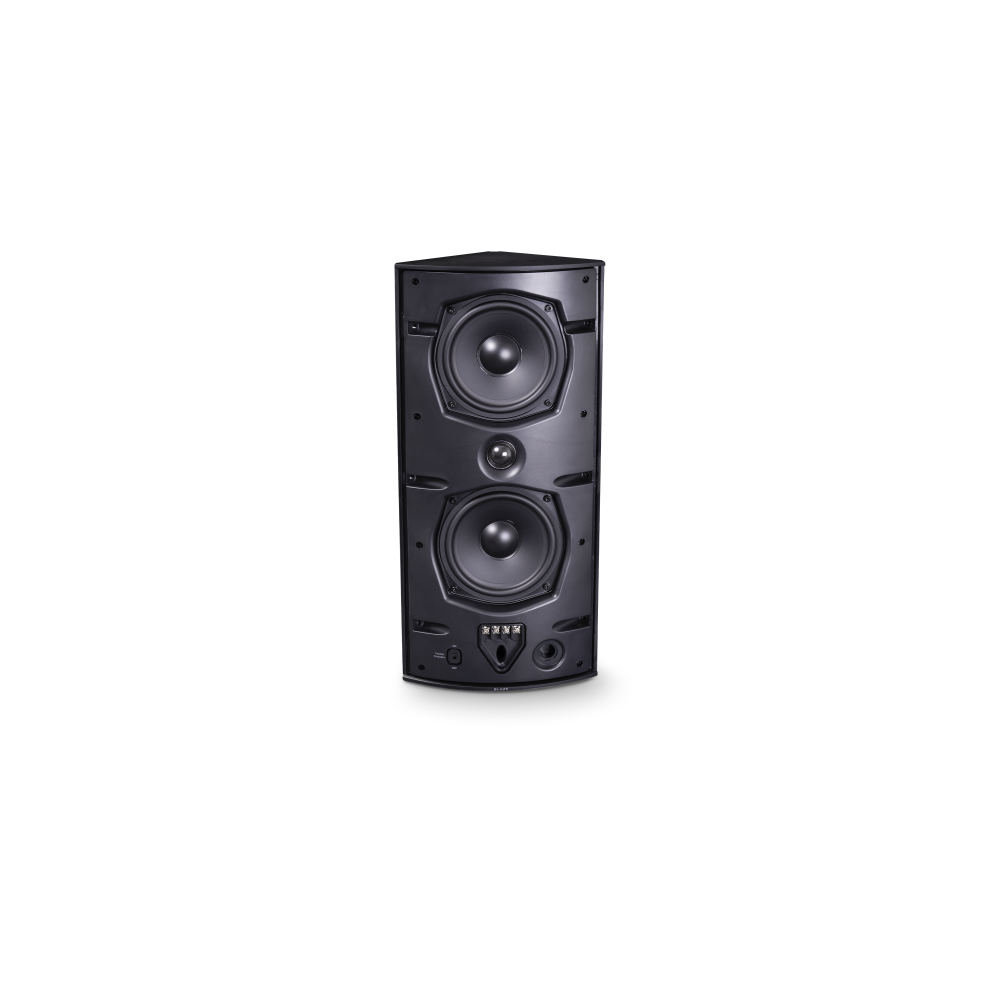

Invisible Series
Ci5
Blaze Speakers
5.25" passive, 2-way, full-range loudspeaker
Key Features
- 5 1/4" woofer + 5 1/4" passive radiator. 1" silk dome tweeter. IP65 rated. Switchable limiting circuit for tweeter.

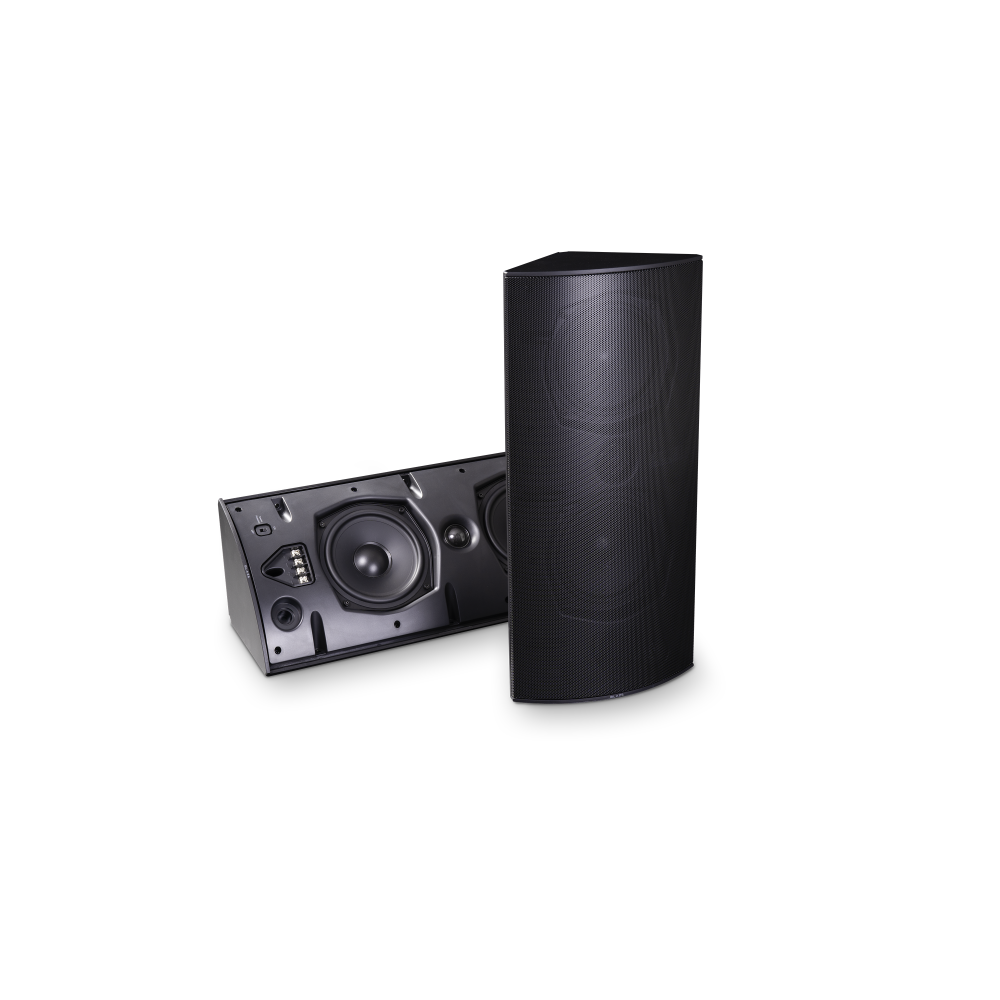

- Triangular ABS cabinet. Metal grille. Mounts without brackets or with hidden sliders. Hidden cable connection. Screw terminals.
- Couples together for 180° or 270° coverage.
- Placement: Indoors or outdoors, walls/ceilings including corners or hanging from the ceiling.
- Compatible with Blaze Audio’s C8S and C12S subwoofers.
- Available in black or white.
Specifications
SKU | Color
BGM-888-011 (Black), BGM-888-012 (White)
HF Driver
1" silk dome tweeter
LF Driver
5 1/4" woofer + 5 1/4" passive radiator
Frequency Response (+/- 10db)
55 - 20 Hz
Sensitivity
88dB
Recommended Power Range
50 - 100 W / 8ohms
Enclosure
ABS
Dimensions (WxHxD)
8.23" x 17.72" x 5.91" (209.04mm x 450.09mm x 150.11mm)
Weight
6.28 lbs. (2.85kg)
Grille
Perforated Steel
Suspension Points
Indoors or outdoors, walls/ceilings incl. corners or hanging from ceiling, coupled.
Coverage (-6dB)
100° vertical / 100° horizontal
Maximum SPL (Peak)
113 dB
Horizontal Nominal Dispersion (-6 dB)
100 Degrees
