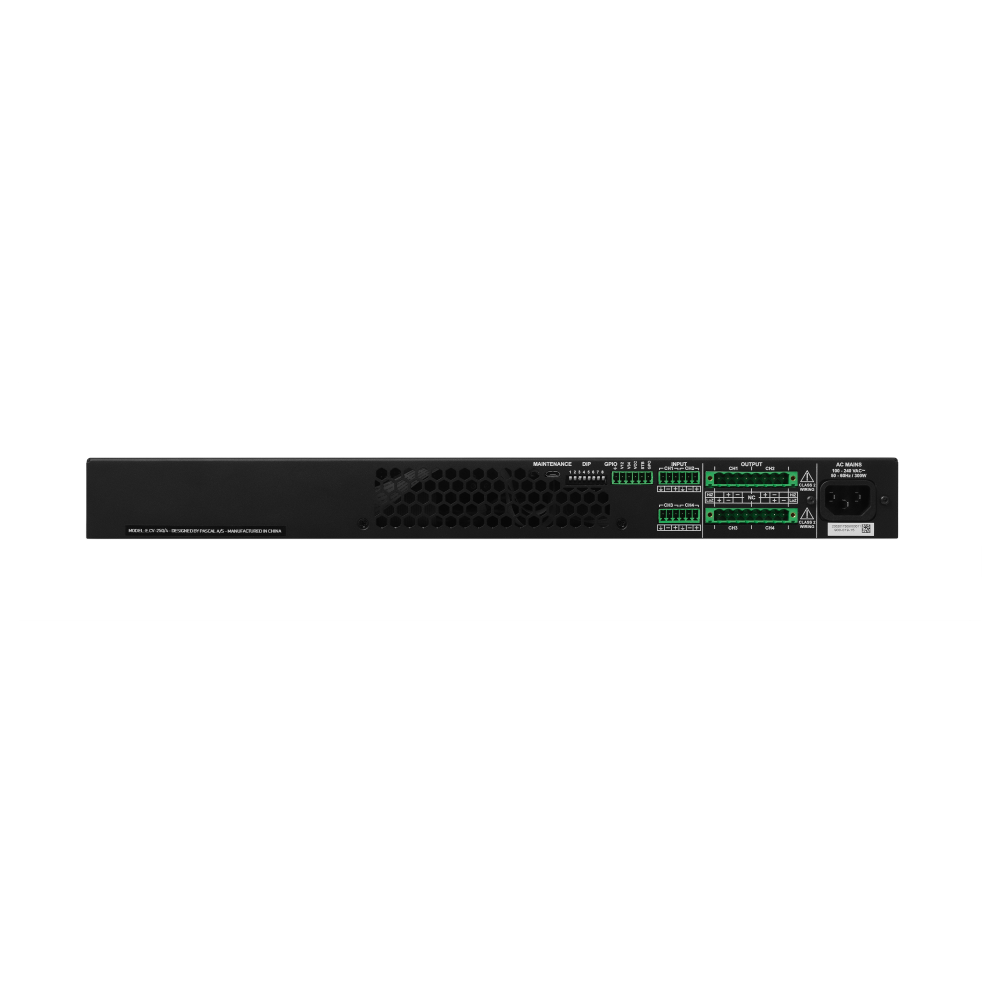

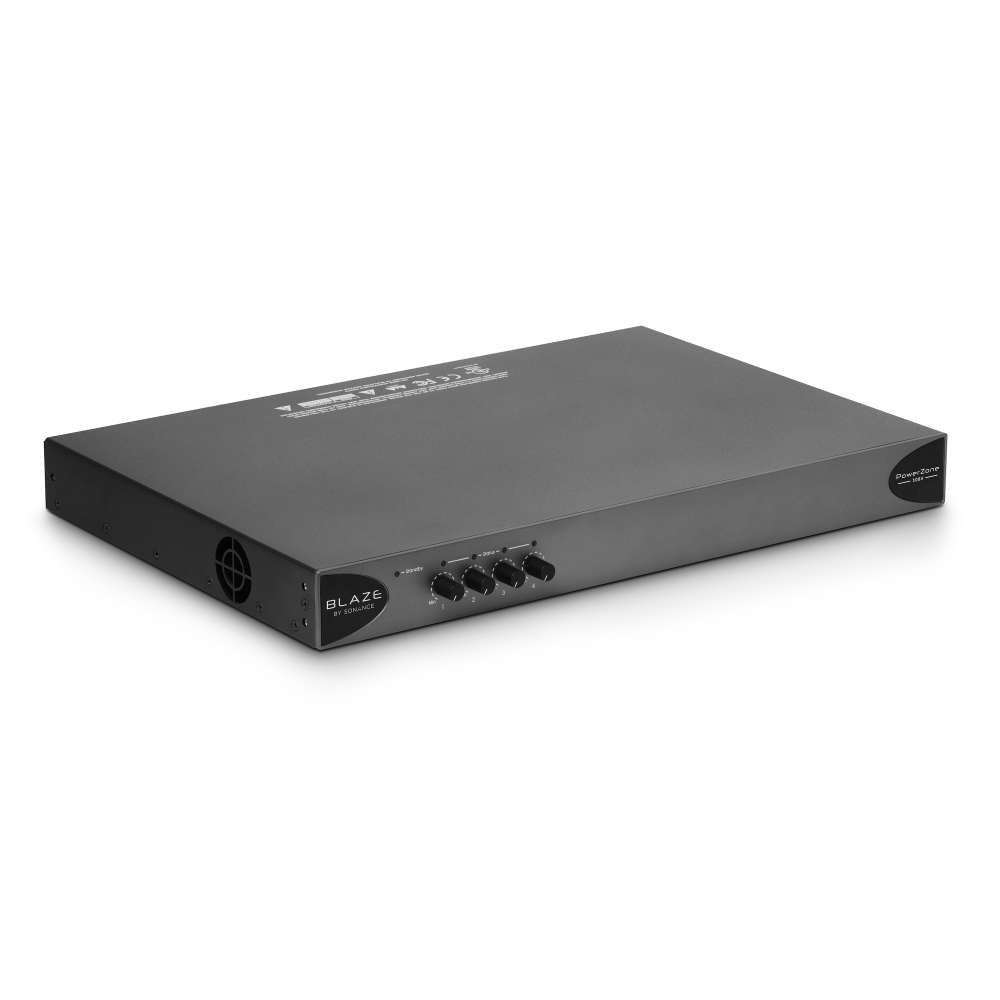

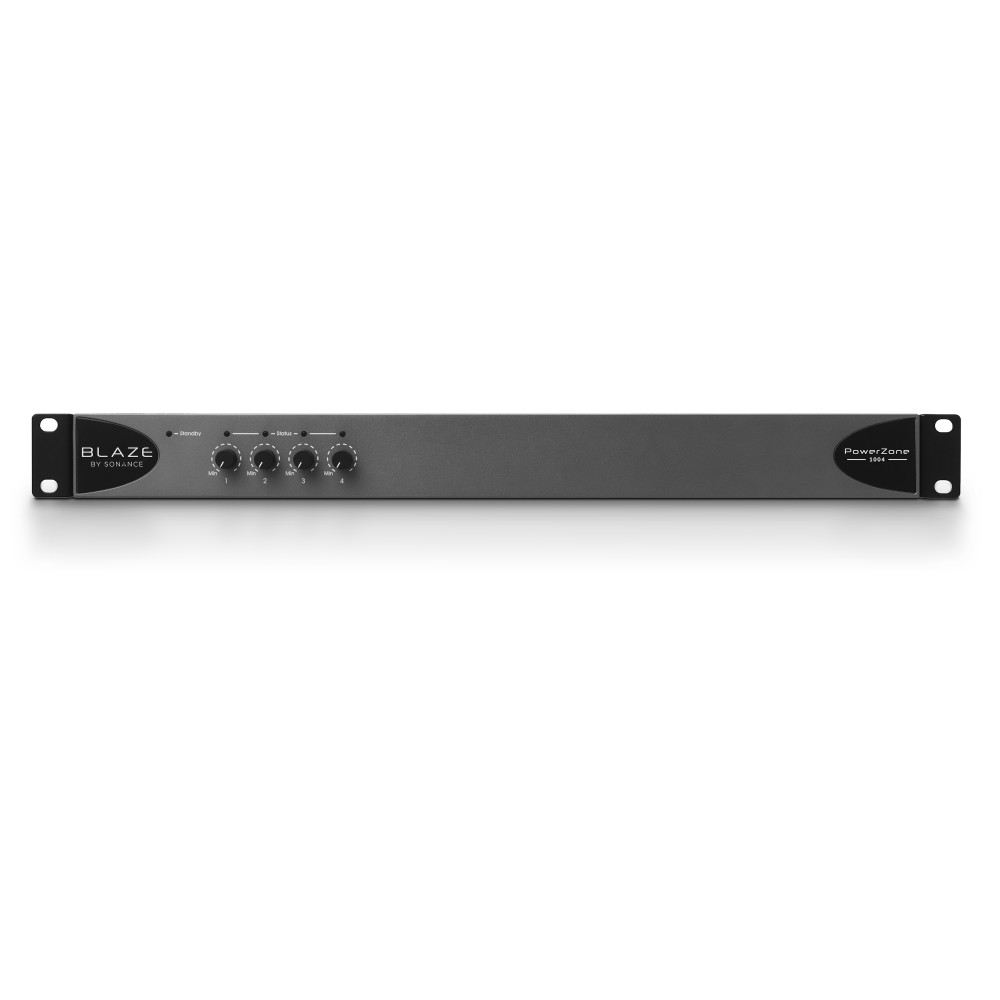

PowerZone 1004



PowerZone 1004
Blaze Amplifiers
1000 W non-networked Class-D amplifier with 4 channels
Key Features
- Compact 1U form factor.
- Hybrid power distribution in both Lo-Z and Hi-Z.
- Powered by Pascal UMAC™ Class-D technology.
- Eight-position DIP switch for operational configuration, including locking front panel gain control. GPIO interface for remote volume and standby.
- ErP and Energy Star compliant.
- UL listed audio equipment.
Specifications
SKU | Color
UBX-888-017 (PowerZone 1004), UBX-888-003 (PowerZone 1004 (UNI))
Dimensions (WxHxD)
17.32" x 1.73" x 11.54" (439.93mm x 43.94mm x 293.12mm)
Weight
7.94 lbs. (3.6kg)
Channel Configuration
Lo-Z: 4x 250W @4/8Ω Hi-Z: 4x 250W @70/100V
Total System Power
1000 W
Output Power @ 4 ohms
4 x 250 W
Output Power @ 8 ohms
4 x 250 W
Output Power @ 70V
4 x 250 W
Output Power @ 100V
4 x 250 W
Powersharing
N/A
Power Consumption
300 W
