Invisible Series
QX-SPL Soundbars
QX-SPL2
QX-SPL2
Soundbar

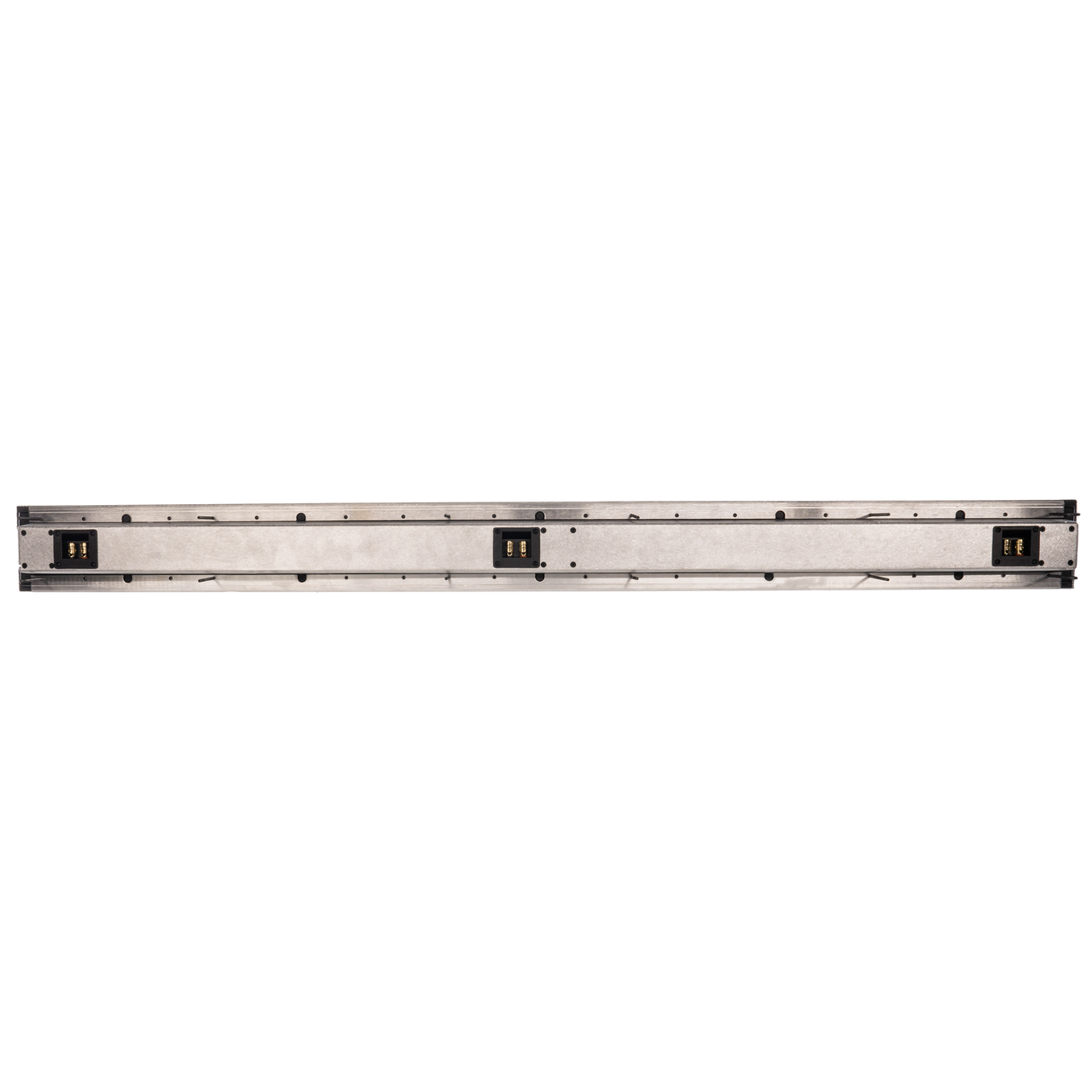

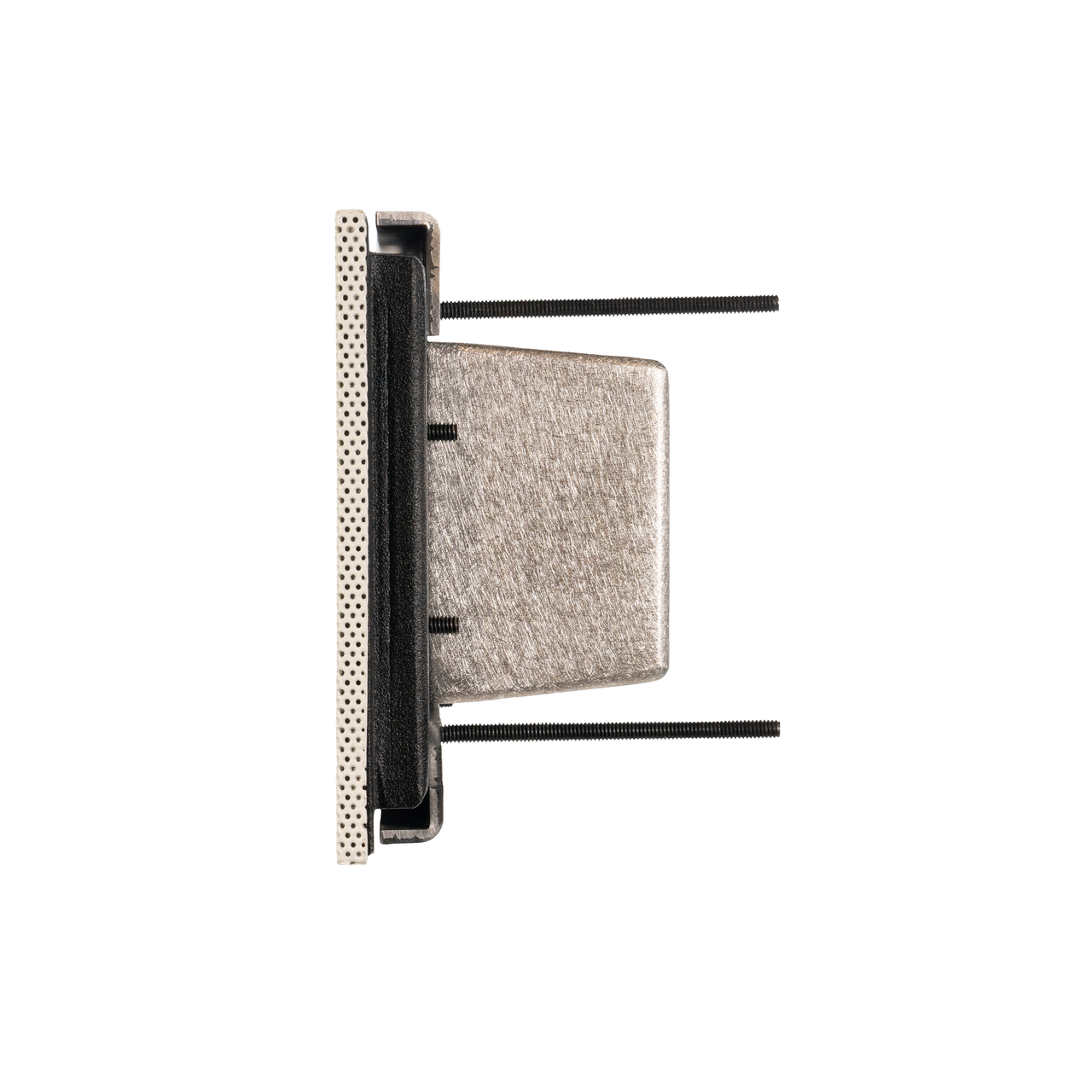

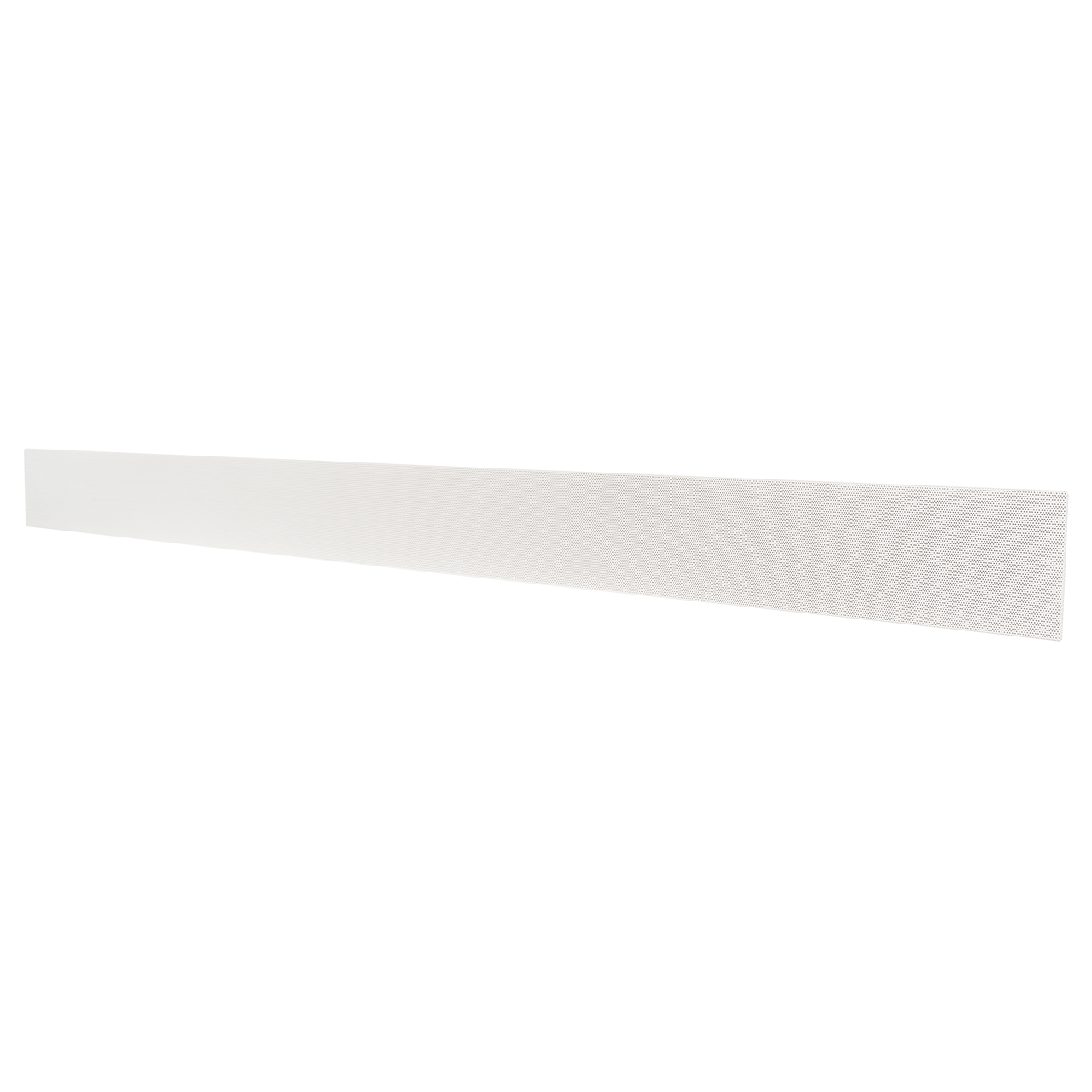

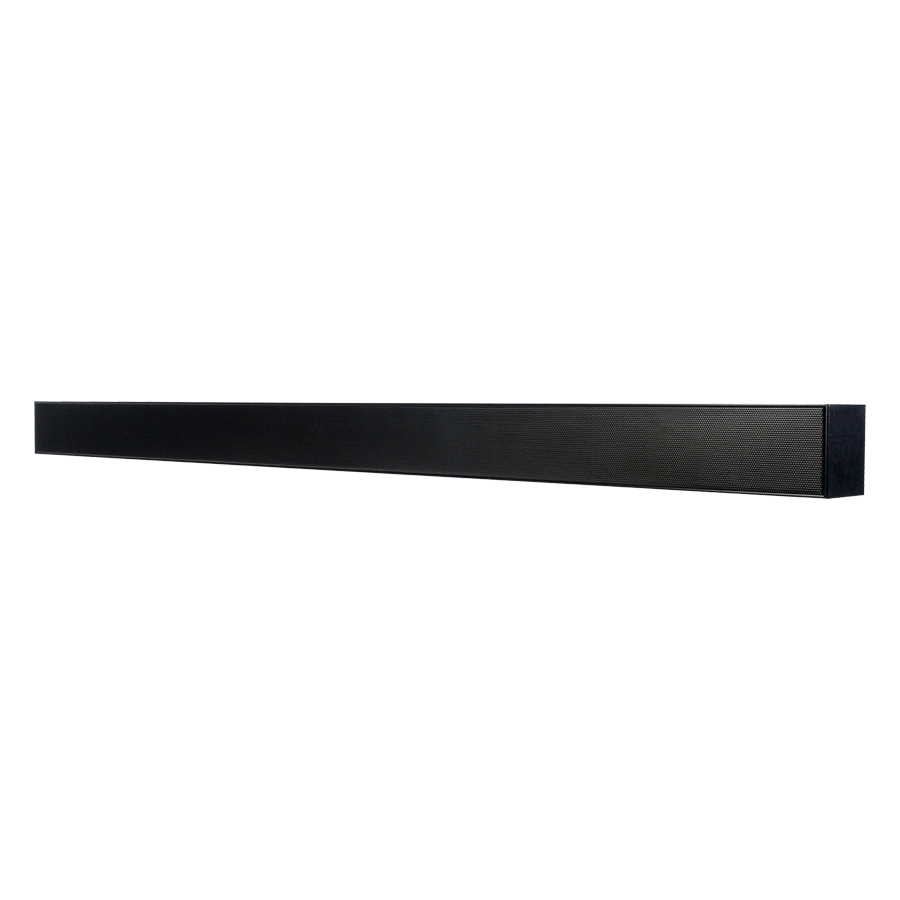

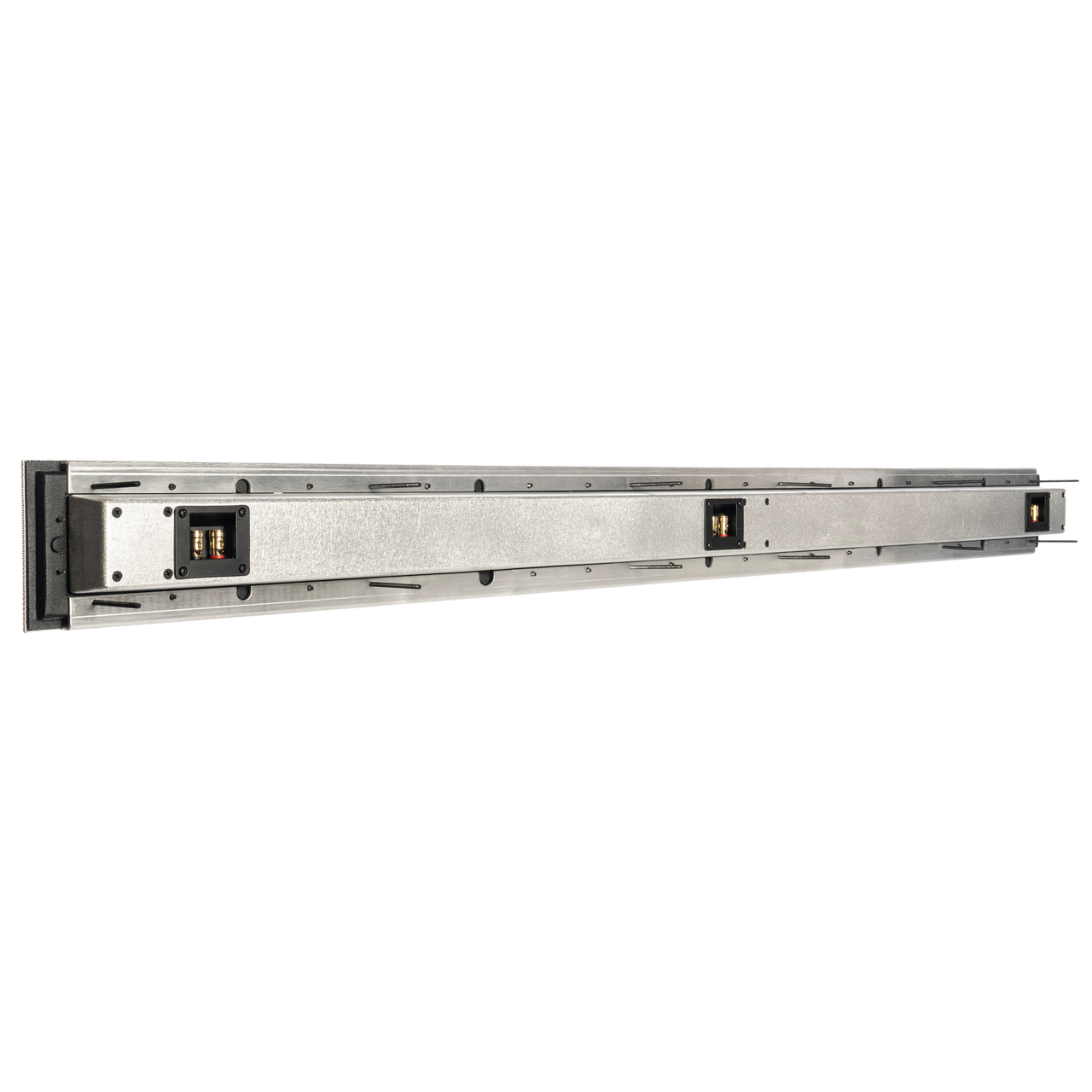

QX-SPL soundbars are designed to install into the wall surface. The SPL soundbar can be flush mounted with a trimless grille or installed with a traditional grille that sits proud of the surface. May require framing to fit across stud bays.
Key Features
- Available in Center Channel, LR, LR + Subwoofer, or LCR configurations.
- Built-to-order based on application and configuration to perfectly match TV size
- In-wall design with customizable grille
- 2” Low-profile height to fit limited wall space
- Available in stereo, left-right-center, or split into pairs with centergy technology
- 4 ohms for two/four woofer configurations, 8 ohms for one woofer configurations
- Built and assembled in Minden, Nevada
- TAA Compliant
Specifications
SKU
QX-SPL
Speaker Tweeter
1" (25mm) Soft Dome
Speaker Woofer
2" x 5" Carbon Fiber/Aluminum Honeycomb Racetrack
Frequency Response (+/- 3db)
120Hz - 22kHz
Power Handling (RMS)
5 watts minimum; 150 watts maximum
Sensitivity
88dB (2.83V/1m)
Enclosure
Aircraft Grade Aluminum
Nominal Impedance (Ohms)
4/8 ohms (Woofer Quantity Dependent)
Cut-Out Dimensions (WxH)
4.38" x 65.38" (111.13mm x 1660.53mm)
Mounting Depth
3.485" (88.52mm)
