VXXT10RW

Visual Experience

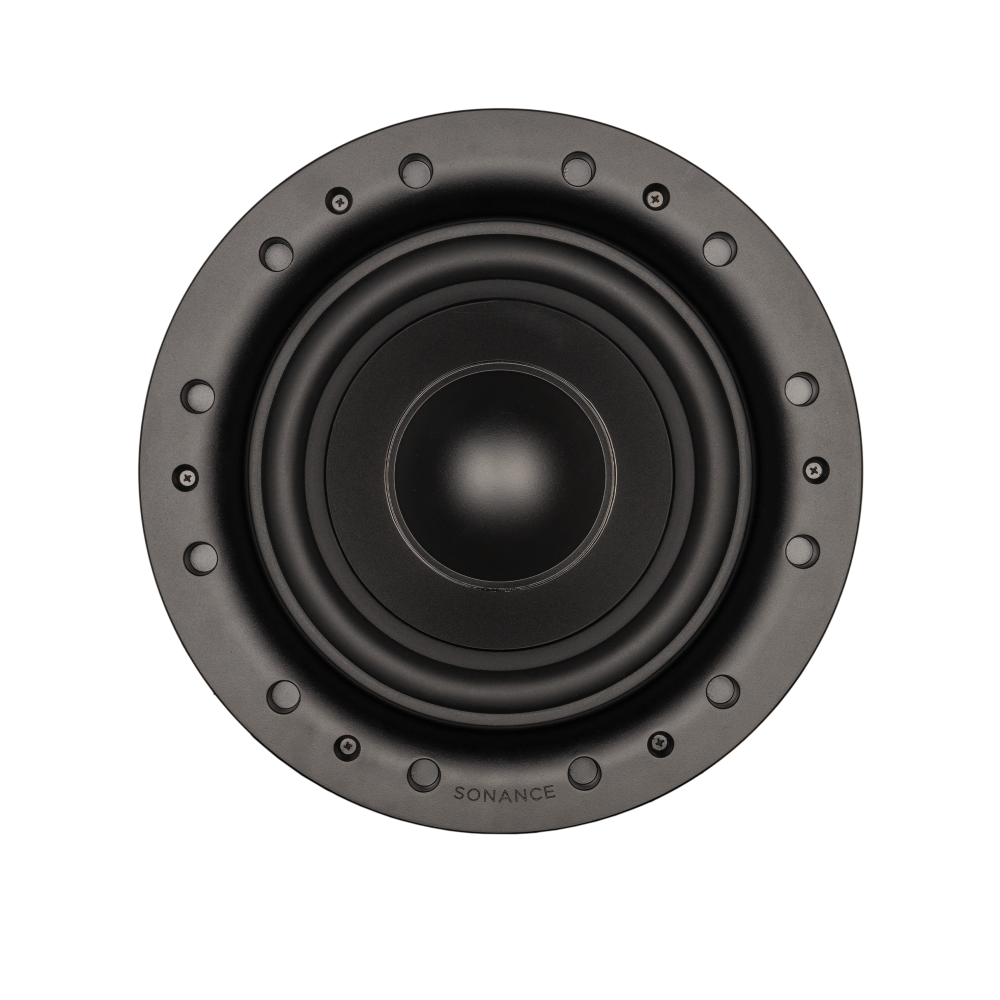

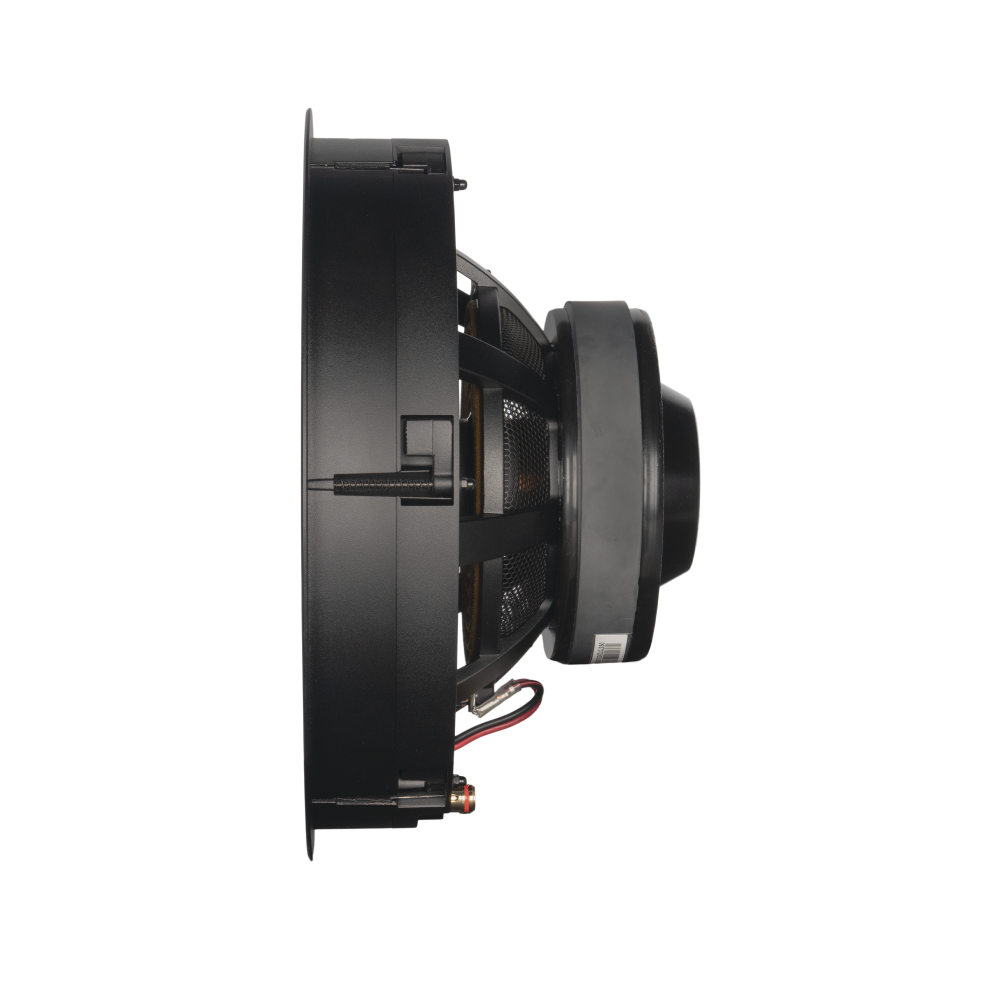

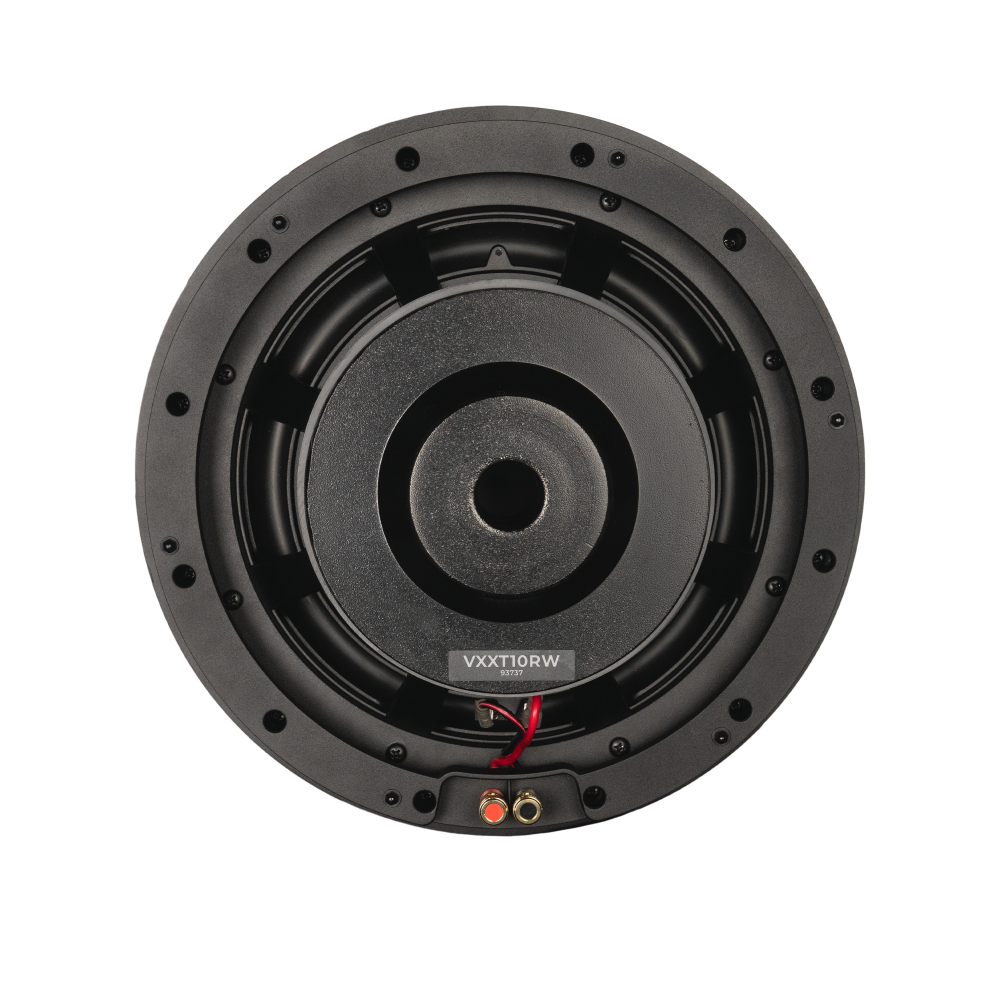

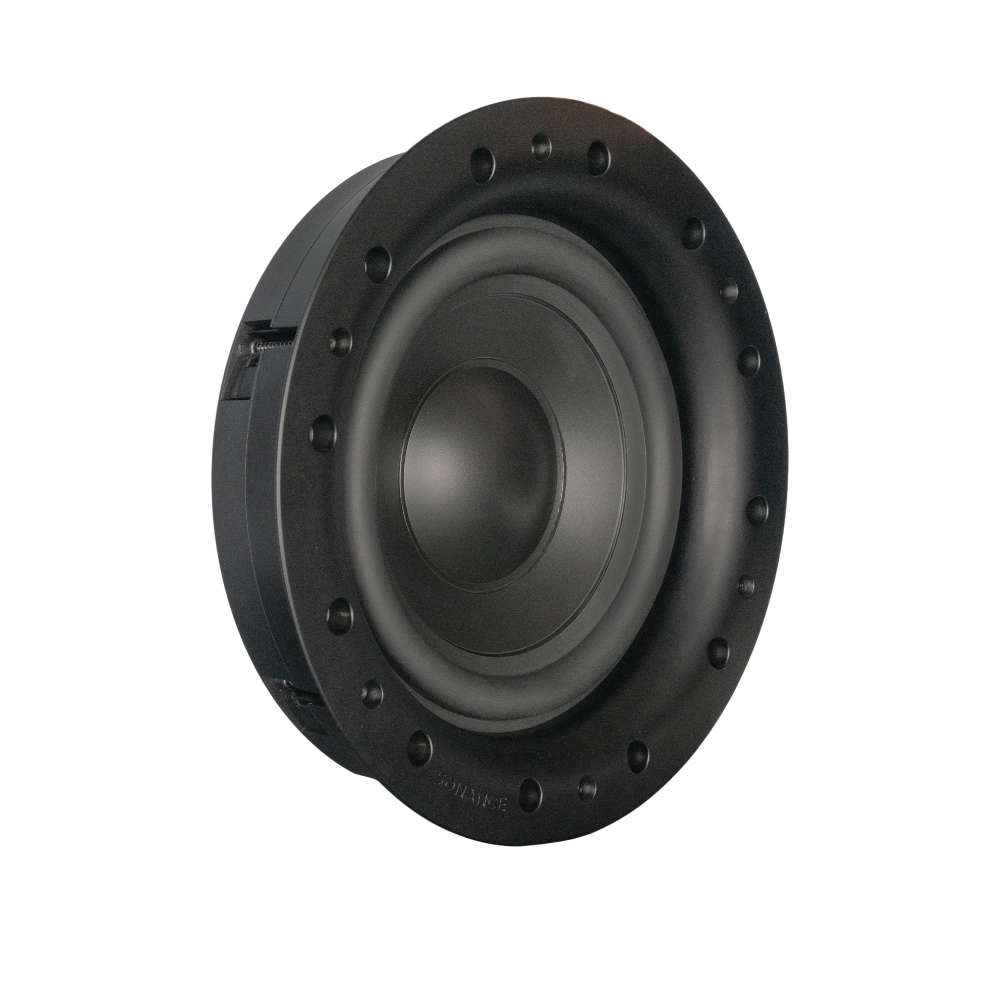

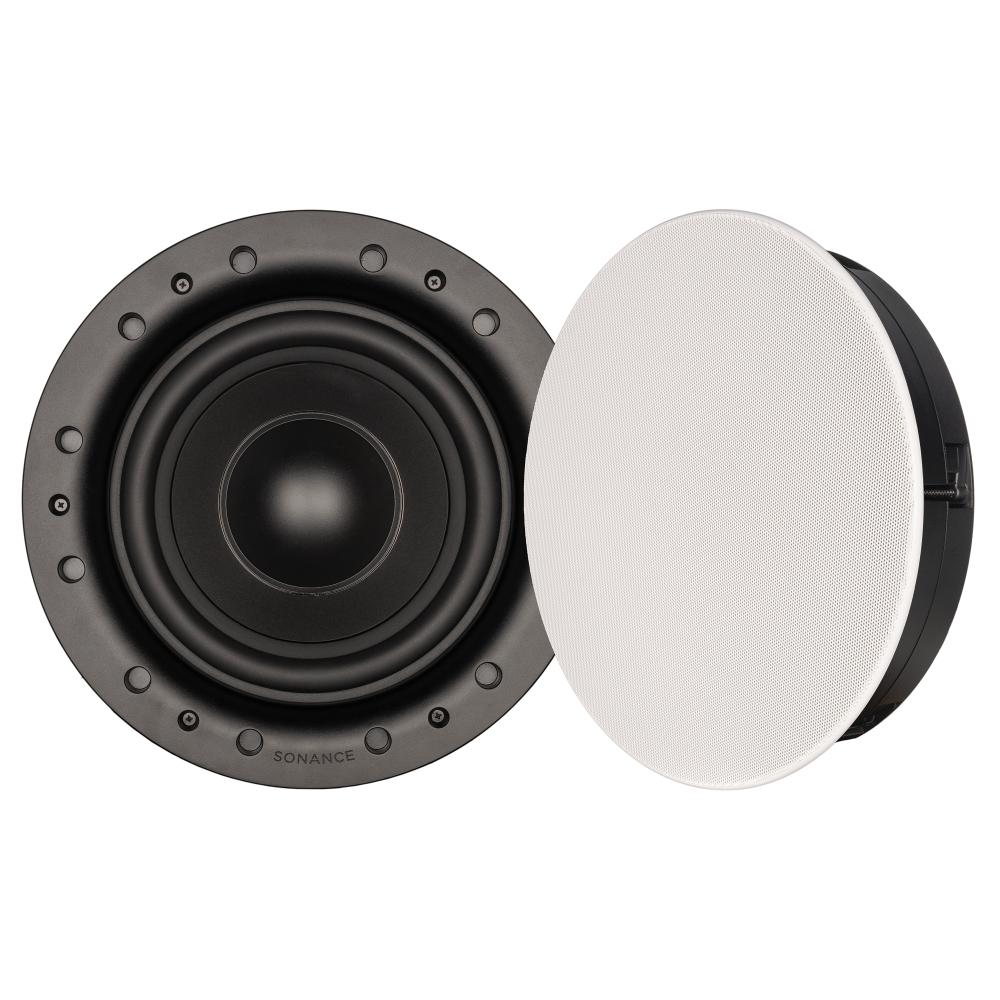

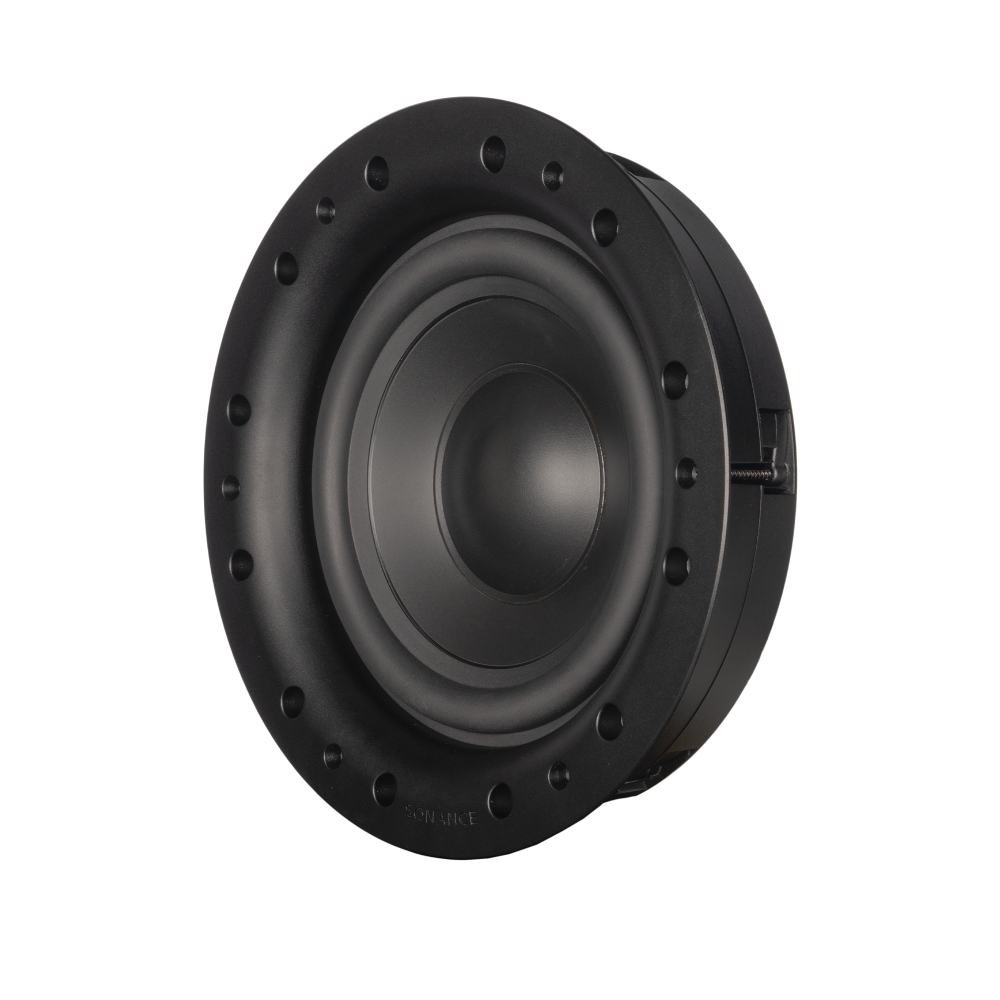

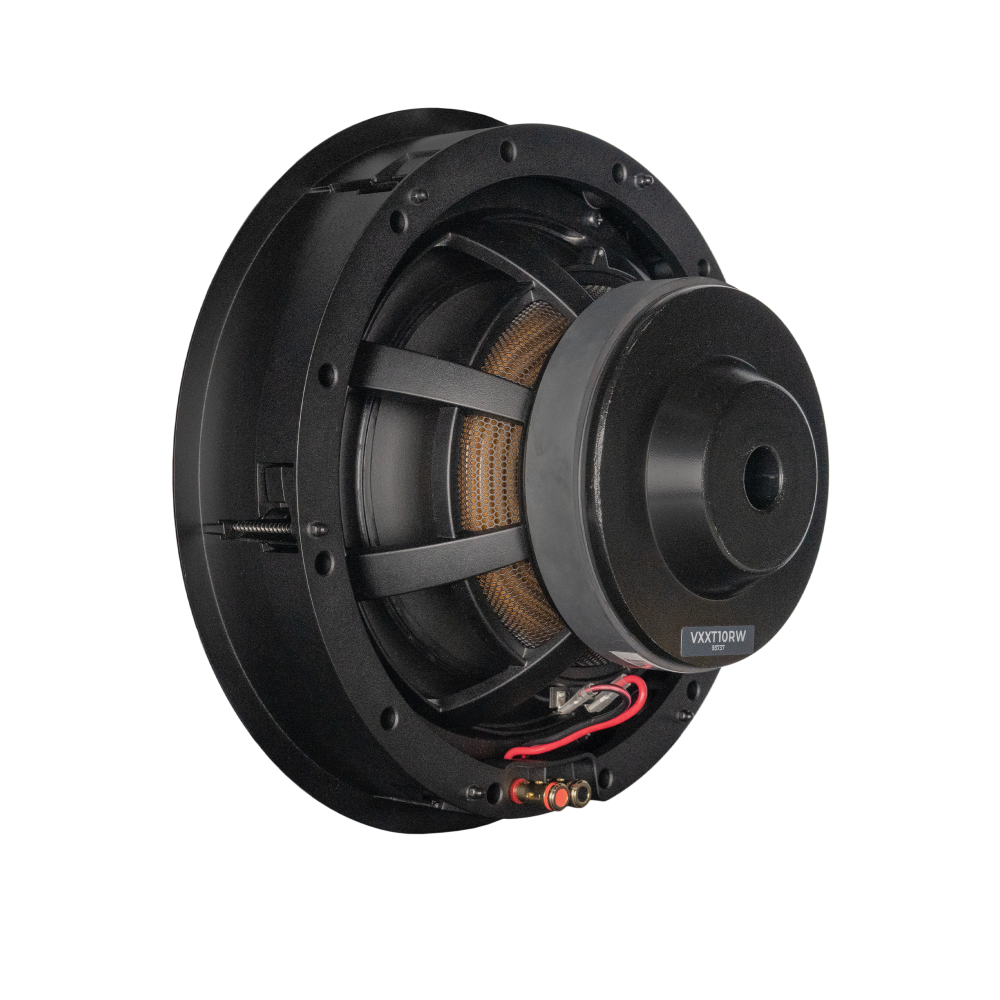

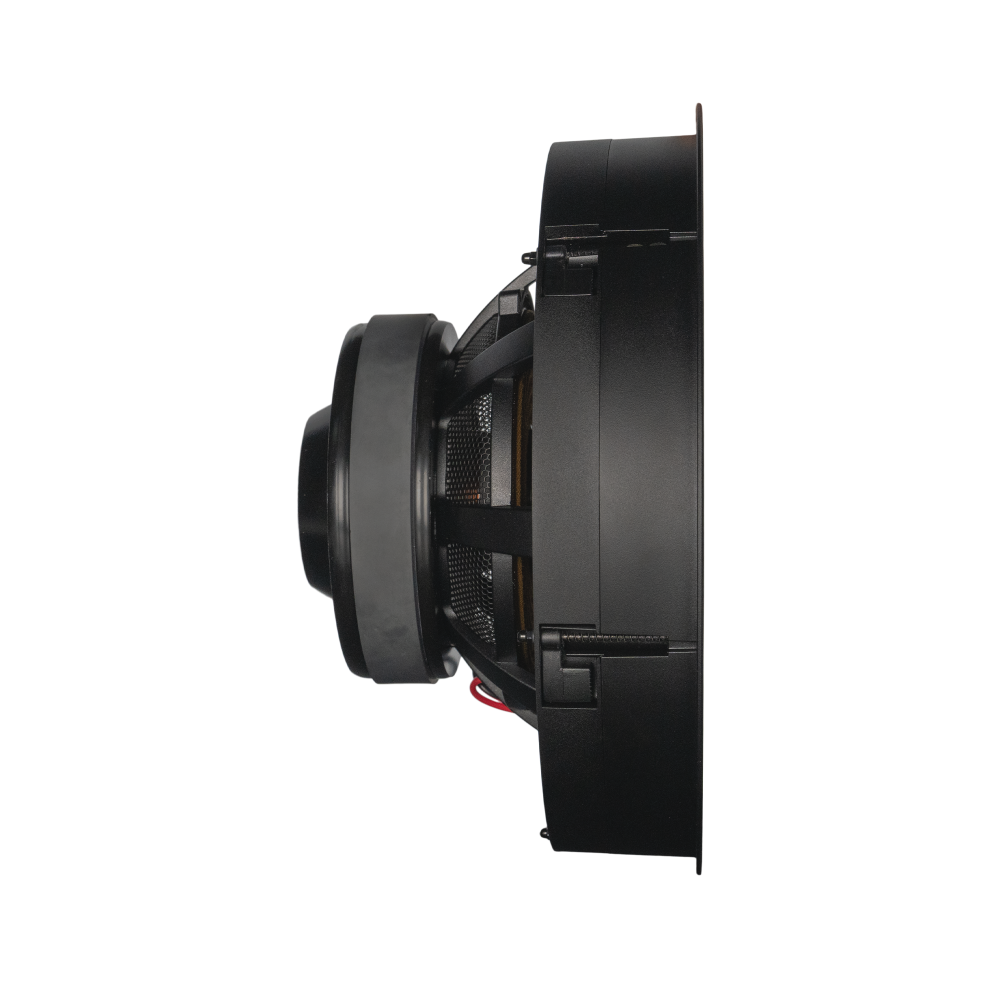

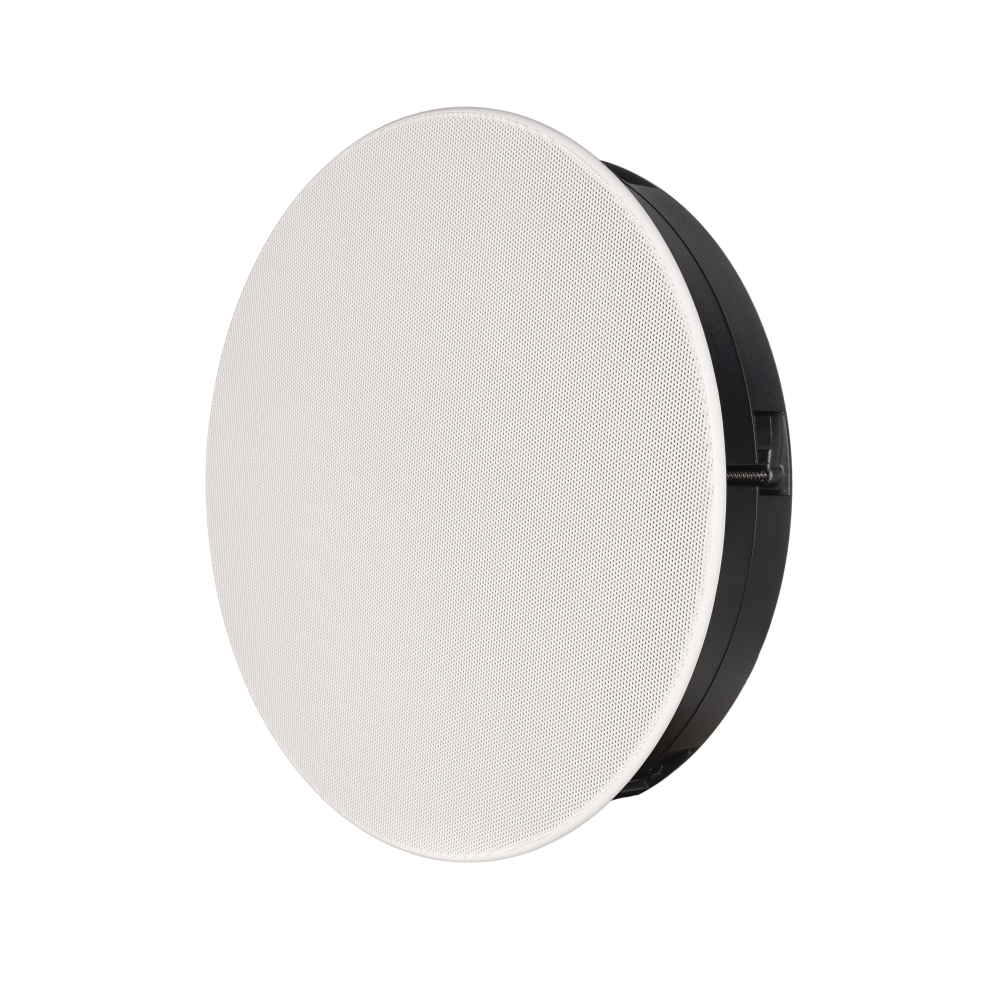

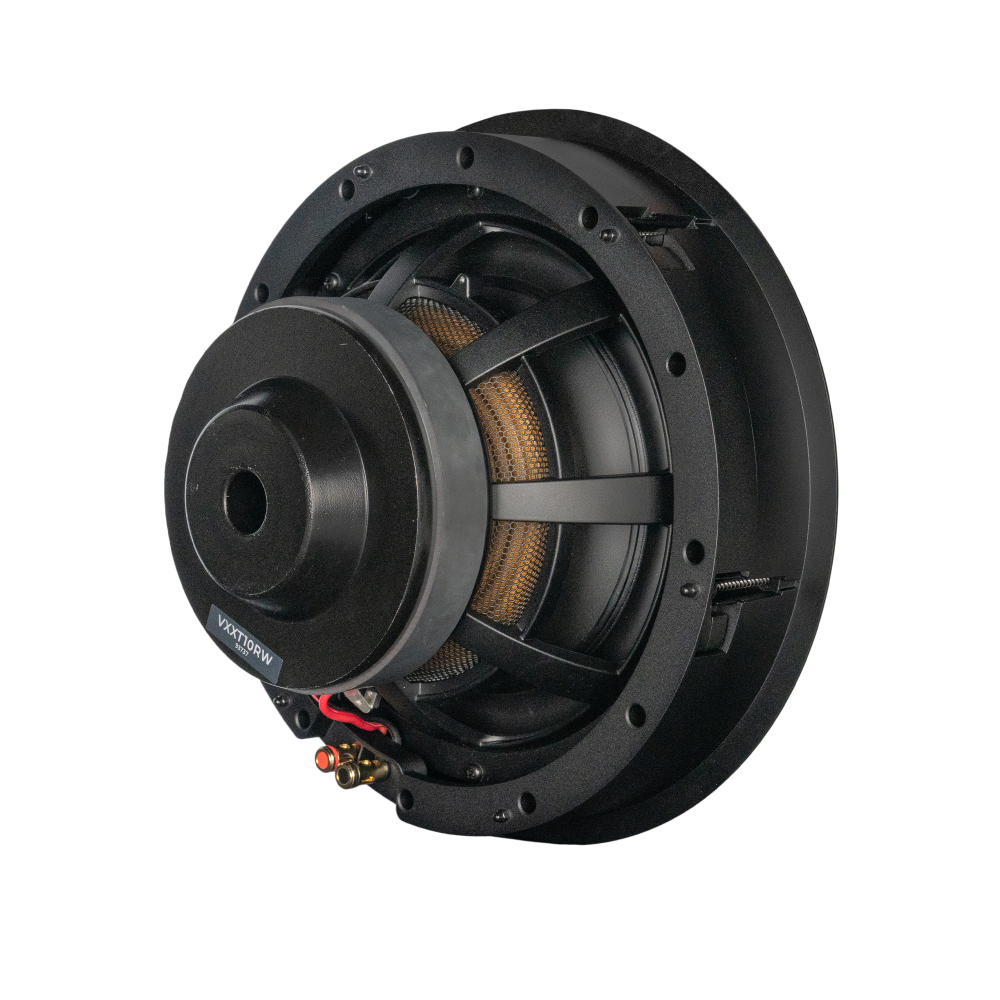

The VXXT10RW is a powerful 10" round, architectural subwoofer built for extreme environments. Its IP67 rating makes the VXXT10RW deal for marine or outdoor installations and its open-back design suits unique placements like yacht bulkheads. VXXT features Sonance XPC grille retention with a round or square, micro trim or trimless bezel aesthetic. Trimless grille and square grilles optional, sold separately.

VXXT10RW

Key Features
Specifications
Related Products
Downloads
Videos
Learn More

Specifications

SKU

93737 Brilliant White (Satin)

Speaker Woofer

10" (254mm) polypropylene cone, high excursion Santoprene surround

Frequency Response (+/- 3db)

30Hz - 250Hz +/-3dB

Power Handling (RMS)

5 watts minimum; 300 watts maximum

Sensitivity

90dB (2.83V/1m)

Nominal Impedance (Ohms)

4 ohms

Dimensions (Diameter x D)

13.31" x 6.86" (338.07mm x 174.24mm)

Cut-Out Dimensions (Diameter)

12.4" (314.96mm)

Mounting Depth

6.75" (171.45mm)

Weight

19.18 lbs. (8.7kg)

Copy All Specs

Related Products

93748_hero_image_XPC-10RW-T_front.tiff

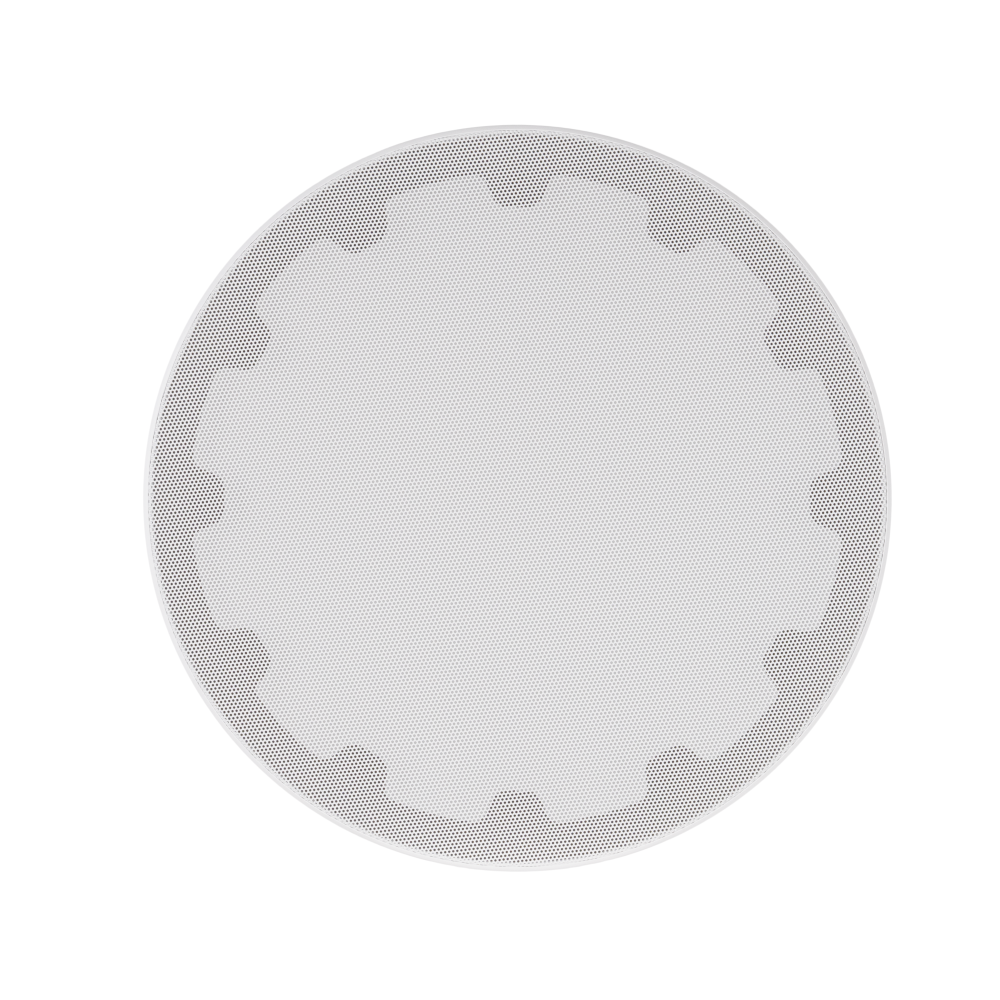

10" ROUND XPC MICRO TRIM

SKU: 93748

93749_hero_image_XPC-10RW-NT_Front.tiff

10" ROUND XPC TRIMLESS GRILLE

SKU: 93749

93756_hero_image_XPC-10WSQ-T_Front.tiff

10" SQUARE ADAPTER W/ XPC MICRO TRIM GRILLE

SKU: 93756

93757_hero_image_XPC-10WSQ-NT_Front.tiff

10" SQUARE ADAPTER W/ XPC TRIMLESS GRILLE

SKU: 93757
