FXA550S
FXA550S
FXA

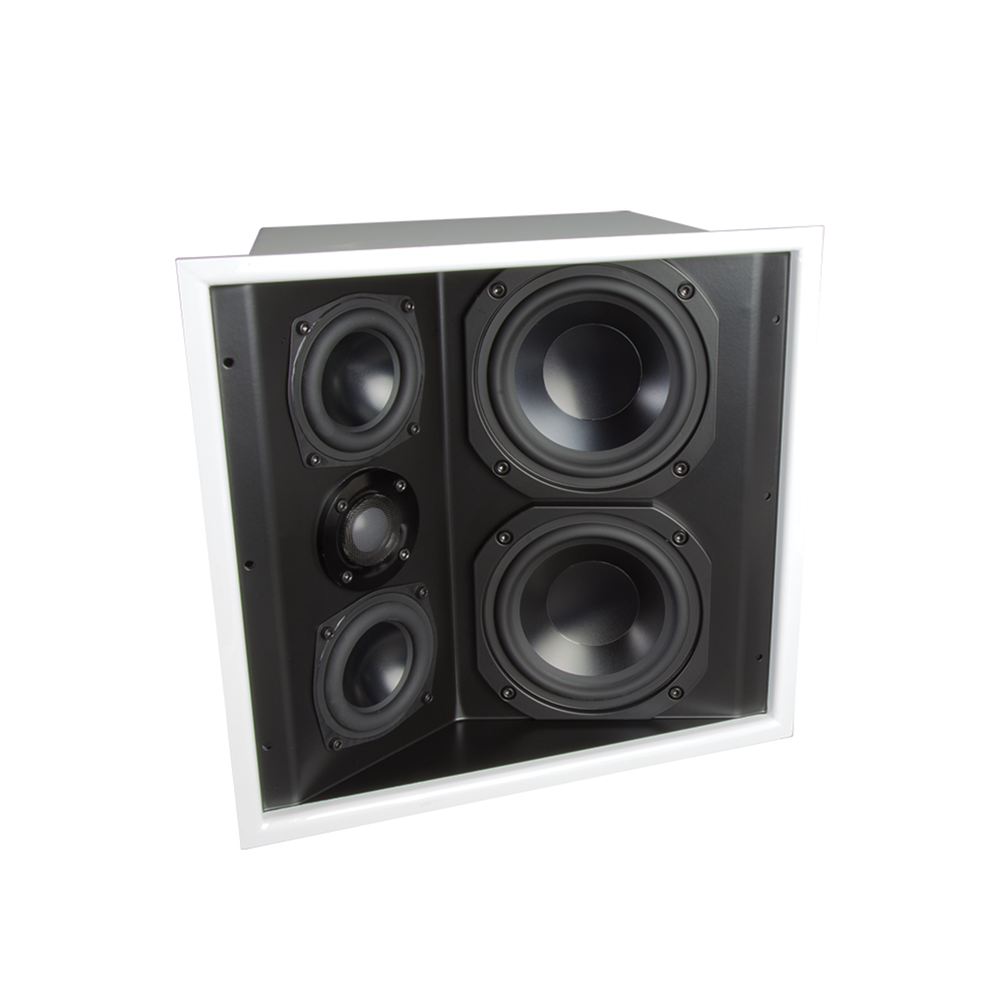

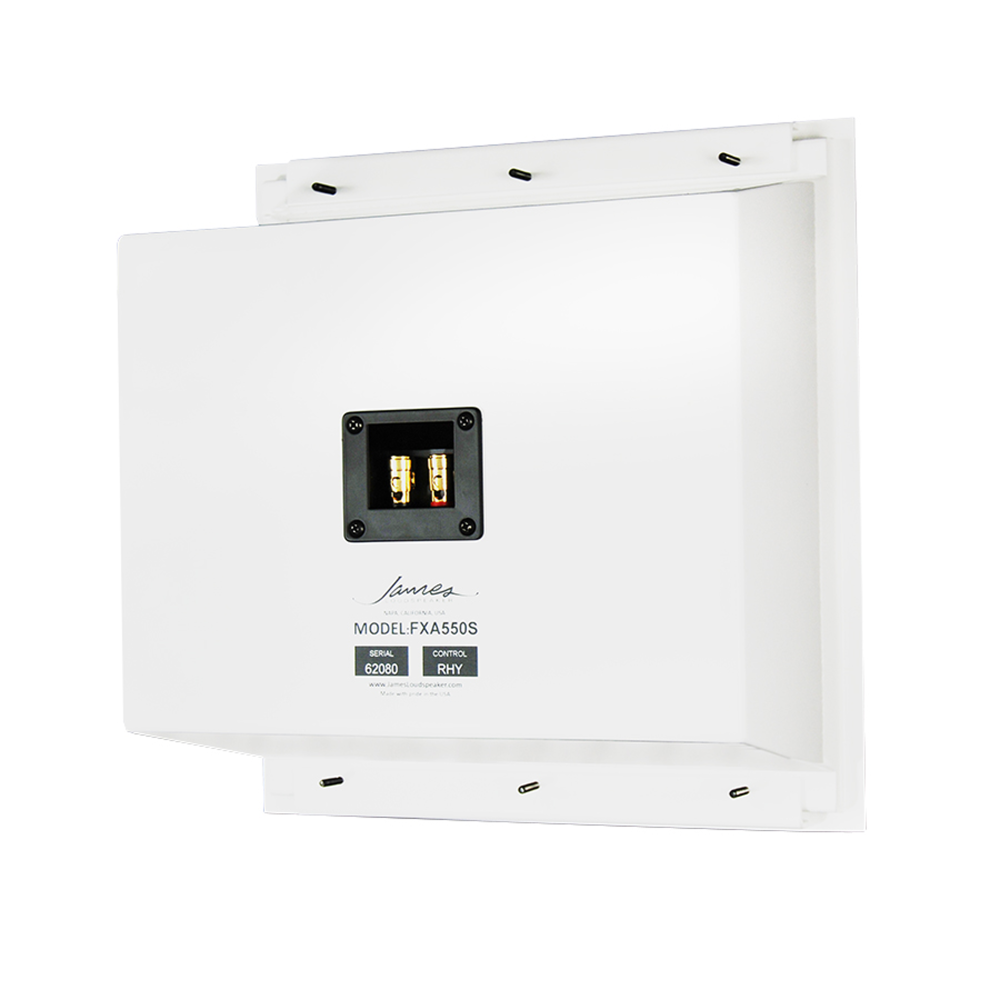

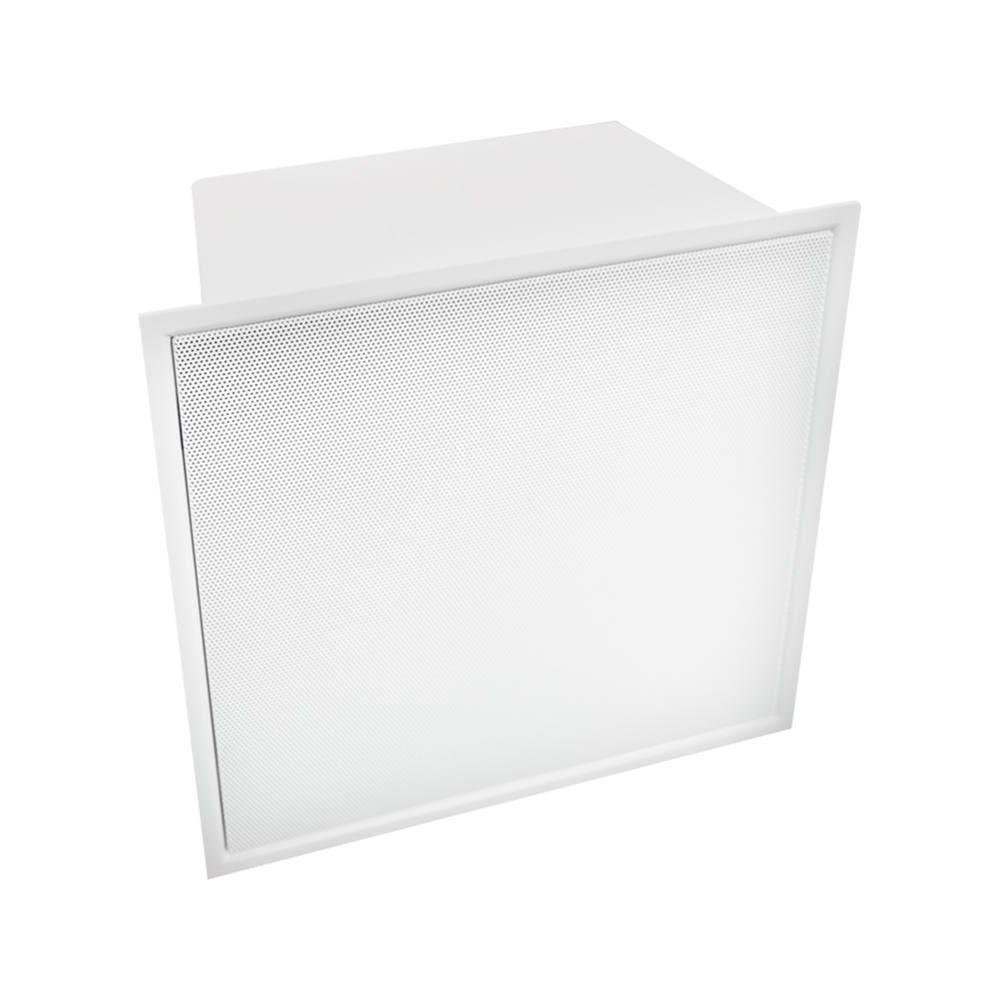

The FXA550S from James Loudspeaker offers a ceiling/in-wall solution for challenging coverage areas. With an angled baffle design, it excels in off-axis performance for L/C/R and surround applications, including immersive formats. Featuring a beryllium tweeter and durable aluminum construction, it’s ready for outdoor and marine use. Custom options available.
Key Features
- Angled baffle in-wall, in-ceiling speaker for off axis coverage
- 3-way design
- FXA features a beryllium tweeter to timbre match BE Series models
- FXAQ features the James Quad Array tweeter to timbre match QX Series models
- Aluminum cone woofers with Santoprene surrounds
- Angled dual 3” high excursion mid-range drivers and angled dual 5.25” woofers
- Available in marine grade models
- TAA Compliant
Specifications
SKU | Color
FXA550S
Speaker Tweeter
(1) 1" (25mm) Beryllium
Speaker Woofer
(2) 5.25" (133mm) Aluminum
Speaker Mid Range
(2) 3" (76 mm) High Excursion
Frequency Response (+/- 3db)
65Hz - 40kHz
Sensitivity
89dB (2.83V/1m)
Recommended Power Range
50 - 250W
Enclosure
Aircraft Marine Grade Aluminum
Nominal Impedance (Ohms)
4 Ohms
Dimensions (WxHxD)
12.75" x 12.75" x 5.88" (323.85mm x 323.85mm x 149.35mm)
Cut-Out Dimensions (WxH)
12.13" x 12.13" (307.98mm x 307.98mm)
Cut-Out Dimensions (Diameter)
12.125" (307.98mm)
