Legacy Product

Replacement Model: SA68

SA63-7

Small Aperture

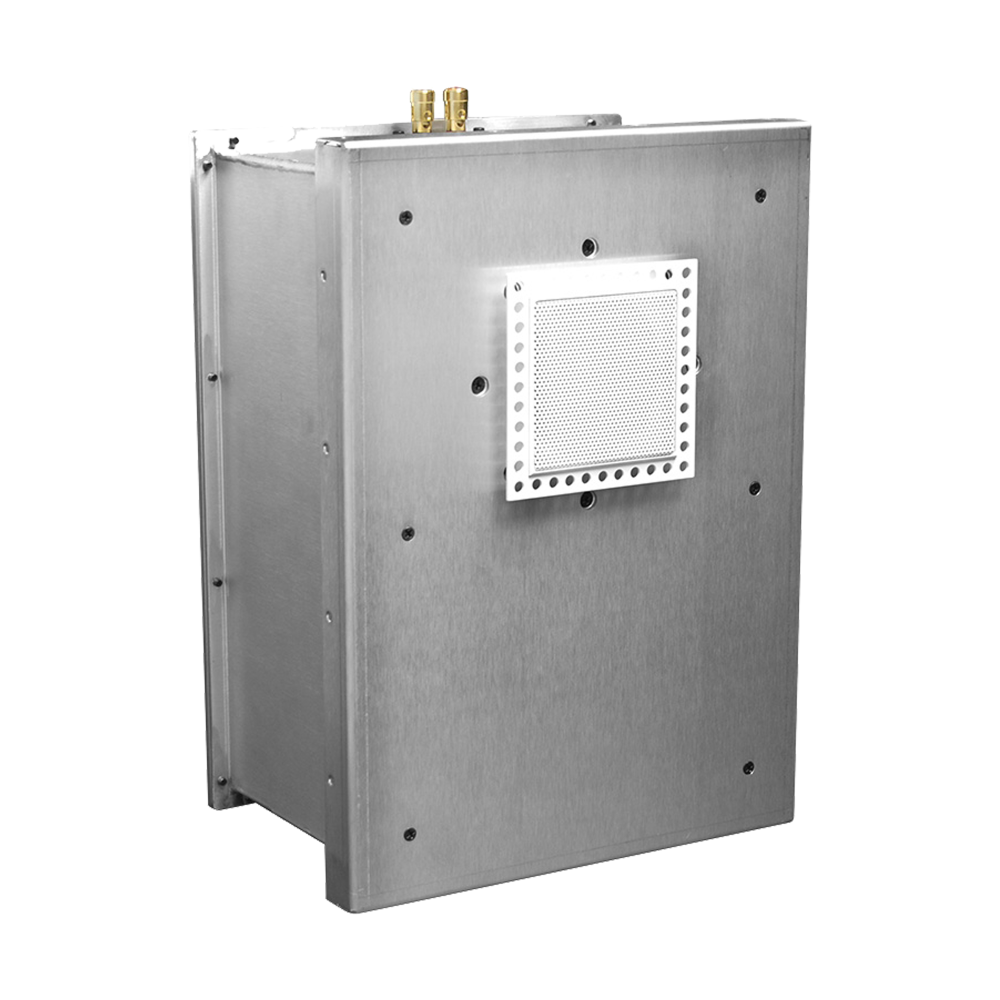

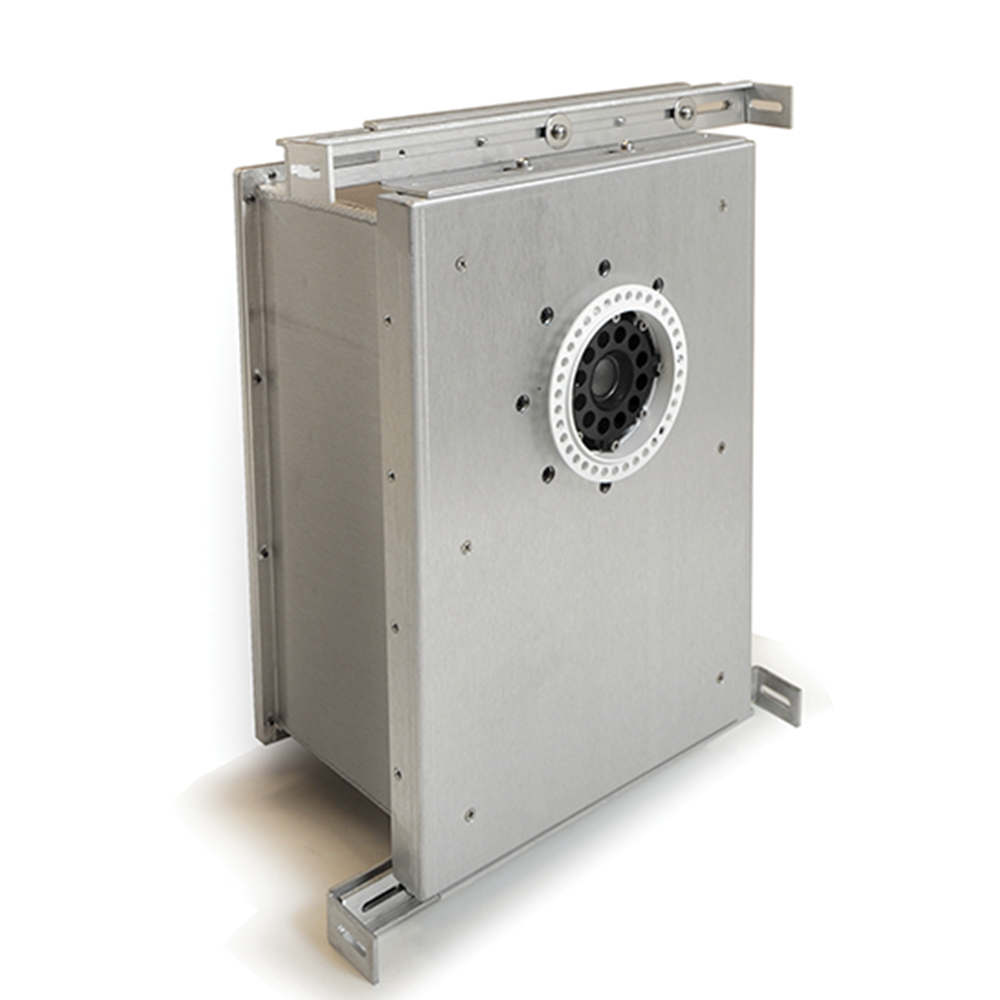

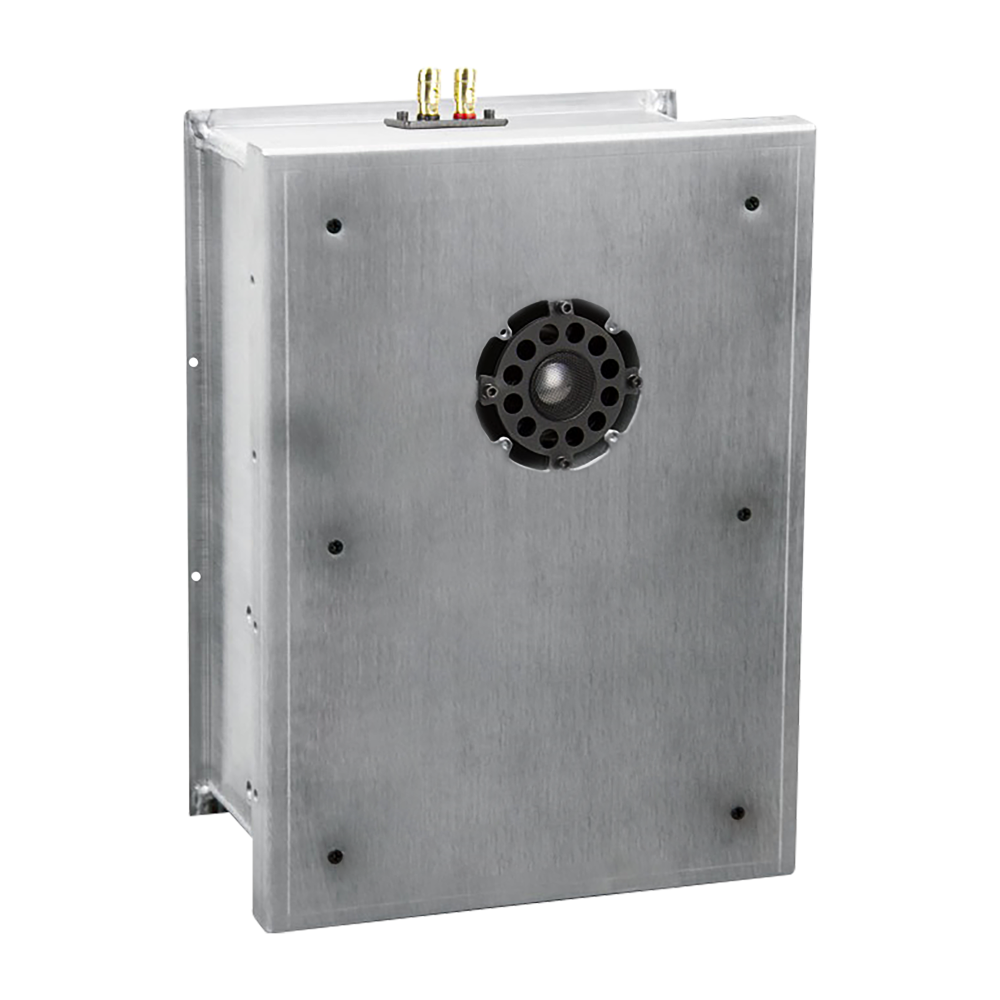

The SA63-7 Small Aperture® speaker offers high volume and deep bass from a discreet 3” flush opening. Featuring a 0.75” aluminum dome tweeter, 2” midrange driver, and 6.5” mini PowerPipe subwoofer, it seamlessly integrates into high-end installations, delivering an exceptional full-range audio experience for discerning listeners.

SA63-7

Key Features
Specifications
Related Products
Downloads
Videos
Learn More

Key Features

Modular tweeter and midrange driver design
Incorporated woofer
Modified cabinet designs available for shallow, narrow, or offset construction
Trim accessories to support various construction and finishes
TAA Compliant

Specifications

SKU

SA63-7

Speaker Tweeter

(1) 0.75" (19mm) Aluminum

Speaker Woofer

(1) 6.5" (165mm) Aluminum

Speaker Mid Range

(1) 2 in (50mm) Aluminum

Frequency Response (+/- 3db)

38Hz - 22kHz

Sensitivity

88dB (2.83V/1m)

Recommended Power Range

25 W - 125 W (protection limited)

Enclosure

Aircraft Marine Grade Aluminum

Nominal Impedance (Ohms)

4 ohms

Dimensions (WxHxD)

9.88" x 13.63" x 6.38" (250.83mm x 346.08mm x 161.93mm)

Mounting Depth

7" (177.8mm)

Copy All Specs
