SPL2

Soundbar

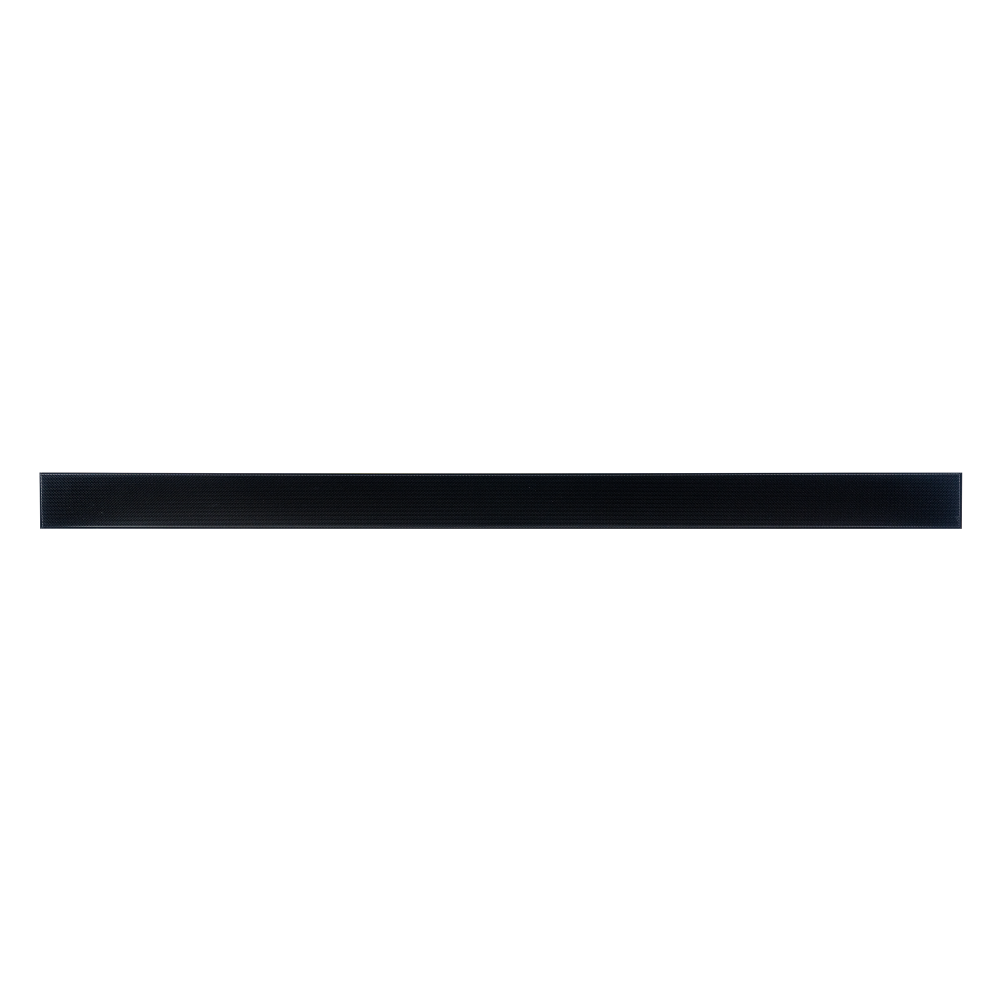

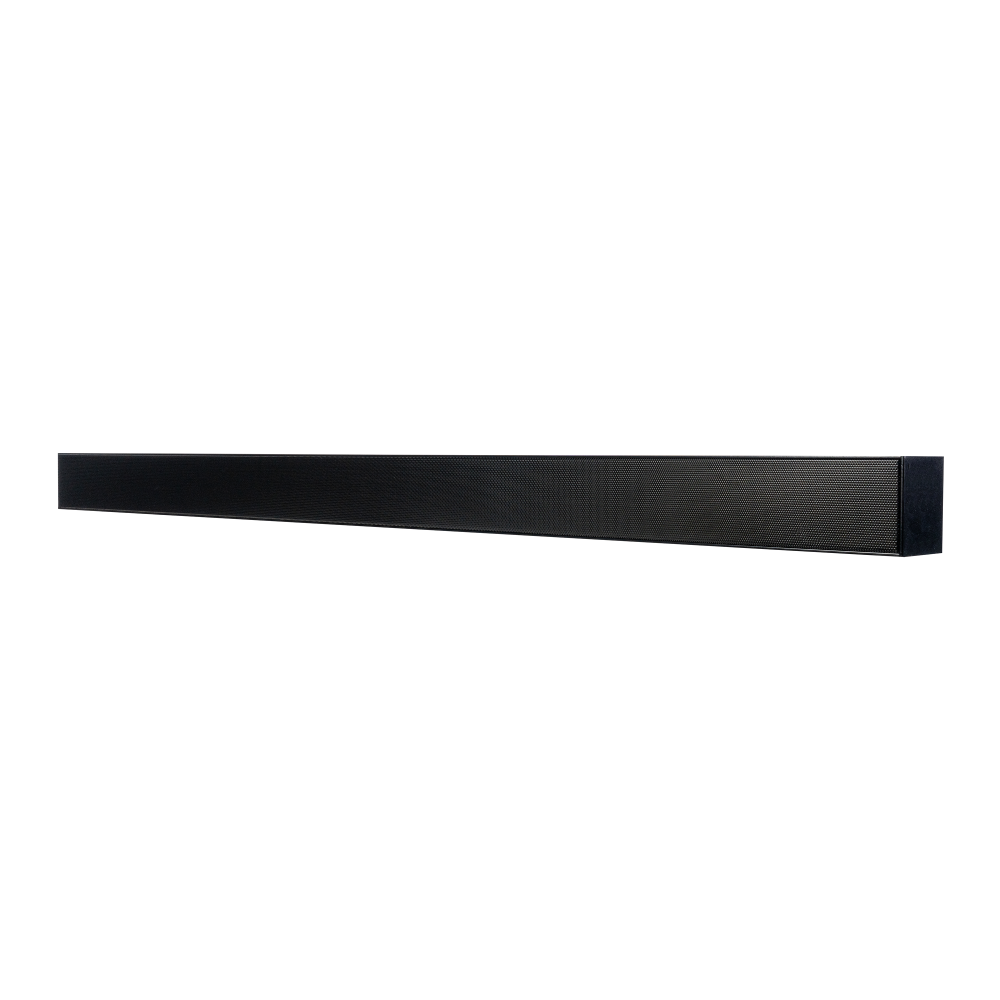

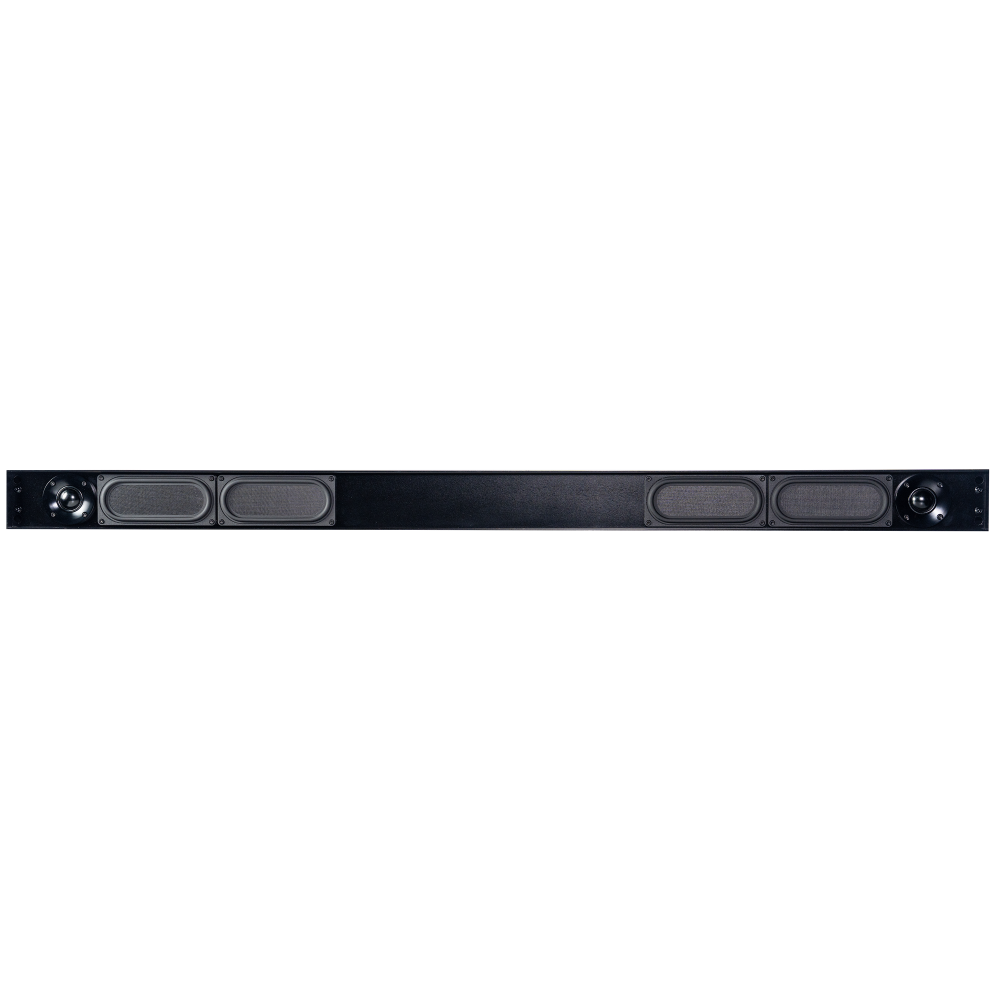

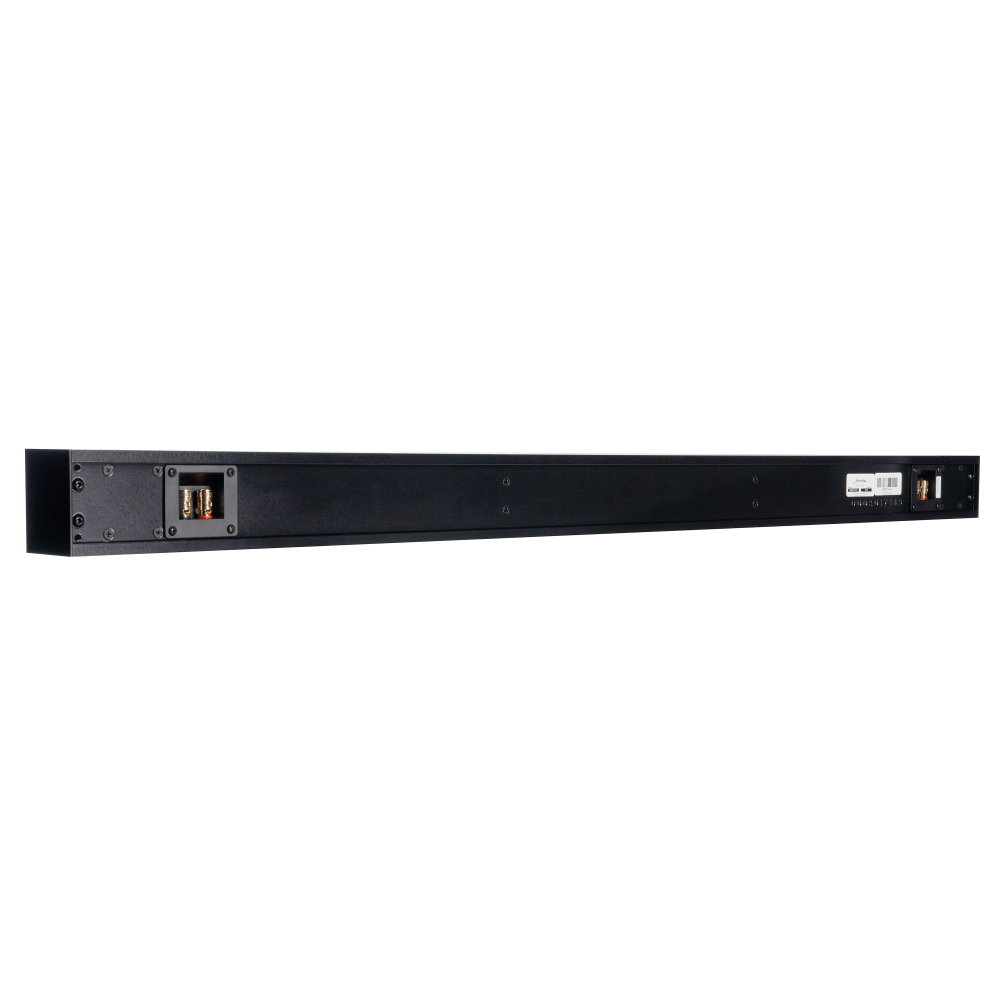

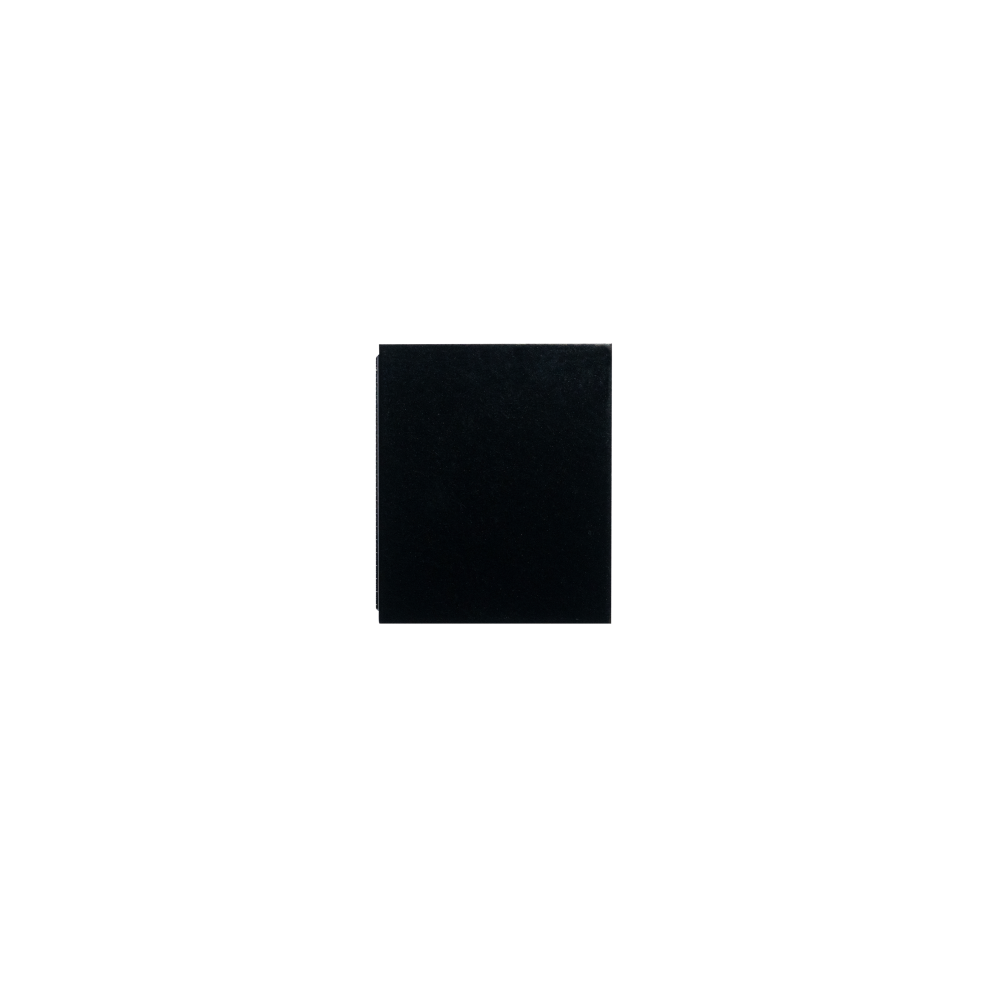

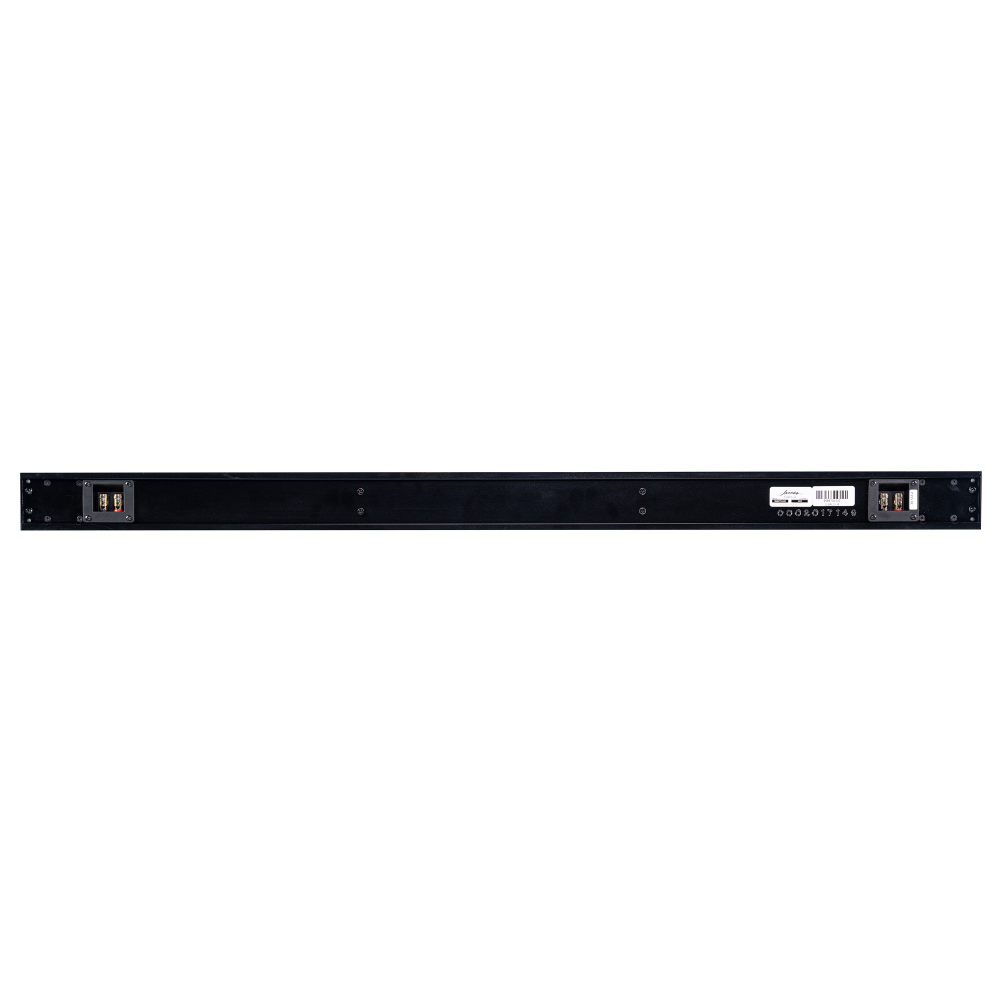

James SPL2 Low Profile Soundbar features a sleek 3" aluminum housing that discreetly fits below TVs. Its innovative honeycomb racetrack driver design maximizes performance in limited space. Available in Center Channel, Stereo, and LCR configurations, the SPL2 delivers exceptional audio quality from an impressively compact cabinet.

Key Features

Available in Center Channel, LR, or LCR configurations
Built-to-order for custom length to match specific dimensions and custom notches to accommodate television display model logos and emblems
Built and assembled in Minden, Nevada
Standard satin black powder coat finish or any custom color
Flexible mounting bracket options to support desired installation style
TAA Compliant

Specifications

SKU

SPL2

Speaker Tweeter

1" (25mm) Soft Dome

Speaker Woofer

2" x 5" Carbon Fiber/Aluminum Honeycomb Racetrack

Frequency Response (+/- 3db)

120Hz - 22kHz

Power Handling (RMS)

5 watts minimum; 150 watts maximum

Sensitivity

88dB (2.83V/1m)

Enclosure

Aircraft Grade Aluminum

Nominal Impedance (Ohms)

4 ohms

Copy All Specs
