James Powerpipe X Series

PPX15-M

Now Shipping

PPX15-M

PowerPipe

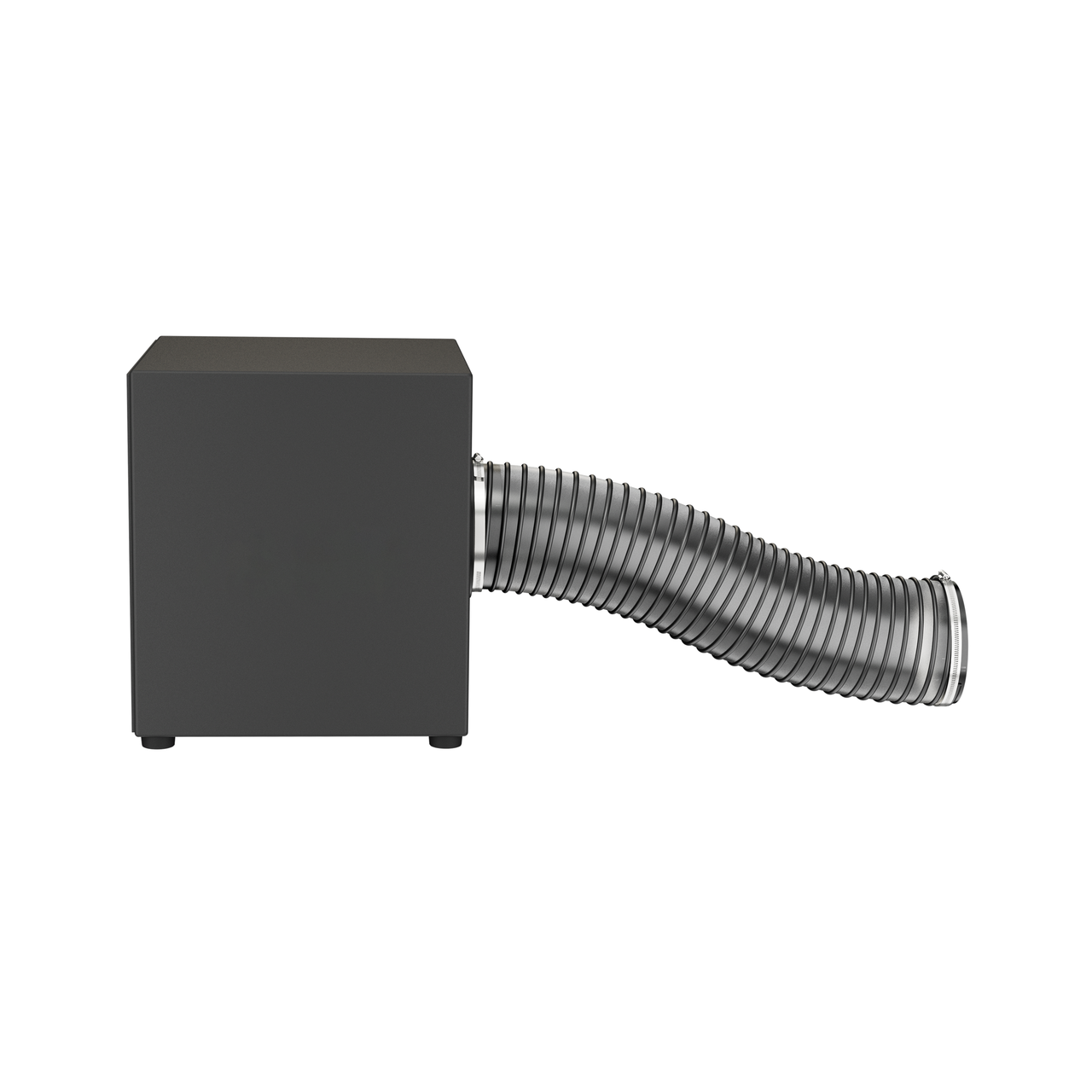

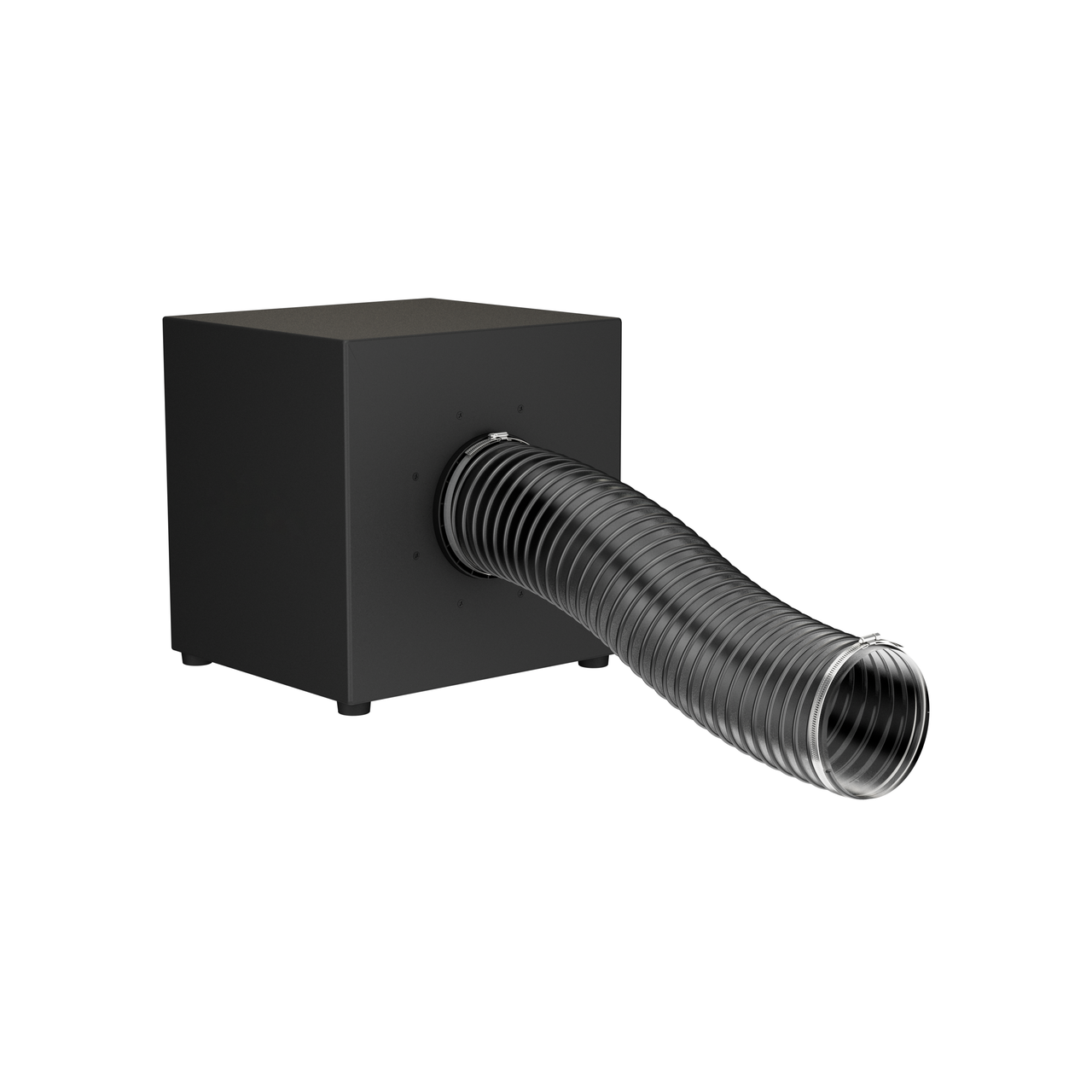

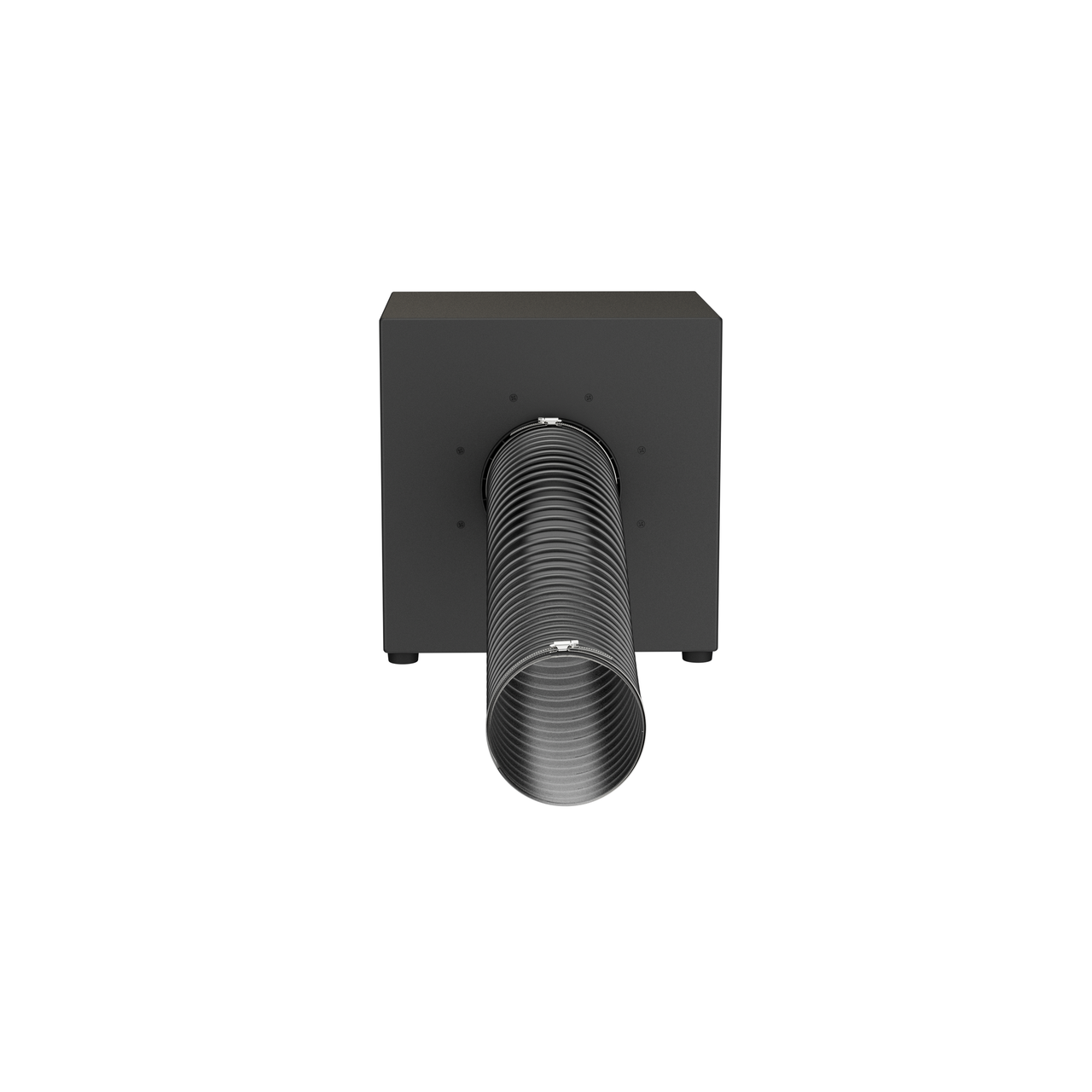

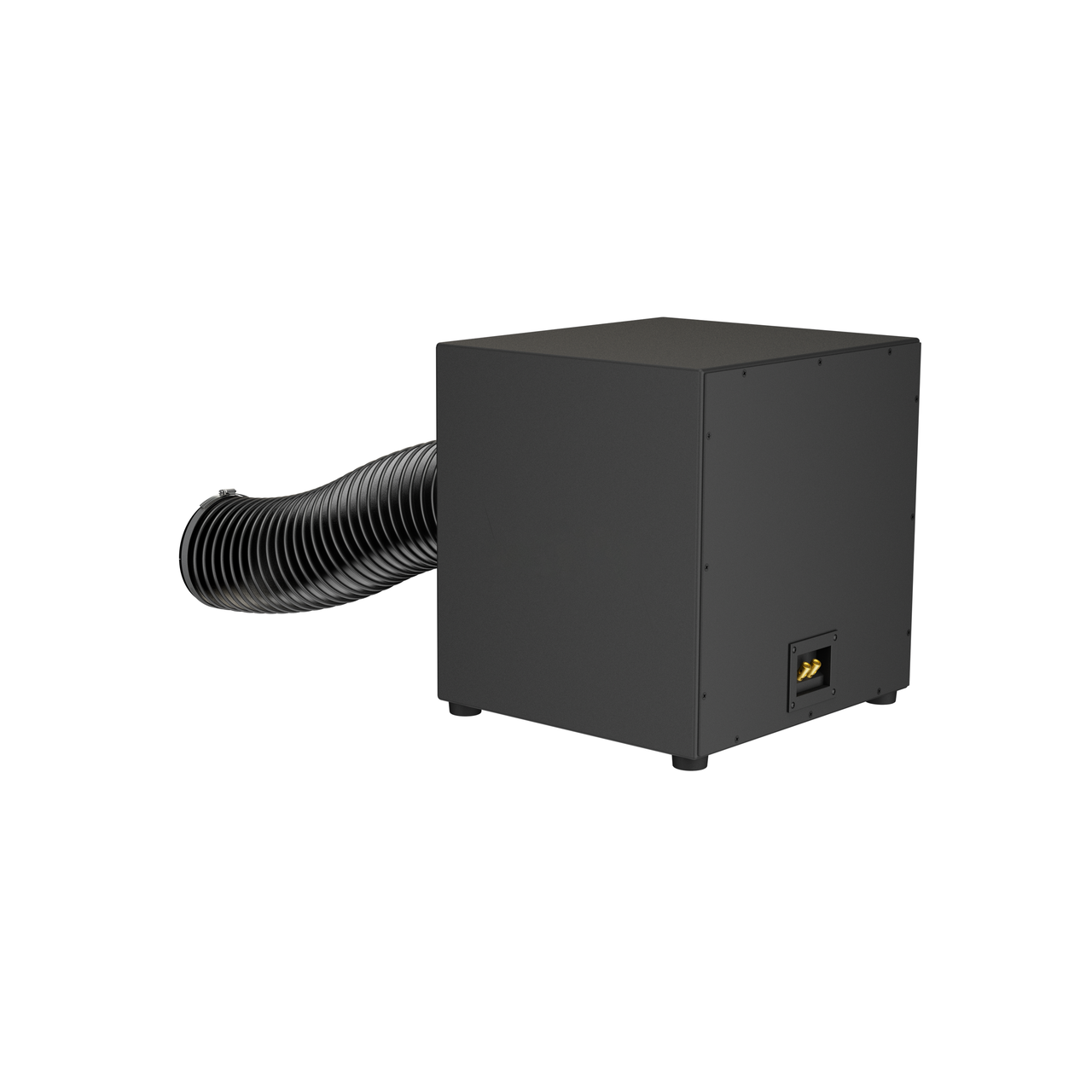

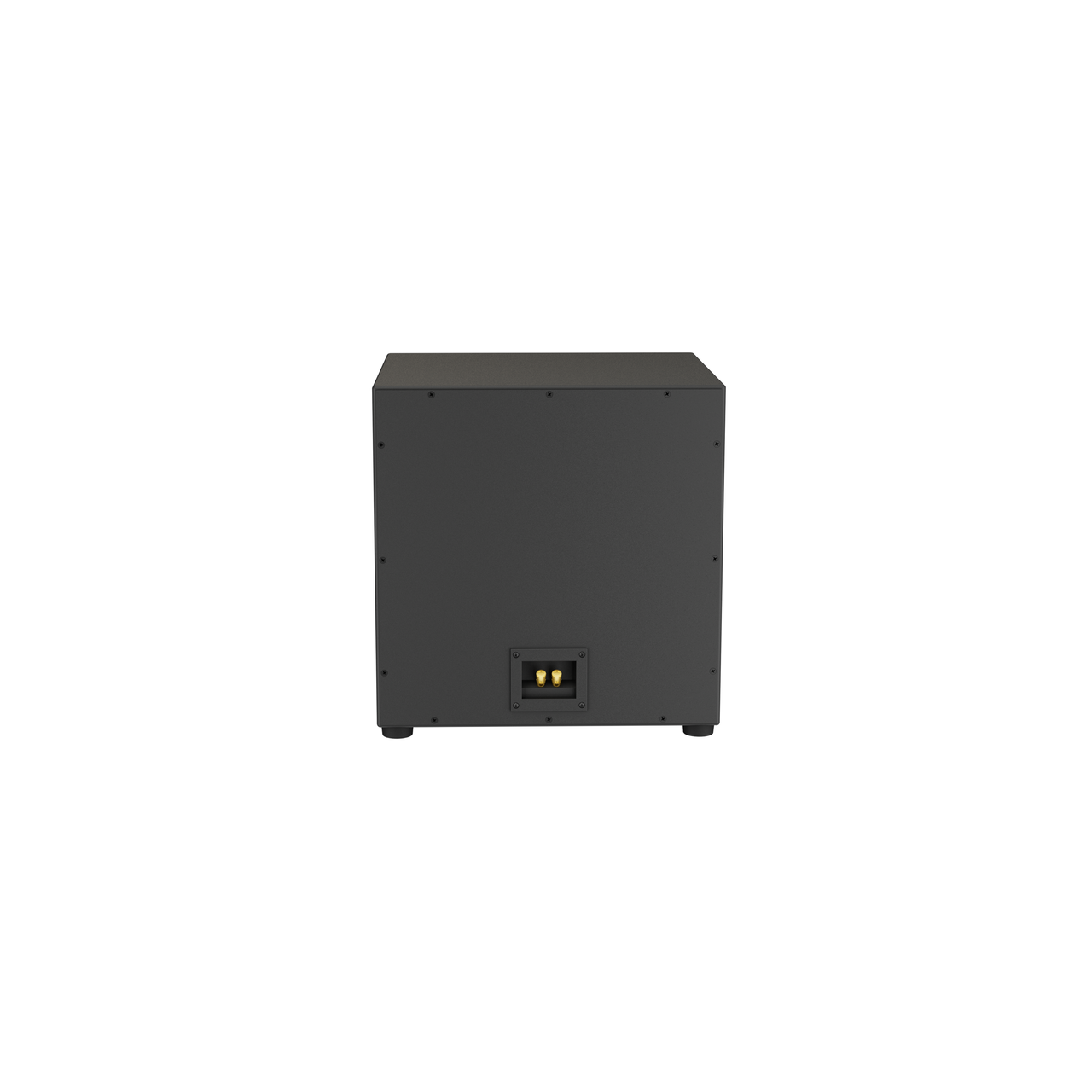

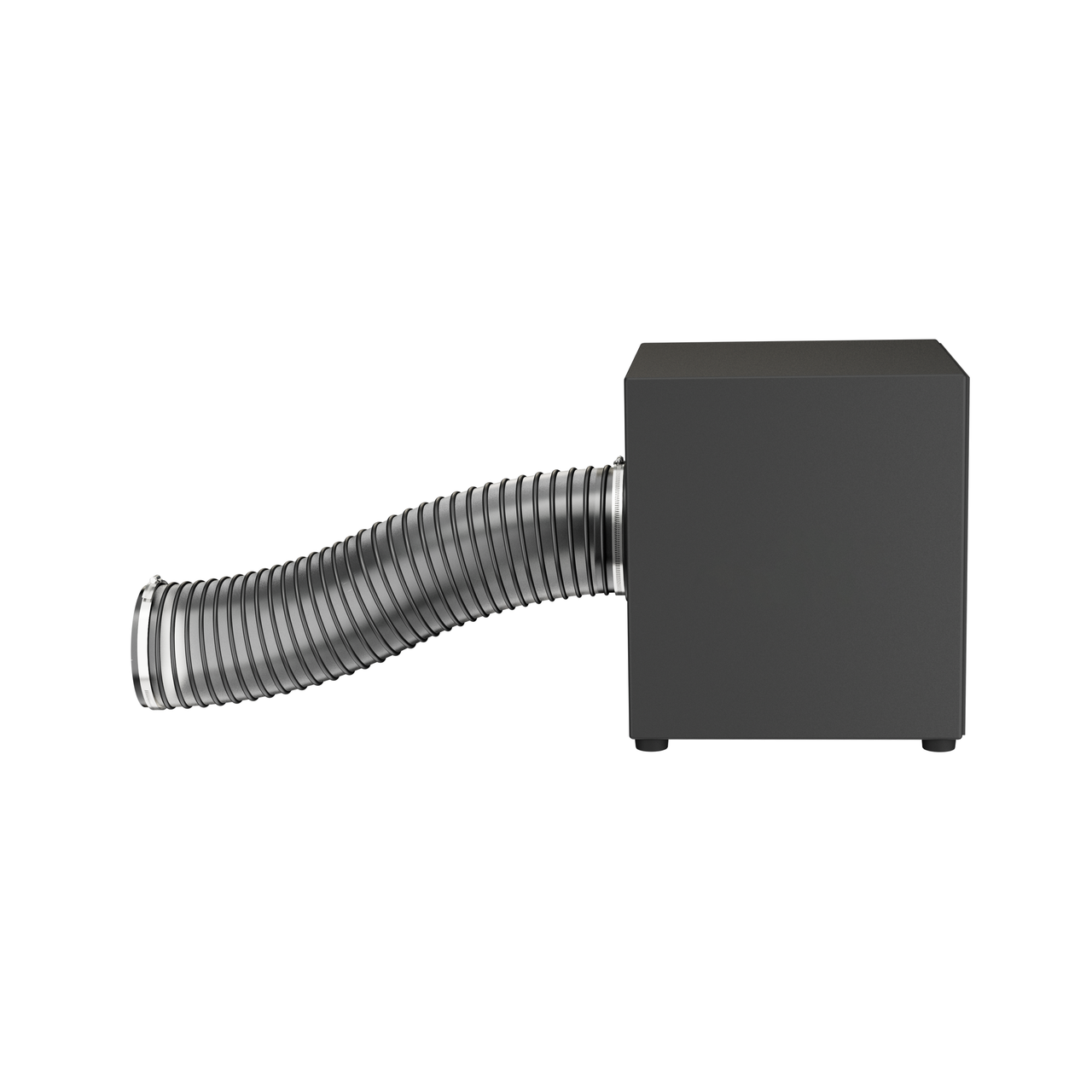

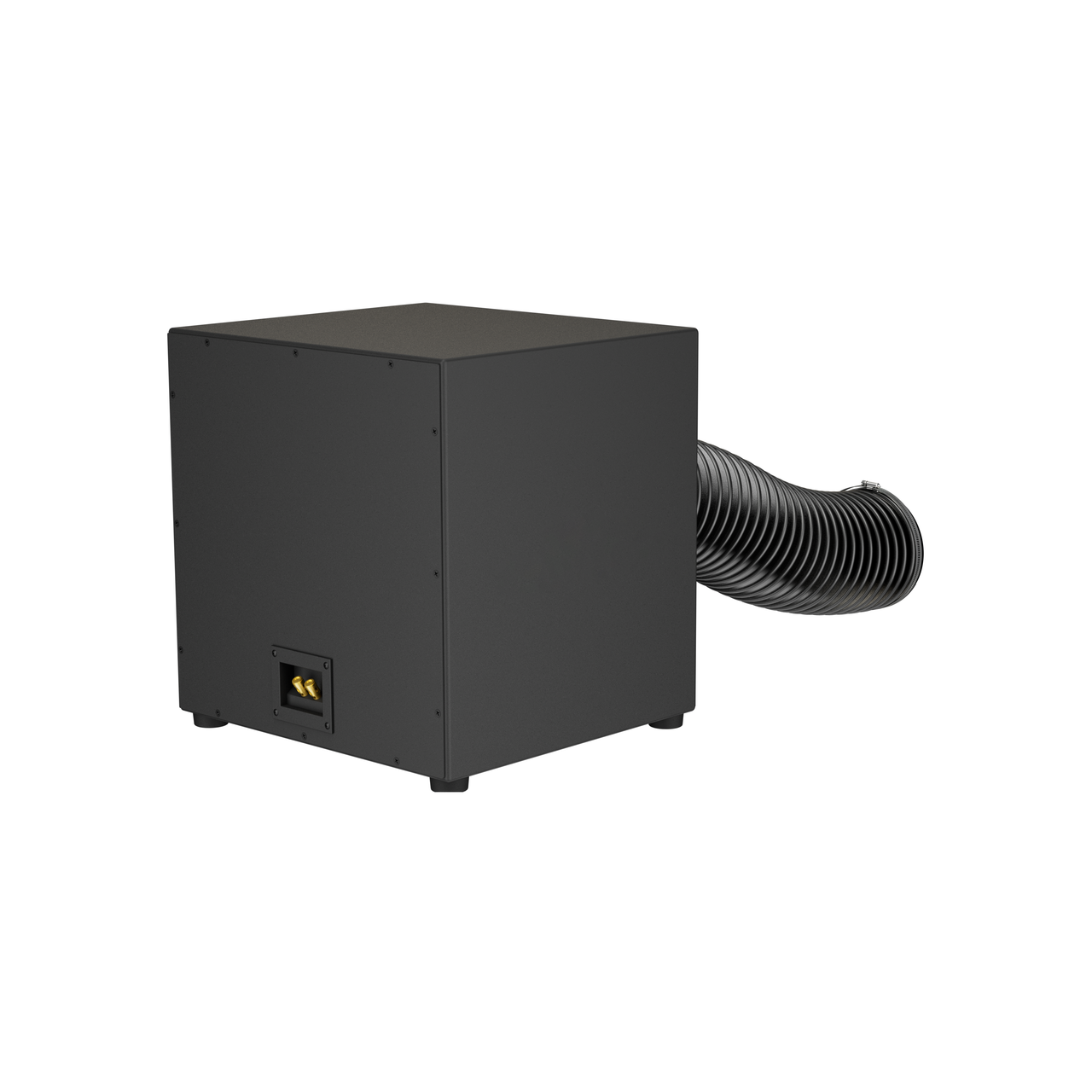

The PPX15-M sets the benchmark for architectural hidden bass, with a 15" high-excursion woofer extending to an extraordinary 29Hz. Its marine-grade aluminum enclosure disappears into ceilings, deep wall cavities, or cabinetry in the largest residential and marine environments.

PPX15-M

Key Features
Specifications
Related Products
Downloads
Videos
Learn More

Key Features

Marine-Grade Aluminum Enclosure — The most robust build in the PPX Marine series.
15" High-Excursion Woofer — Reference-level bass at the deepest extension in the range.
Scalable Hidden Installation for Large Spaces — Fits deep cavities in the largest residential and marine environments.

Specifications

SKU

PPX15-M (textured black)

Speaker Woofer

15" (381mm) anodized aluminum cone, rubber surround, high excursion

Frequency Response (+/- 3db)

29Hz - 90Hz

Sensitivity

94dB SPL

Recommended Power Range

600 watts

Enclosure

Marine-Grade Aluminum

Nominal Impedance (Ohms)

4 ohms

Dimensions No Feet (WxHxD)

17.72" x 17.72" x 16.93" (450.09mm x 450.09mm x 430.02mm)

Dimensions with Feet (WxHxD)

17.72" x 18.33" x 16.93" (450.09mm x 465.58mm x 430.02mm)

Tube Diameter

5.98" (151.89mm)

Tube Length

25.59" (649.99mm)

Weight

68.26 lbs. (30.96kg)

Copy All Specs
