OMNI109

OMNI109_product_image_JAMES_Standing_NoGrille.tiff

OMNI109

Omni Series

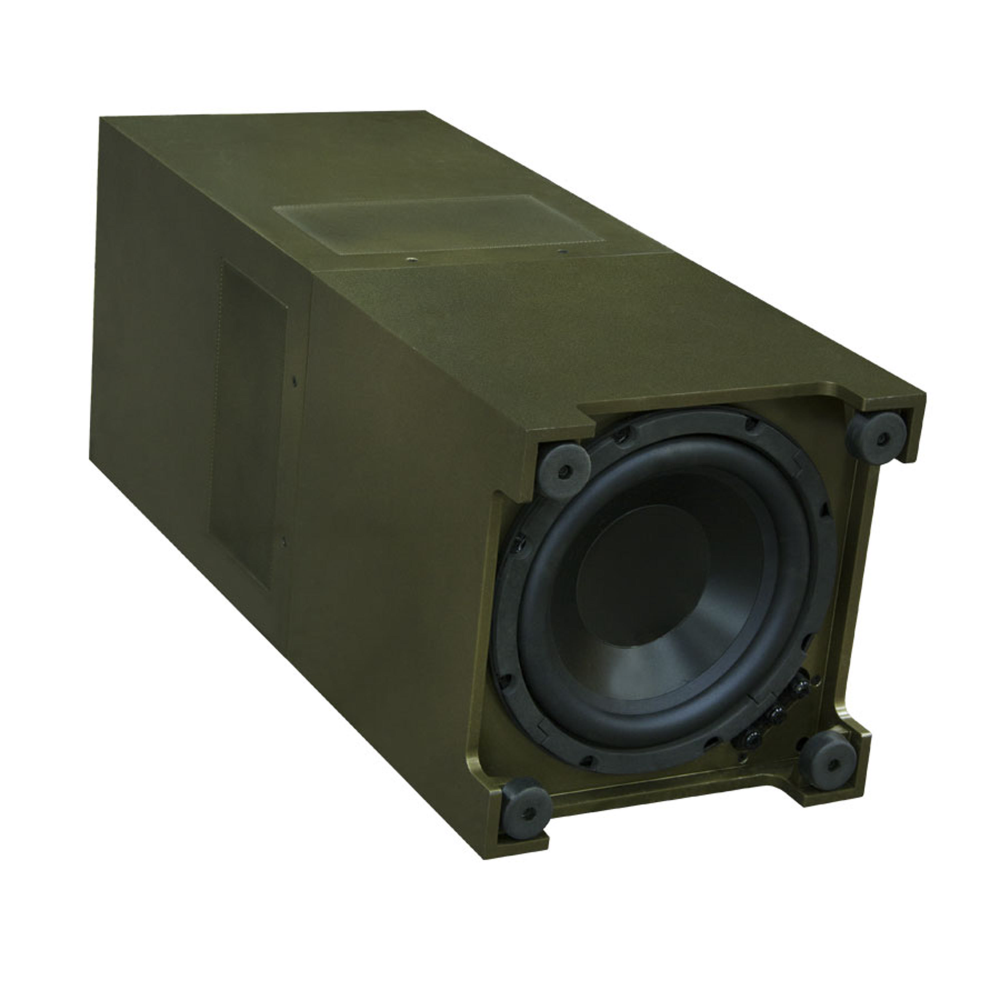

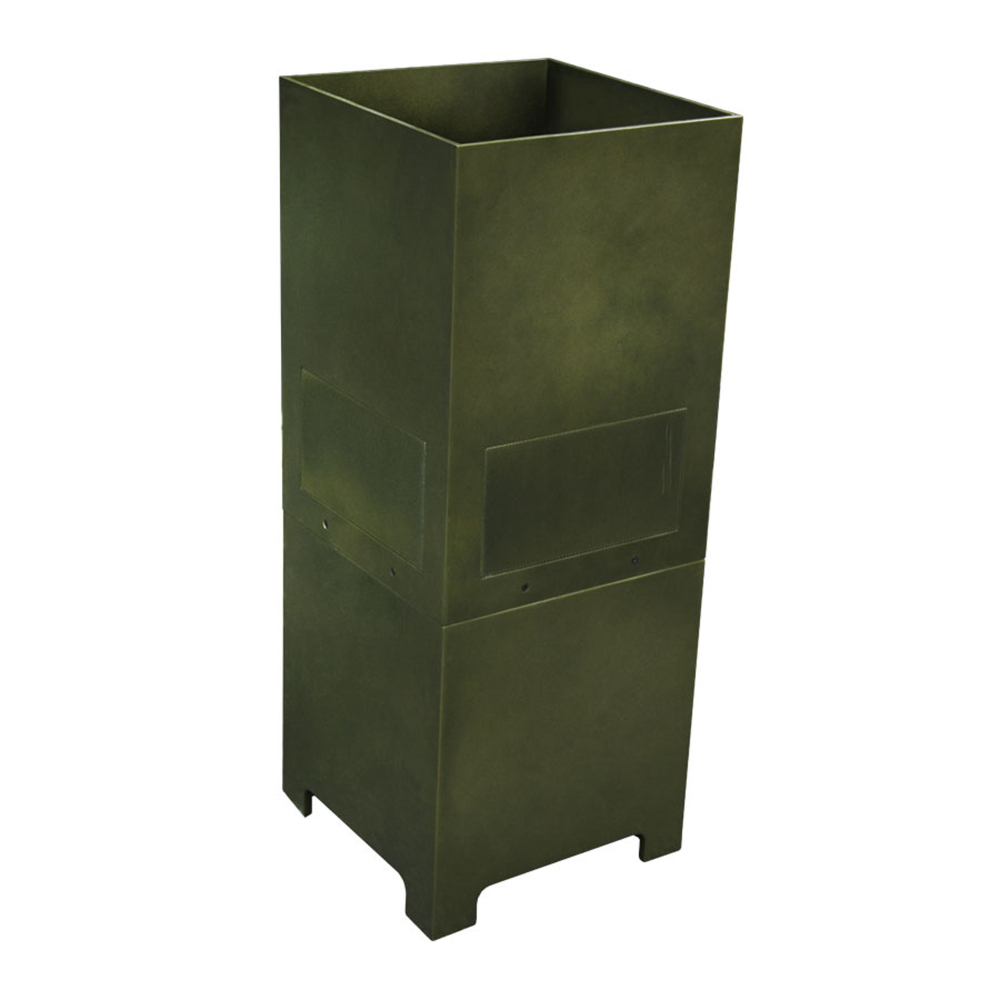

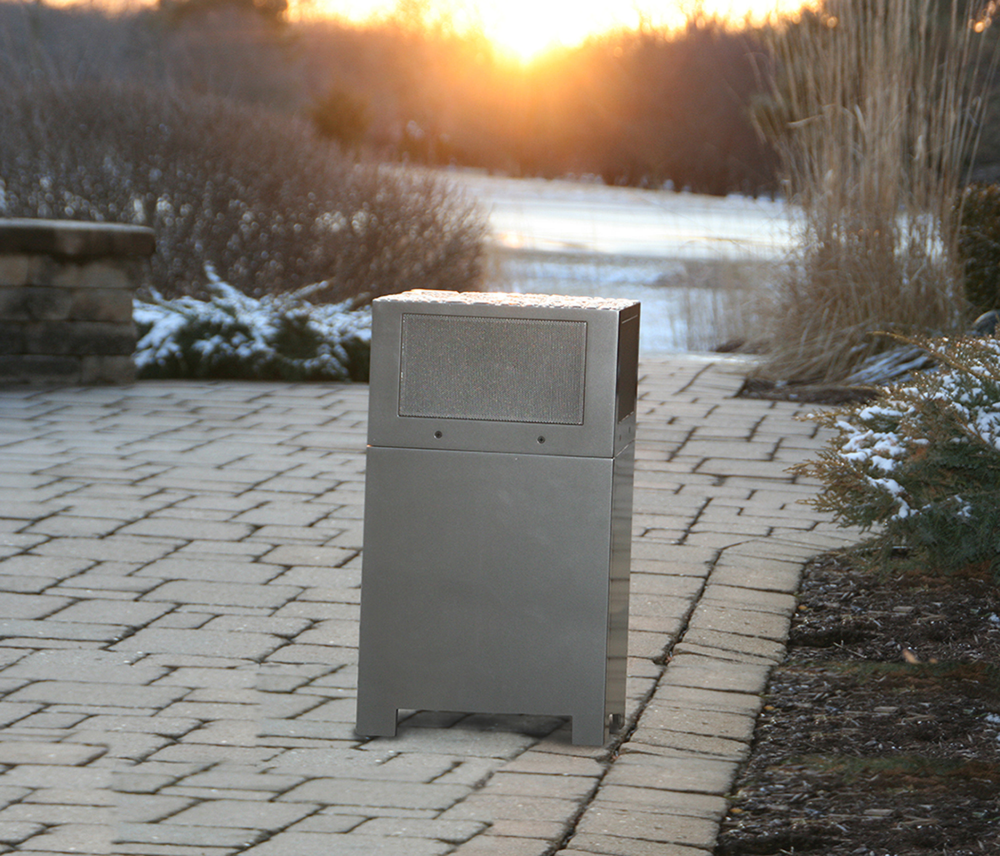

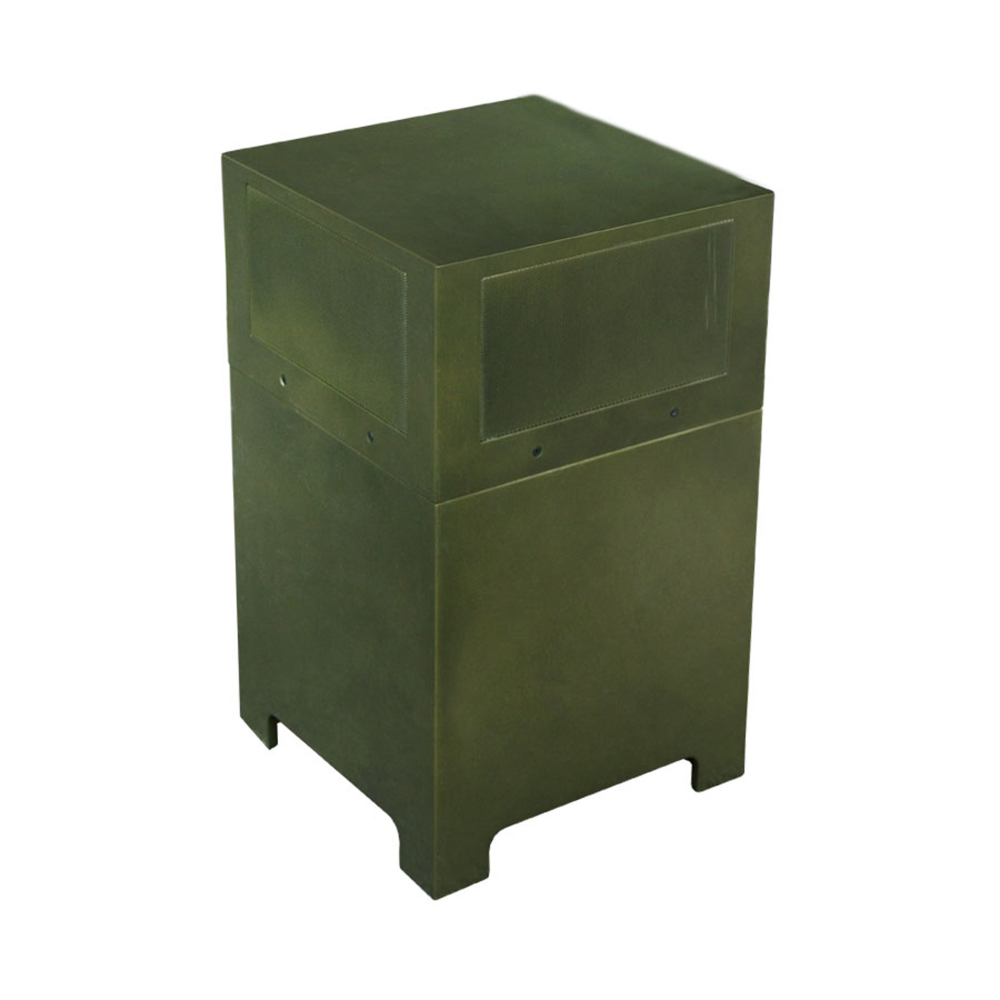

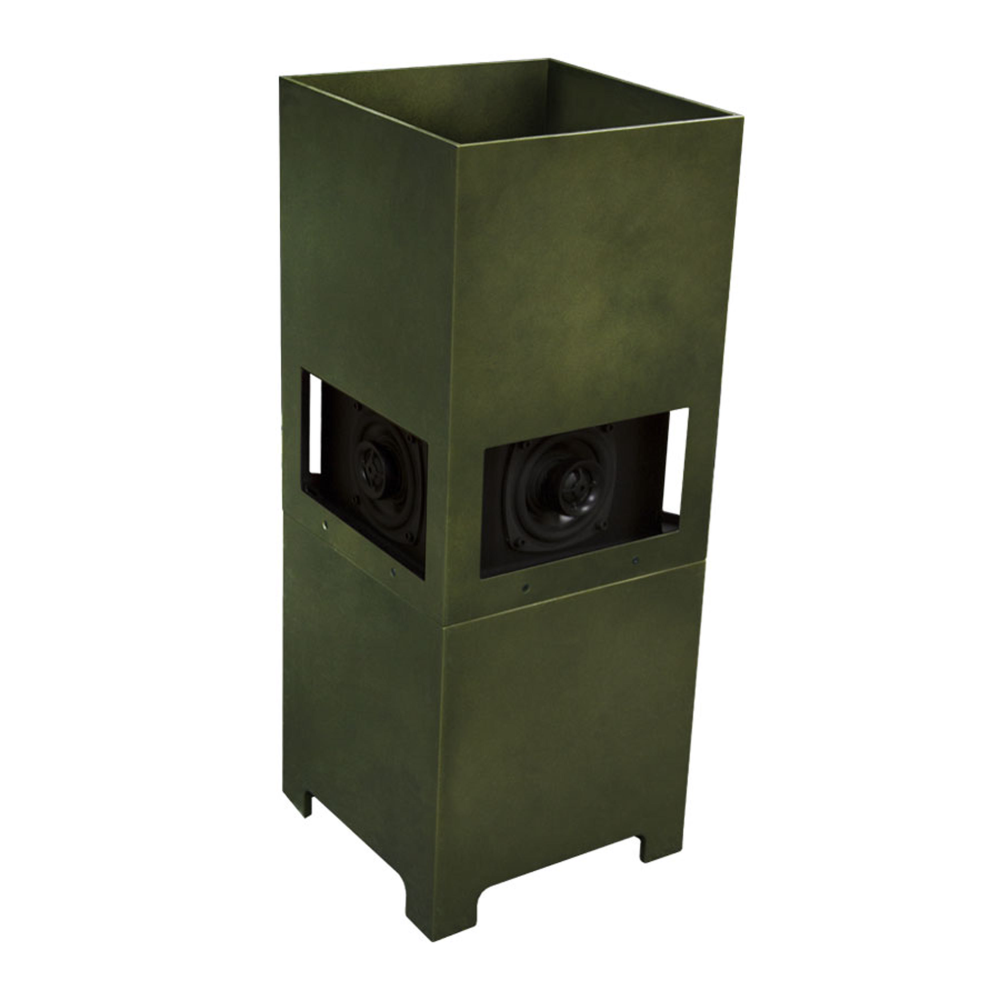

The OMNI109 offers a full-range omnidirectional solution where complete 360-degrees of coverage and above ground installation are preferred, or required. Featuring four 4" coaxial aluminum woofers with 0.75" tweeters and a 10" down-firing woofer, it replaces multiple satellite speakers and a subwoofer in a single marine-grade aluminum enclosure.

Key Features

Full-range, omnidirectional speaker design
Available as a standalone speaker or with integrated potting planter on top
Can be ordered as 70V or 4 ohm
Available in 16 standard finishes or any custom finish
360-degree coverage
Rated IP66 to thrive in outdoor environments
TAA Compliant

Specifications

SKU

OMNI109

Speaker Tweeter

0.75" (19mm) Aluminum Cone

Speaker Woofer

10" (254mm) Aluminum Cone

Speaker Mid Range

4" (102mm) Aluminum Cone

Frequency Response (+/- 3db)

20Hz - 20kHz

Sensitivity

89dB (2.83V/1m)

Enclosure

Marine Grade Aluminum

Nominal Impedance (Ohms)

4 ohms or 70V

Copy All Specs

Related Products

BRK.OMNI109

SKU: 60257

More

Downloads

Sales & Data Sheets

OMNI109-P_JAMES_data_sheet.pdf

OMNI109_JAMES_data_sheet.pdf

James Standard Colors and Upgraded Finishes.pdf

Omni_JAMES_Sell_Sheet.pdf

Drawings & Images

OMNI109-P_JAMES_cad_file.pdf

OMNI109_JAMES_cad_file.pdf

OMNI109-P_JAMES_cad_file.DWG

OMNI109_JAMES_cad_file.DWG

Ease Files & Speaker Presets

Sonance DSP Speaker Presets_Sonance DSP_SpeakerPresets_2026.09.08.zip

PowerZone Connect Speaker Preset Library_BlazebySonance_SpeakerPresets_20260910.3.zip

PowerZone Connect PRO Speaker Preset Library_SONANCE_SpeakerPresets_20260910.1.zip

Download All

Share All

How to Buy

Submit your information below and we will connect you with a local representative to purchase or to learn more details about this product and system applications.
