Invisible Series
VXXT6
Visual Experience

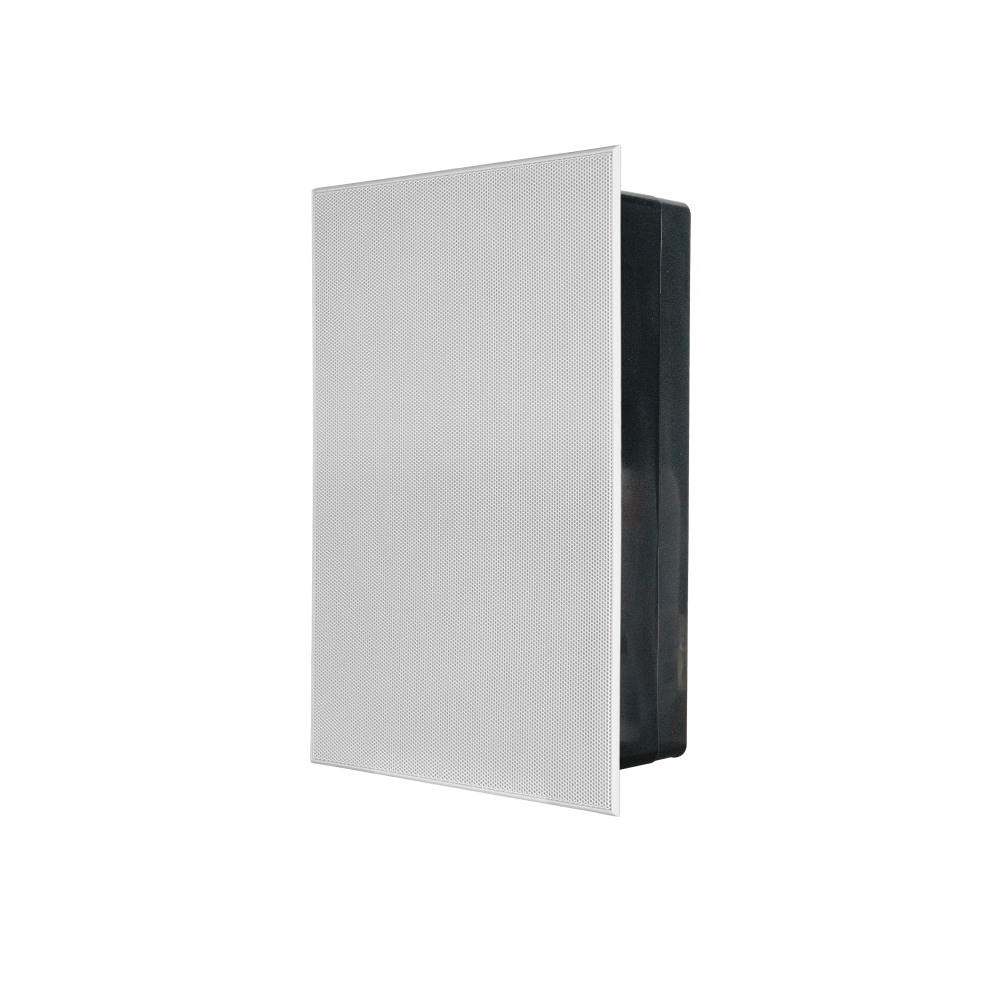

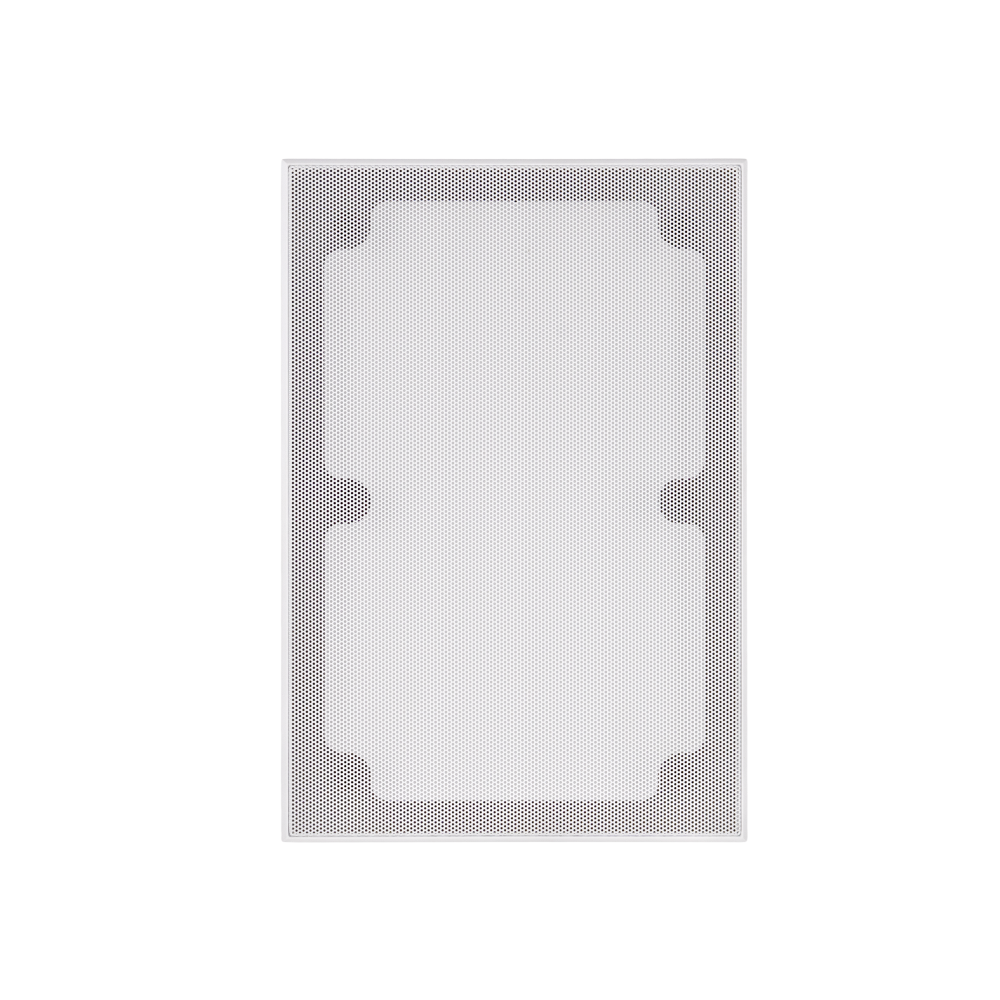

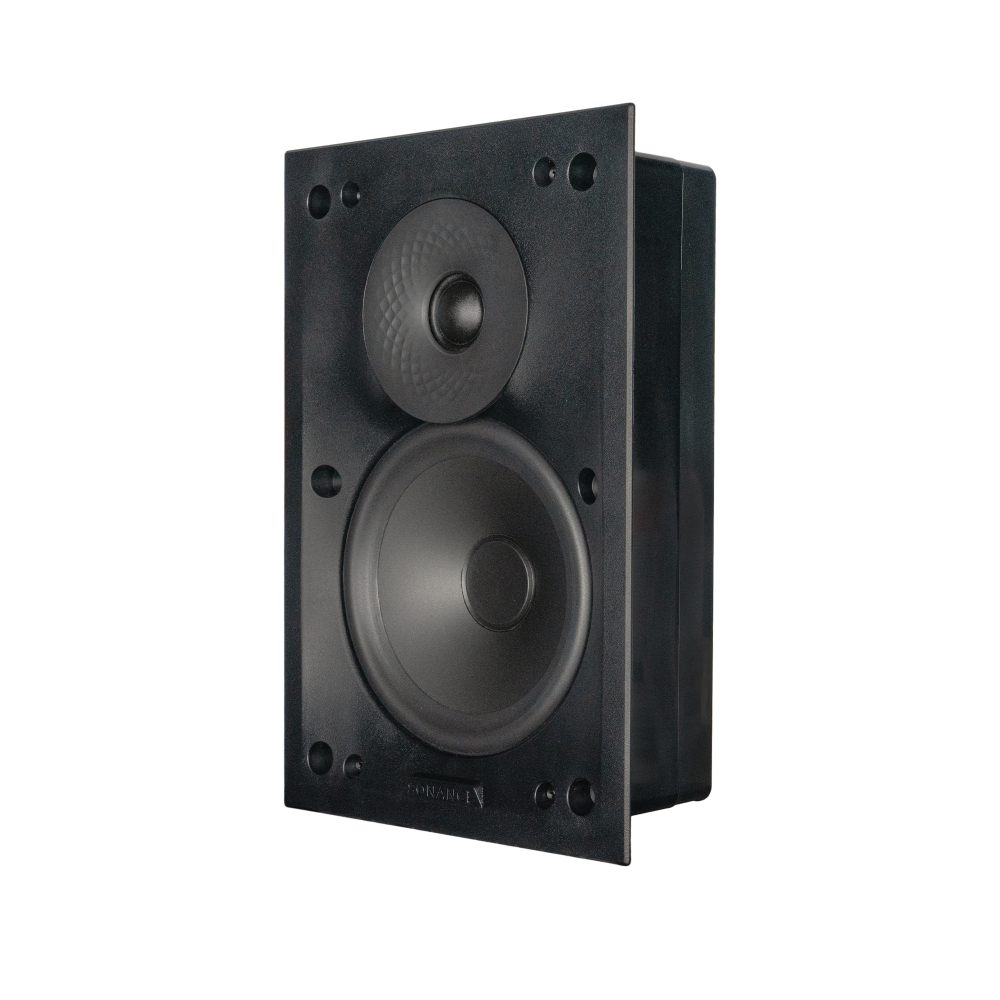

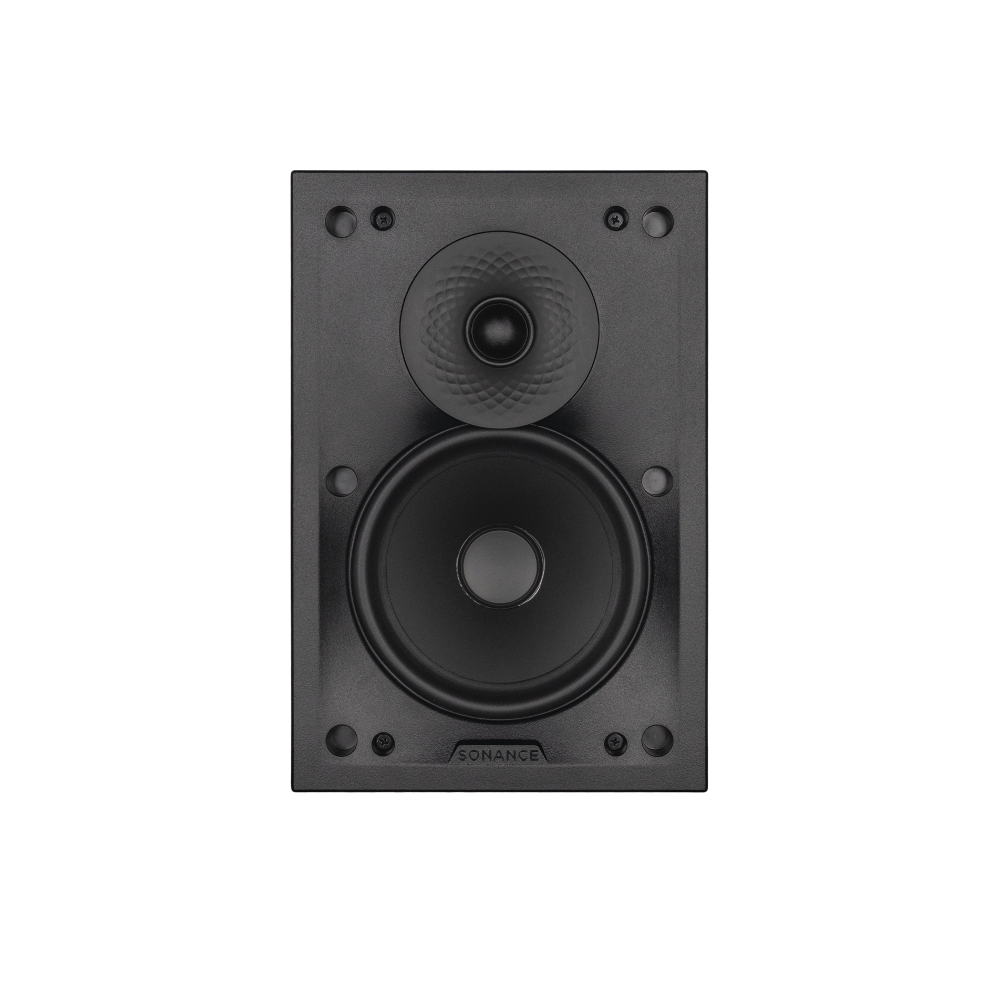

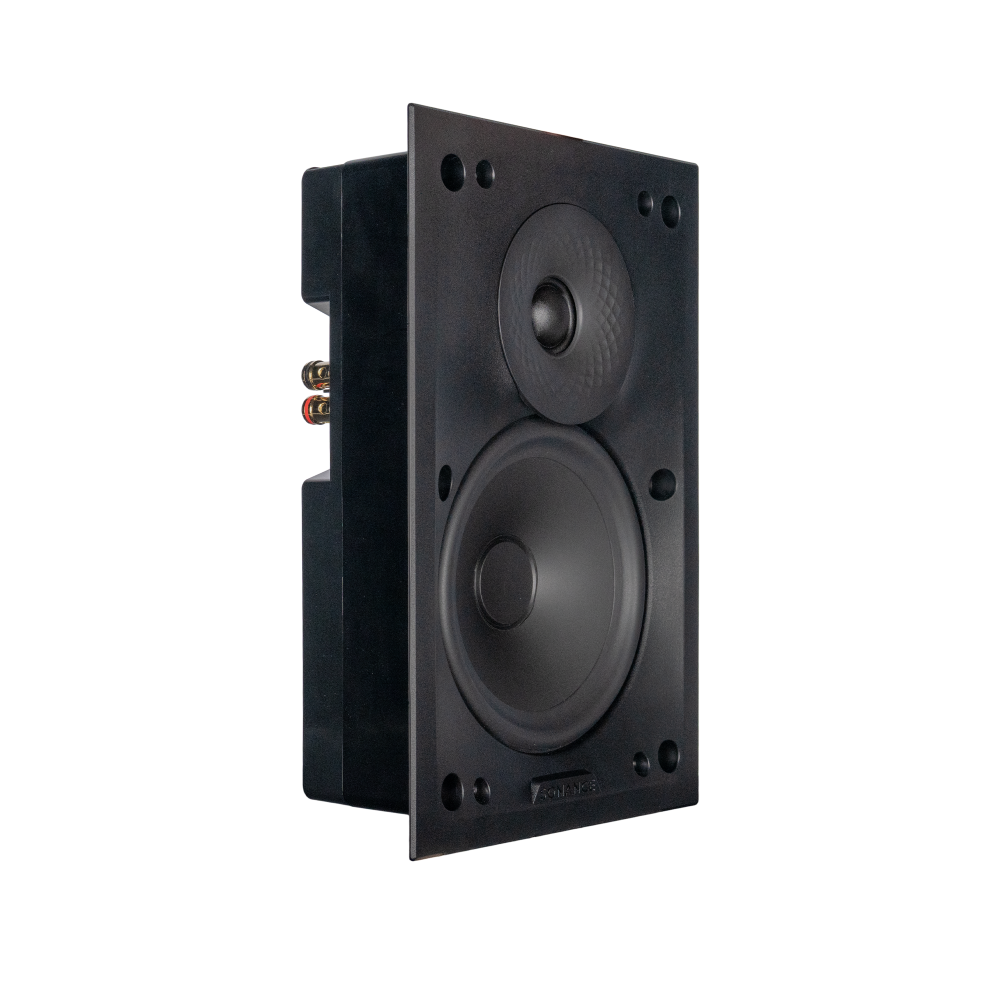

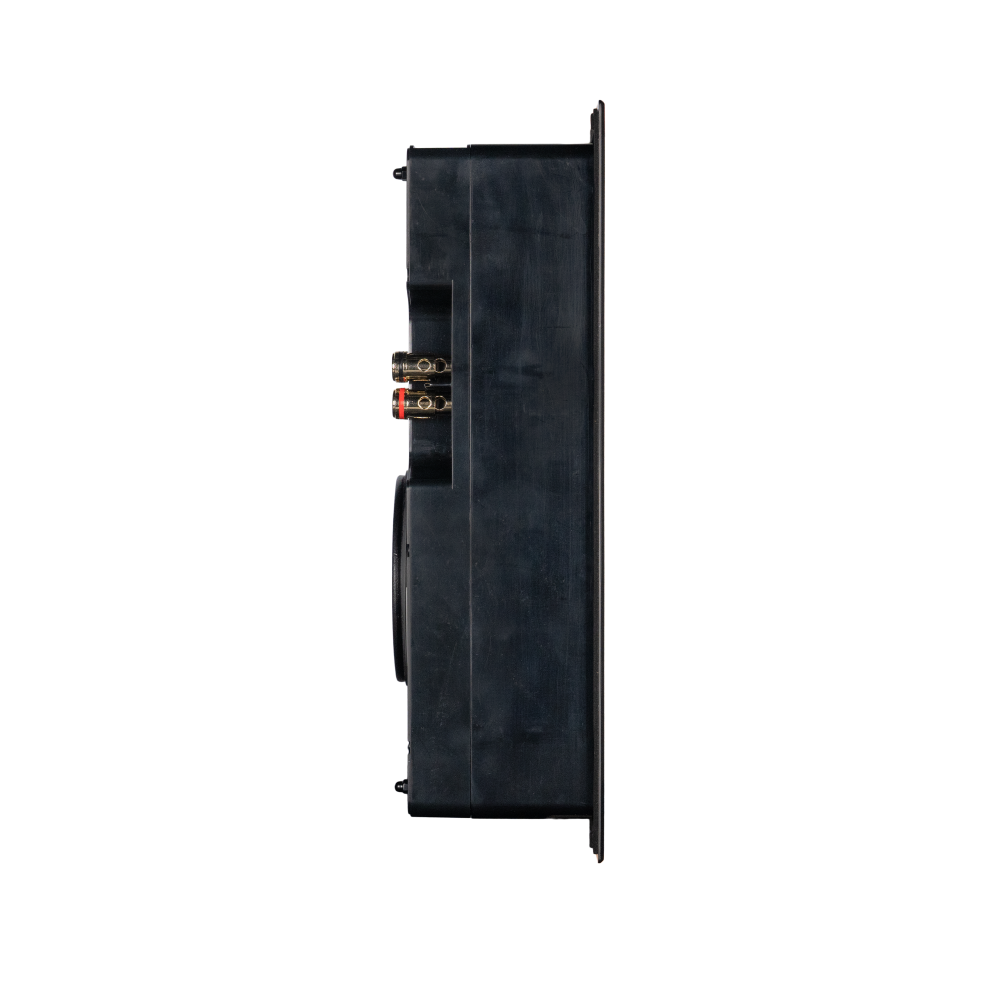

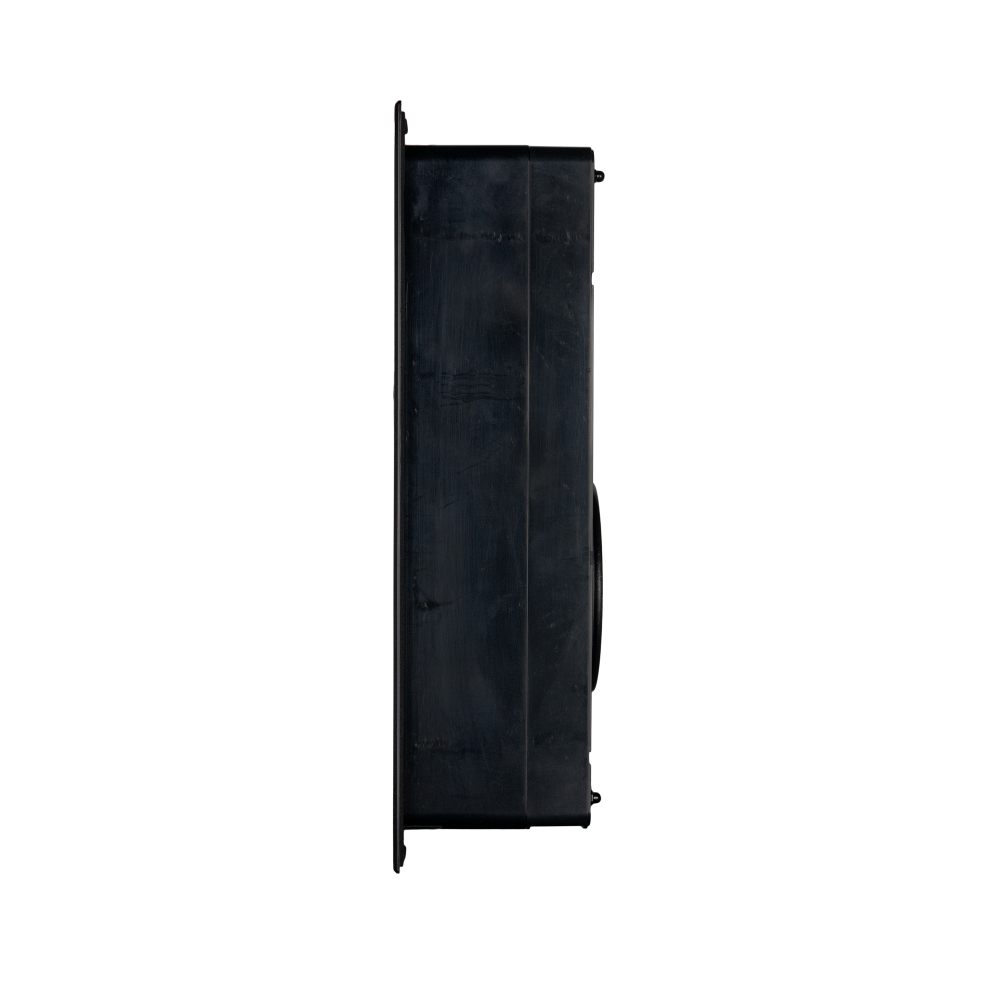

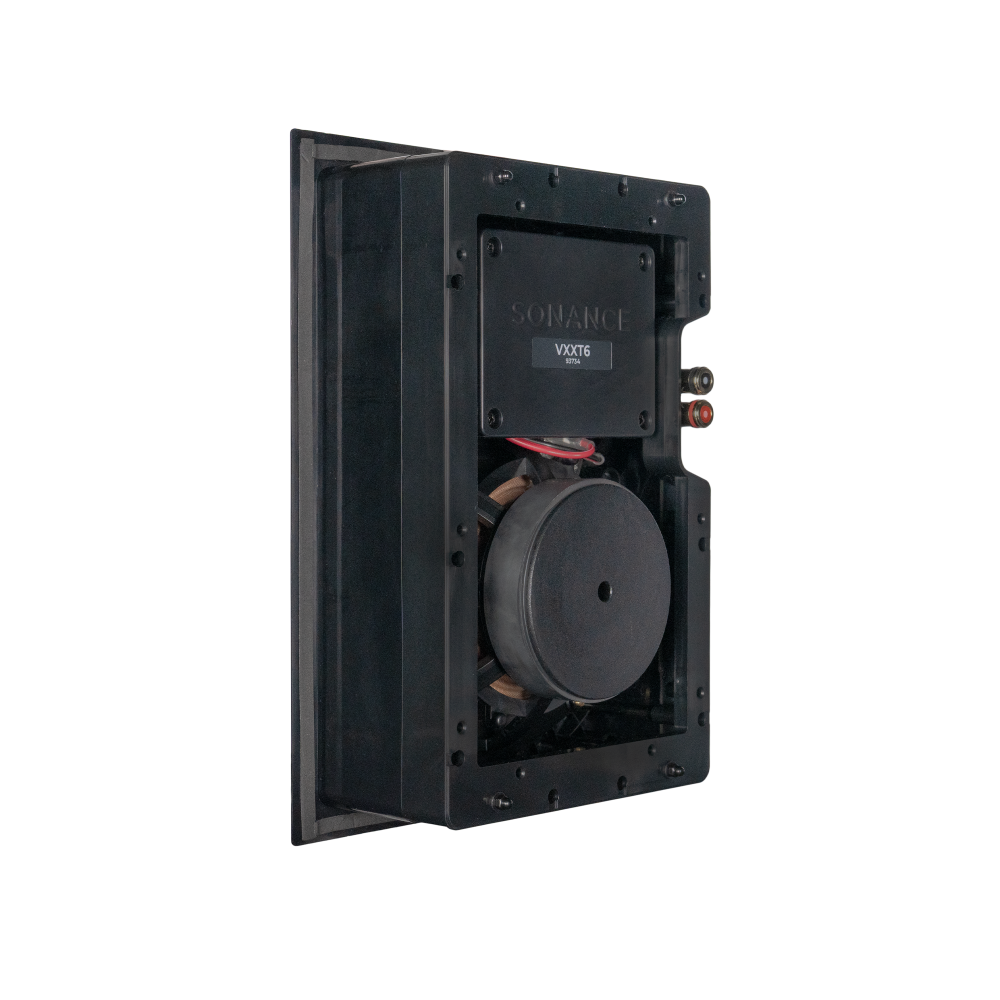

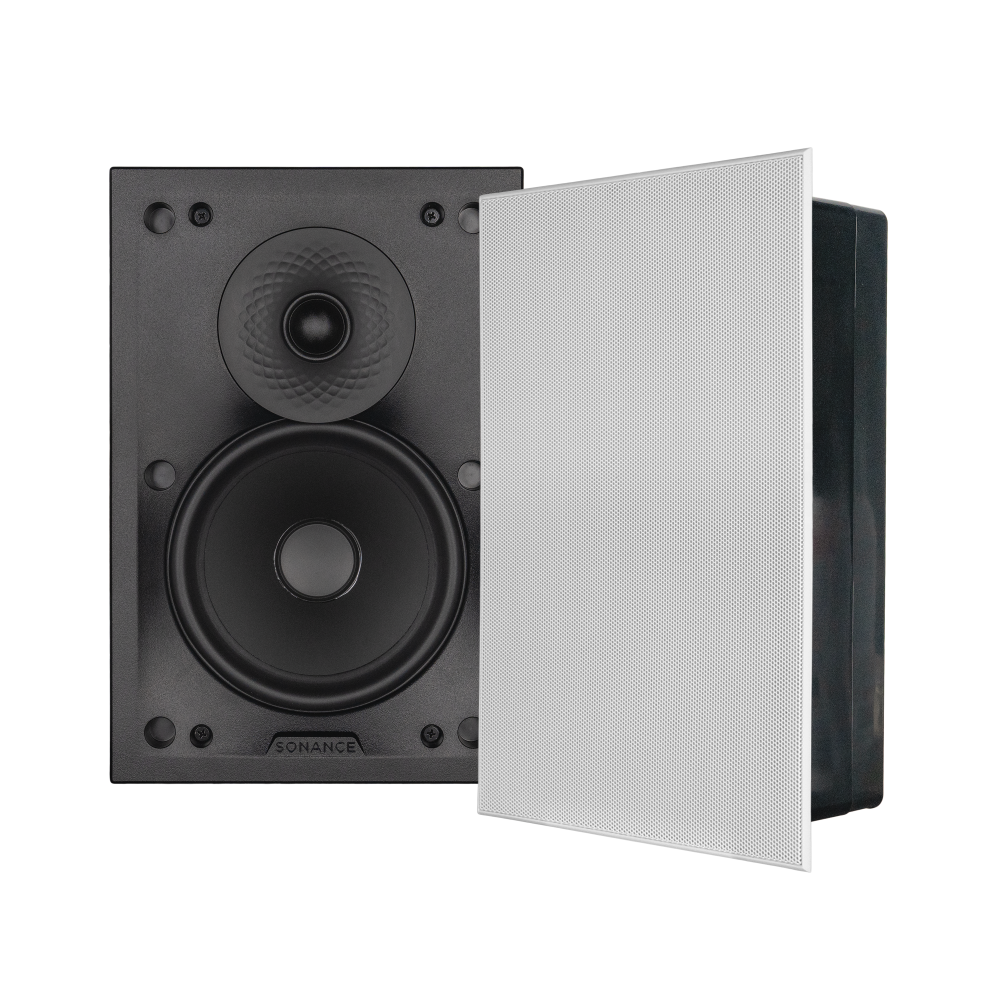

The VXXT6 provides exceptional architectural outdoor audio performance in a rectangle, in-wall format for demanding environments. IP66-rated for extreme indoor or outdoor environments, this VX Extreme model features Sonance XPC (Extreme Post Capture) grille retention, available with a micro trim or trimless bezel to match the desired aesthetic. Trimless grille optional, sold separately.
Specifications
SKU | Color
93734 Brilliant White (Satin)
Speaker Tweeter
1.0" (25mm) waterproof cloth dome, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer
6.5" (165mm) polypropylene cone, Santoprene surround
Frequency Response (+/- 3db)
45Hz - 20kHz +/-3dB
Power Handling (RMS)
5 watts minimum; 125 watts maximum
Sensitivity
89dB (2.83V/1m)
Nominal Impedance (Ohms)
8 Ohms
Dispersion
Sinusoidal Textured Waveguide
Dimensions (WxHxD)
7.77" x 11.66" x 3.4" (197.36mm x 296.16mm x 86.36mm)
Cut-Out Dimensions (WxH)
6.94" x 10.75" (176.21mm x 273.05mm)
Mounting Depth
3.29" (83.57mm)
Weight
11.02 lbs. (5.0kg)
