Invisible Series





IS10-2W
Invisible Series
The Sonance IS10-2W Subwoofer features dual 10" woofers in an in-wall design for powerful, hidden bass. Its slim enclosure fits 16" on-center stud bays, ensuring easy installation. Designed for refined spaces, it delivers deep bass without visible hardware. For in-wall installation only.
Key Features
- 6 Ohms nominal impedance with select models for professional use (IS6T and IS8T feature Sonance Laminated Core Transformer for 6 Ohm/70v/00V tap selection)
- 180 degree sound
- Motion Flex Technology features acoustically isolated baffle, Air Flex Woofer and Wave Flex Drive Unit for superior detail and range
- Sonance CDX Crossover Design - Warmth and detail at all volumes
- Accepts up to 3mm topping compound
- Install into drywall, select plasters, wallpaper. leather, and wood veneer applications
- Sonance DISC Depth Identification Sensing Calibration System to measure and standardize finish and performance
- Limited 15 Year Warranty valid on Invisible Series products purchased from an authorized Sonance dealer or distributor
Specifications
SKU | Color
93591 (White)
Air Flex Woofer
471in^2 (3039cm^2) air pulse diaphragm dual 10" (254mm) carbon fiber woofer
Frequency Response (+/- 3db)
32Hz - 250Hz
Sensitivity
92dB (2.83V/1m)
Dispersion
180 degree hemispherical up to 250Hz
Dimensions (WxHxD)
16.1" x 42.8" x 3.86" (408.94mm x 1087.12mm x 98.04mm)
Mounting Depth
3.39" (86.11mm)
Weight
37.59 lbs. (17.05kg)

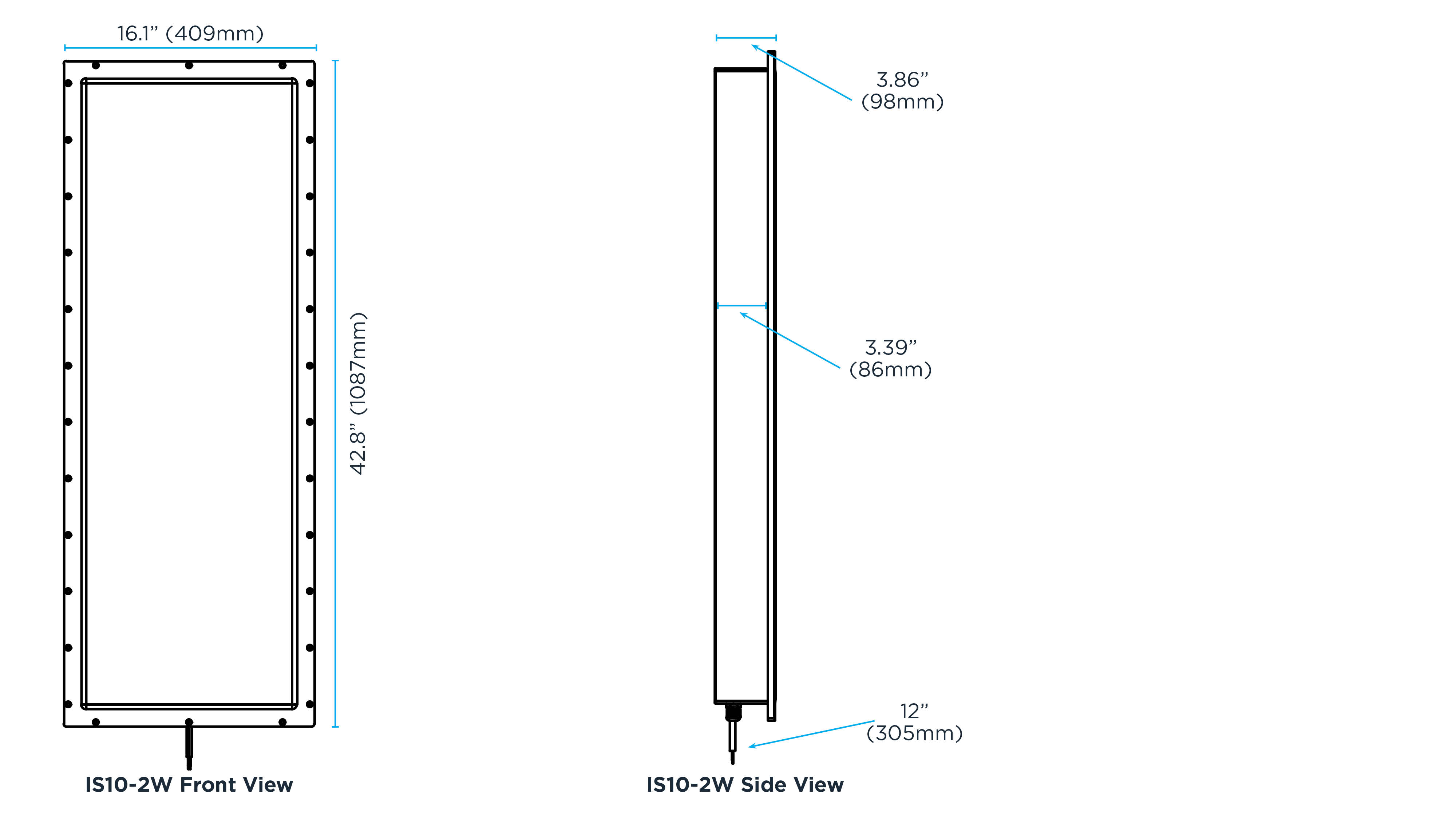

Dimensional Drawings
