Invisible Series
Invisible Series
IS6



IS6
Invisible Series
Small Invisible Series In-Wall and In-Ceiling speaker with 6.5" Air Flex woofer
Key Features
- 6 Ohms nominal impedance with select models for professional use (IS6T and IS8T feature Sonance Laminated Core Transformer for 6 Ohm/70v/00V tap selection)
- 180 degree sound
- Motion Flex Technology features acoustically isolated baffle, Air Flex Woofer and Wave Flex Drive Unit for superior detail and range
- Sonance CDX Crossover Design - Warmth and detail at all volumes
- Accepts up to 3mm topping compound
- Install into drywall, select plasters, wallpaper. leather, and wood veneer applications
- Sonance DISC Depth Identification Sensing Calibration System to measure and standardize finish and performance
- Limited 15 Year Warranty valid on Invisible Series products purchased from an authorized Sonance dealer or distributor
Specifications
SKU | Color
93478 (White)
Wave Flex Drive Unit
20in^2 (127cm^2) bending wave diaphragm, 1.75in (44mm) voice coil
Air Flex Woofer
98in^2 (633cm^2) air pulse diaphragm, 6.5in (165mm) carbon fiber woofer
Frequency Response (+/- 3db)
50Hz - 30kHz
Power Handling (RMS)
100 watts RMS
Sensitivity
84dB (2.83V/1m)
Nominal Impedance (Ohms)
6 Ohms
Dispersion
170 degree hemispherical
Dimensions (WxHxD)
16.1" x 16.1" x 3.15" (408.94mm x 408.94mm x 80.01mm)
Dimensions No Feet (WxHxD)
16.1" x 16.1" x 3.15" (408.94mm x 408.94mm x 80.01mm)
Mounting Depth
2.68" (68.07mm)

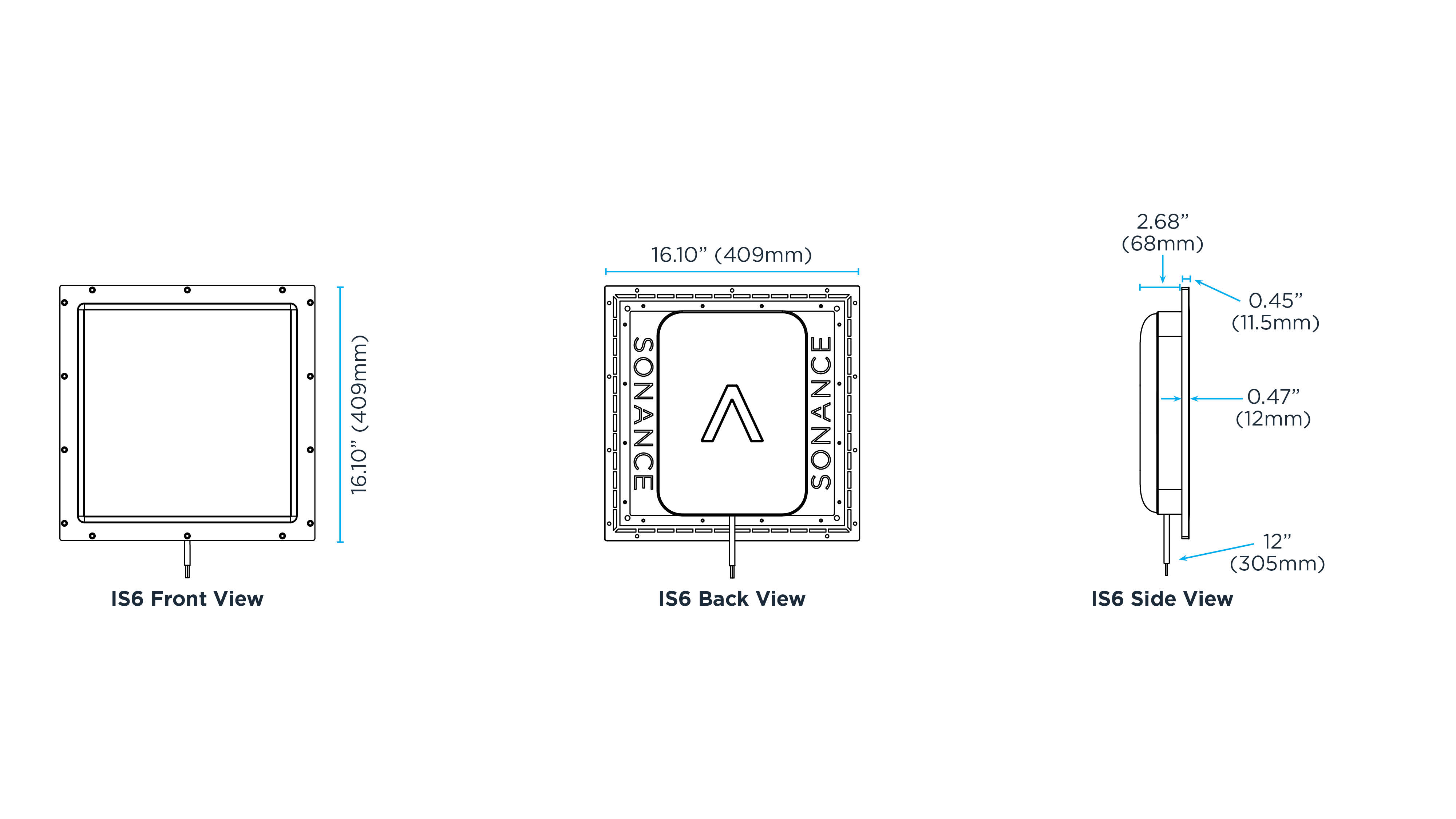

Dimensional Drawings
