Invisible Series
IS10W
Invisible Series

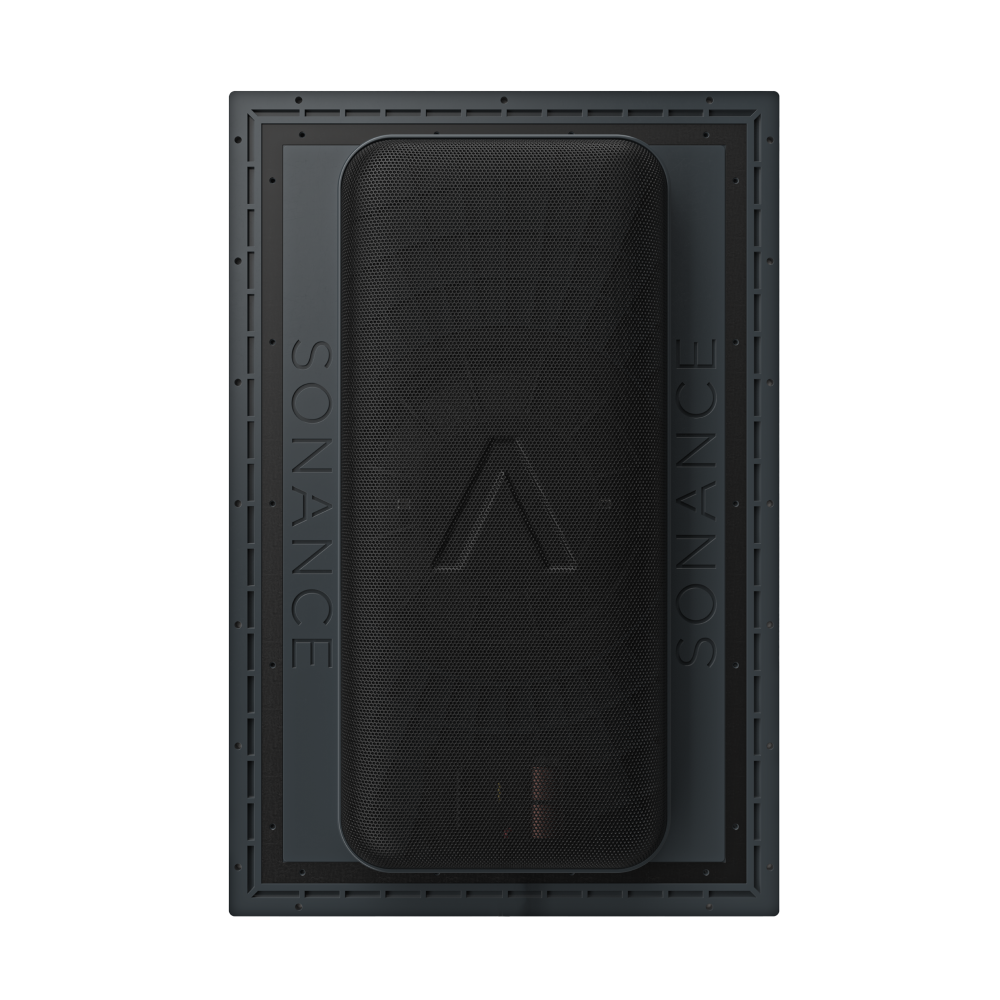

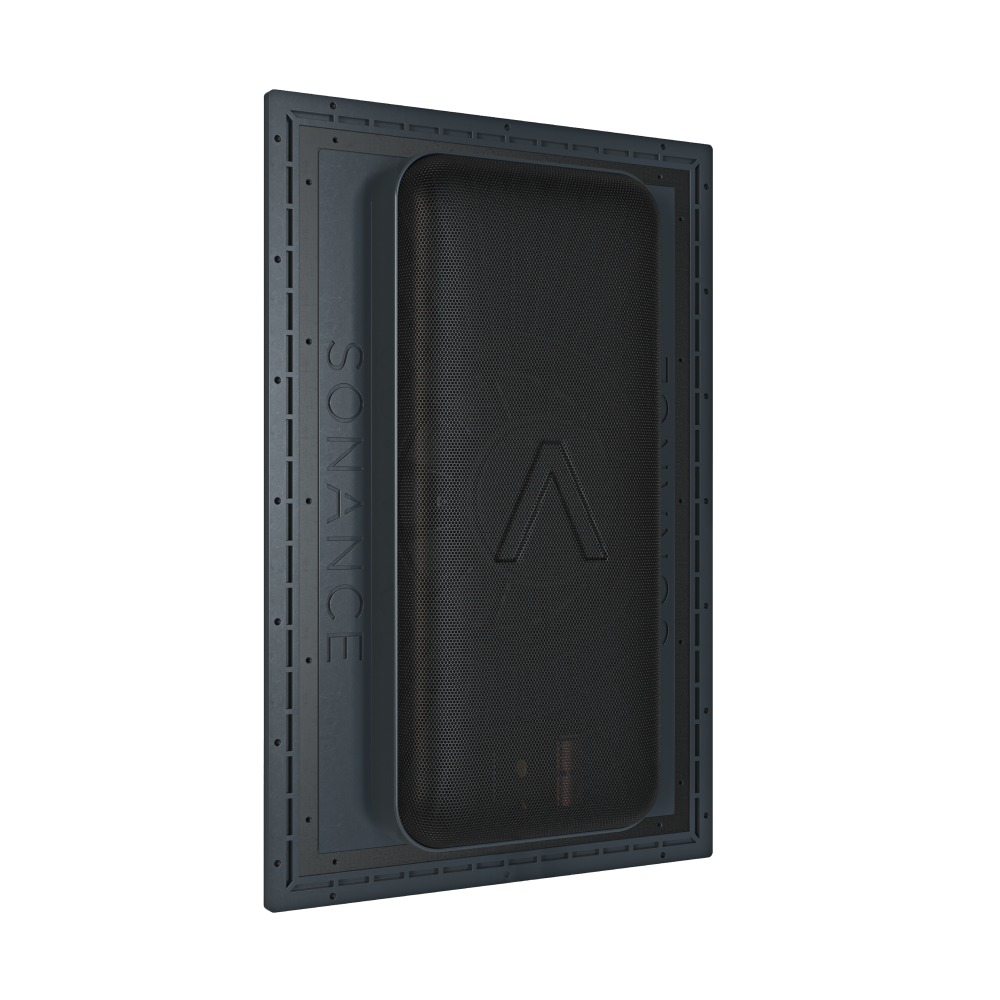

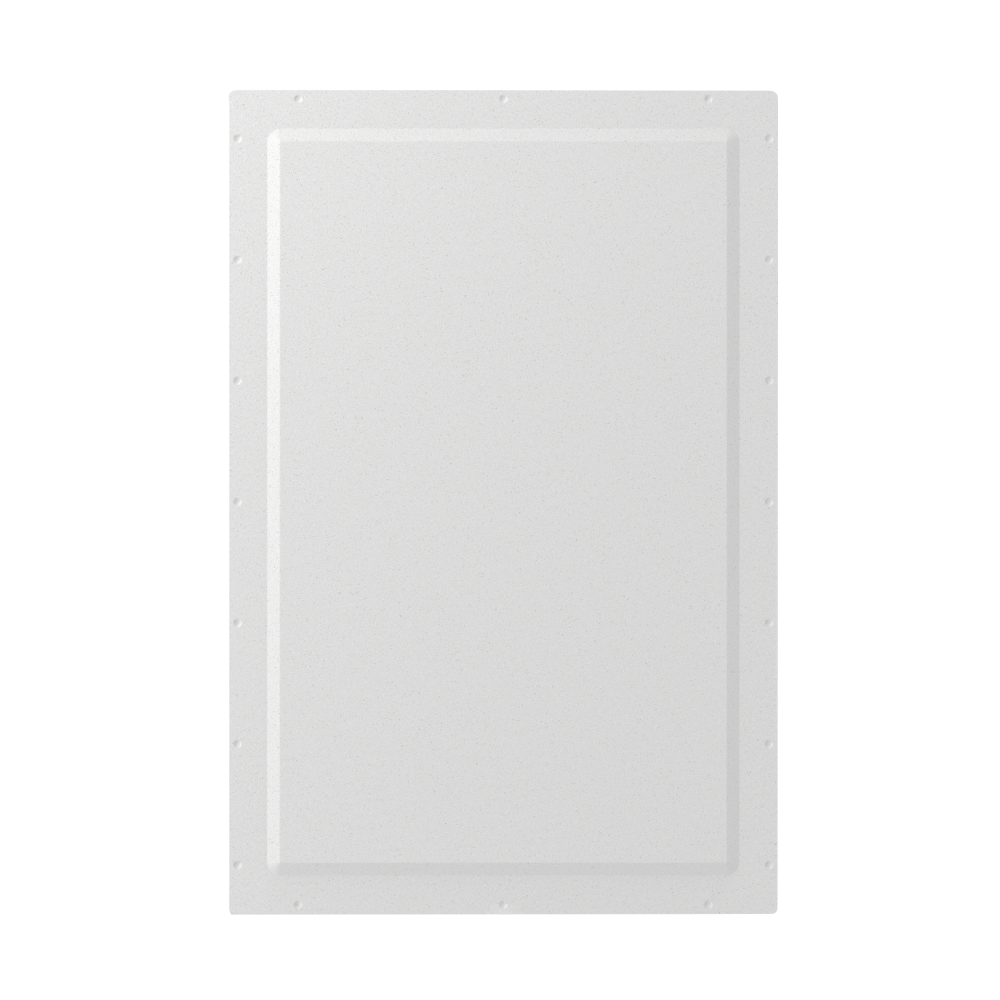

The Sonance Invisible Series IS10W woofer features a 10" glass-fiber woofer for delivering powerful, invisible bass in refined spaces. Its narrow, design fits into 16" on-center stud construction, achieving impressive bass response with straightforward installation.
Key Features
- 180 degree sound
- Motion Flex Technology features acoustically isolated baffle, Air Flex Woofer
- Sonance CDX Crossover Design - Warmth and detail at all volumes
- Accepts up to 3mm topping compound
- Install into drywall, select plasters, wallpaper. leather, and wood veneer applications
- Sonance DISC Depth Identification Sensing Calibration System to measure and standardize finish and performance
- Limited 15 Year Warranty valid on Invisible Series products purchased from an authorized Sonance dealer or distributor
Specifications
SKU | Color
93481 (White)
Air Flex Woofer
244in^2 (1573cm^2) air pulse diaphragm, 10in (254mm) glass-fiber woofer
Frequency Response (+/- 3db)
35Hz - 250Hz
Power Handling (RMS)
200 watts RMS
Sensitivity
87dB (2.83V/1m)
Dispersion
180 degree hemispherical up to 250Hz
Dimensions (WxHxD)
16.1" x 24.13" x 3.15" (408.94mm x 612.9mm x 80.01mm)
Dimensions No Feet (WxHxD)
16.1" x 24.13" x 3.15" (408.94mm x 612.9mm x 80.01mm)
Mounting Depth
2.68" (68.07mm)

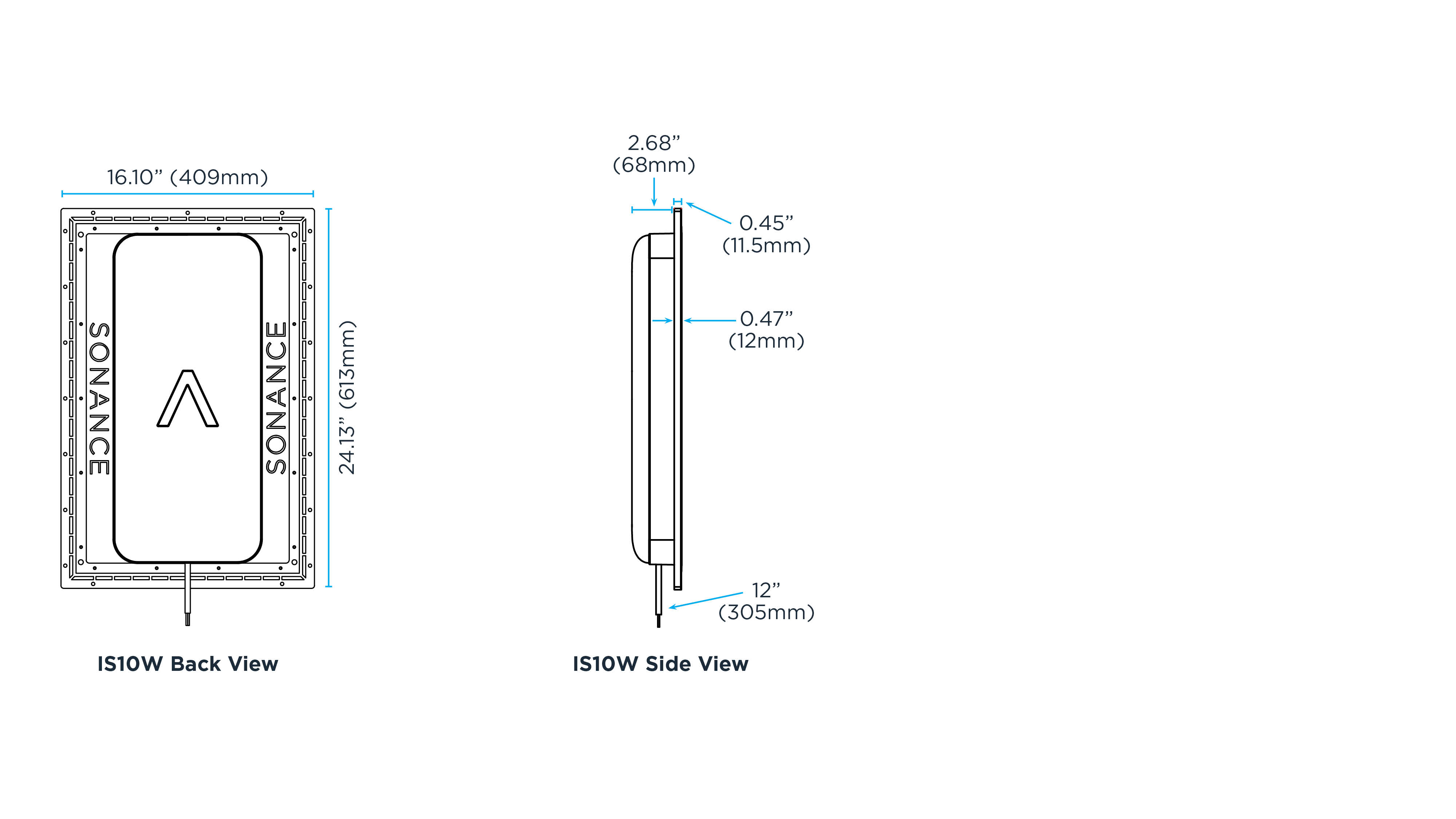

Dimensional Drawings
