QX-BE806 MKII

QX

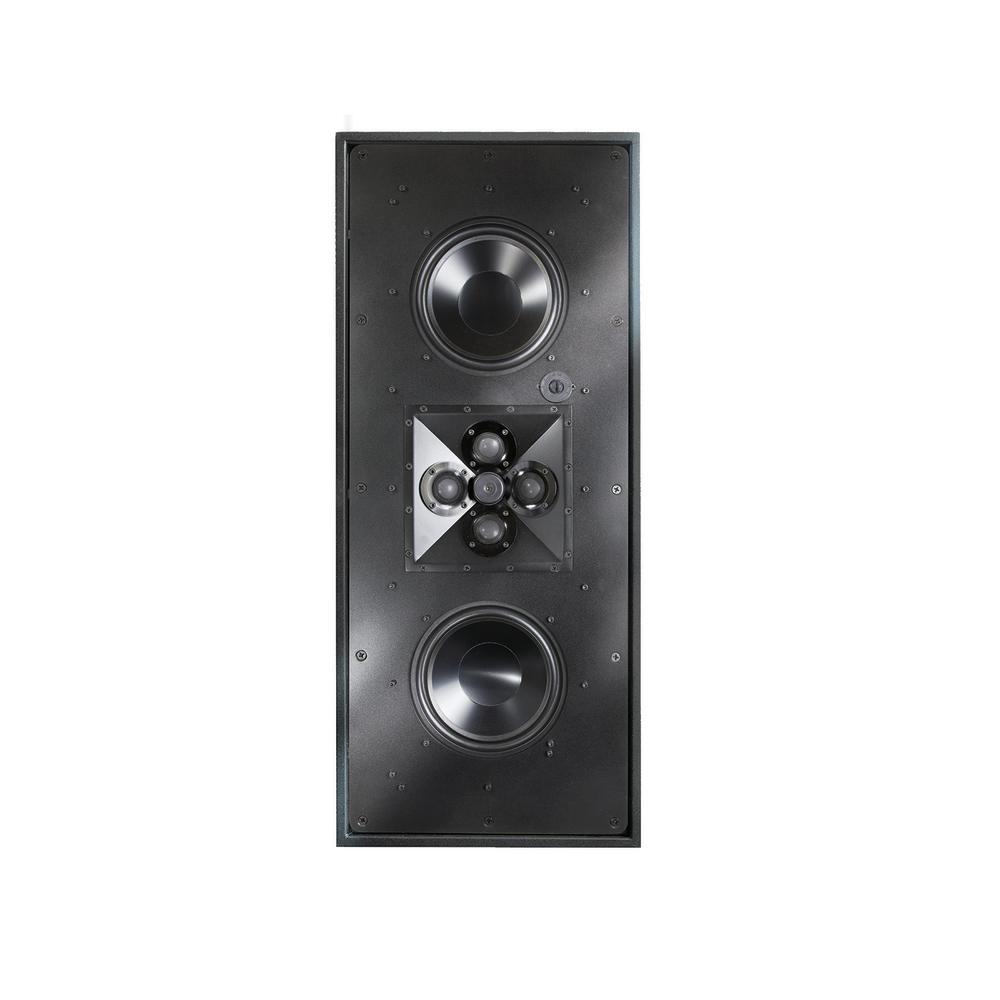

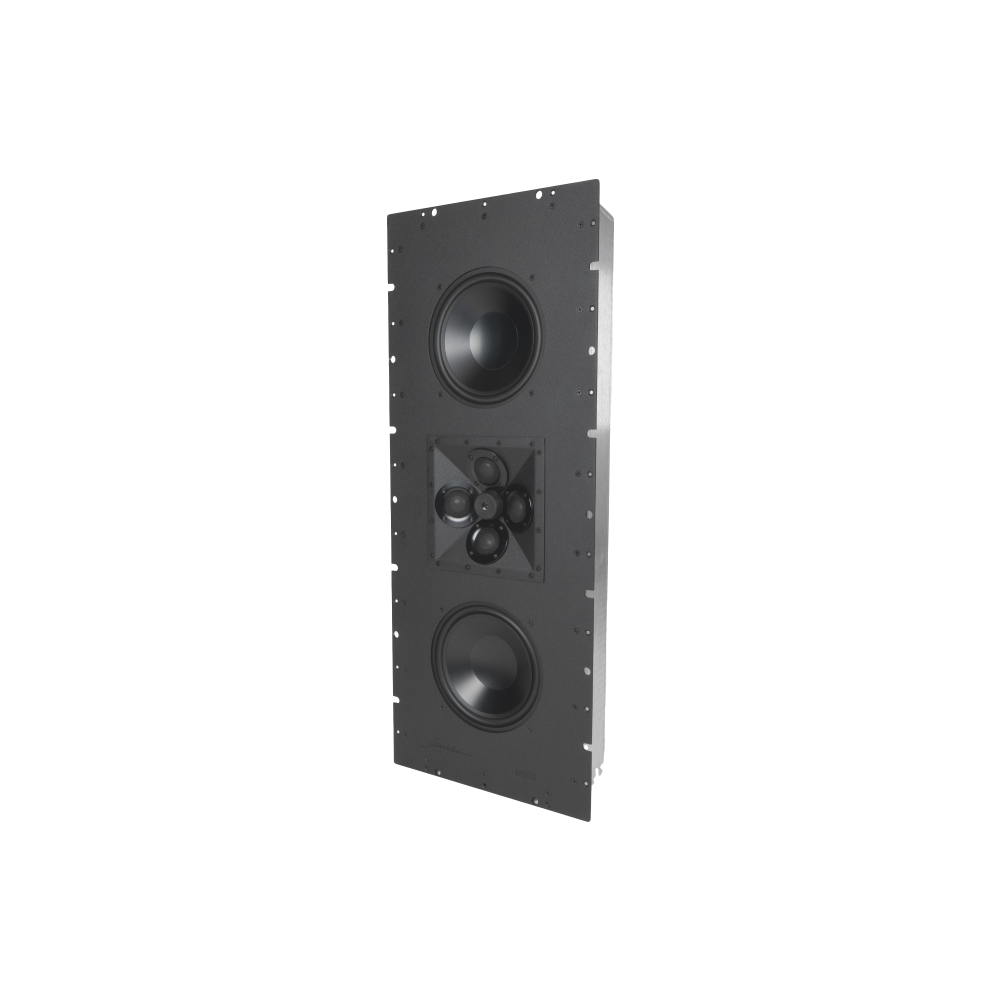

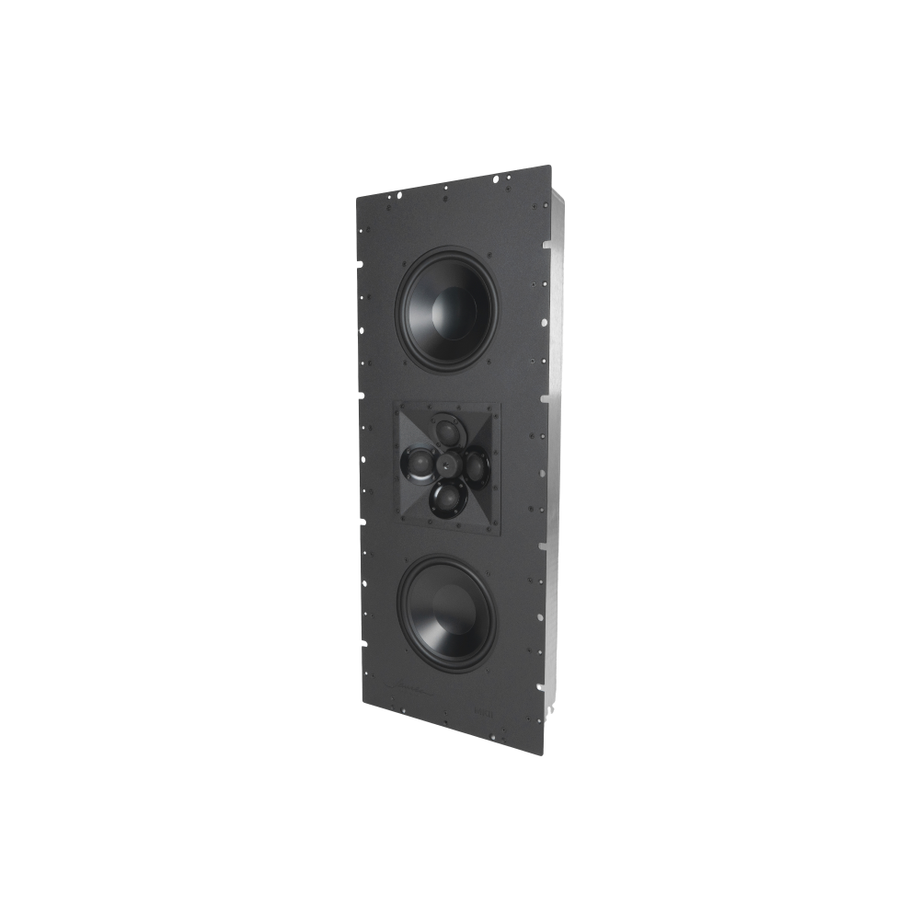

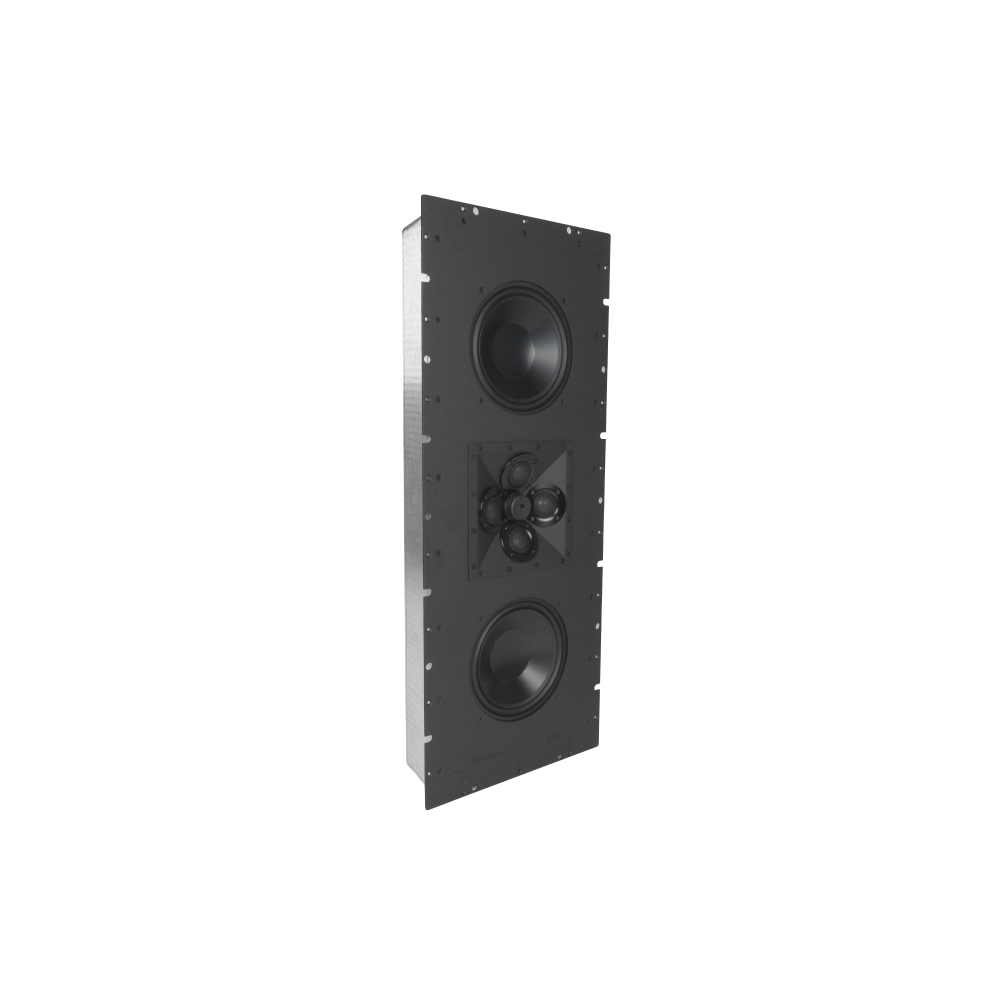

QX-BE806 MKII is an 8", 2-way in-wall loudspeaker featuring high-output drivers and a solid aluminum QX baffle. Its quad 1" Beryllium dome tweeter array ensures wide dispersion and low distortion, while dual 8" aluminum cone woofers deliver impressive bass down to 45Hz. Designed for strength, this speaker is suitable for outdoor use.

QX-BE806 MKII

Key Features
Specifications
Related Products
Downloads
Videos
Learn More

Key Features

Quad Tweeter Array for crisp fidelity and wide dispersion
Marine grade configuration available.
QX and QXC subwoofer options to match QX and QXC speaker models
Flexible trim options for standard grille or optional TRUFIG flush mounted grille design
TAA Compliant

Specifications

SKU

QX-BE806 MKII

Speaker Tweeter

(4) 1" (25mm) Beryllium

Speaker Woofer

(2) 8" (203mm) Aluminum

Frequency Response (+/- 3db)

45Hz - 24kHz

Sensitivity

96dB (2.83V/1m)

Recommended Power Range

50 - 150W

Enclosure

Aircraft Marine Grade Aluminum

Nominal Impedance (Ohms)

8 ohms

Dimensions (WxHxD)

14.1" x 33.15" x 4.13" (358.01mm x 841.88mm x 104.78mm)

Cut-Out Dimensions (WxH)

13.38" x 32.43" (339.73mm x 823.6mm)

Mounting Depth

3.95" (100.33mm)
