BE806-MKII
BE806-MKII
BE Series

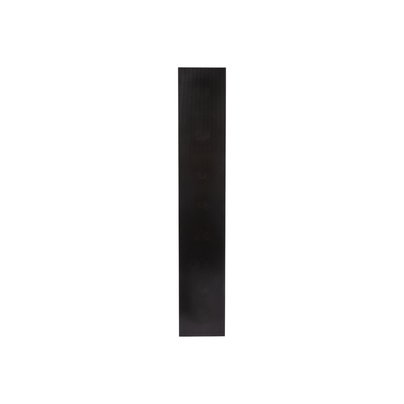

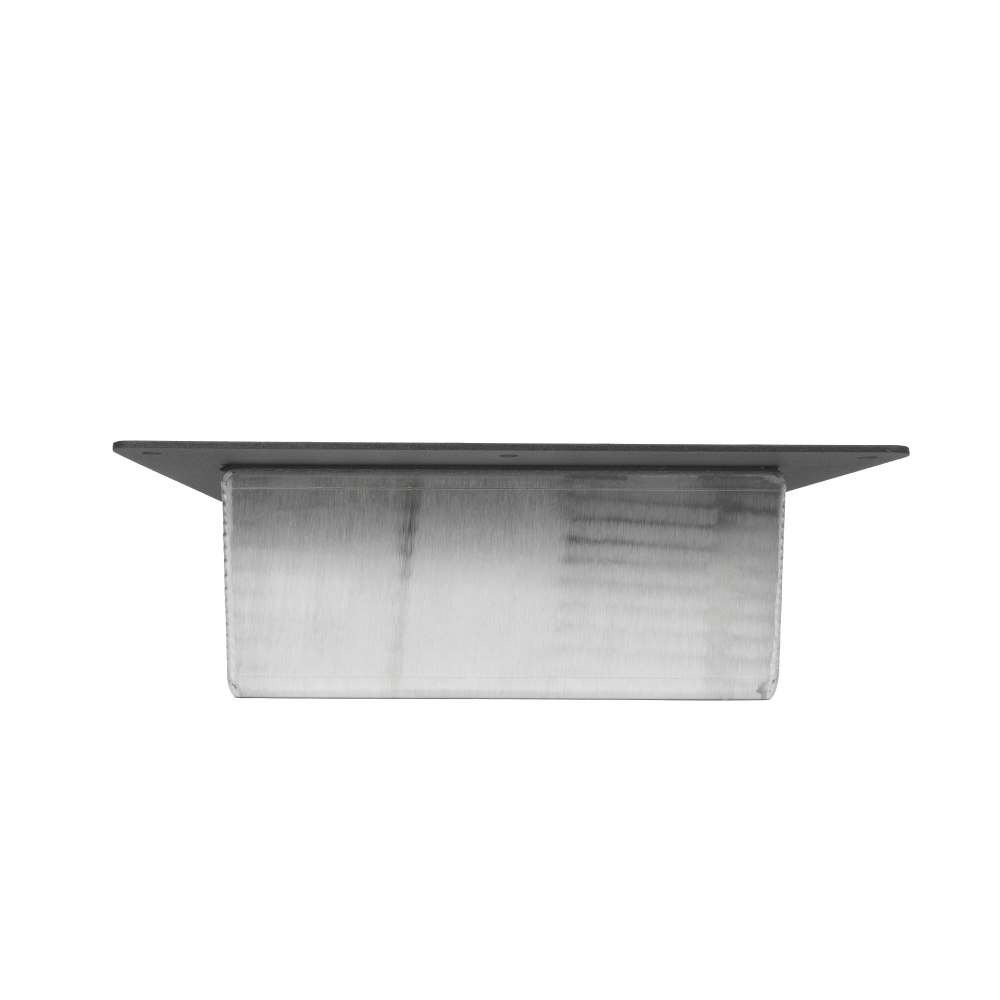

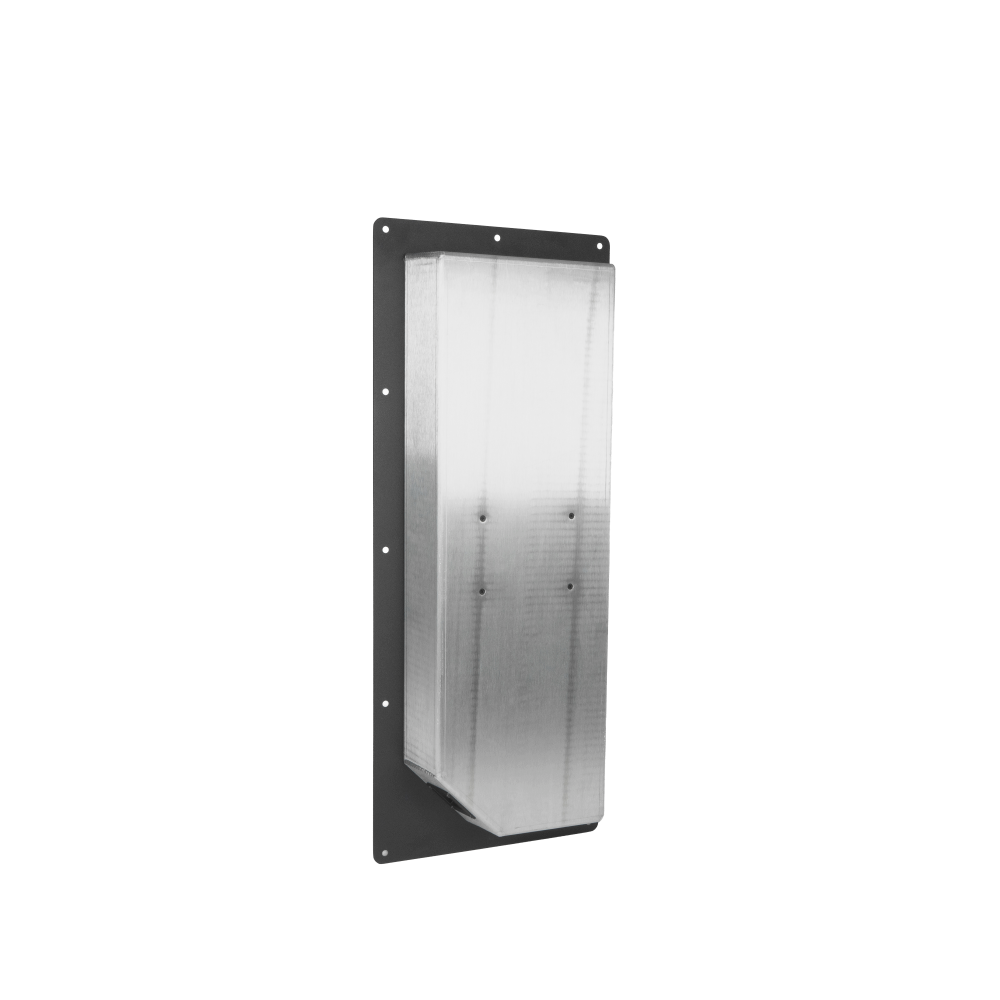

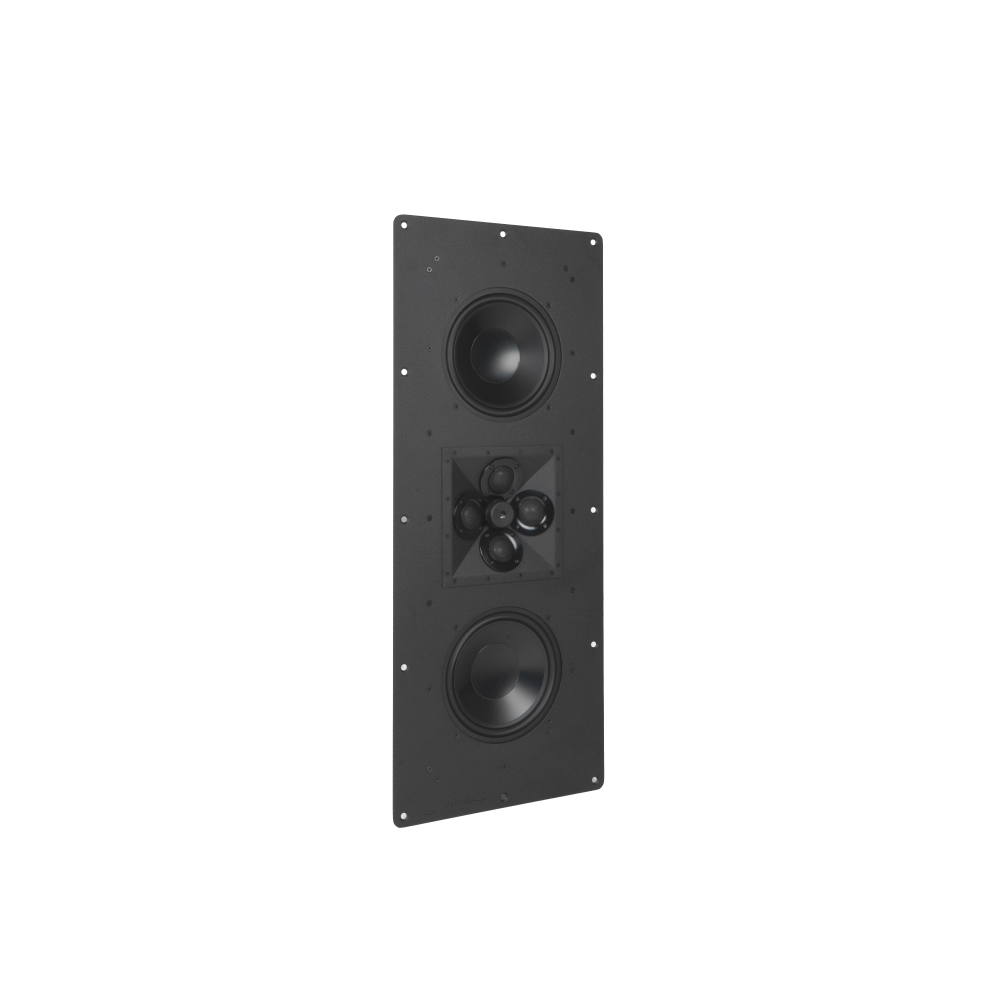

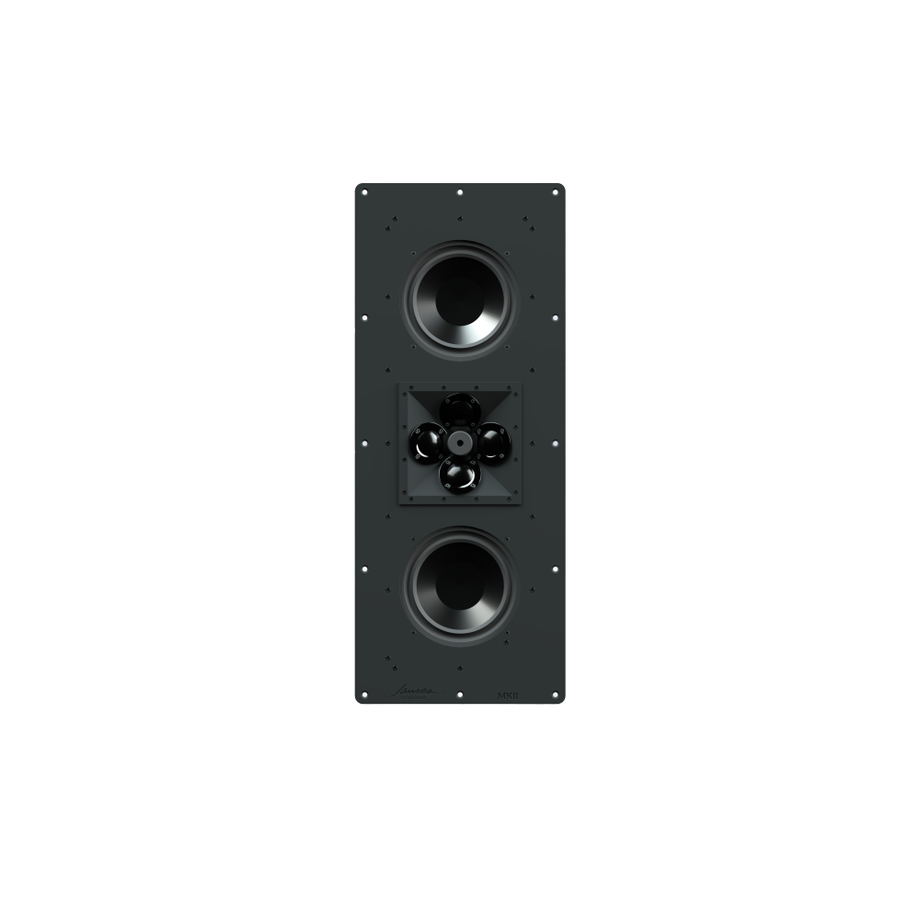

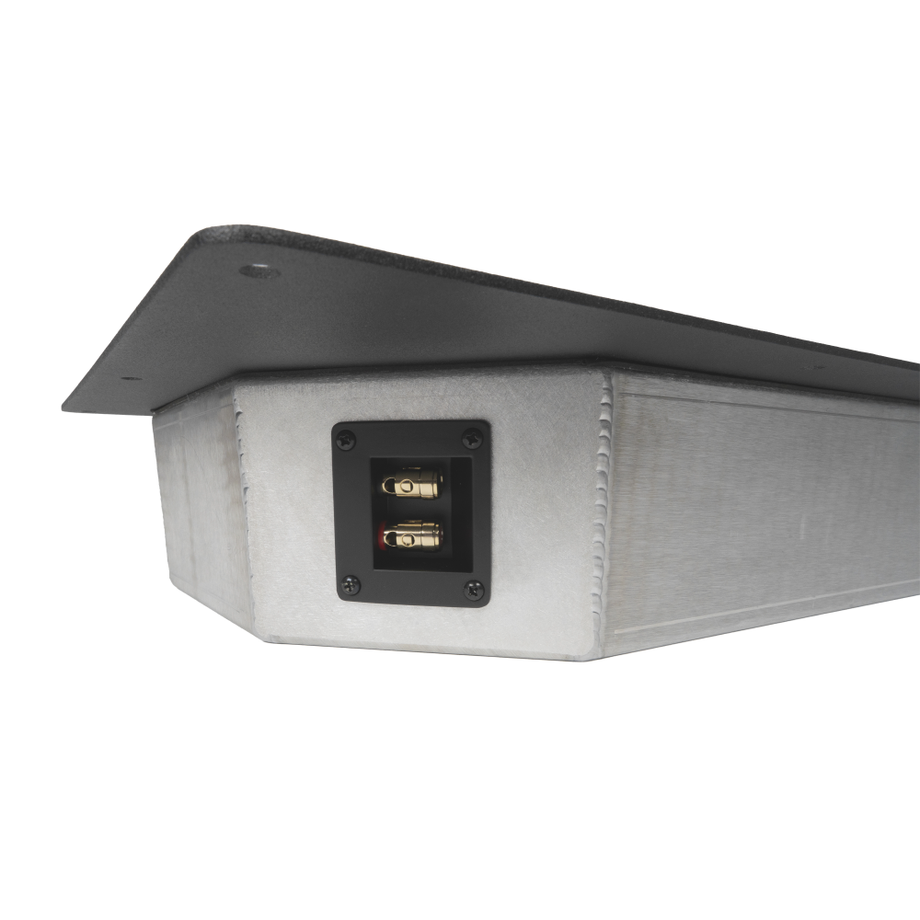

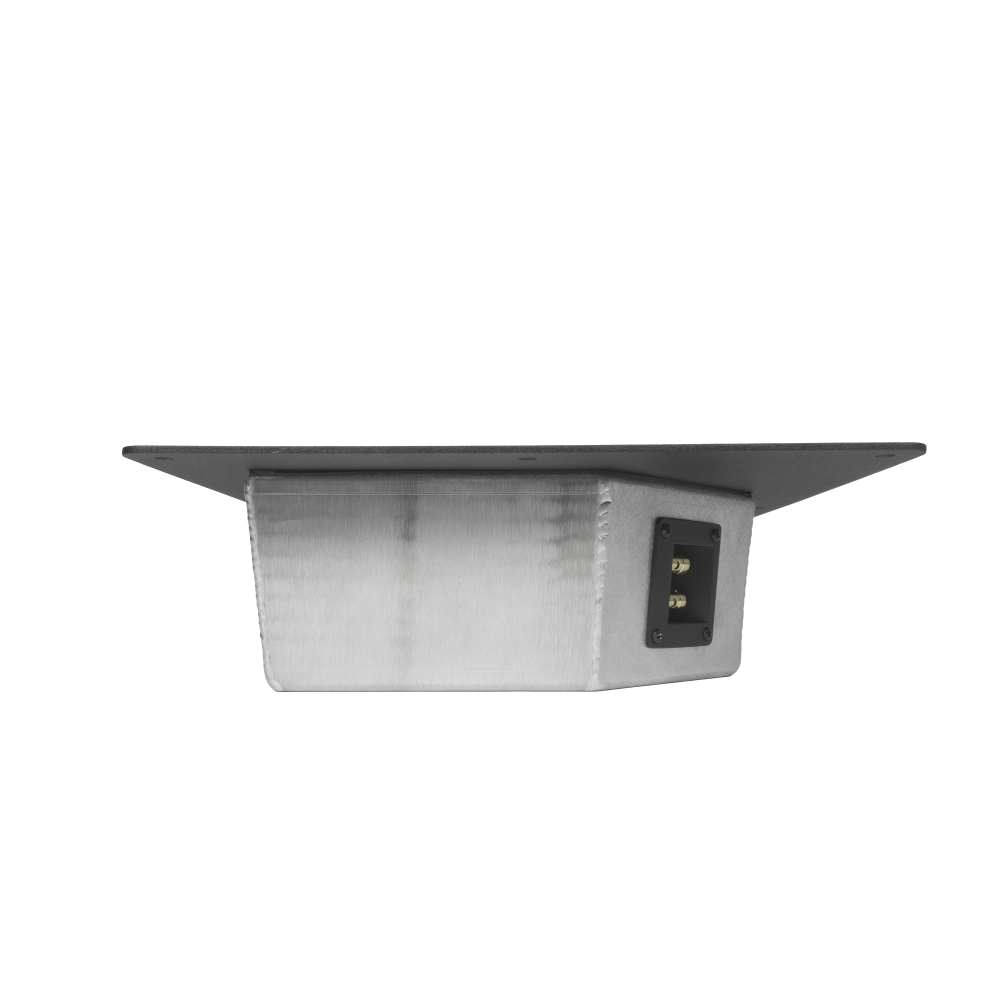

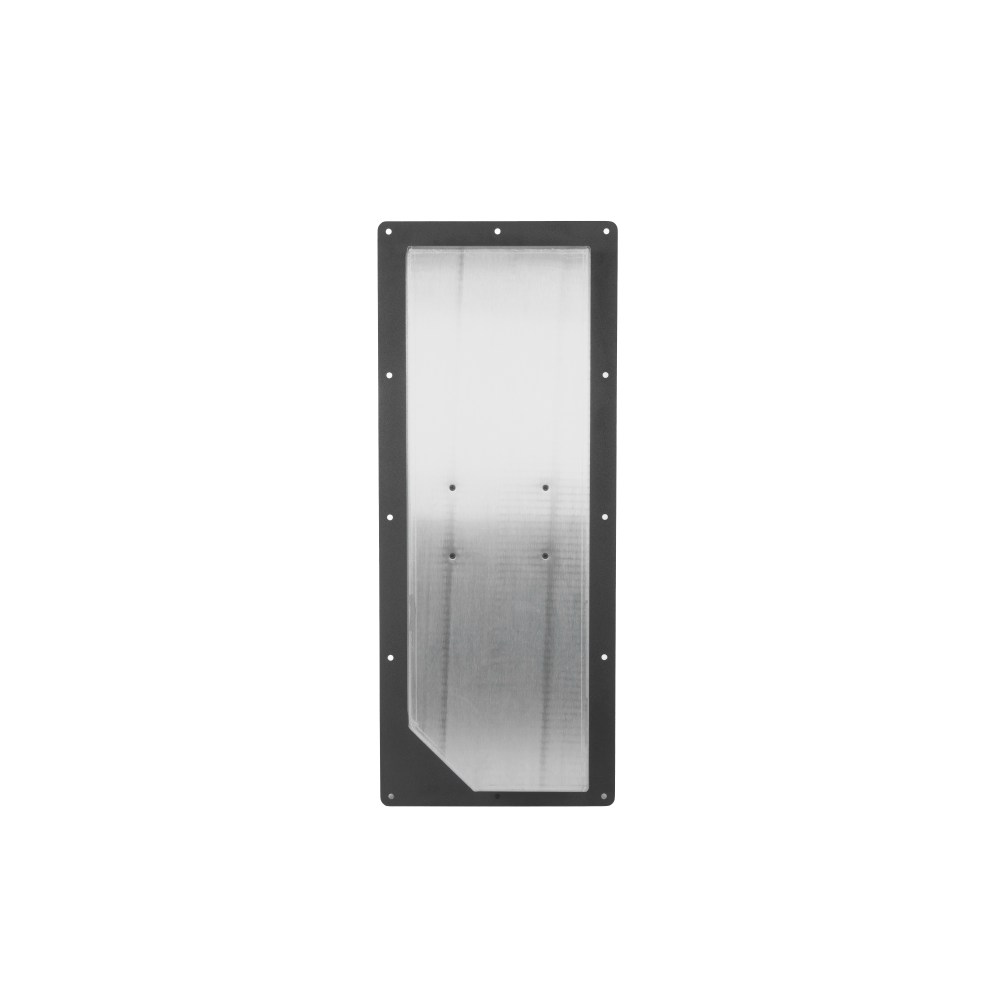

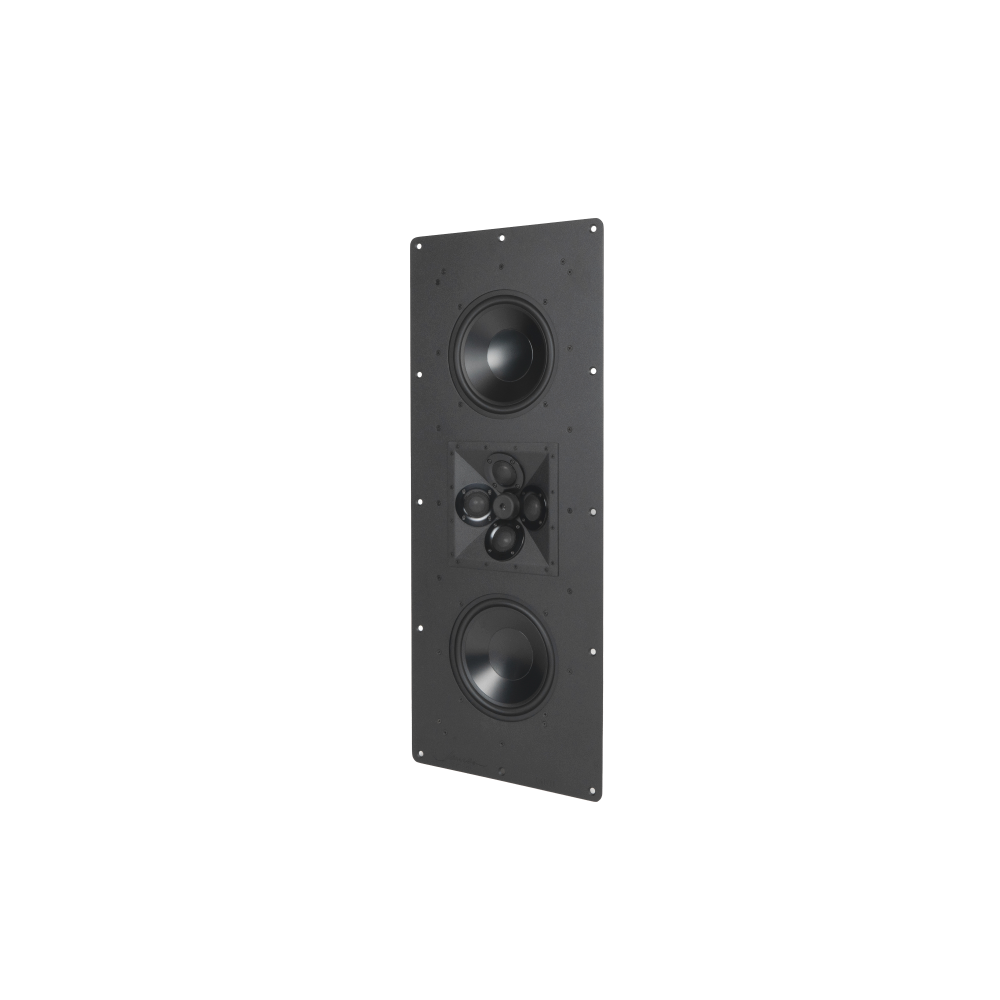

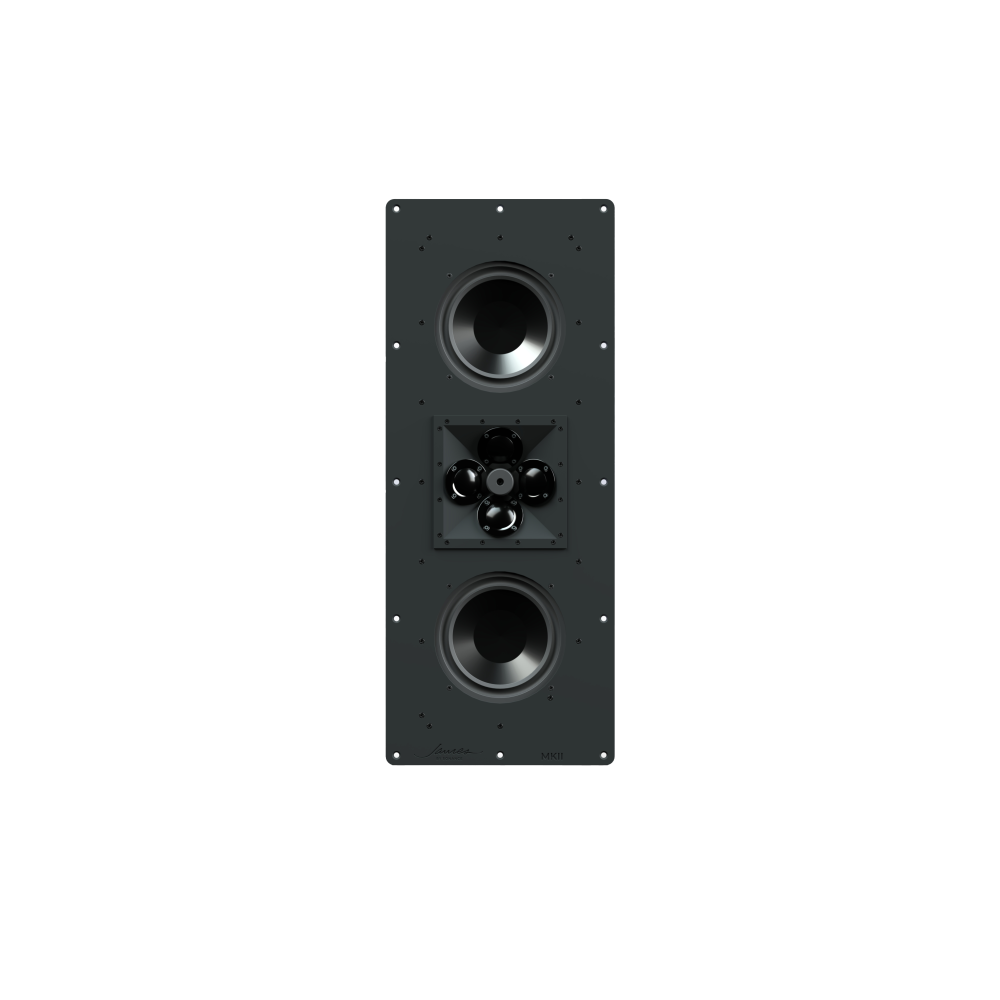

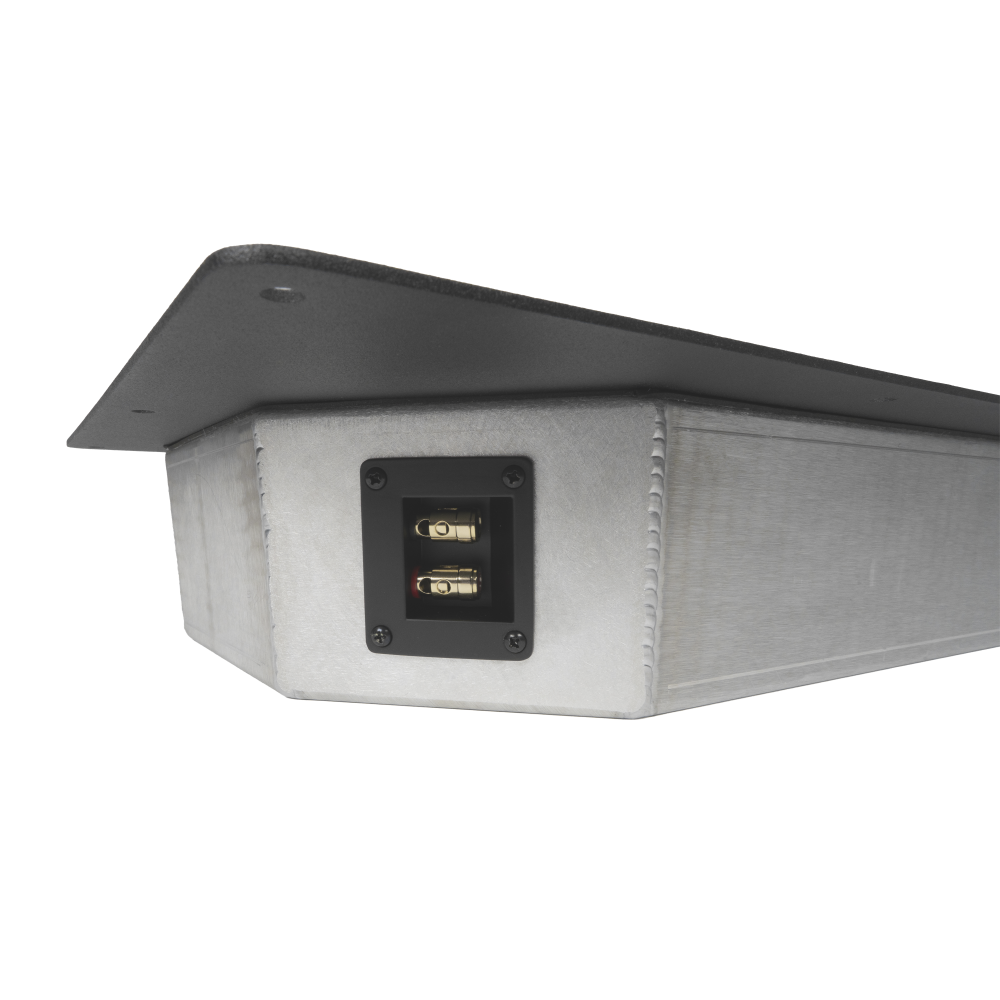

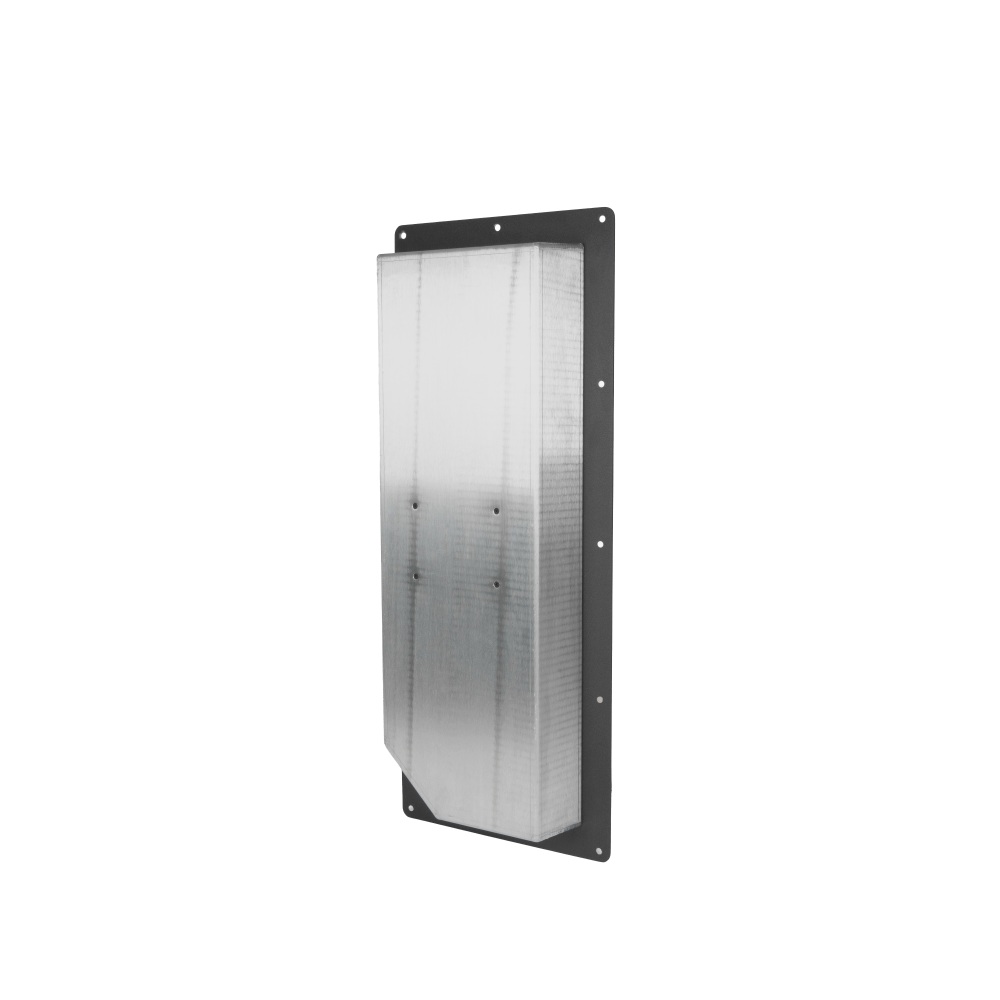

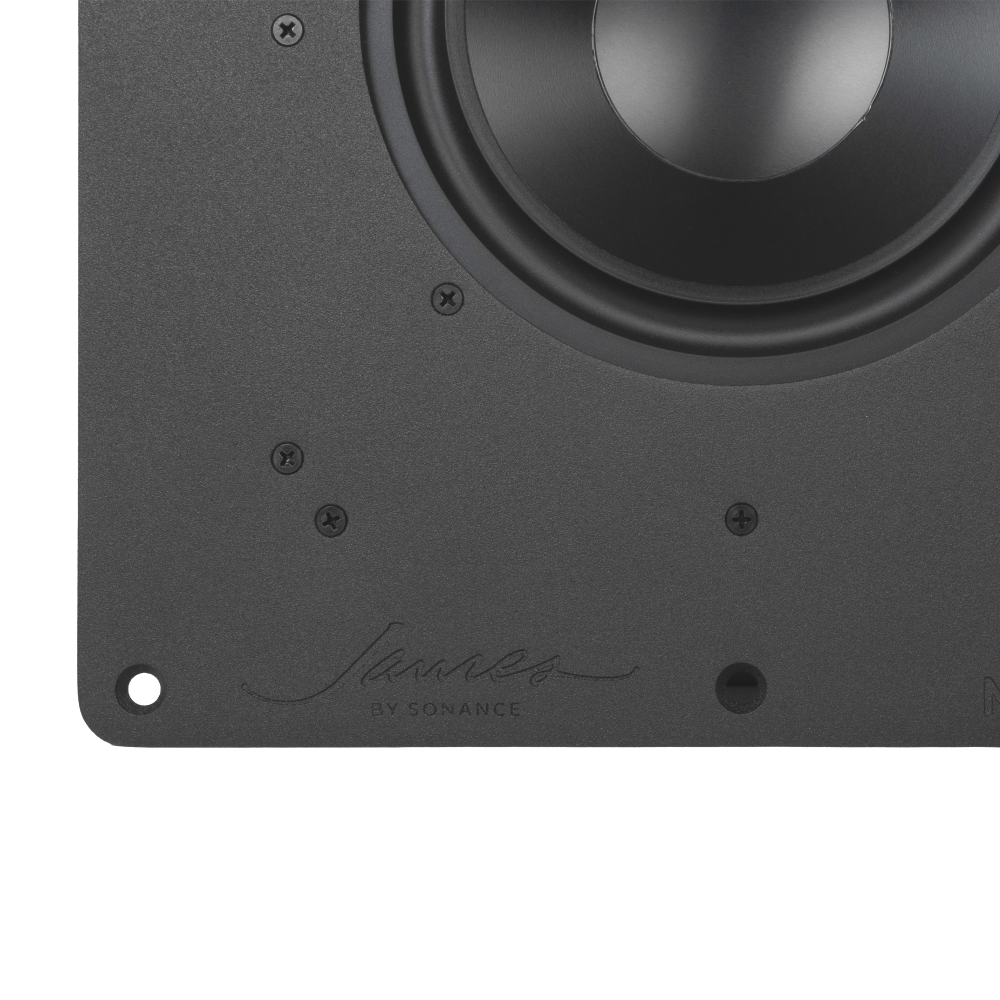

In-wall reference loudspeaker featuring a solid aluminum baffle with quad 1" beryllium dome tweeter array for wide dispersion and low distortion. Dual 8" aluminum cone woofers deliver 96dB sensitivity and bass to 45Hz. Aircraft aluminum construction with multi-element crossover provides audiophile sound in 2x4 stud walls. As BE Series models tend to install behind fabric, grille is not included but sold separately.
Key Features
- James Beryllium dome Quad Tweeter Array
- High-output aluminum cone woofers
- Low distortion
- Designed to fit standard 2x4 stud bay construction, 16” on-center
- TAA Compliant
Specifications
SKU | Color
60641
Speaker Tweeter
(4) 1" (25mm) Beryllium
Speaker Woofer
(2) 8" (203mm) Aluminum
Frequency Response (+/- 3db)
45Hz - 24kHz
Nominal Coverage Angle
160 degrees horizontal, 38 degrees vertical
Sensitivity
96dB (2.83V/1m)
Recommended Power Range
50 - 150W
Nominal Impedance (Ohms)
4 Ohms
Dimensions (WxHxD)
12.95" x 32.0" x 3.88" (328.93mm x 812.8mm x 98.43mm)
Cut-Out Dimensions (WxH)
10.0" x 28.75" (254.0mm x 730.25mm)
