Now Shipping

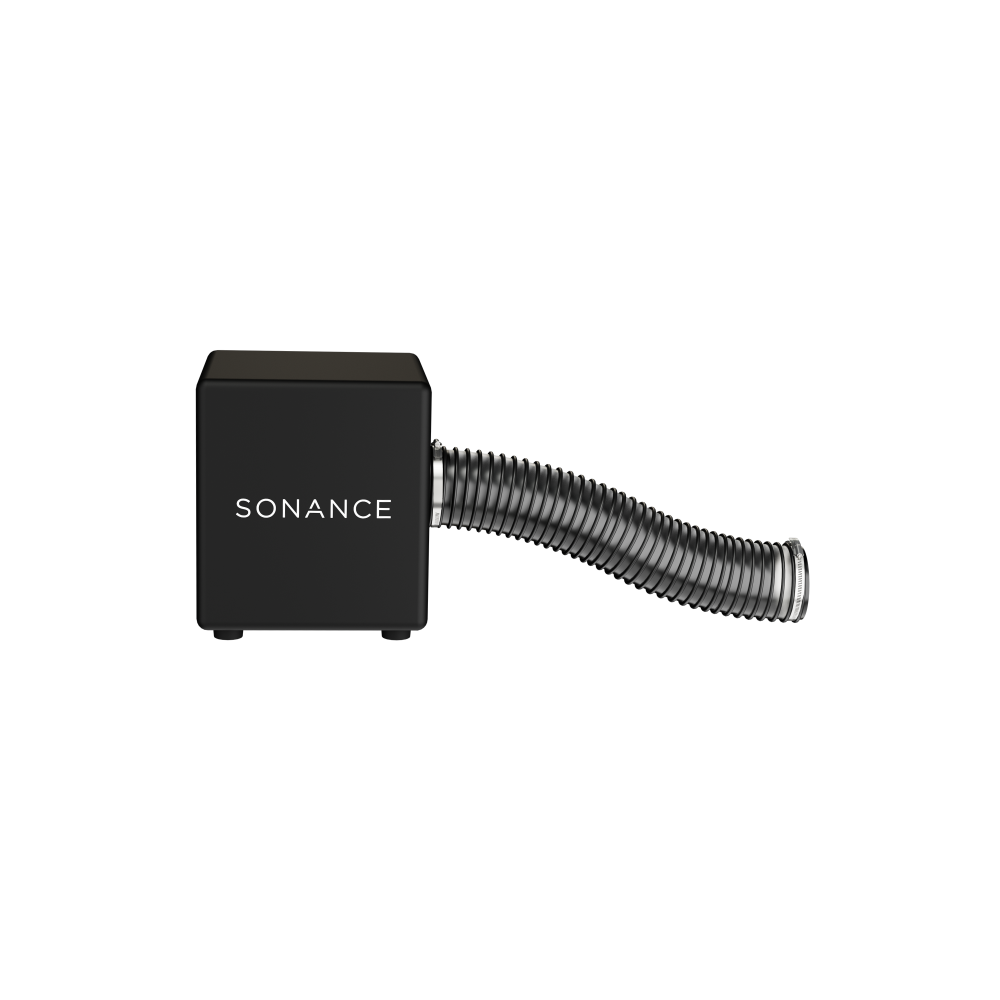

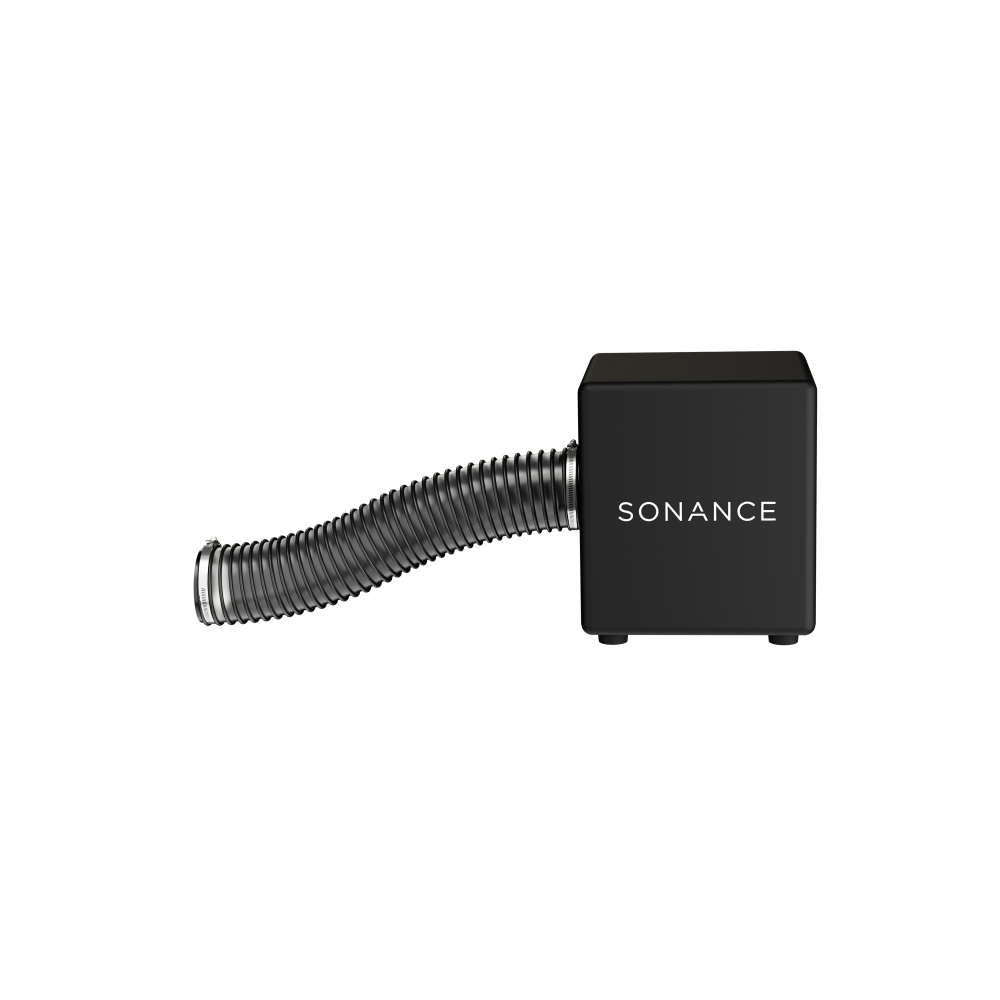

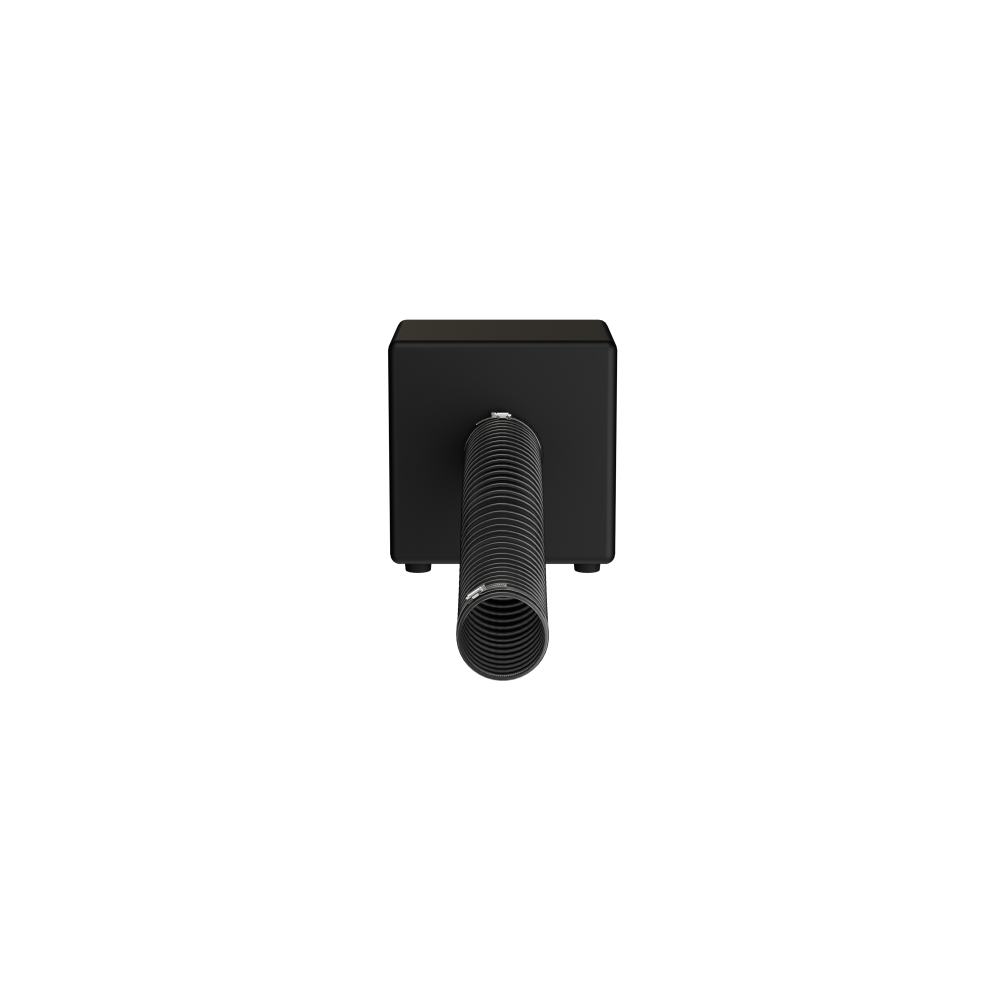

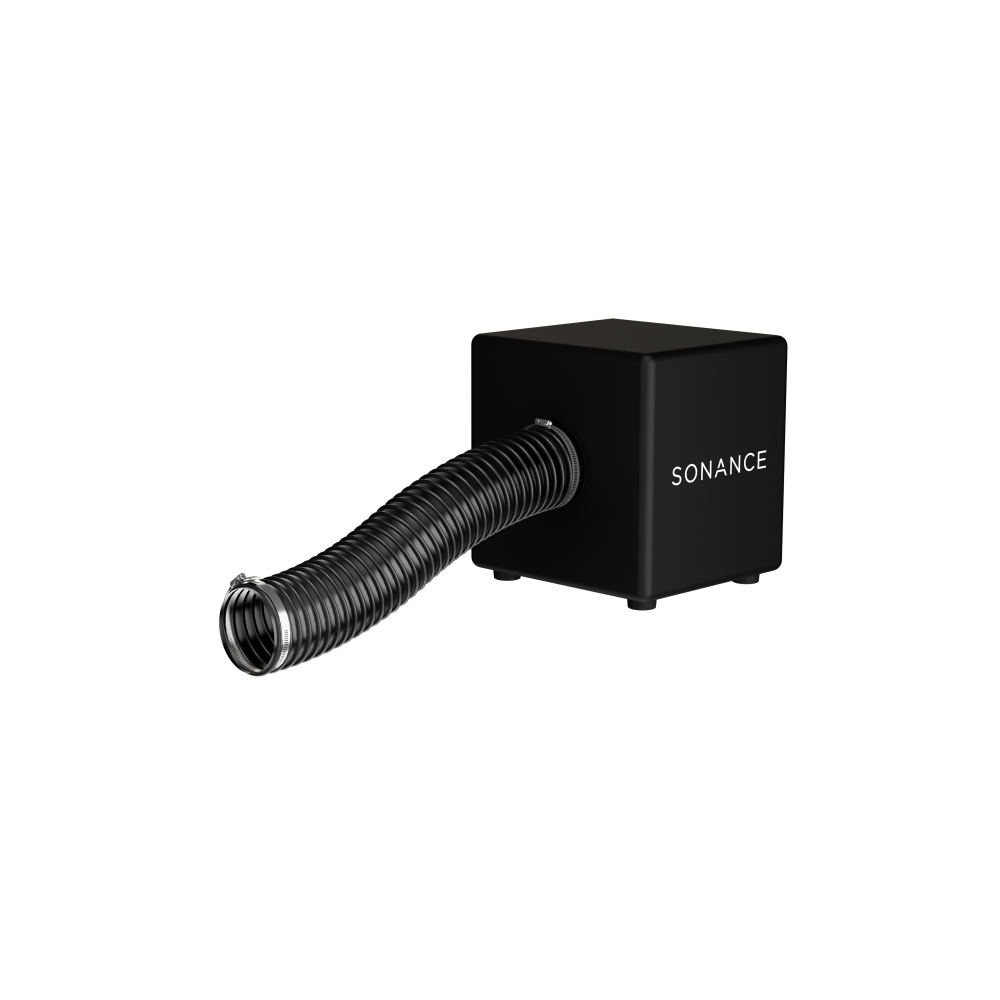

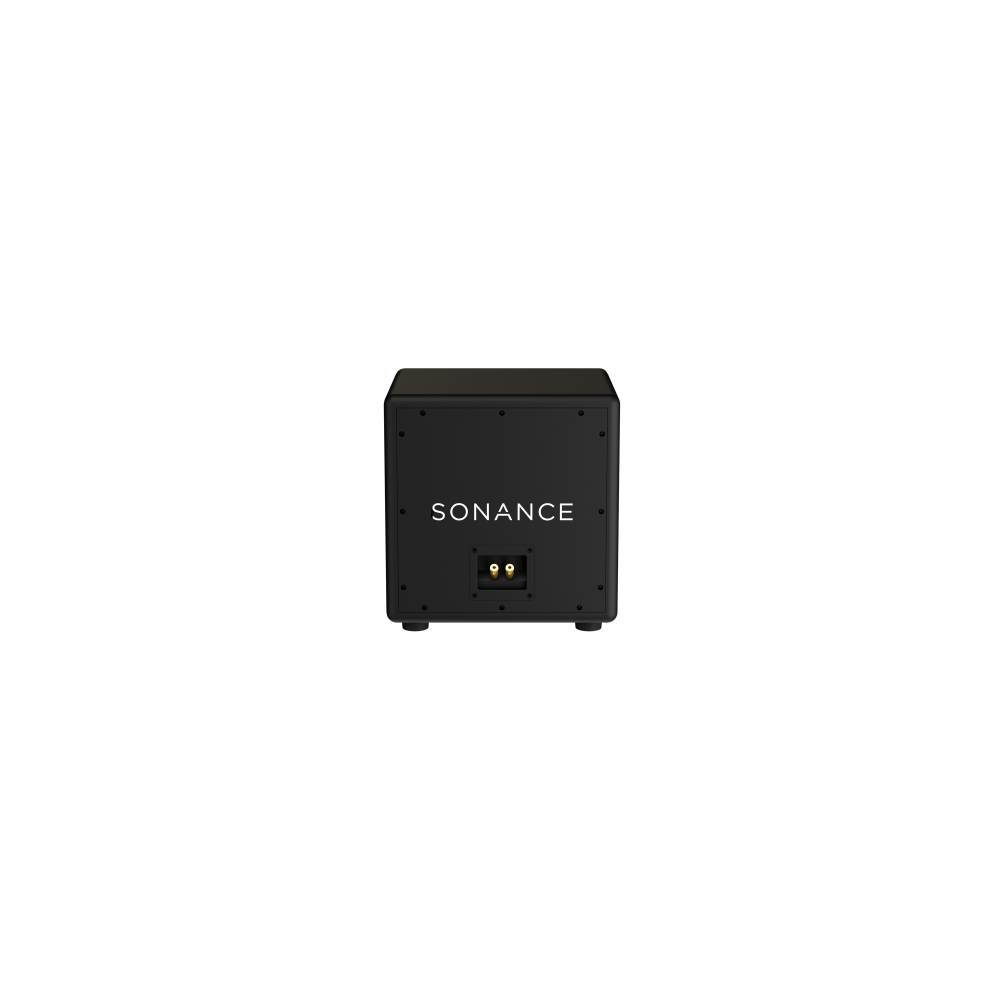

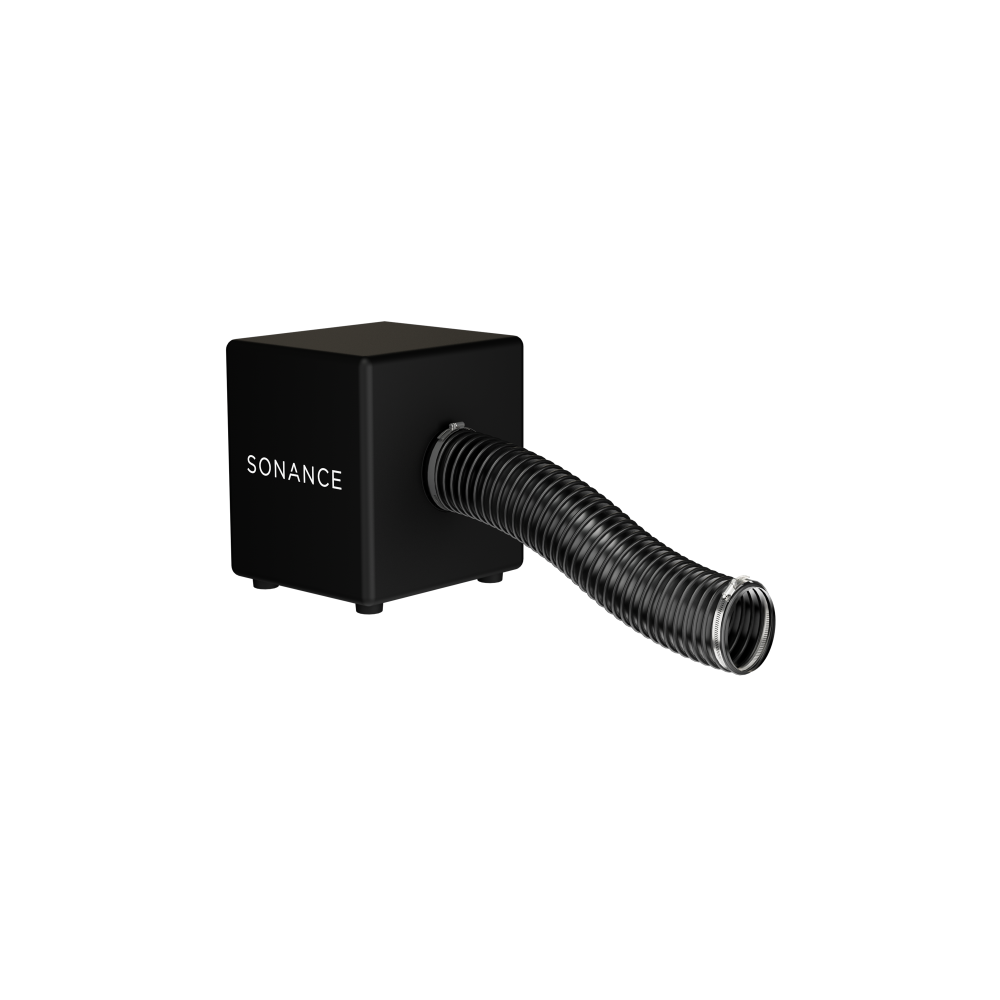

PPX10

PowerPipe

The PPX10 builds on the PPX platform with deeper extension to 39Hz and increased dynamic impact. Its ported bandpass architecture delivers room-filling Hidden Bass while remaining fully concealed within ceilings, walls, or cabinetry for seamless design integration.

PPX10

Key Features
Specifications
Related Products
Downloads
Videos
Learn More

Key Features

10" High-Excursion Woofer (39Hz-115Hz) - Extends low-frequency response for greater depth and dynamic impact in medium-sized spaces.
Ported Bandpass Design - Balances output and efficiency for even, controlled bass performance.
Enhanced Installation Flexibility - Compatible with micro trim, trimless, toekick, and flush-mount solutions for seamless integration.

Specifications

SKU

PPX10 (textured black)

Speaker Woofer

10" (254mm) anodized aluminum cone, rubber surround, high excursion

Frequency Response (+/- 3db)

39Hz - 115Hz

Sensitivity

92dB SPL

Recommended Power Range

400 watts

Enclosure

MDF (Medium Density Fiberboard)

Nominal Impedance (Ohms)

4 ohms

Dimensions No Feet (WxHxD)

12.99" x 12.99" x 11.81" (329.95mm x 329.95mm x 299.97mm)

Dimensions with Feet (WxHxD)

12.99" x 13.6" x 11.81" (329.95mm x 345.44mm x 299.97mm)

Tube Diameter

4.02" (102.11mm)

Tube Length

21.65" (549.91mm)

Weight

38.27 lbs. (17.36kg)

Copy All Specs
