PowerZone™ + PowerZone™ Connect Series Amplifiers

Blaze by Sonance Models

Blaze by Sonance Amplifiers
Blaze by Sonance Amplifiers

Series Collection

Blaze by Sonance amplifiers deliver high-performance, flexible power for professional installed audio across retail, hospitality, corporate, and large-scale environments.

Built on efficient Class-D technology, they offer compact designs with high output and support both low-impedance and 70V/100V systems on any channel—simplifying system design.

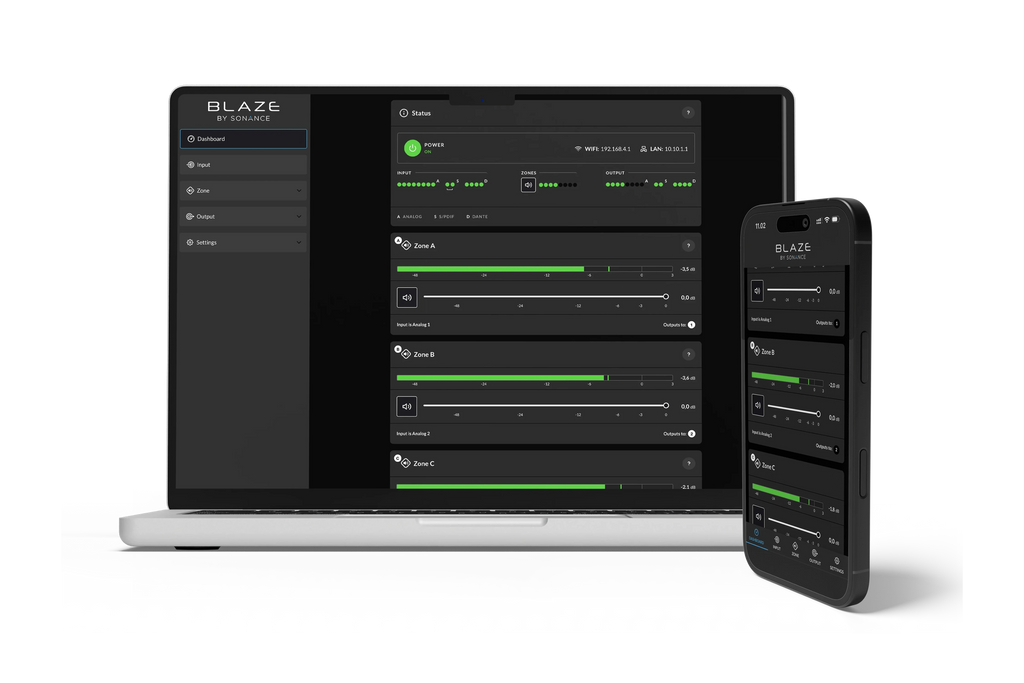

The PowerZone™ Connect series adds integrated DSP, browser-based control, and features like power sharing, built-in Wi-Fi, and optional Dante™ networking for scalable, easy-to-manage systems.

For more straightforward applications, the PowerZone™ series provides reliable, cost-effective amplification on the same efficient platform.

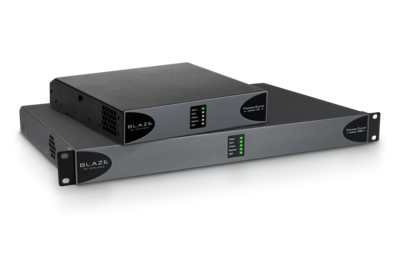

PowerZone Connect 1U Amplifiers

The PowerZone Connect 1U series is a line of DSP-enabled Class-D amplifiers designed to make system installers’ lives easier, offering unparalleled reliability and efficiency, along with exceptional system configuration. The amplifiers have a built-in wireless access point for simple connection and easy system setup via Wi-Fi. Select models offer compatibility with Audinate Dante™ AoIP networks and installations.

Compare Models

Channel Configuration
Total System Power
Output Power @ 4 ohms
Output Power @ 8 ohms
Output Power @ 70V
Output Power @ 100V
Power Consumption
Dante Compatibility
POWERZONE CONNECT 122 (US POWERCORD ONLY) POWERZONE CONNECT 122 (US POWERCORD ONLY)
PowerZone Connect 122
125 W DSP-enabled Class-D amplifier with 2 channels
Lo-Z: 2x60W @4/8Ω Hi-Z: 1x 125W @70/100V Powersharing <= 1x 125W
125 W
2 x 60 W
2 x 60 W
1 x 125 W
1 x 125 W
75 W
No
POWERZONE CONNECT 122D (UNIVERSAL POWERCORD) POWERZONE CONNECT 122D
PowerZone Connect 122D
125 W DSP-enabled Class-D amplifier with 2 channels and Dante
Lo-Z: 2x60W @4/8Ω Hi-Z: 1x 125W @70/100V Powersharing <= 1x 125W
125 W
2 x 60 W
2 x 60 W
1 x 125 W
1 x 125 W
75 W
Yes
POWERZONE CONNECT 252 (US POWERCORD ONLY) POWERZONE CONNECT 252 (US POWERCORD ONLY)
PowerZone Connect 252
250 W DSP-enabled Class-D amplifier with 2 channels
Lo-Z: 2x 125W @4/8Ω Hi-Z: 1x 250W @70/100V Powersharing <= 1x 250W
250 W
2 x 125 W
2 x 125 W
1 x 250 W
1 x 250 W
75 W
No
POWERZONE CONNECT 254 (US POWERCORD ONLY) POWERZONE CONNECT 254 (US POWERCORD ONLY)
PowerZone Connect 254
250 W DSP-enabled Class-D amplifier with 4 channels
Lo-Z: 4x60W @4/8Ω Hi-Z: 2x 125W @70/100V Powersharing <= 1x 250W
250 W
4 x 60 W
4 x 60 W
2 x 125 W
2 x 125 W
75 W
No
POWERZONE CONNECT 504 (US POWERCORD ONLY) POWERZONE CONNECT 504 (US POWERCORD ONLY)
PowerZone Connect 504
500 W DSP-enabled Class-D amplifier with 4 channels
Lo-Z: 4x 125W @4/8Ω Hi-Z: 2x 250W @70/100V Powersharing <= 2x 250W
500 W
4 x 125 W
4 x 125 W
2 x 250 W
2 x 250 W
150 W
No
POWERZONE CONNECT 504D (UNIVERSAL POWERCORD) POWERZONE CONNECT 504D
PowerZone Connect 504D
500 W DSP-enabled Class-D amplifier with 4 channels and Dante
Lo-Z: 4x 125W @4/8Ω Hi-Z: 2x 250W @70/100V Powersharing <= 2x 250W
500 W
4 x 125 W
4 x 125 W
2 x 250 W
2 x 250 W
150 W
Yes
POWERZONE CONNECT 508 (UNIVERSAL POWERCORD) POWERZONE CONNECT 508 (UNIVERSAL POWERCORD)
PowerZone Connect 508
500 W DSP-enabled Class-D amplifier with 8 channels
Lo-Z: 8x60W @4/8Ω Hi-Z: 4x 125W @70/100V Powersharing <= 2x 250W
500 W
8 x 60 W
8 x 60 W
4 x 125 W
4 x 125 W
150 W
No
POWERZONE CONNECT 1008 (UNIVERSAL POWERCORD) POWERZONE CONNECT 1008 (UNIVERSAL POWERCORD)
PowerZone Connect 1008
1000 W DSP-enabled Class-D amplifier with 8 channels
Lo-Z: 8x125W @4/8Ω Hi-Z: 4x 250W @70/100V Powersharing <= 4x 250W
1000 W
8 x 125 W
8 x 125 W
4 x 250 W
4 x 250 W
300 W
No
POWERZONE CONNECT 1008D DANTE (UNIVERSAL POWERCORD) POWERZONE CONNECT 1008D
PowerZone Connect 1008D
1000 W DSP-enabled Class-D amplifier with 8 channels and Dante
Lo-Z: 8x125W @4/8Ω Hi-Z: 4x 250W @70/100V Powersharing <= 4x 250W
1000 W
8 x 125 W
8 x 125 W
4 x 250 W
4 x 250 W
300 W
Yes

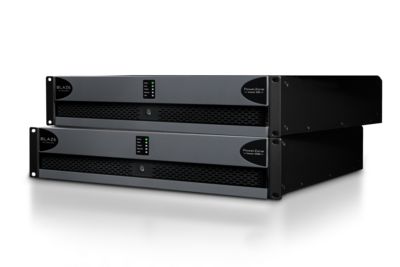

PowerZone Connect 2U Amplifiers

The PowerZone Connect is a family of full-matrix DSP-enabled Class-D amplifiers, spanning twelve models across compact 1U and full-rack 2U chassis. Total system power across the family ranges from 125 W to 6000 W, giving installers a single amplifier platform for jobs from a single-zone retail space to large-scale distribution.

The 1U lineup delivers 125 W to 1000 W across 2, 4, and 8-channel configurations in a compact full-rack or half-rack chassis, built for space-constrained installs. The 2U lineup delivers 1000 W to 6000 W across 2, 4, and 8-channel configurations in a full-rack 2U chassis, built for larger-scale system requirements.

Compare Models

Channel Configuration
Total System Power
Output Power @ 4 ohms
Output Power @ 8 ohms
Output Power @ 70V
Output Power @ 100V
Power Consumption
Dante Compatibility
POWERZONE CONNECT 122 (US POWERCORD ONLY) POWERZONE CONNECT 122 (US POWERCORD ONLY)
PowerZone Connect 122
125 W DSP-enabled Class-D amplifier with 2 channels
Lo-Z: 2x60W @4/8Ω Hi-Z: 1x 125W @70/100V Powersharing <= 1x 125W
125 W
2 x 60 W
2 x 60 W
1 x 125 W
1 x 125 W
75 W
No
POWERZONE CONNECT 122D (UNIVERSAL POWERCORD) POWERZONE CONNECT 122D
PowerZone Connect 122D
125 W DSP-enabled Class-D amplifier with 2 channels and Dante
Lo-Z: 2x60W @4/8Ω Hi-Z: 1x 125W @70/100V Powersharing <= 1x 125W
125 W
2 x 60 W
2 x 60 W
1 x 125 W
1 x 125 W
75 W
Yes
POWERZONE CONNECT 252 (US POWERCORD ONLY) POWERZONE CONNECT 252 (US POWERCORD ONLY)
PowerZone Connect 252
250 W DSP-enabled Class-D amplifier with 2 channels
Lo-Z: 2x 125W @4/8Ω Hi-Z: 1x 250W @70/100V Powersharing <= 1x 250W
250 W
2 x 125 W
2 x 125 W
1 x 250 W
1 x 250 W
75 W
No
POWERZONE CONNECT 254 (US POWERCORD ONLY) POWERZONE CONNECT 254 (US POWERCORD ONLY)
PowerZone Connect 254
250 W DSP-enabled Class-D amplifier with 4 channels
Lo-Z: 4x60W @4/8Ω Hi-Z: 2x 125W @70/100V Powersharing <= 1x 250W
250 W
4 x 60 W
4 x 60 W
2 x 125 W
2 x 125 W
75 W
No
POWERZONE CONNECT 504 (US POWERCORD ONLY) POWERZONE CONNECT 504 (US POWERCORD ONLY)
PowerZone Connect 504
500 W DSP-enabled Class-D amplifier with 4 channels
Lo-Z: 4x 125W @4/8Ω Hi-Z: 2x 250W @70/100V Powersharing <= 2x 250W
500 W
4 x 125 W
4 x 125 W
2 x 250 W
2 x 250 W
150 W
No
POWERZONE CONNECT 504D (UNIVERSAL POWERCORD) POWERZONE CONNECT 504D
PowerZone Connect 504D
500 W DSP-enabled Class-D amplifier with 4 channels and Dante
Lo-Z: 4x 125W @4/8Ω Hi-Z: 2x 250W @70/100V Powersharing <= 2x 250W
500 W
4 x 125 W
4 x 125 W
2 x 250 W
2 x 250 W
150 W
Yes
POWERZONE CONNECT 508 (UNIVERSAL POWERCORD) POWERZONE CONNECT 508 (UNIVERSAL POWERCORD)
PowerZone Connect 508
500 W DSP-enabled Class-D amplifier with 8 channels
Lo-Z: 8x60W @4/8Ω Hi-Z: 4x 125W @70/100V Powersharing <= 2x 250W
500 W
8 x 60 W
8 x 60 W
4 x 125 W
4 x 125 W
150 W
No
POWERZONE CONNECT 1008 (UNIVERSAL POWERCORD) POWERZONE CONNECT 1008 (UNIVERSAL POWERCORD)
PowerZone Connect 1008
1000 W DSP-enabled Class-D amplifier with 8 channels
Lo-Z: 8x125W @4/8Ω Hi-Z: 4x 250W @70/100V Powersharing <= 4x 250W
1000 W
8 x 125 W
8 x 125 W
4 x 250 W
4 x 250 W
300 W
No
POWERZONE CONNECT 1008D DANTE (UNIVERSAL POWERCORD) POWERZONE CONNECT 1008D
PowerZone Connect 1008D
1000 W DSP-enabled Class-D amplifier with 8 channels and Dante
Lo-Z: 8x125W @4/8Ω Hi-Z: 4x 250W @70/100V Powersharing <= 4x 250W
1000 W
8 x 125 W
8 x 125 W
4 x 250 W
4 x 250 W
300 W
Yes
POWERZONE CONNECT 1002 (UNIVERSAL POWERCORD) POWERZONE CONNECT 1002 JPN
PowerZone Connect 1002
1000 W DSP-enabled Class-D amplifier with 2 channels
Lo-Z: 2x500W @2/4Ω Hi-Z: 1x 1000W @70/100V
1000 W
2 x 500 W (SE) 1 x 1000 W (BTL)
2 x 250 W (SE) 1 x 1000 W (BTL)
1 x 1000 W (BTL)
1 x 1000 W (BTL)
350 W
No
POWERZONE CONNECT 1502 (UNIVERSAL POWERCORD) POWERZONE CONNECT 1502 (UNIVERSAL POWERCORD)
PowerZone Connect 1502
1500 W DSP-enabled Class-D amplifier with 2 channels
Lo-Z: 2x750W @2/4Ω Hi-Z: 1x 1200W @70v
1500 W
2 x 750 W (SE) 1 x 1500 W (BTL)
2 x 400 W (SE) 1 x 1500 W (BTL)
1 x 1200 W (BTL)
1 x 1500 W (BTL)
350 W
No
POWERZONE CONNECT 2004 (UNIVERSAL POWERCORD) POWERZONE CONNECT 2004 (UNIVERSAL POWERCORD)
PowerZone Connect 2004
2000 W DSP-enabled Class-D amplifier with 4 channels
Lo-Z: 4x500W @2/4Ω Hi-Z: 2x 1000W @70/100V
2000 W
4 x 500 W (SE) 2 x 1000 W (BTL)
4 x 250 W (SE) 2 x 1000 W (BTL)
2 x 1000 W (BTL)
2 x 1000 W (BTL)
700 W
No
POWERZONE CONNECT 2004D (UNIVERSAL POWERCORD) POWERZONE CONNECT 2004D (UNIVERSAL POWERCORD)
PowerZone Connect 2004D
2000 W DSP-enabled Class-D amplifier with 4 channels and Dante
Lo-Z: 4x500W @2/4Ω Hi-Z: 2x 1000W @70/100V
2000 W
4 x 500 W (SE) 2 x 1000 W (BTL)
4 x 250 W (SE) 2 x 1000 W (BTL)
2 x 1000 W (BTL)
2 x 1000 W (BTL)
700 W
Yes
POWERZONE CONNECT 3004 (UNIVERSAL POWERCORD) POWERZONE CONNECT 3004 (UNIVERSAL POWERCORD)
PowerZone Connect 3004
3000 W DSP-enabled Class-D amplifier with 4 channels
Lo-Z: 4x750W @2/4Ω Hi-Z: 2x 1200W @70V
3000 W
4 x 750 W (SE) 2 x 1500 W (BTL)
4 x 400 W (SE) 2 x 1500 W (BTL)
2 x 1200 W (BTL)
2 x 1500 W (BTL)
700 W
No
POWERZONE CONNECT 3004D (UNIVERSAL POWERCORD) POWERZONE CONNECT 3004D (UNIVERSAL POWERCORD)
PowerZone Connect 3004D
3000 W DSP-enabled Class-D amplifier with 4 channels and Dante
Lo-Z: 4x750W @2/4Ω Hi-Z: 2x 1200W @70V
3000 W
4 x 750 W (SE) 2 x 1500 W (BTL)
4 x 400 W (SE) 2 x 1500 W (BTL)
2 x 1200 W (BTL)
2 x 1500 W (BTL)
700 W
Yes
POWERZONE CONNECT 4008 (UNIVERSAL POWERCORD) POWERZONE CONNECT 4008 (UNIVERSAL POWERCORD)
PowerZone Connect 4008
4000 W DSP-enabled Class-D amplifier with 8 channels
Lo-Z: 8x500W @2/4Ω Hi-Z: 4x 1000W @70V
4000 W
8 x 500 W (SE) 4 x 1000 W (BTL)
8 x 250 W (SE) 4 x 1000 W (BTL)
4 x 1000 W (BTL)
4 x 1000 W (BTL)
1400 W
No
POWERZONE CONNECT 6008 (UNIVERSAL POWERCORD) POWERZONE CONNECT 6008

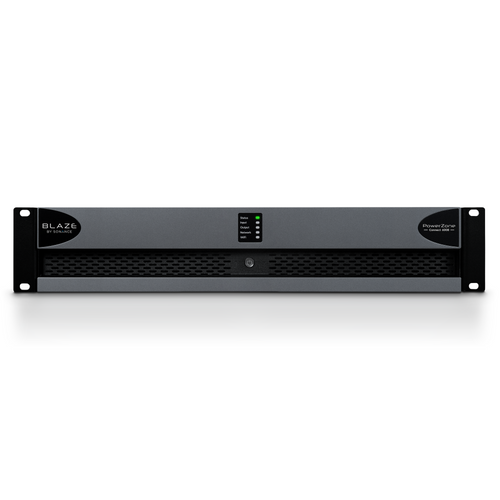

PowerZone Connect 6008
6000 W DSP-enabled Class-D amplifier with 8 channels
Lo-Z: 8x750W @2/4Ω Hi-Z: 4x 1200W @70V
6000 W
8 x 750 W (SE) 4 x 1500 W (BTL)
8 x 400 W (SE) 4 x 1500 W (BTL)
4 x 1200 W (BTL)
4 x 1500 W (BTL)
1400 W
No
POWERZONE CONNECT 6008D DANTE (UNIVERSAL POWERCORD) POWERZONE CONNECT 6008D
PowerZone Connect 6008D
6000 W DSP-enabled Class-D amplifier with 8 channels and Dante
Lo-Z: 8x750W @2/4Ω Hi-Z: 4x 1200W @70V
6000 W
8 x 750 W (SE) 4 x 1500 W (BTL)
8 x 400 W (SE) 4 x 1500 W (BTL)
4 x 1200 W (BTL)
4 x 1500 W (BTL)
1400 W
Yes

PowerZone Series Amplifiers

PowerZone is a series of non-DSP Class D amplifiers for professionals seeking affordable, reliable, high-performance audio power.

Compare Models

Channel Configuration
Total System Power
Output Power @ 4 ohms
Output Power @ 8 ohms
Output Power @ 70V
Output Power @ 100V
Power Consumption
POWERZONE 252 (US POWERCORD ONLY) POWERZONE 252 (US POWERCORD ONLY)
PowerZone 252
250 W non-networked Class-D amplifier with 2 channels
Lo-Z: 2x 125W @4/8Ω Hi-Z: 1x 250W @70/100V Powersharing <= 1x 250W
250 W
2 x 125 W
2 x 125 W
2 x 125 W
2 x 125 W
75 W
POWERZONE 504 (US POWERCORD ONLY) POWERZONE 504 (US POWERCORD ONLY)
PowerZone 504
500 W non-networked Class-D amplifier with 4 channels
Lo-Z: 4x 125W @4/8Ω Hi-Z: 2x 250W @70/100V Powersharing <= 2x 250W
500 W
4 x 125 W
4 x 125 W
4 x 125 W
4 x 125 W
150 W
POWERZONE 1004 (US POWERCORD ONLY) POWERZONE 1004 (US POWERCORD ONLY)
PowerZone 1004
1000 W non-networked Class-D amplifier with 4 channels
Lo-Z: 4x 250W @4/8Ω Hi-Z: 4x 250W @70/100V
1000 W
4 x 250 W
4 x 250 W
4 x 250 W
4 x 250 W
300 W
