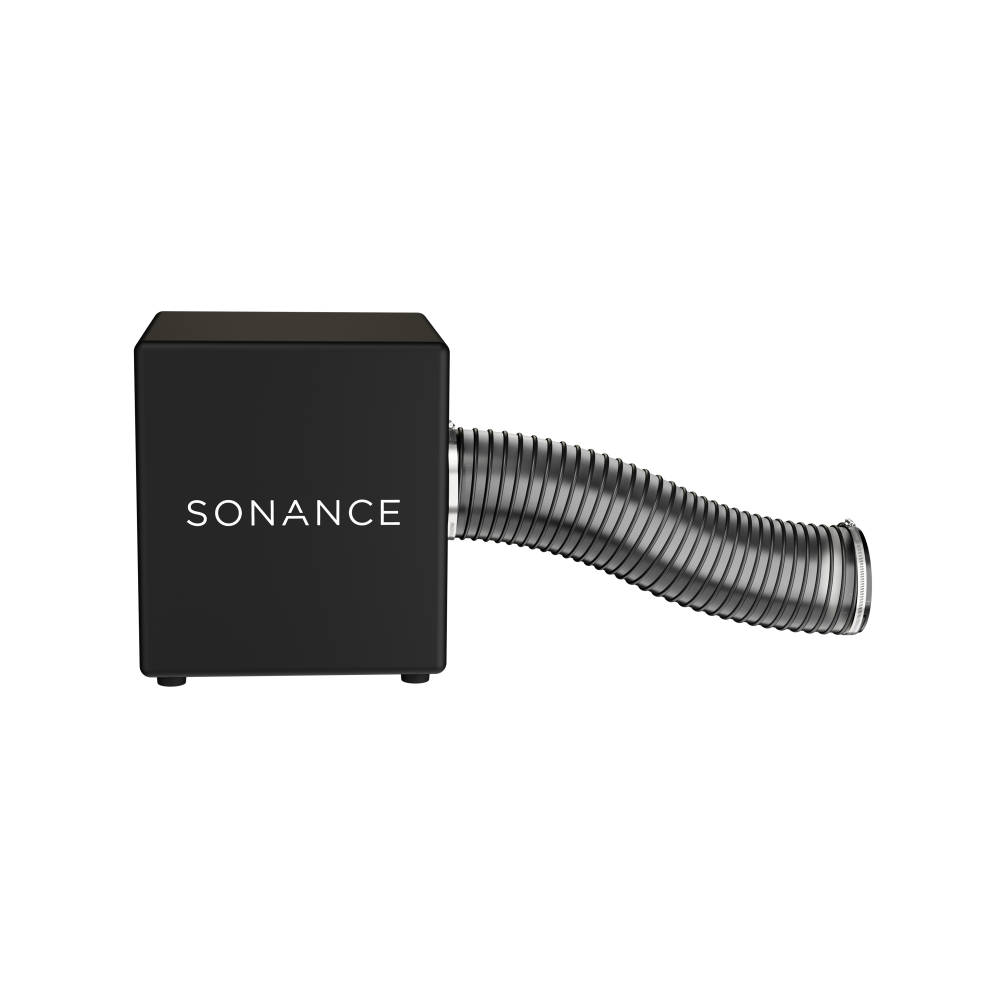

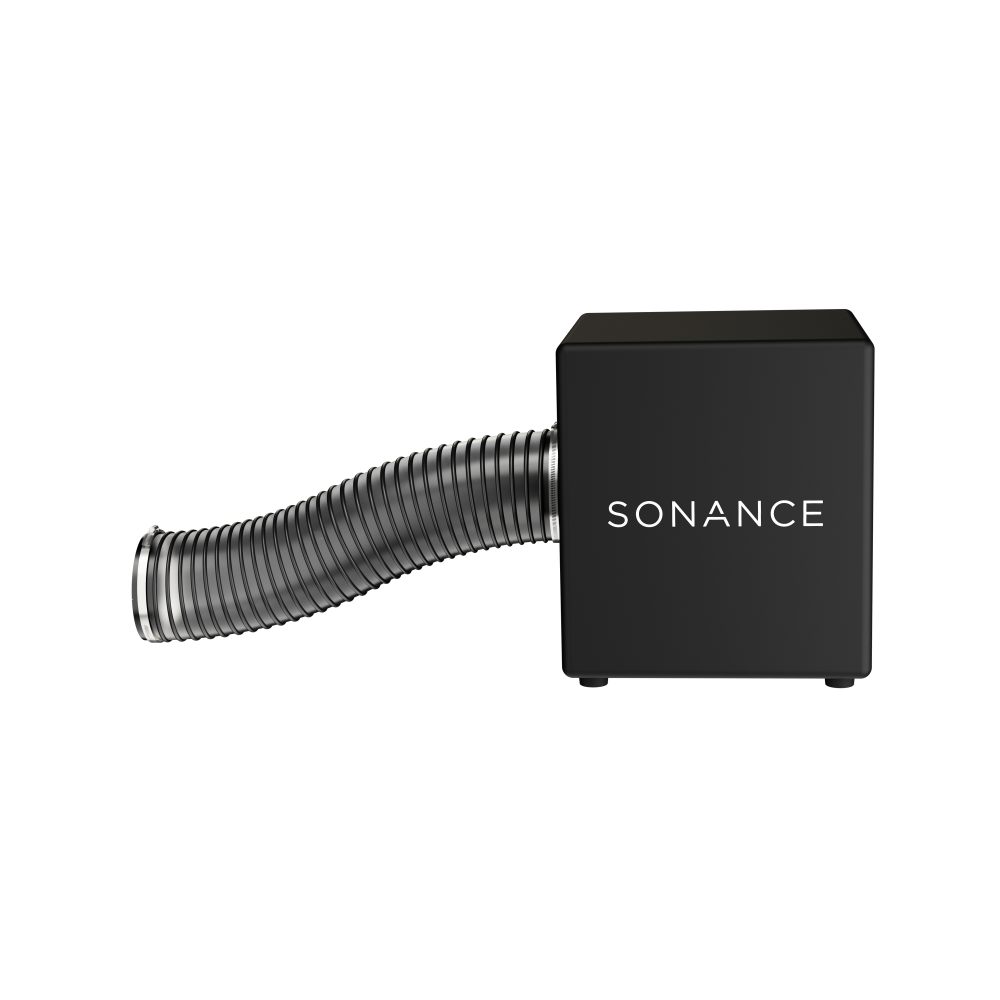

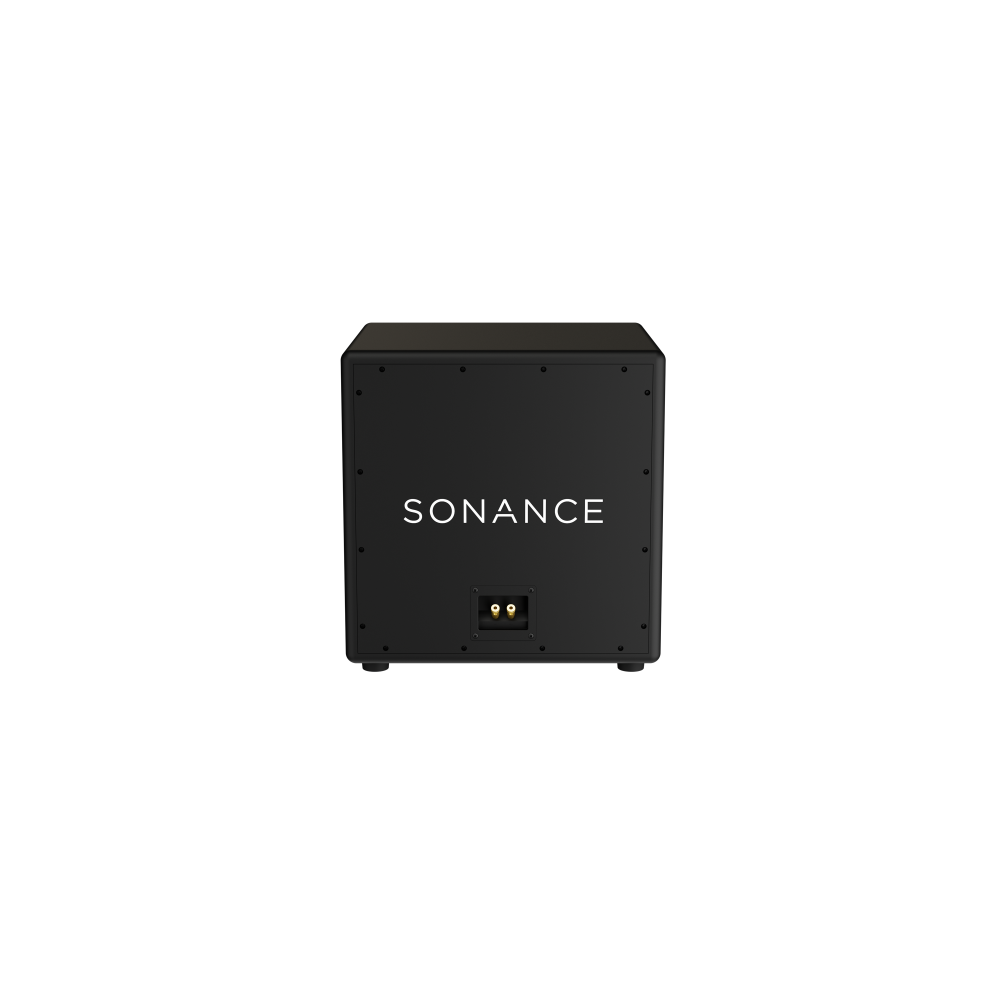

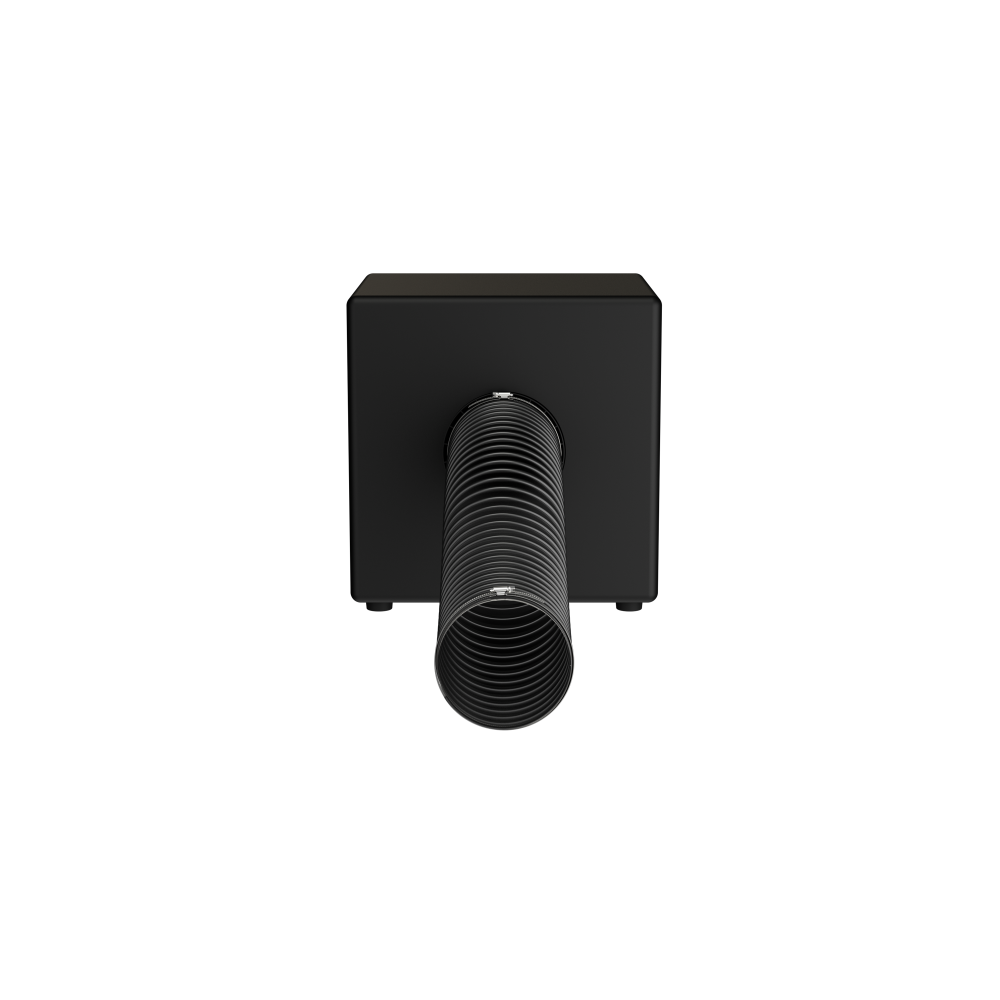

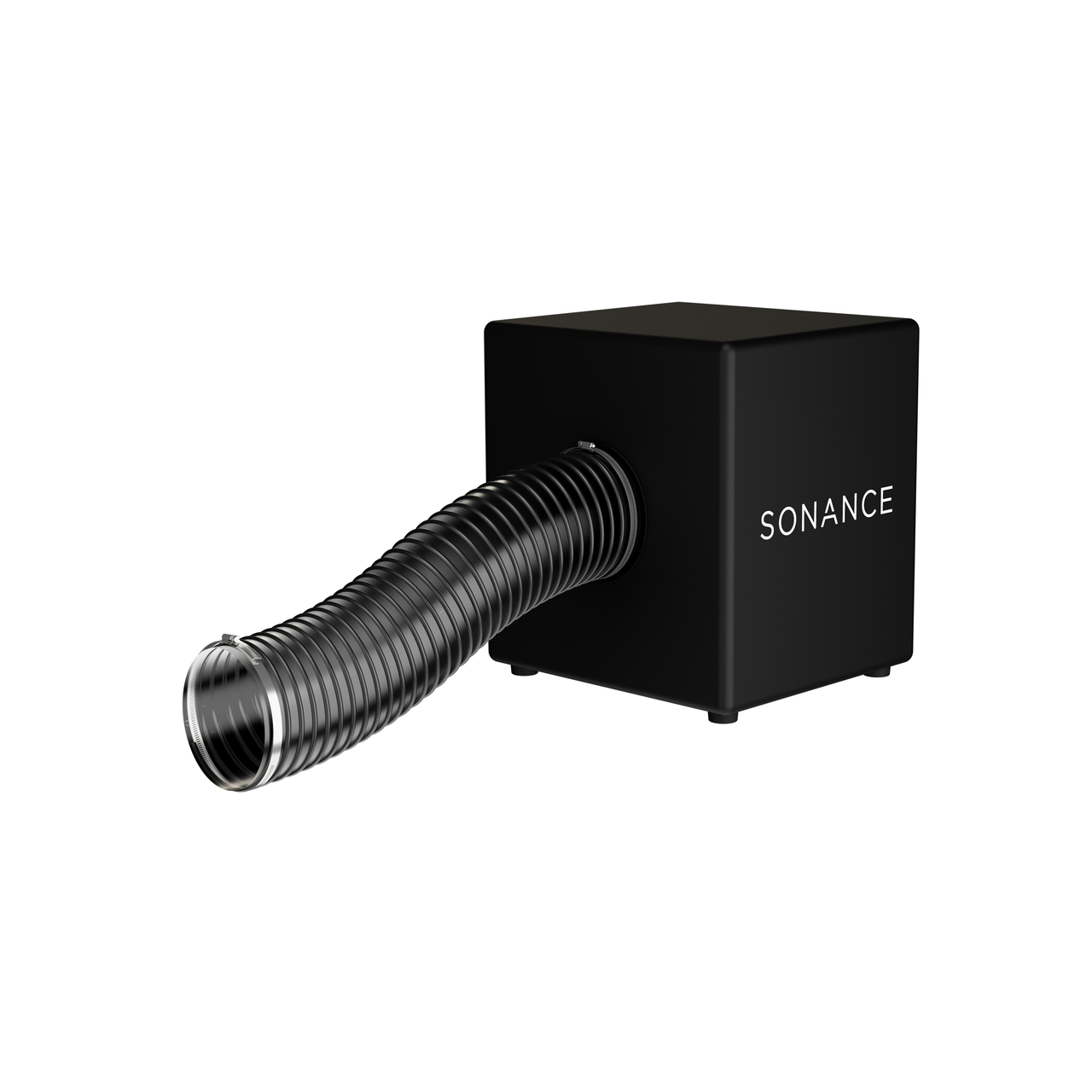

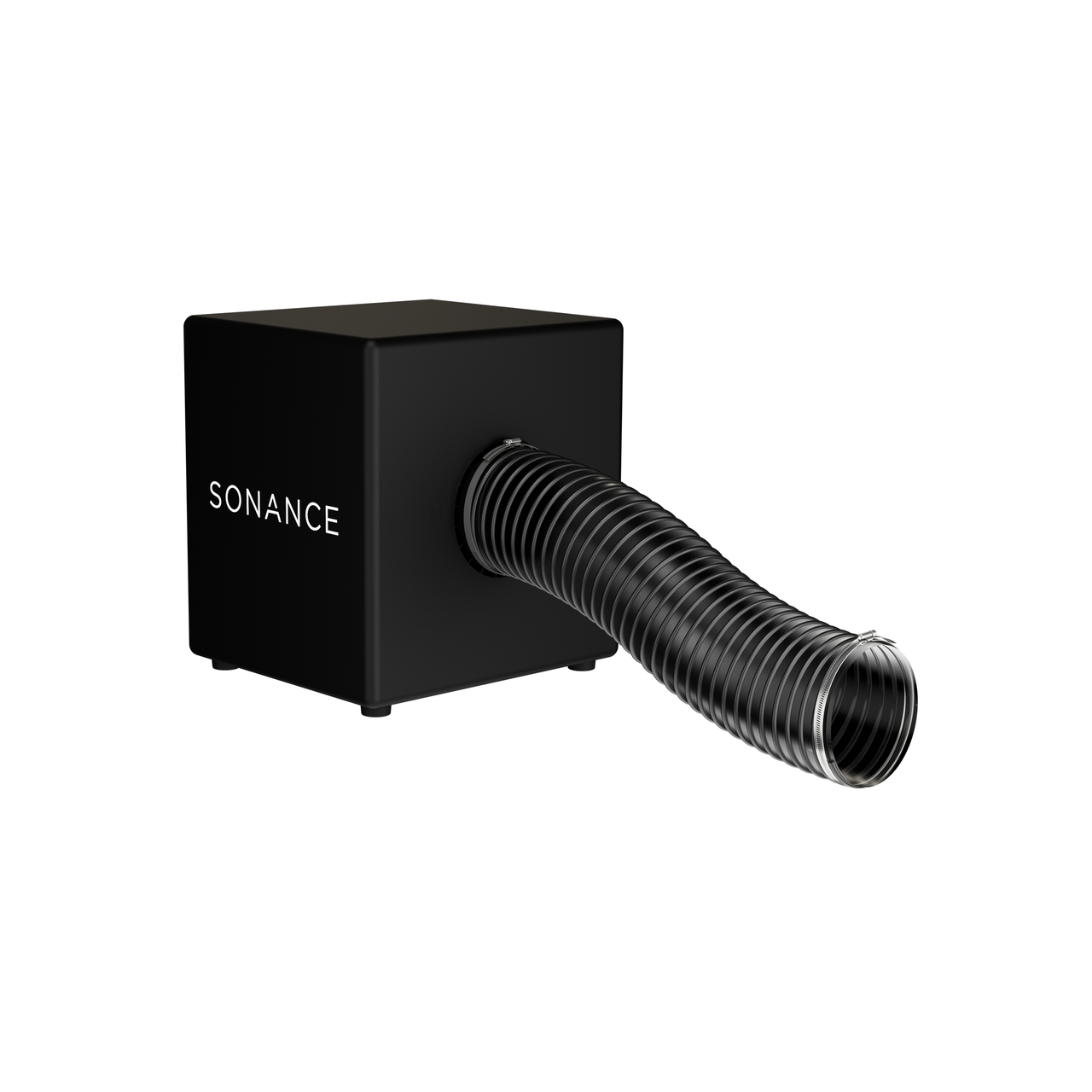

PPX15
PowerPipe
Extending to 29Hz, the PPX15 provides the deepest low-frequency capability in the PowerPipe X Series. Designed for large-scale environments, it delivers powerful, full-body Hidden Bass while integrating seamlessly into ceilings, walls, or cabinetry.
Key Features
- 15" High-Excursion Woofer (29Hz-90Hz) - Extends response down to 29Hz for the deepest low-frequency capability in the PPX lineup.
- High-Output Hidden Bass Solution - Engineered for large-scale spaces requiring maximum low-frequency energy and dynamic headroom.
- Ported Bandpass Design - Optimizes airflow and efficiency to deliver powerful, controlled bass while maintaining a concealed footprint.
- Designed to Disappear Architecture - Integrates seamlessly into ceilings, walls, or cabinetry with minimal visual disruption.
Specifications
SKU | Color
PPX15 (textured black)
Speaker Woofer
15" (381mm) anodized aluminum cone, rubber surround, high excursion
Frequency Response (+/- 3db)
29Hz - 90Hz
Sensitivity
94dB SPL
Recommended Power Range
600 watts
Enclosure
MDF (Medium Density Fiberboard)
Nominal Impedance (Ohms)
4 Ohms
Dimensions No Feet (WxHxD)
17.72" x 17.72" x 16.93" (450.09mm x 450.09mm x 430.02mm)
Dimensions with Feet (WxHxD)
17.72" x 18.33" x 16.93" (450.09mm x 465.58mm x 430.02mm)
Tube Diameter
5.98" (151.89mm)
Tube Length
25.59" (649.99mm)
Weight
68.26 lbs. (30.96kg)
