HS12T SUB
Landscape Series
Key Features
- Sonance Laminated Core Transformer with adjustable tap (40W or 60W transformer for the speakers, 300W transformer for the subwoofers)
- Laminar Flow Port subwoofer design
- Wide dispersion speaker grille
- IP66 rated for all weather durability
- Pivoting mounting knuckle for precise speaker angle and positioning
- 1/2” NPS satellite speaker mounting thread
Specifications
SKU
93373 (Brown)
LF Driver
12" (305mm) polypropylene cone with a Santoprene rubber surround
Frequency Response (+/- 3db)
22Hz - 100Hz
Power Handling (RMS)
50W min, 375W max
Sensitivity
91dB (2.83V/1m)
Enclosure
Low density polyethylene (LDPE)
Transformer Taps
70 V / 100 V: 300W, 150W, 75W 70 V: 38W
Dimensions (WxHxD)
16.14" x 16.14" x 16.14" (409.96mm x 409.96mm x 409.96mm)
Dimensions No Feet (WxHxD)
16.14" x 16.14" x 16.14" (409.96mm x 409.96mm x 409.96mm)
Weight
58.7 lbs. (26.63kg)
Certifications
Mil Spec 810
Environmental
Conforms to MIL-STD-810 for humidity

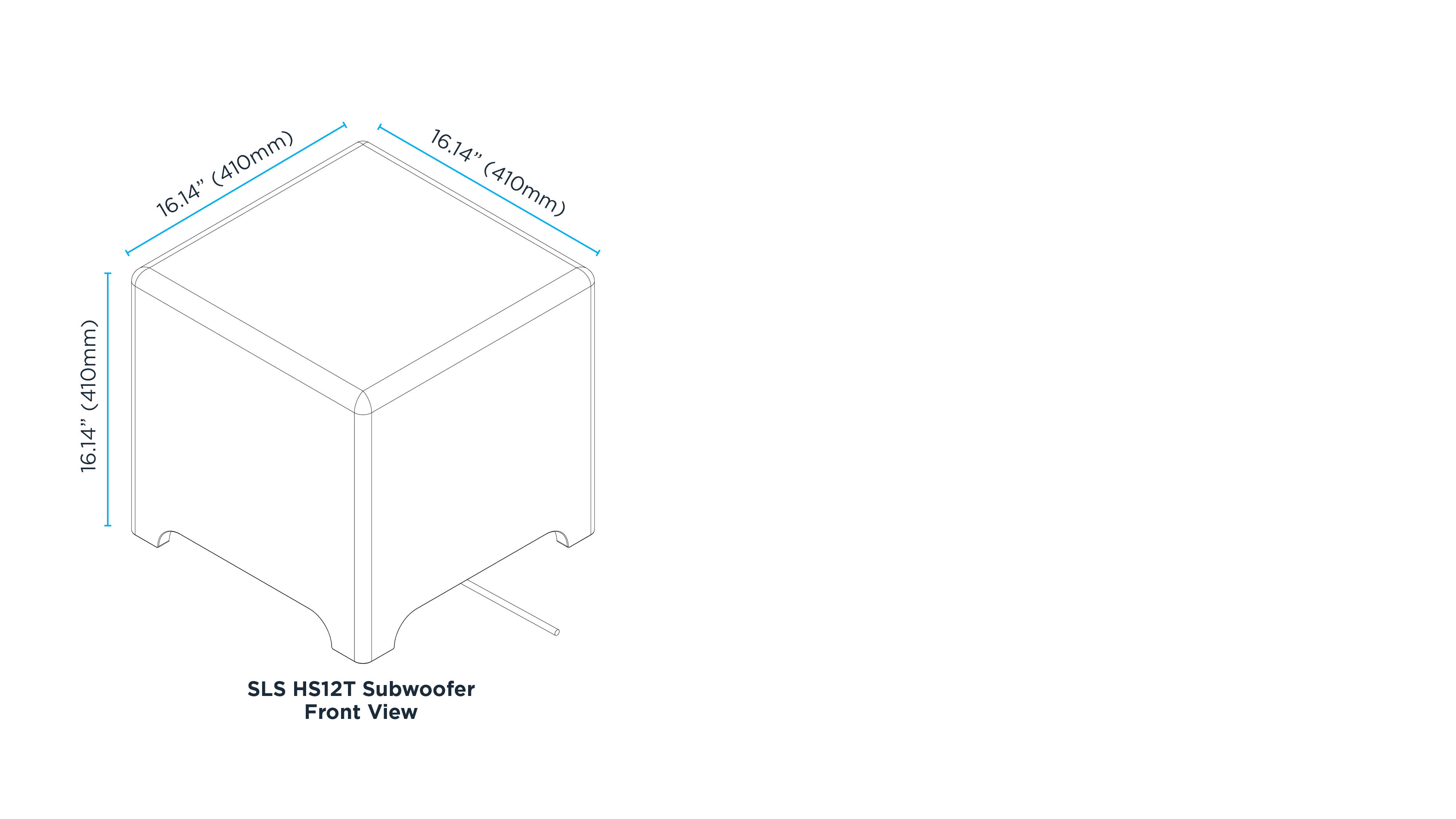

Dimensional Drawings
