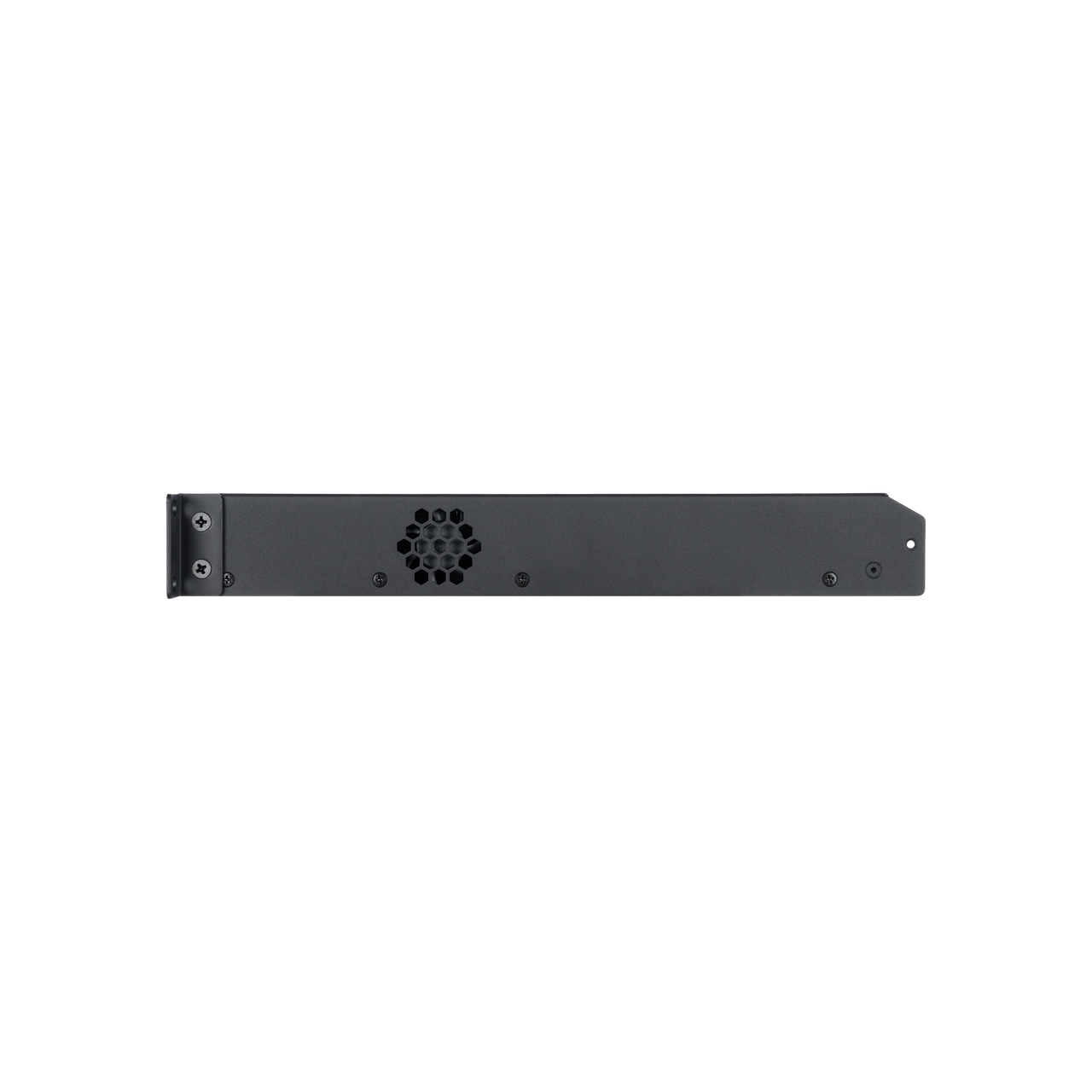

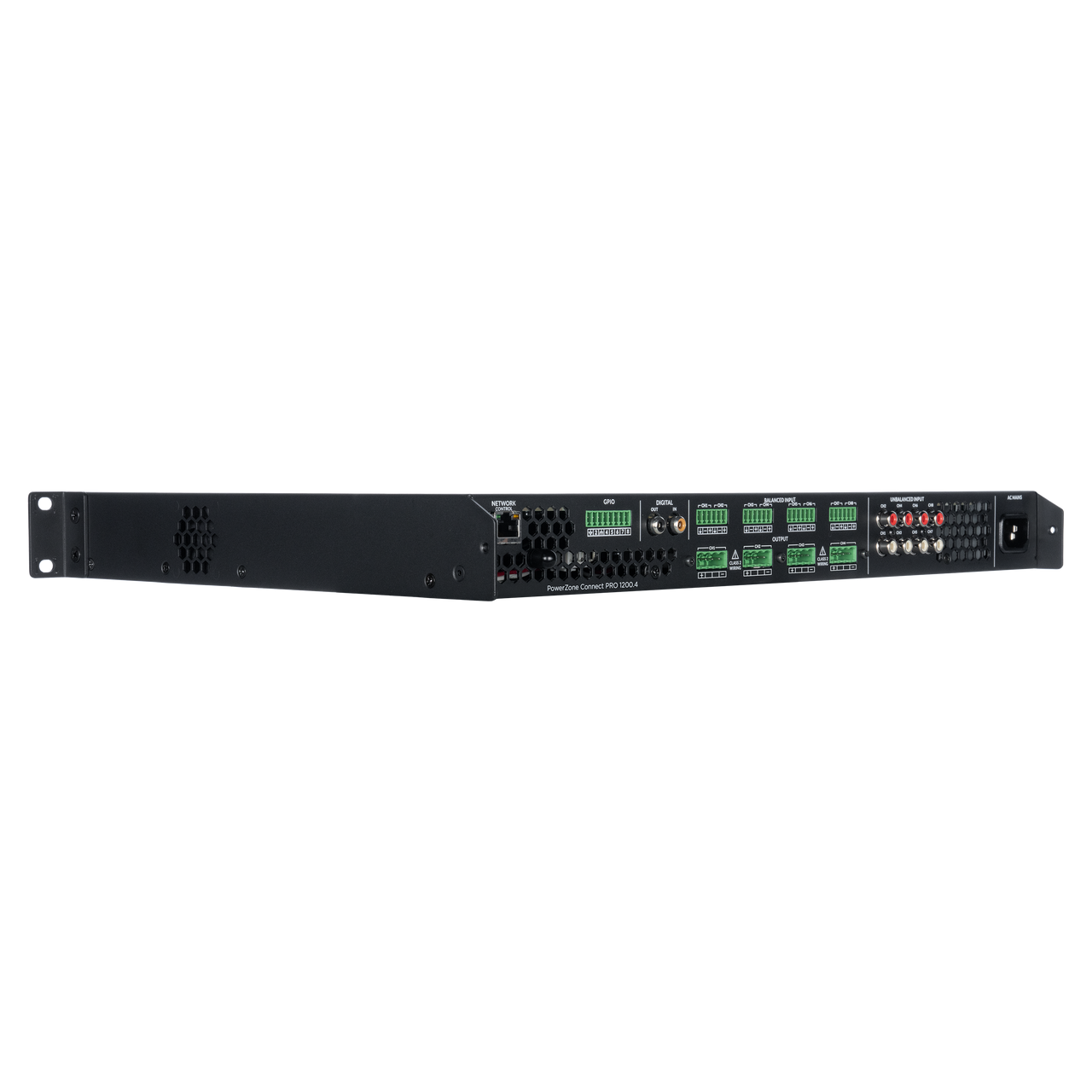

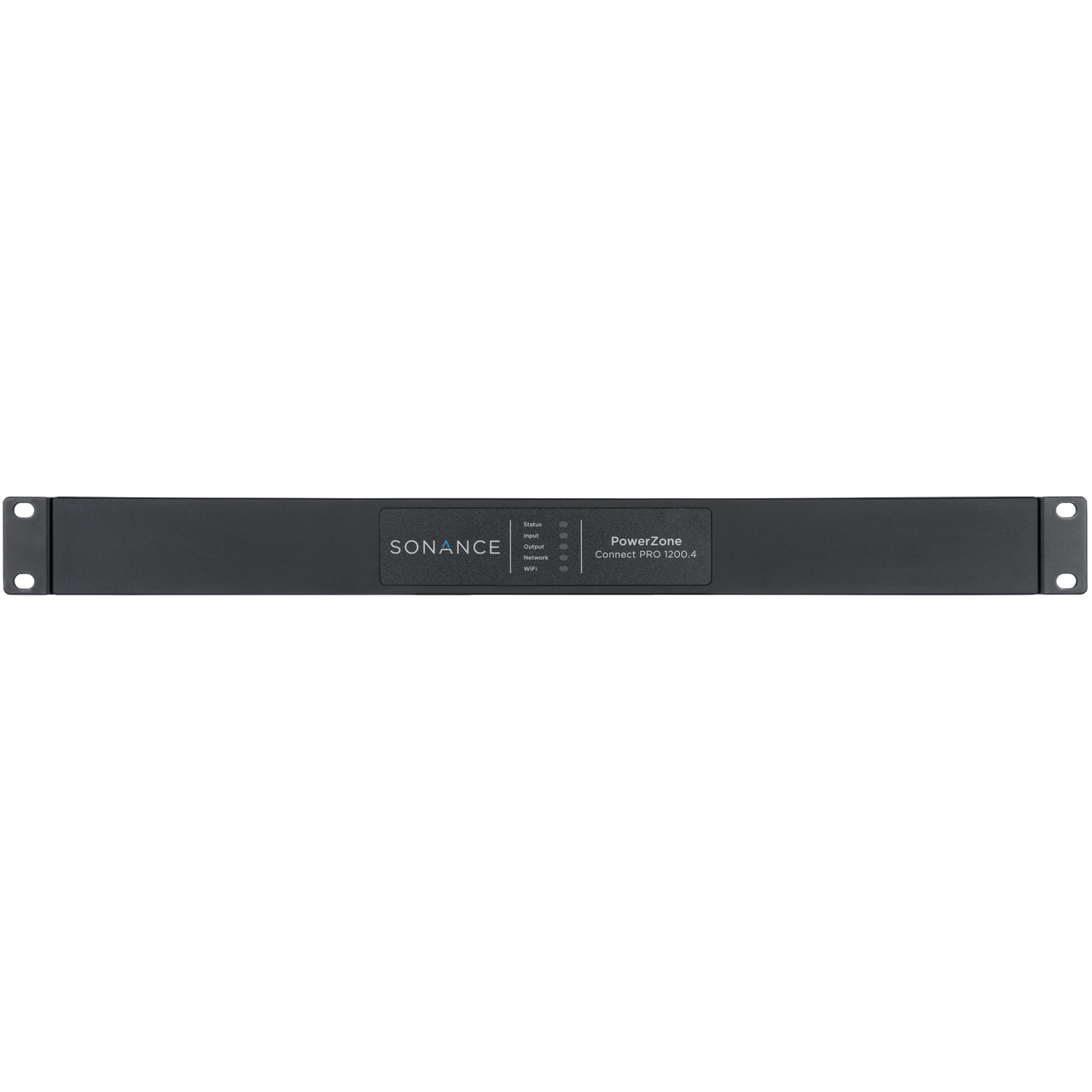

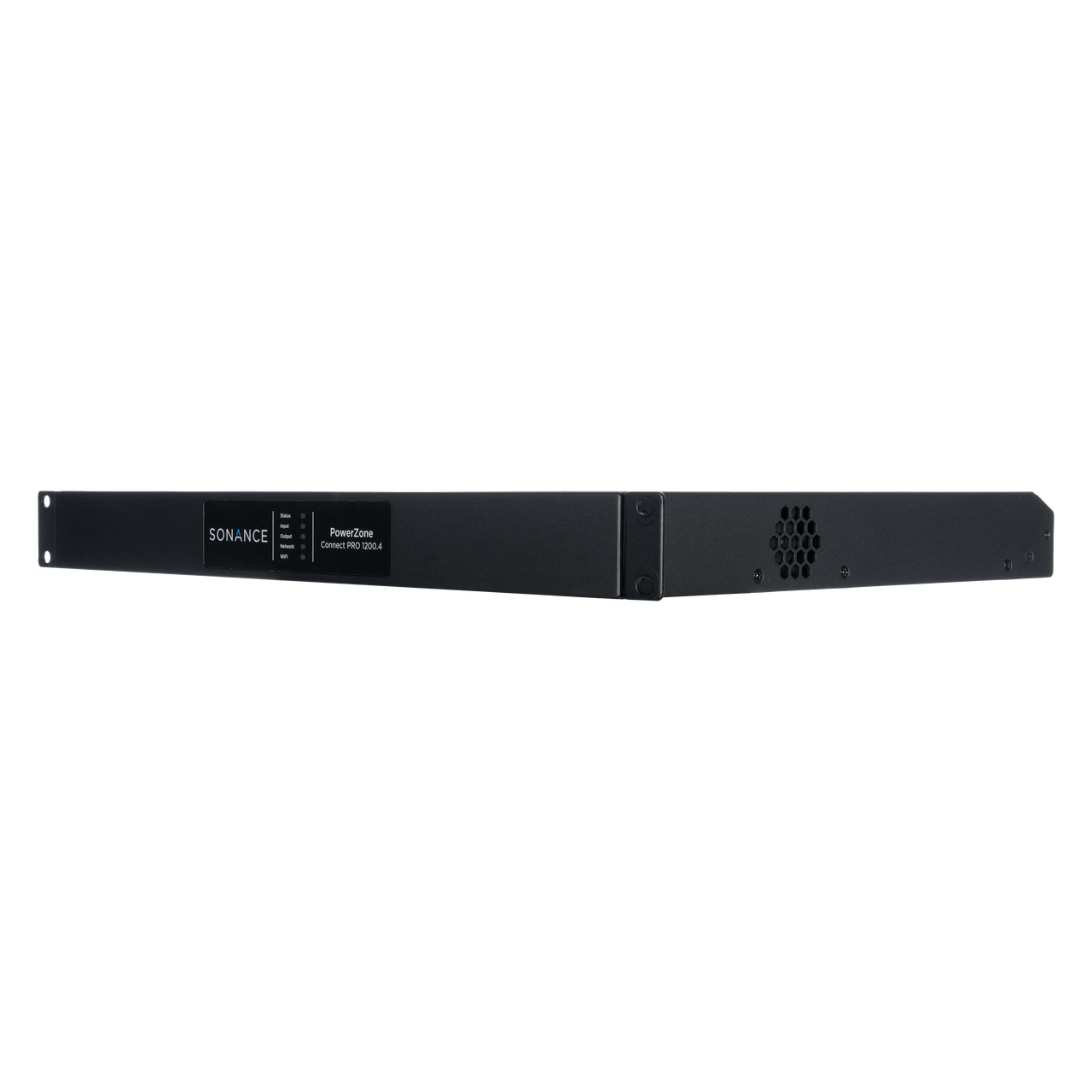

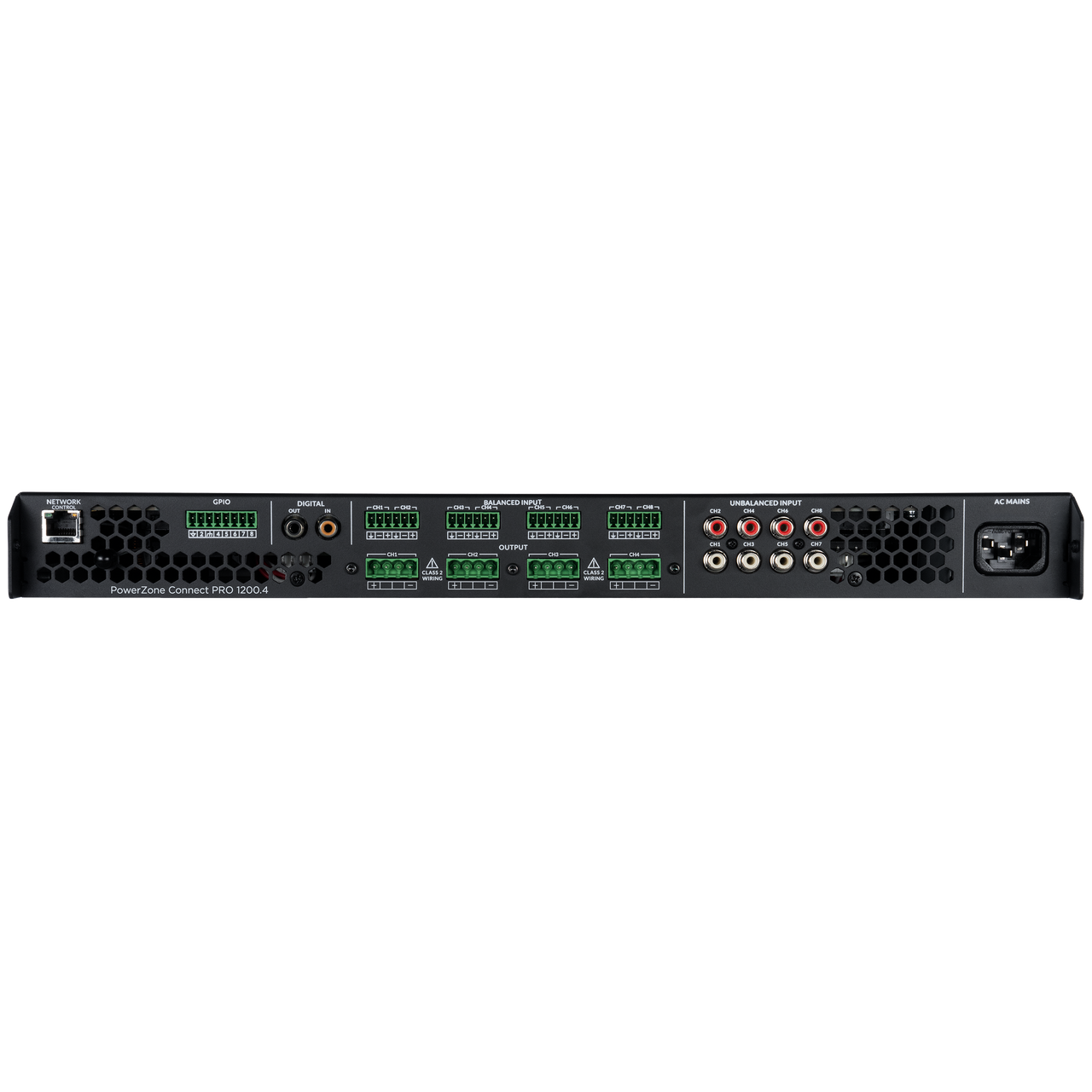

PowerZone Connect PRO 1200.4 (Universal Powercord)
Amplifiers
1200 W DSP-enabled Class D amplifier with 4 channels. Universal power cords included.
Unlock the full potential of your amplifier with built-in PowerZone Control DSP. Learn more.
Unlock the full potential of your amplifier with built-in PowerZone Control DSP. Learn more.
Key Features
- Full-rack, 1U form factor
- 4 x 300 W at 70V/100V (1200 W total system power)
- Purpose-built for 70V/100V distributed audio with selectable Hi-Z/Lo-Z operation
- Full-matrix DSP configuration via PowerZone Control web app (built-in)
- Preloaded Sonance loudspeaker presets for optimized performance
- Control the system from the Wall-M controller or Sonance iOS app
- Configurable GPIO
- Control drivers and open API support for third-party control systems
- UL Listed audio equipment
- ErP and ENERGY STAR compliant
- Sonance 5-year warranty
Specifications
SKU
93803 (PowerZone Connect PRO 1200.4), 93815 (PowerZone Connect PRO 1200.4 UNI)
Dimensions (WxHxD)
17.3" x 1.7" x 12.6" (439.42mm x 43.18mm x 320.04mm)
Weight
8.4 lbs. (3.81kg)
Channel Configuration
Hi-Z: 4 x 300W @70/100V Lo-Z: 4 x 300W @8Ω
Total System Power
1200 W
Output Power @ 8 ohms
4 x 300 W
Output Power @ 70V
4 x 300 W
Output Power @ 100V
4 x 300 W
Power Consumption
300 W
Dante Compatibility
No
Rack Units
1U
