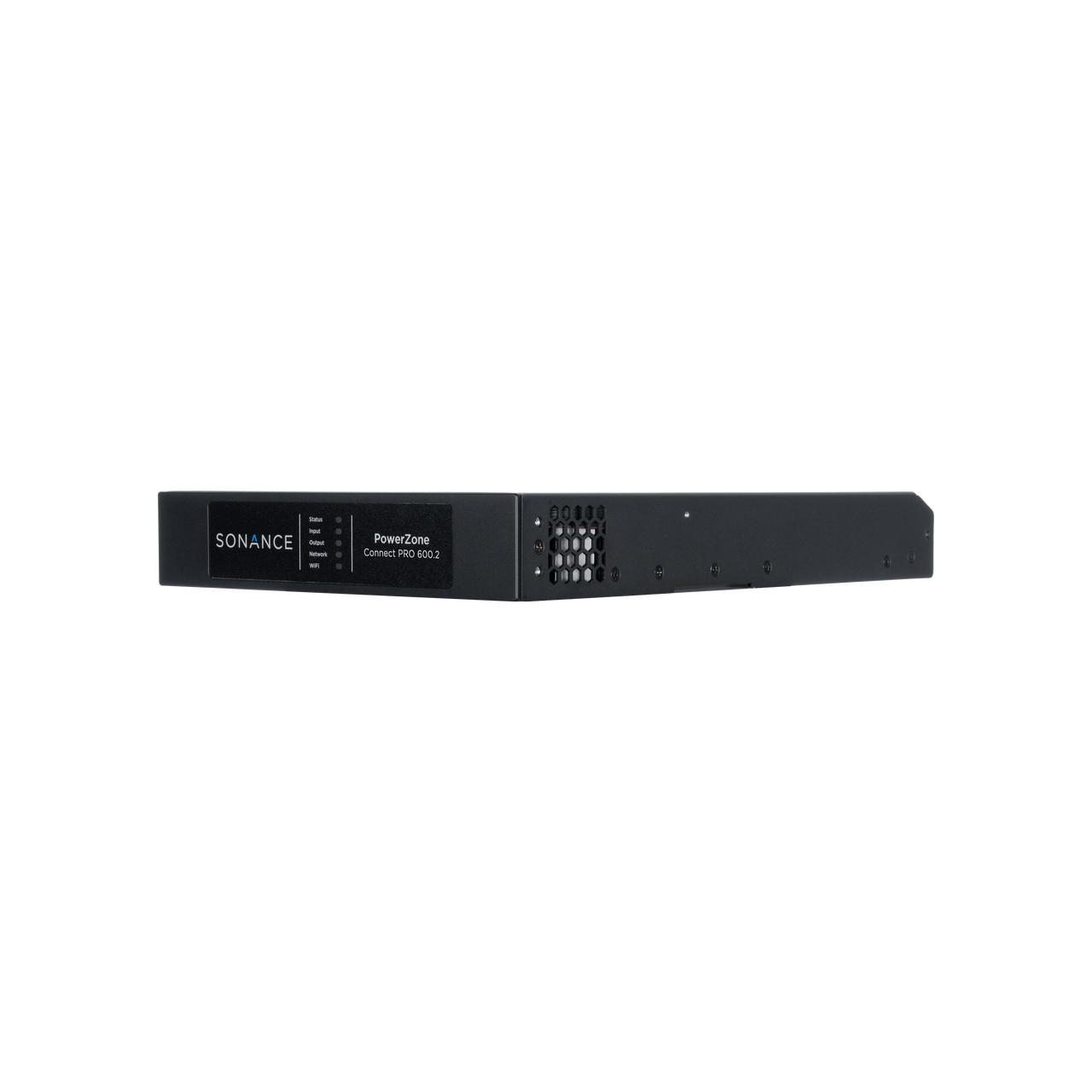

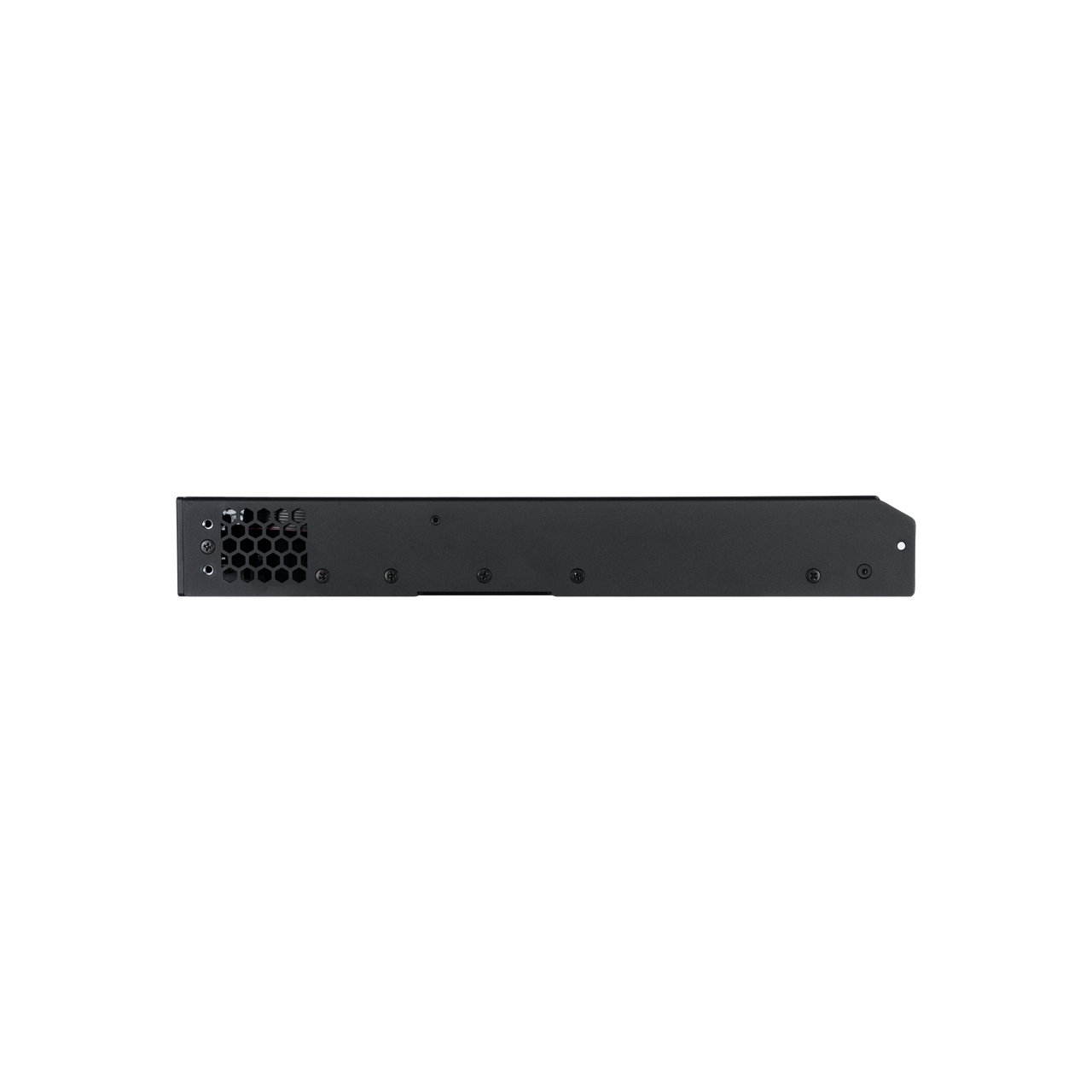

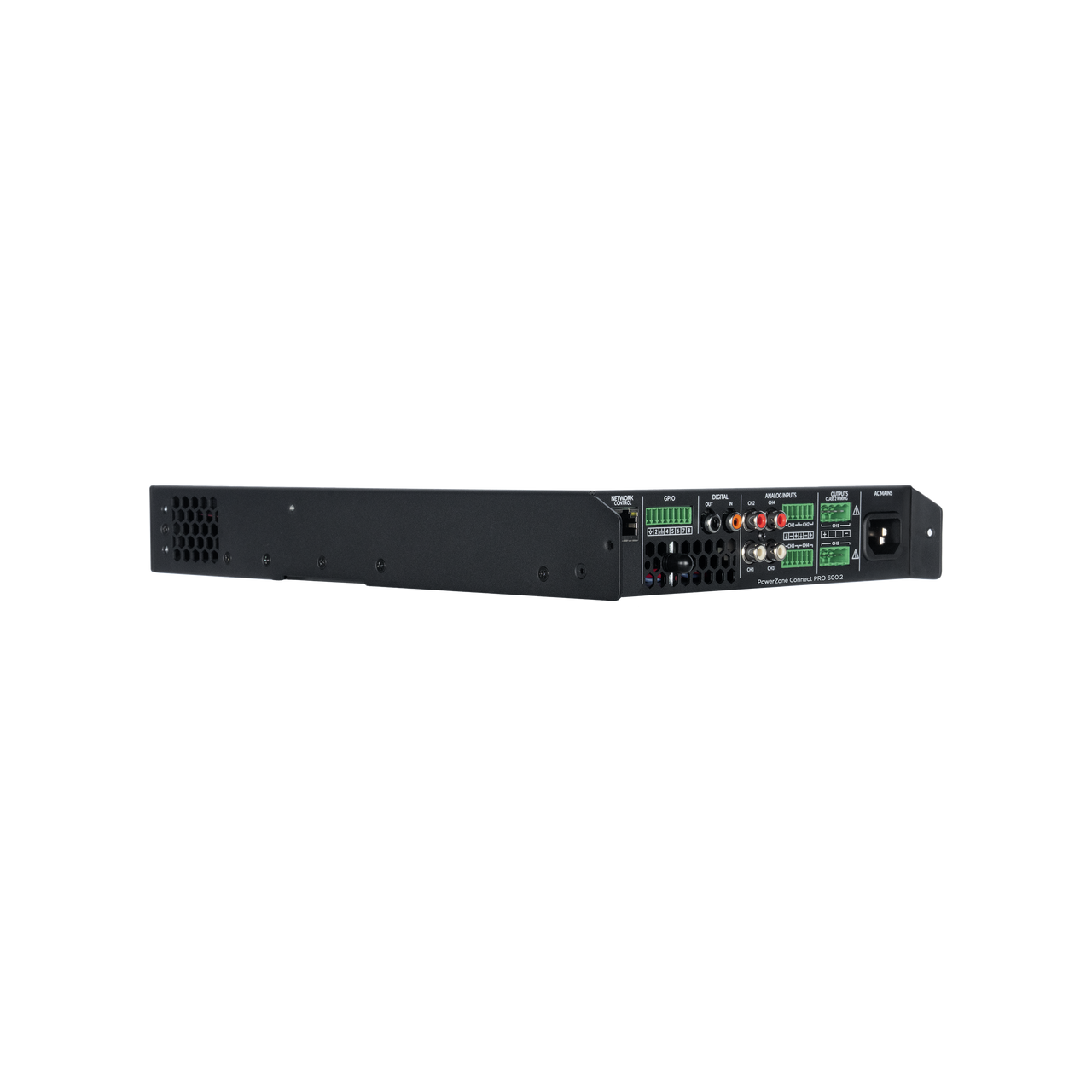

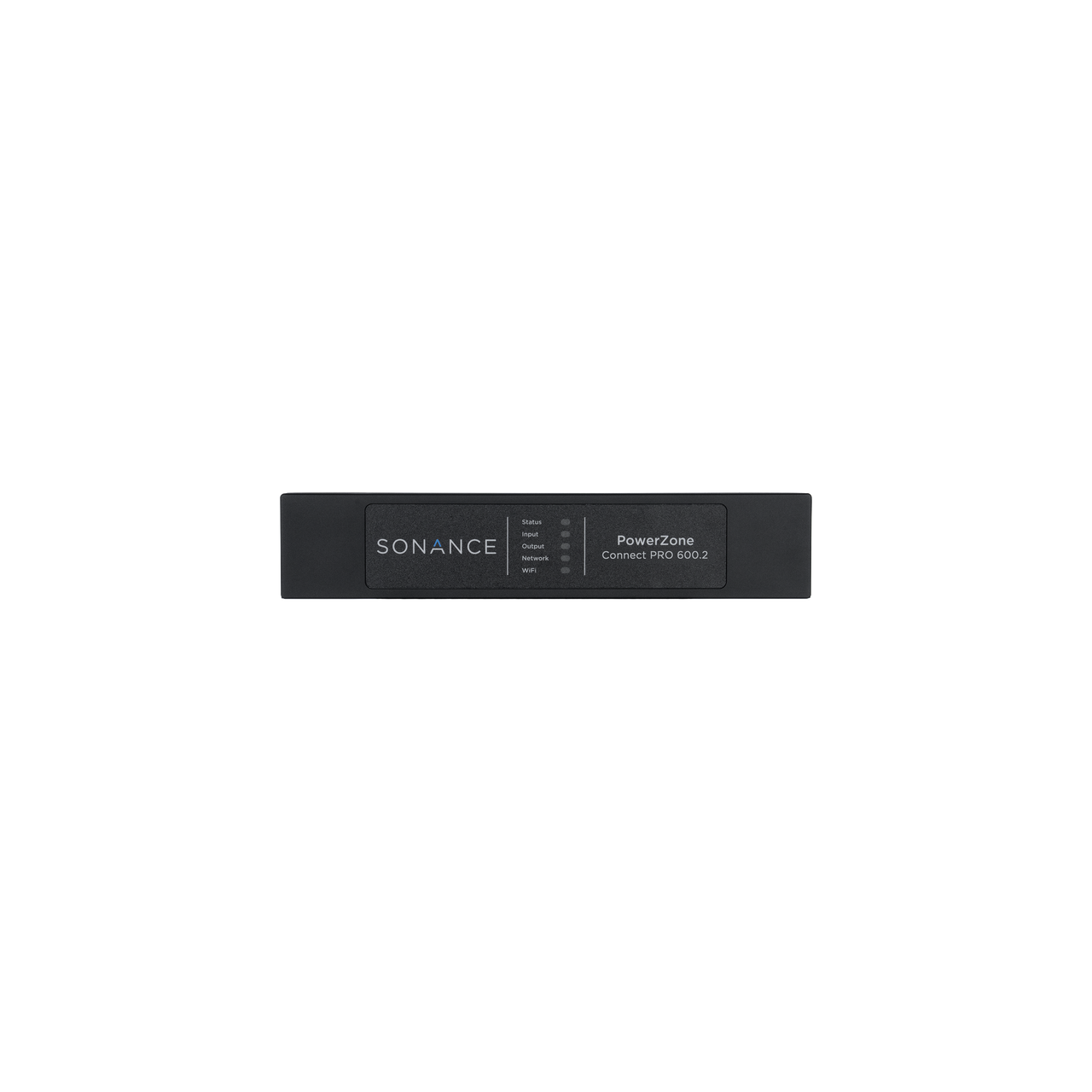

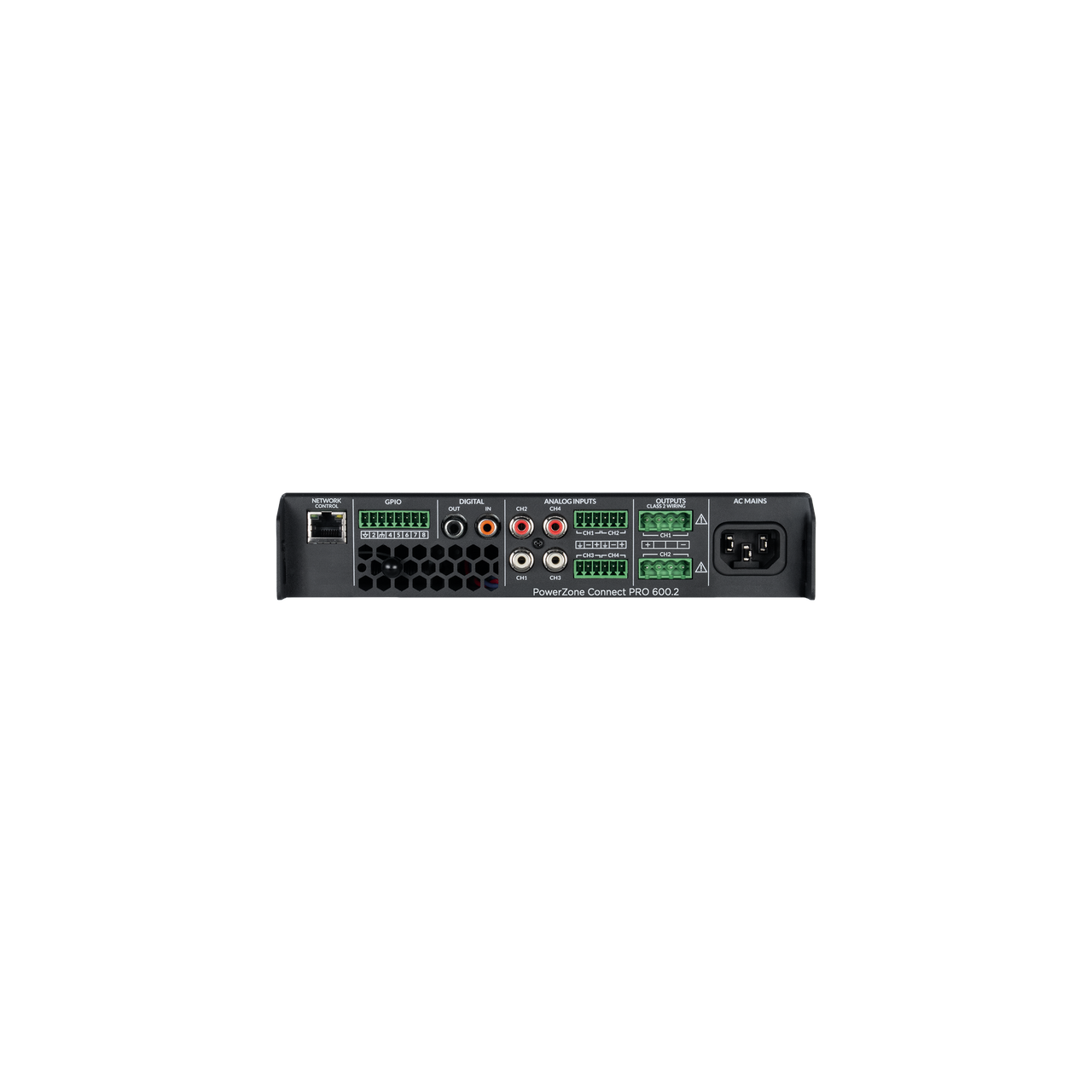

PowerZone Connect PRO 600.2 (Universal Powercord)
Amplifiers
600 W DSP-enabled Class D amplifier with 2 channels. Universal power cords included.
Unlock the full potential of your amplifier with built-in PowerZone Control DSP. Learn more.
Unlock the full potential of your amplifier with built-in PowerZone Control DSP. Learn more.
Key Features
- Half-rack, 1U form factor
- 2 x 300 W at 70V/100V (600 W total system power)
- Purpose-built for 70V/100V distributed audio with selectable Hi-Z/Lo-Z operation
- Full-matrix DSP configuration via PowerZone Control web app (built-in)
- Preloaded Sonance loudspeaker presets for optimized performance
- Control the system from the Wall-M controller or Sonance iOS app
- Configurable GPIO
- Control drivers and open API support for third-party control systems
- UL Listed audio equipment
- ErP and ENERGY STAR compliant
- Sonance 5-year warranty
Specifications
SKU
93801 (PowerZone Connect PRO 600.2), 93813 (PowerZone Connect PRO 600.2 UNI)
Dimensions (WxHxD)
8.7" x 1.7" x 12.6" (220.98mm x 43.18mm x 320.04mm)
Weight
6.2 lbs. (2.81kg)
Channel Configuration
Hi-Z: 2 x 300W @70/100V Lo-Z: 2 x 300W @8Ω
Total System Power
600 W
Output Power @ 8 ohms
2 x 300 W
Output Power @ 70V
2 x 300 W
Output Power @ 100V
2 x 300 W
Power Consumption
150 W
Dante Compatibility
No
Rack Units
1U Half Rack
