Invisible Series
BE Series
QX806BE
QX806BE
QX

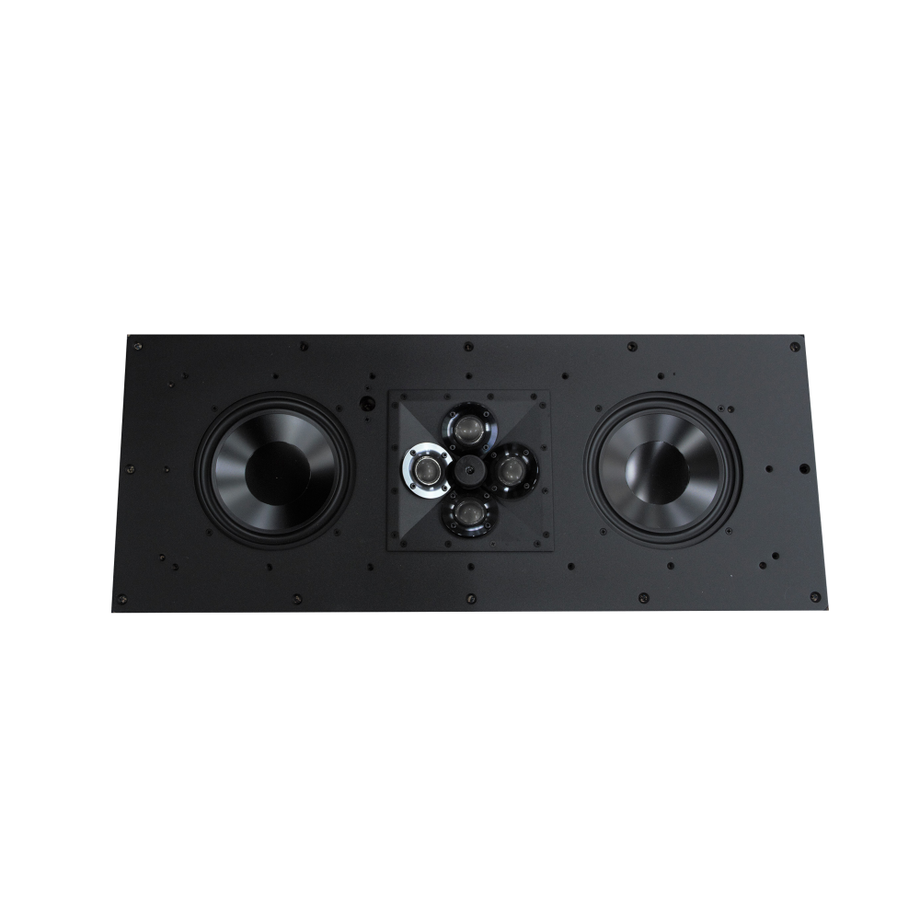

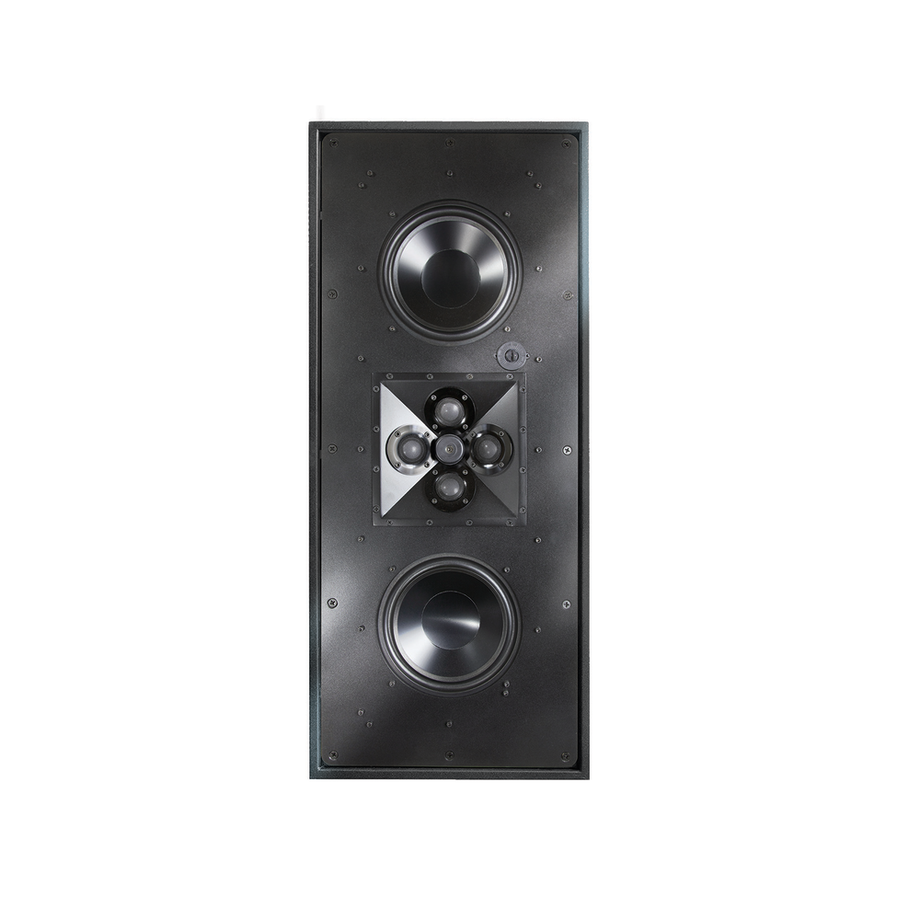

QX806BE is an 8", 3-way in-wall loudspeaker featuring high-output drivers and a solid aluminum QX baffle. Its quad 1" beryllium dome tweeter array ensures wide dispersion and low distortion, while dual 8" aluminum cone woofers deliver impressive bass down to 45Hz. Designed for strength, this speaker is suitable for outdoor use.
Key Features
- Quad Tweeter Array for crisp fidelity and wide dispersion
- Available in round and square in-ceiling, or rectangle in-wall
- Also available in marine grade if specified when ordering (for a nominal upcharge)
- QX and QXC subwoofer options to match QX and QXC speaker models
- Flexible trim options for standard grille or optional TRUFIG flush mounted grille design
- TAA Compliant
Specifications
SKU | Color
QX806BE
Speaker Tweeter
(4) 1" (25mm) Beryllium
Speaker Woofer
(2) 8" (203mm) Aluminum
Frequency Response (+/- 3db)
45Hz - 24kHz
Sensitivity
96dB (2.83V/1m)
Recommended Power Range
50 - 300W
Enclosure
Aircraft Marine Grade Aluminum
Nominal Impedance (Ohms)
8 Ohms
Dimensions (WxHxD)
14.1" x 33.15" x 4.13" (358.01mm x 841.88mm x 104.78mm)
Cut-Out Dimensions (WxH)
13.38" x 32.43" (339.73mm x 823.6mm)
Mounting Depth
3.95" (100.33mm)
