QX830

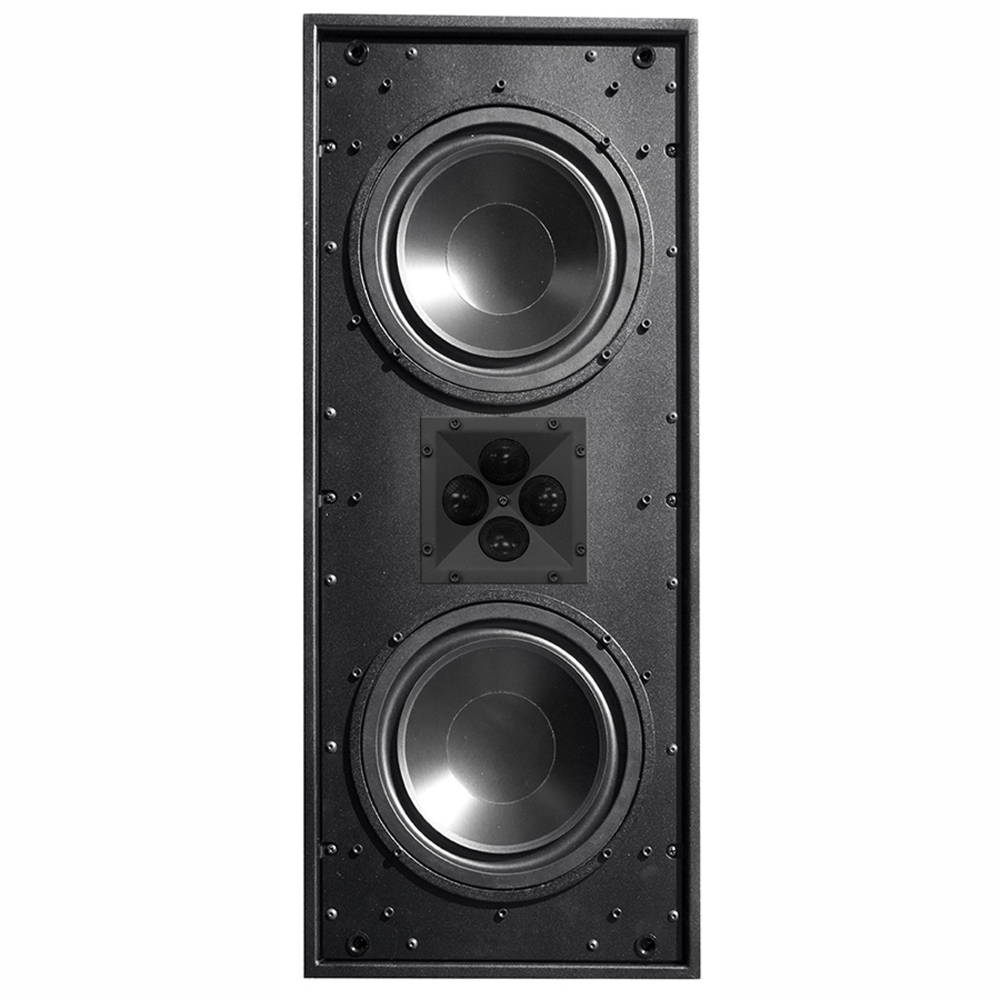

James' QX830 in-wall speaker features a sleek aluminum grille protruding just 3/16" from the wall. Its quad 0.75" aluminum tweeters in a 22.5° offset array combined with dual 8" aluminum woofers deliver impressive 95dB sensitivity and bass below 60Hz in an all-aluminum sealed cabinet suitable for outdoor/marine use.
Key Features
- Quad Tweeter Array for crisp fidelity and wide dispersion
- Marine grade configuration available.
- QX and QXC subwoofer options to match QX and QXC speaker models
- Flexible trim options for standard grille or optional TRUFIG flush mounted grille design
- TAA Compliant
Specifications
SKU
QX830
Speaker Tweeter
(4) 0.75" (19mm) Aluminum
Speaker Woofer
(2) 8" (203mm) Aluminum
Frequency Response (+/- 3db)
60Hz - 24kHz
Nominal Coverage Angle
92 degrees horizontal, 56 degrees vertical
Sensitivity
95dB (2.83V/1m)
Recommended Power Range
50 - 300W
Enclosure
Aircraft Marine Grade Aluminum
Nominal Impedance (Ohms)
8 ohms
Dimensions (WxHxD)
11.11" x 26.09" x 4.13" (282.19mm x 662.69mm x 104.78mm)
Cut-Out Dimensions (WxH)
10.38" x 25.5" (263.53mm x 647.7mm)
Mounting Depth
3.875" (98.43mm)
