Invisible Series
QX Series
QX630
QX630
QX

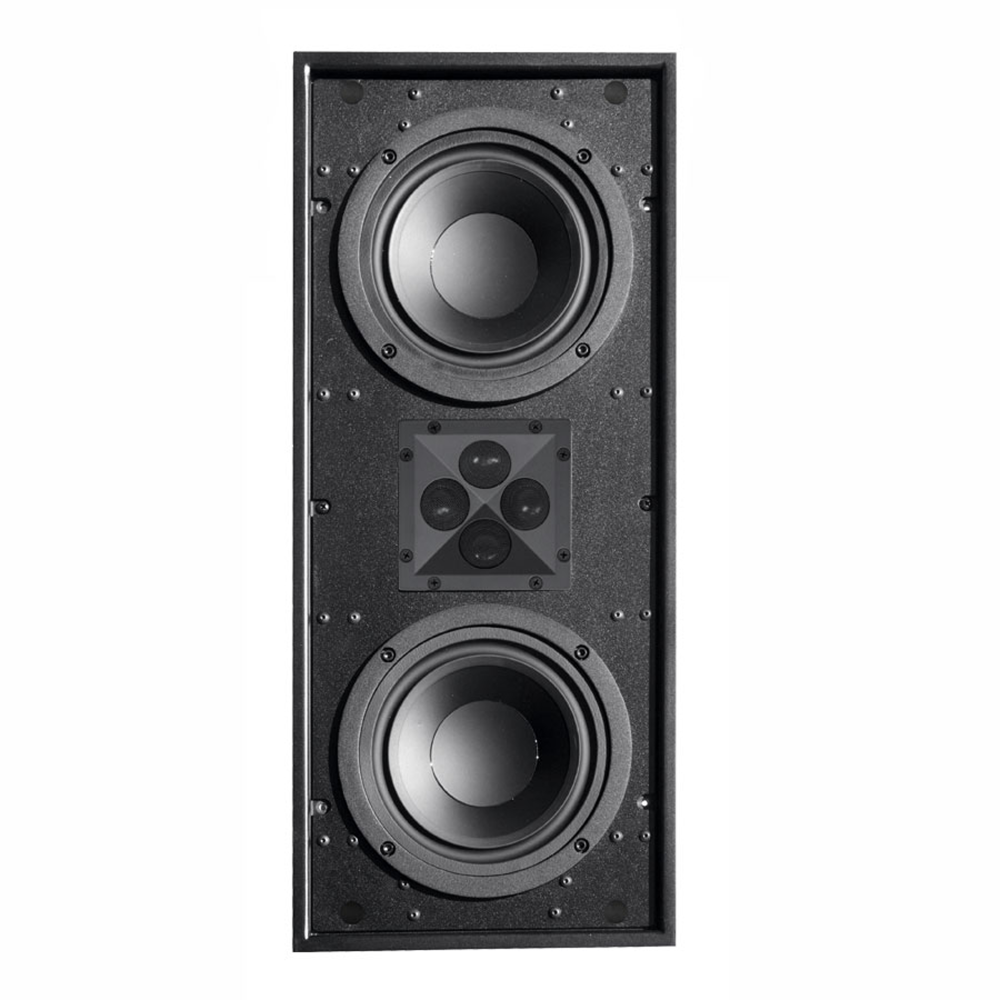

James' QX630 in-wall speaker features a barely-protruding aluminum grille, quad 0.75" tweeters in a 22.5° offset array, and dual 6.5" aluminum woofers delivering 94dB sensitivity and bass below 65Hz. Its all-aluminum sealed cabinet construction ensures strength and sonic performance, suitable for outdoor/marine applications.
Key Features
- Quad Tweeter Array for crisp fidelity and wide dispersion
- Available in round and square in-ceiling, or rectangle in-wall
- Also available in marine grade if specified when ordering (for a nominal upcharge)
- QX and QXC subwoofer options to match QX and QXC speaker models
- Flexible trim options for standard grille or optional TRUFIG flush mounted grille design
- TAA Compliant
Specifications
SKU | Color
QX630
Speaker Tweeter
(4) 0.75" (19mm) Aluminum
Speaker Woofer
(2) 6.5" (165mm) Aluminum
Frequency Response (+/- 3db)
65Hz - 24kHz
Sensitivity
94dB (2.83V/1m)
Recommended Power Range
50 - 200W
Enclosure
Aircraft Marine Grade Aluminum
Nominal Impedance (Ohms)
4 Ohms
Dimensions (WxHxD)
9.61" x 22.2" x 4.13" (244.09mm x 563.88mm x 104.78mm)
Cut-Out Dimensions (WxH)
8.88" x 21.5" (225.43mm x 546.1mm)
Mounting Depth
3.875" (98.43mm)
