Invisible Series
PowerPipe Subwoofers

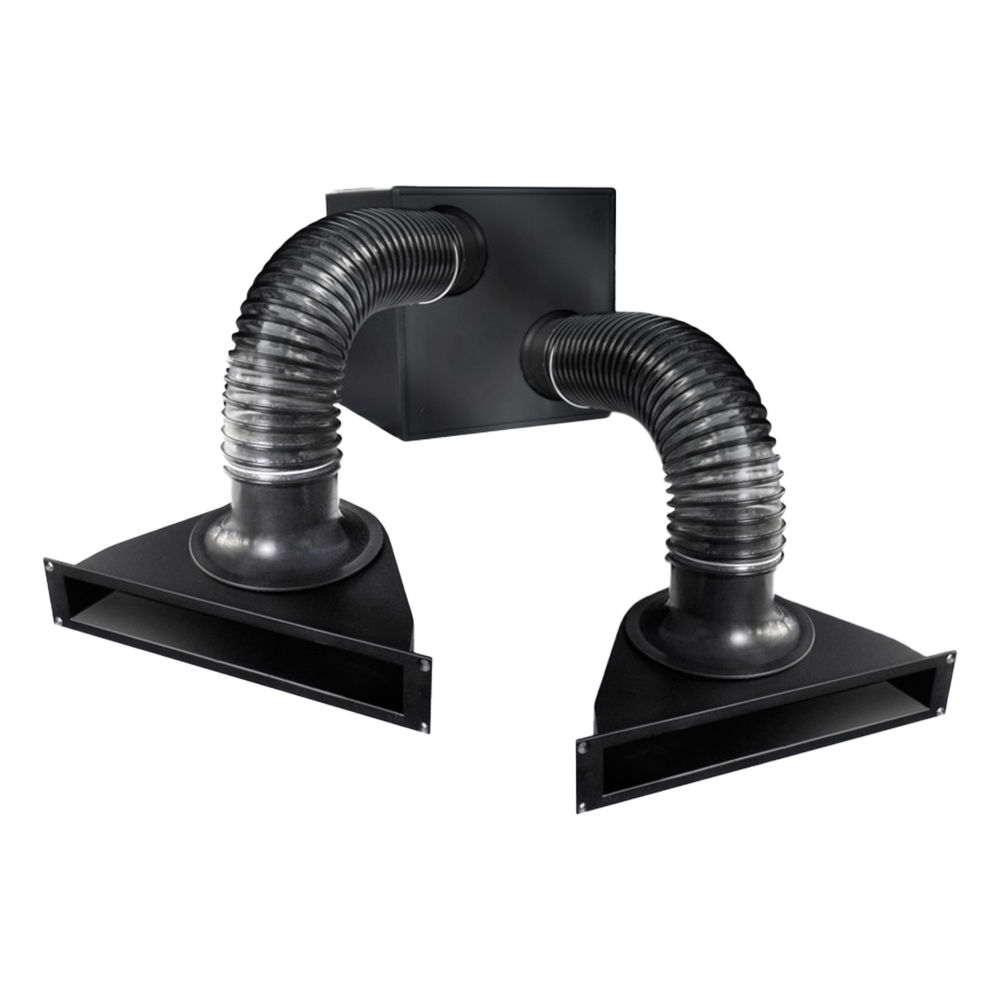

PP12-2
PP12-2
PowerPipe

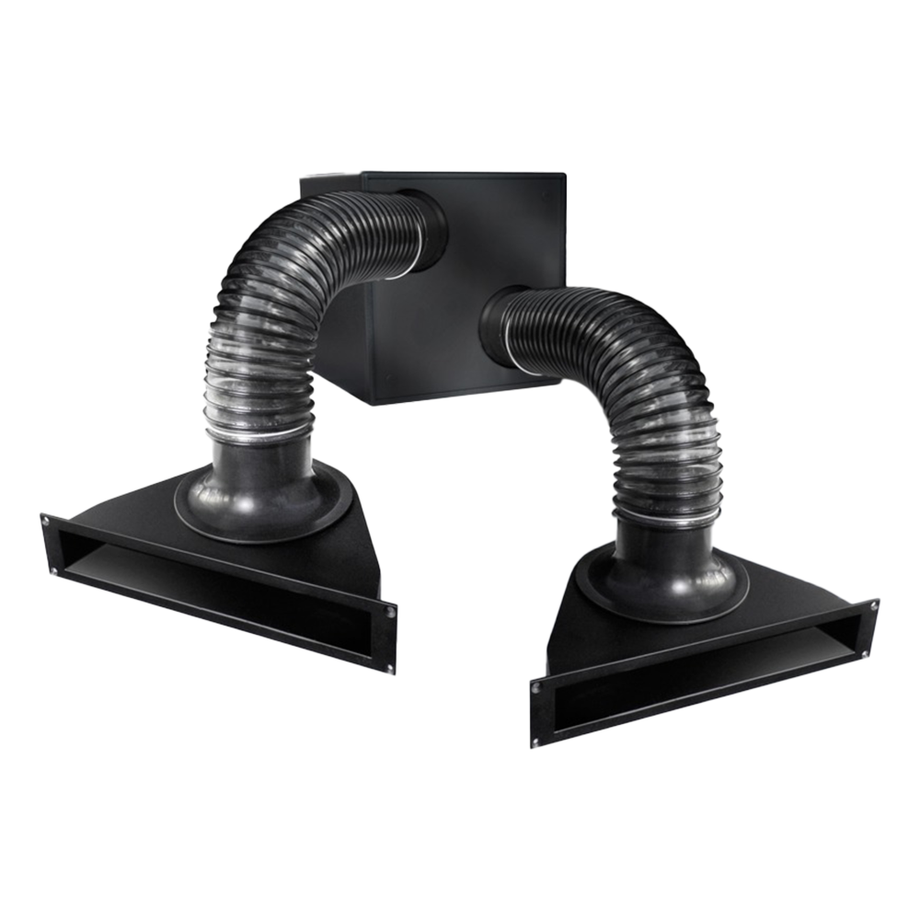

The PowerPipe Subwoofer moves large air volumes through a tuned flex tube, amplifying bass around 35Hz for optimal music and movie soundtracks. Its sealed aluminum enclosure enhances performance, while the band pass port allows flexible integration with multiple port options, delivering powerful, seamless low-frequency audio with minimal visual impact.
Key Features
- Ported bandpass subwoofer design

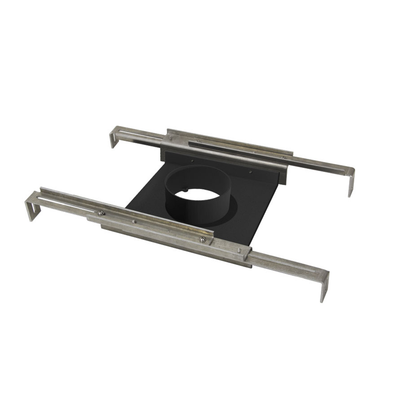

- Installation into walls, ceilings, or cabinets
- Available in five woofer sizes with options for marine grade or standard

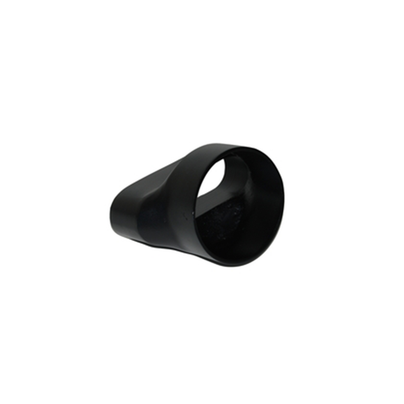

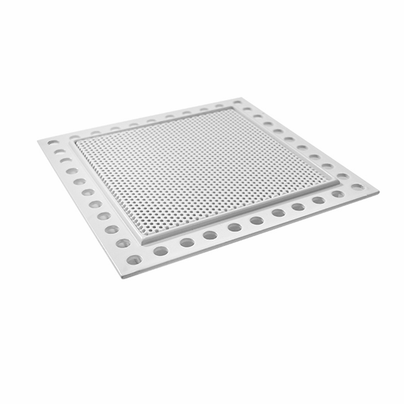

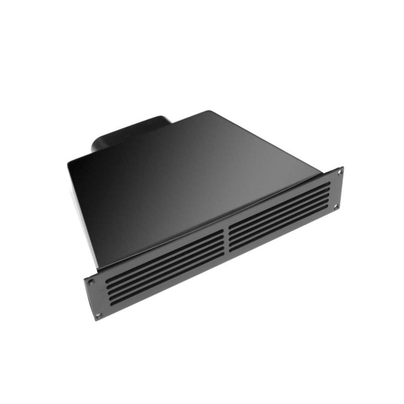

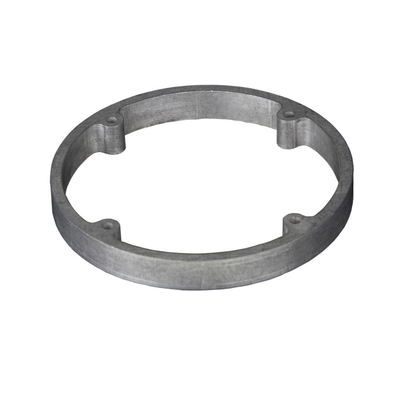

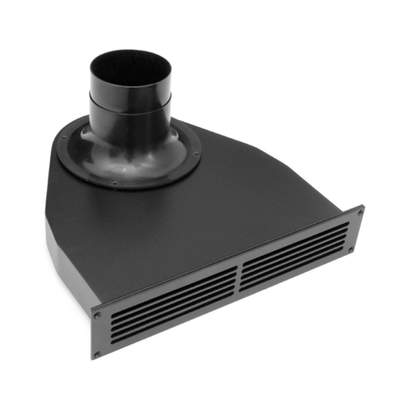

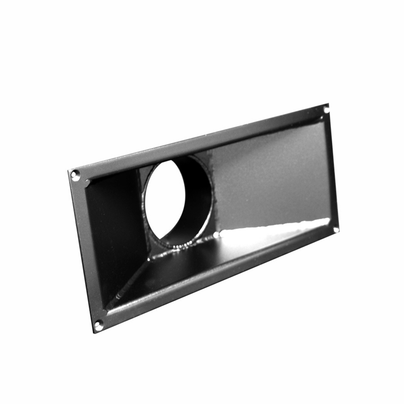

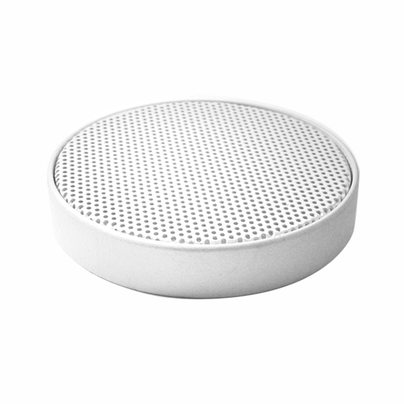

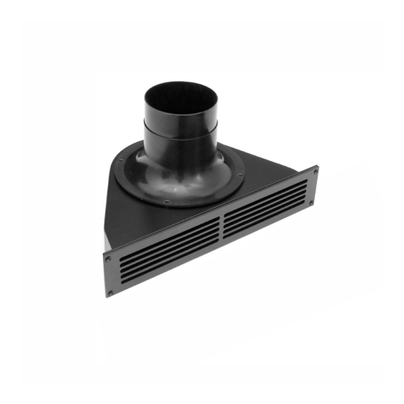

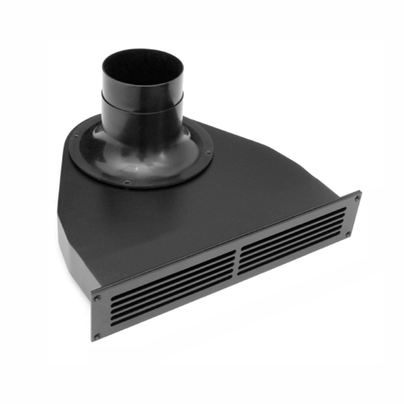

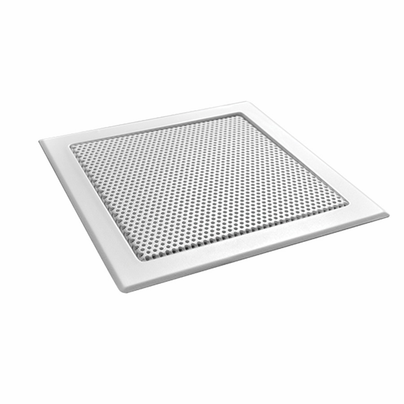

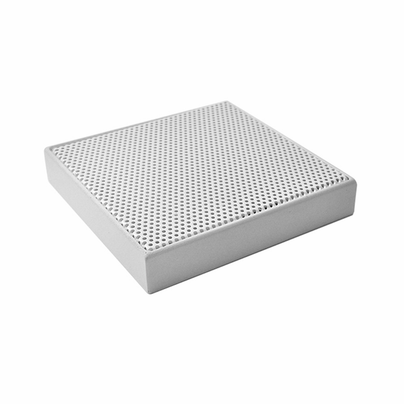

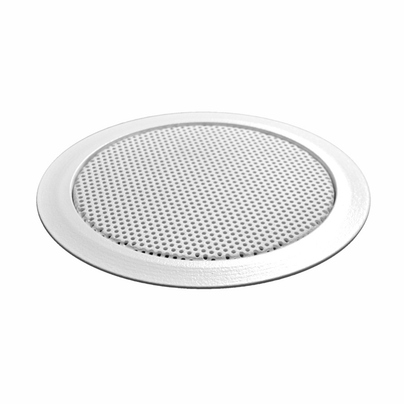

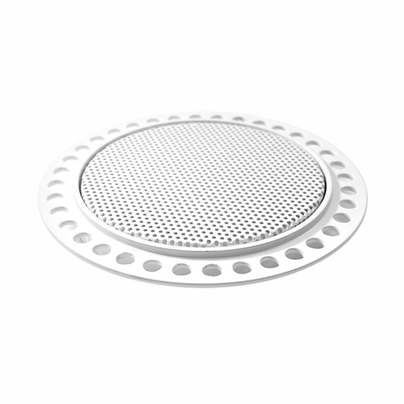

- Flexible trim options including various toekicks, QX style, or Small Aperture style
- TAA Compliant
Specifications
SKU | Color
PP12-2
Speaker Woofer
(1) 12" (304mm) Aluminum
Frequency Response (+/- 3db)
20Hz - 120Hz
Sensitivity
92dB (2.83V/1m)
Recommended Power Range
250 - 1000W
Enclosure
MDF (Medium-Density Fibreboard)
Nominal Impedance (Ohms)
4 Ohms
Dimensions (WxHxD)
14.88" x 15.5" x 15.23" (377.83mm x 393.7mm x 386.72mm)
