Invisible Series
QX Series
QX530
QX530
QX

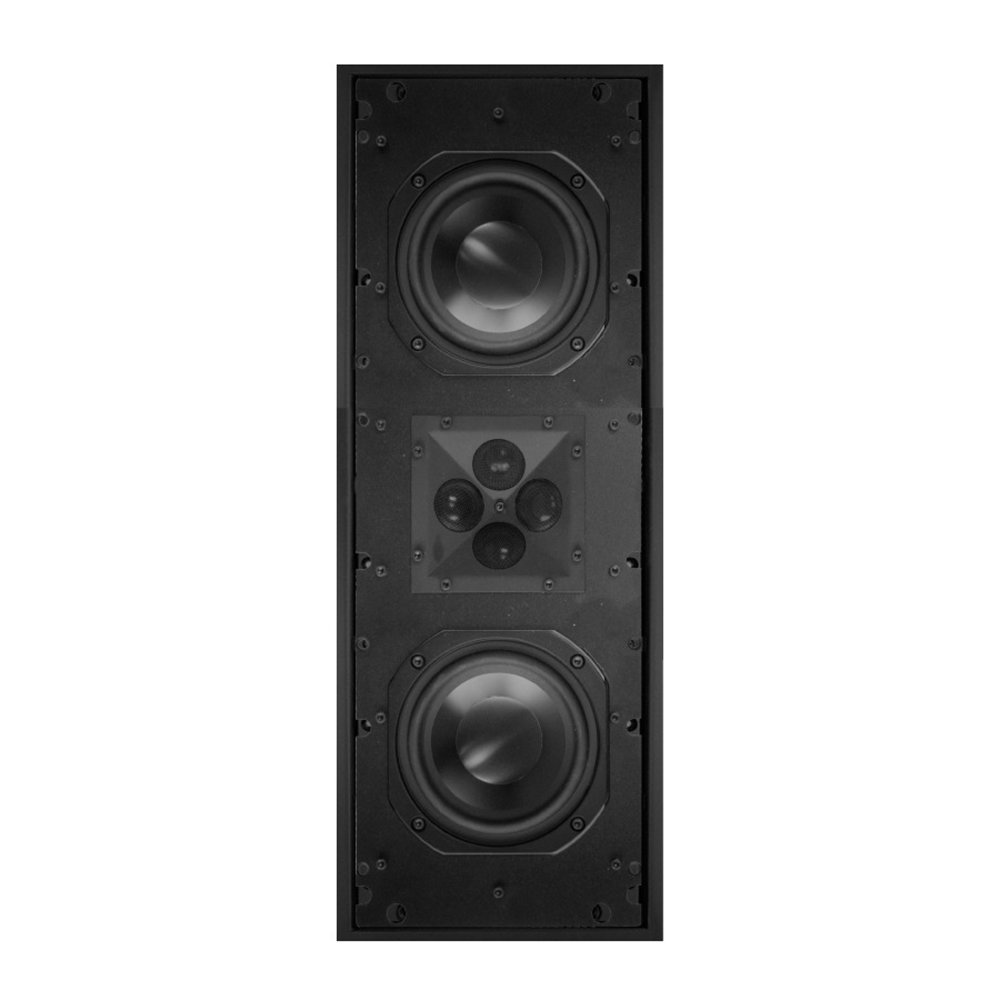

James' QX530 in-wall LCR speaker combines sleek design with exceptional performance. Its borderless aluminum grille protrudes just 3/16" from the wall, while four offset 0.75" aluminum tweeters provide wide dispersion and low distortion. Paired with dual 5.25" aluminum woofers, it achieves 89dB sensitivity with bass down to 68Hz, delivering audiophile-quality sound.
Key Features
- Quad Tweeter Array for crisp fidelity and wide dispersion
- Marine grade configuration available.
- QX and QXC subwoofer options to match QX and QXC speaker models
- Flexible trim options for standard grille or optional TRUFIG flush mounted grille design
- TAA Compliant
Specifications
SKU | Color
QX530
Speaker Tweeter
(4) 0.75" (19mm) Aluminum
Speaker Woofer
(2) 5.25" (133mm) Aluminum
Frequency Response (+/- 3db)
68Hz - 24kHz
Nominal Coverage Angle
106 degrees horizontal, 65 degrees vertical
Sensitivity
89dB (2.83V/1m)
Recommended Power Range
50 - 200W
Enclosure
Aircraft Marine Grade Aluminum
Nominal Impedance (Ohms)
8 Ohms
Dimensions (WxHxD)
7.75" x 21.33" x 4.13" (196.85mm x 541.66mm x 104.78mm)
Cut-Out Dimensions (WxH)
7.11" x 20.68" (180.47mm x 525.27mm)
Mounting Depth
3.875" (98.43mm)
