The James Wedge X Series delivers significant performance and installation improvements based directly on customer feedback. Featuring advanced Quadratech tweeter technology, enhanced woofers, and improved installation features, the WX Series addresses key challenges while maintaining the signature wedge design optimized for 90-degree architectural applications.

key features:

Quadratech tweeter technology delivers superior performance in wedge form factor
Boundary switch optimizes acoustics for free-space or wall mounting
CDX Crossover & Neutral Voicing
Press fit grille clip system prevents accidental removal
Enhanced woofers provide improved bass response
Improved mounting brackets offer greater installation flexibility
Customizable (Length, Channels, Finish)

VENUE CONTROL APP

Control your PowerZone Connect amplifier from a single iPad. Staff manage volume, sources, and presets. Installers configure zones, presets, and access levels once.

Wedge X Series

Mounted Speaker Models

Compare Models

SKU

Speaker Tweeter

Speaker Woofer

Frequency Response
(+/- 3db)

Nominal Impedance (Ohms)

Sensitivity

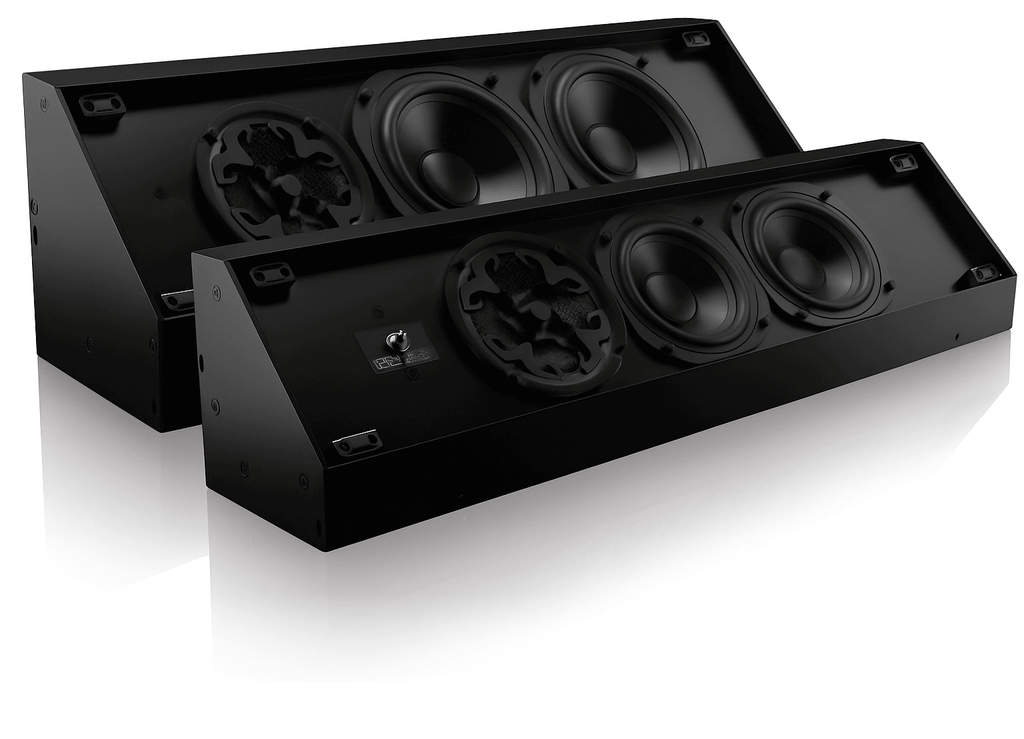

4", 3-way Quadratech Wedge X Series Speaker

WX48QT

0.75" (19mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber

(2) 4.00" (102mm) Aluminum Cone, Santoprene Surround

70Hz - 20kHz

4 ohms

86dB (2.83V/1m)

Compare

5.25", 3-way Quadratech Wedge X Series Speaker

WX58QT

0.75" (19mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber

(2) 5.25" (133mm) Aluminum Cone, Santoprene Surround

60Hz - 20kHz

4 ohms

88dB (2.83V/1m)

Compare

Gallery

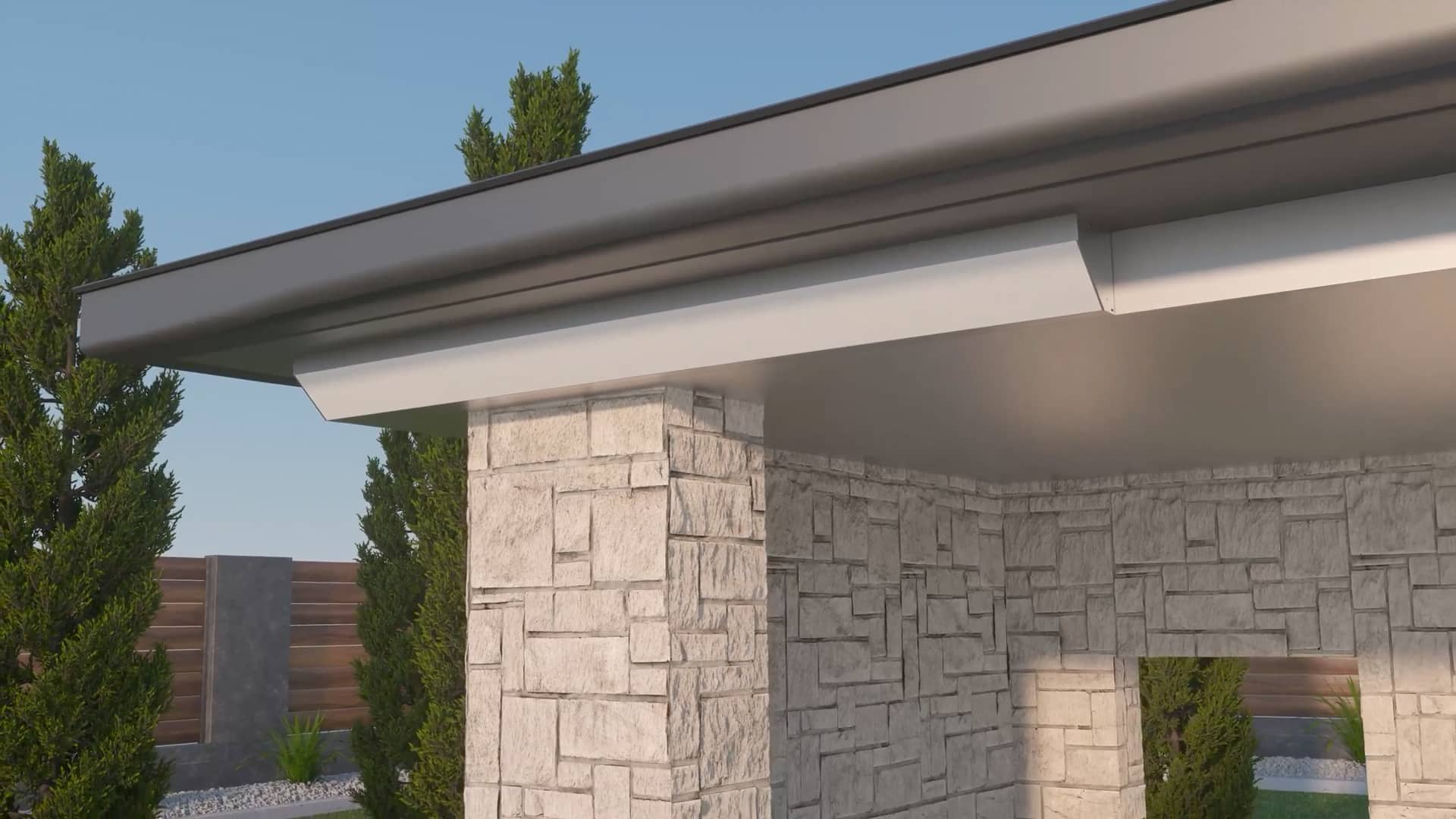

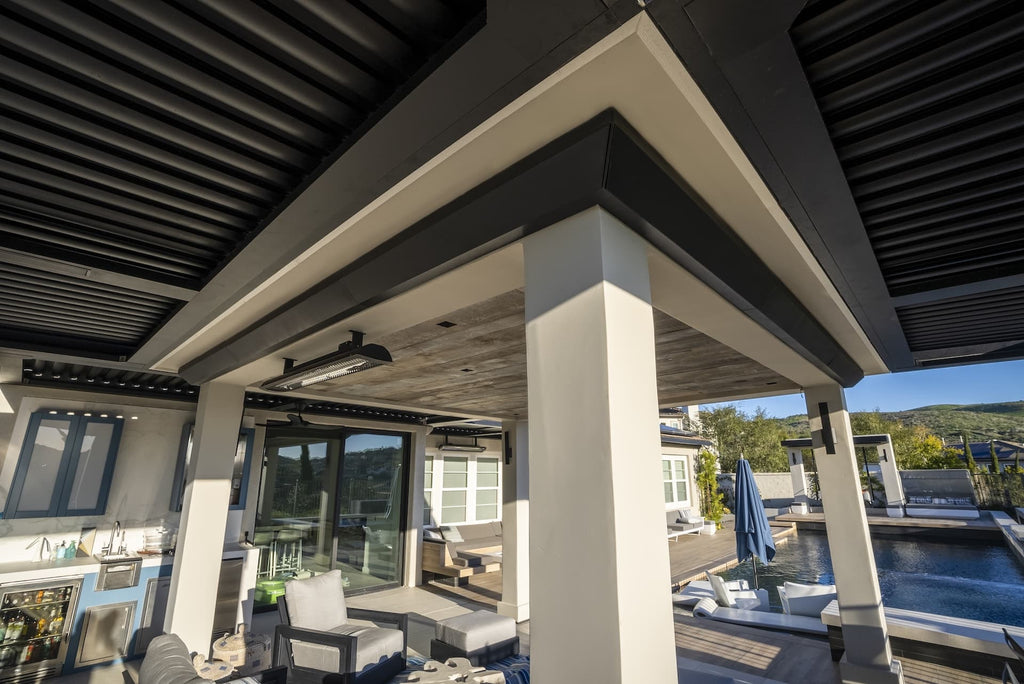

Wedge X on corner
