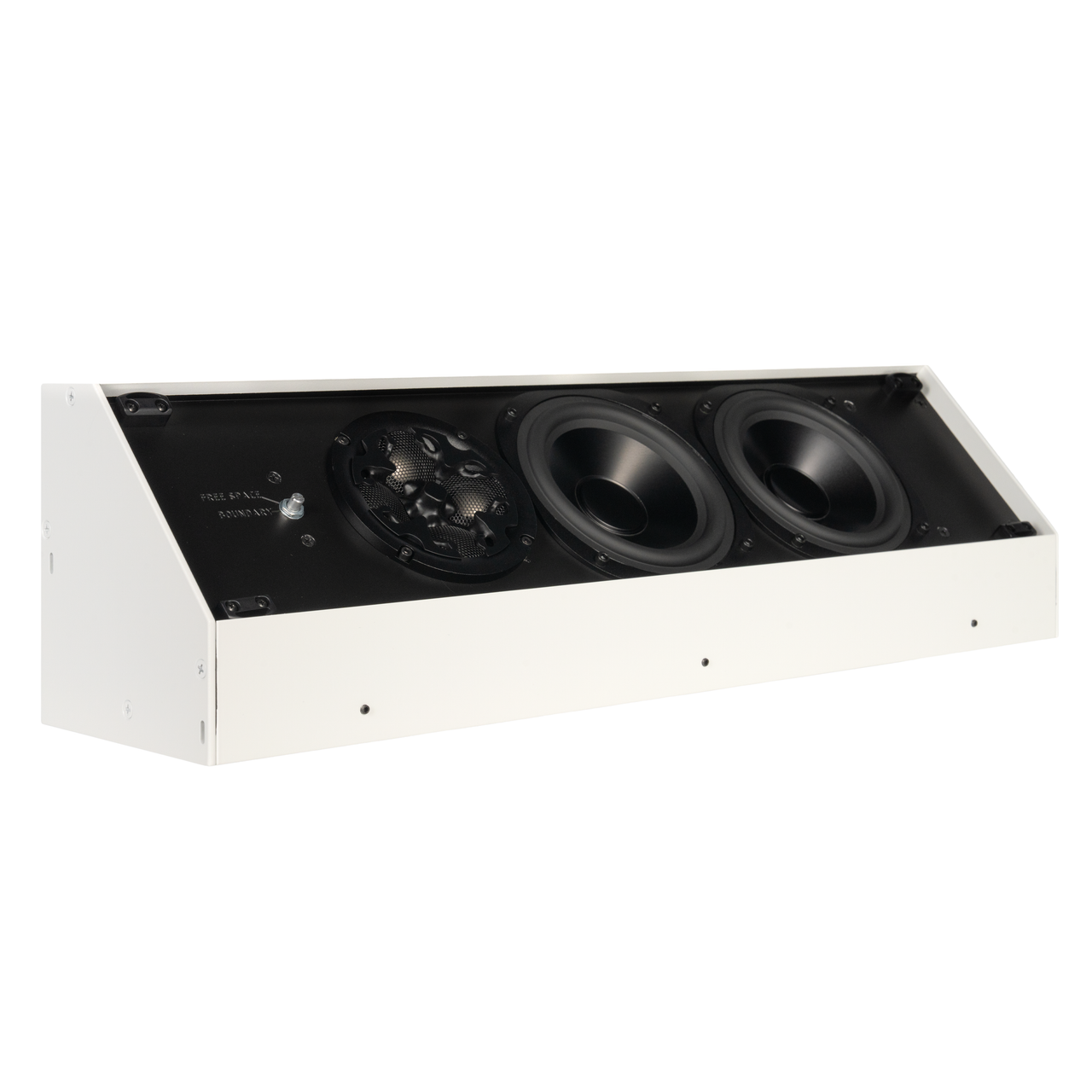

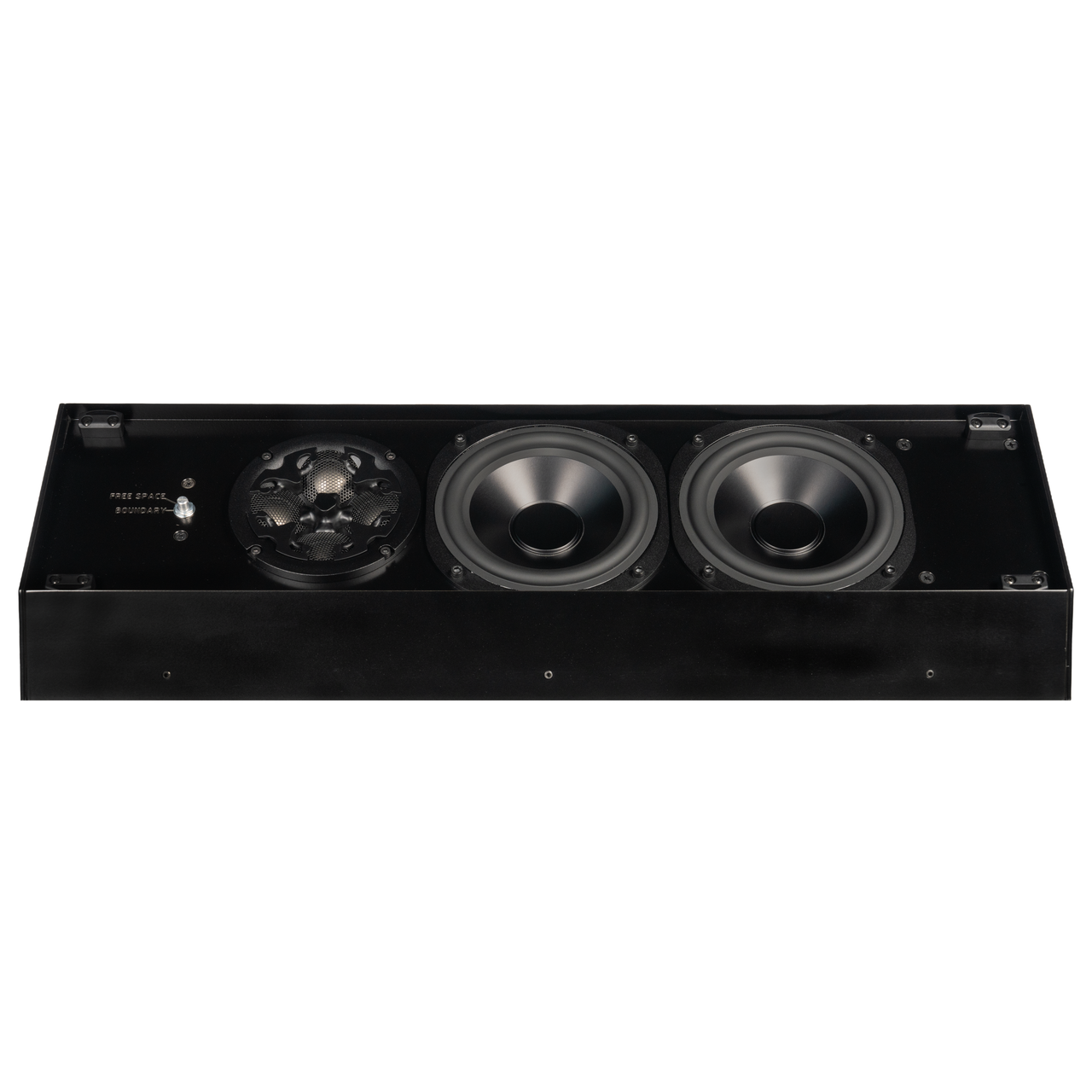

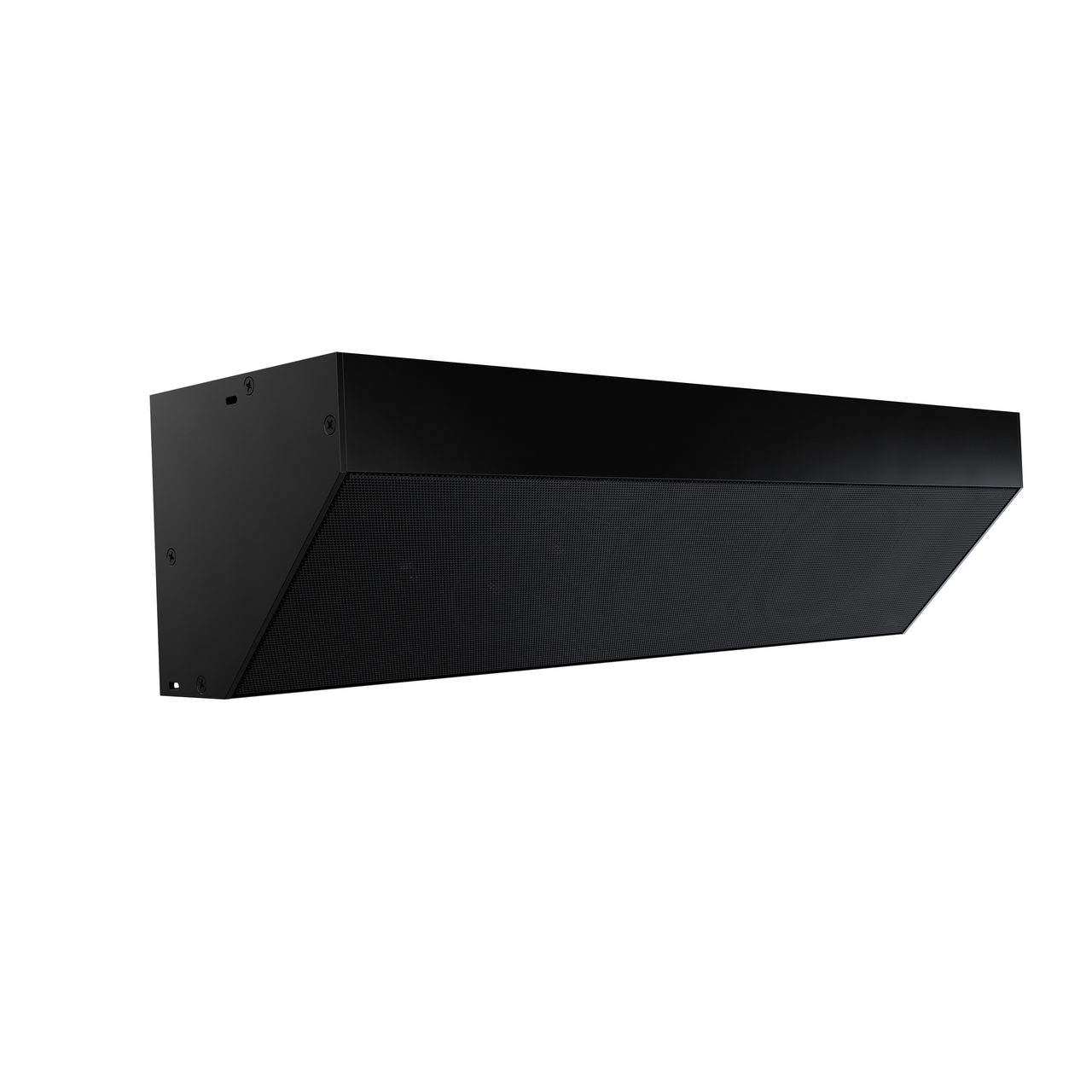

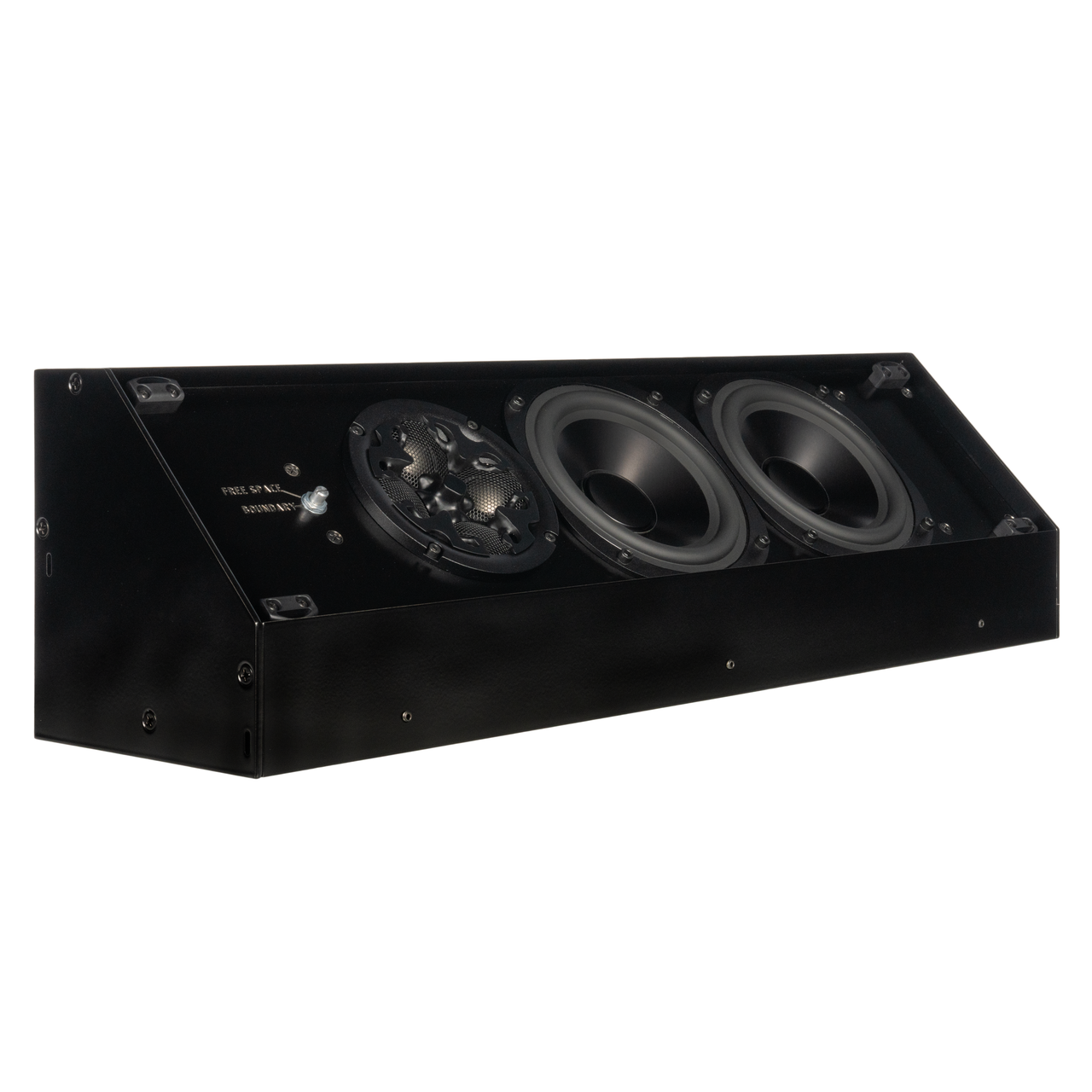

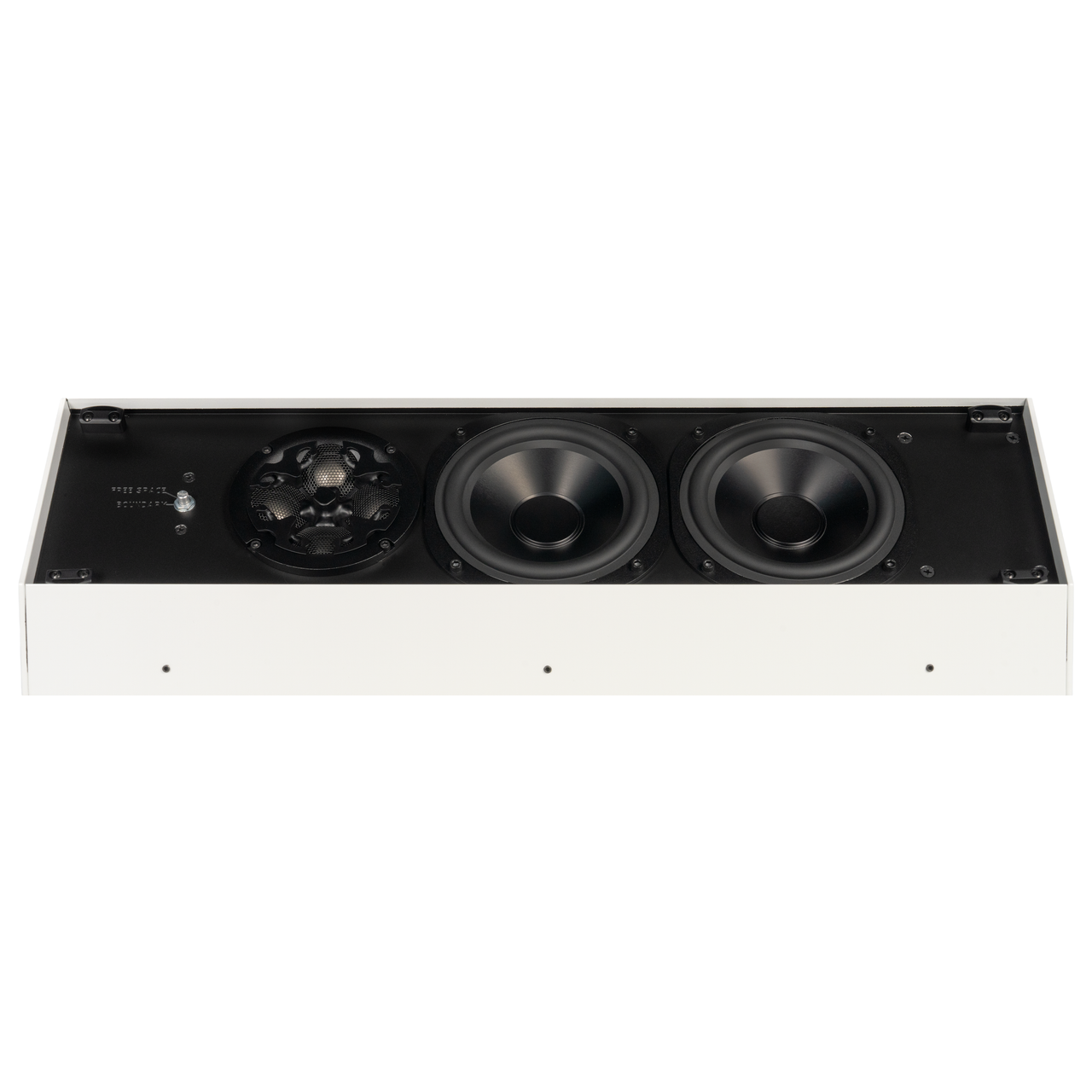

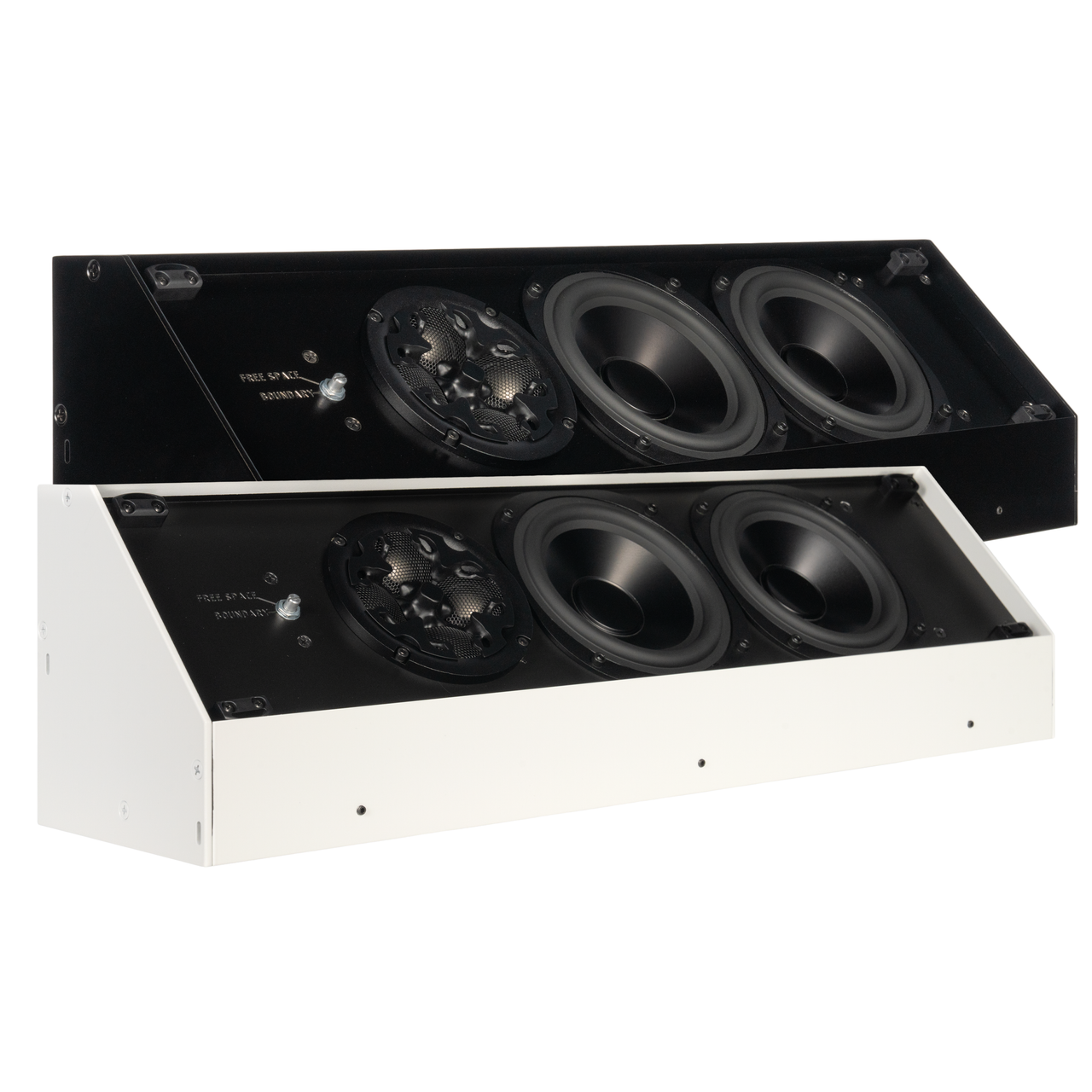

WX58QT
Wedge
Key Features
- Quadratech Tweeter
- 5.25" High Excursion Woofers
- WX Boundary Switch optimizes performance for mounting location

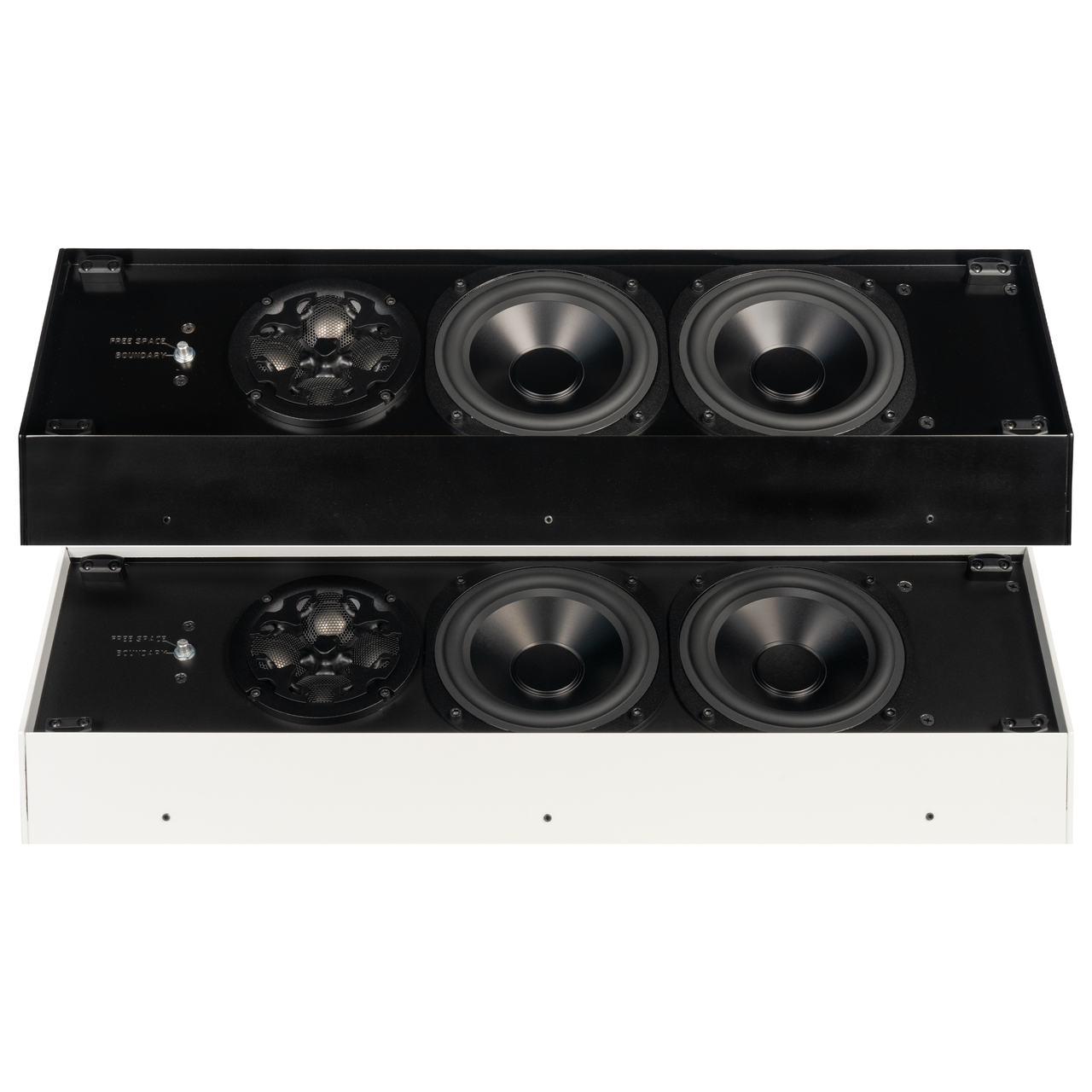

- Available in 16 standard finishes or any custom finish
- TAA Compliant
- Grille clip retention system keeps grille intact
Specifications
SKU
WX58QT
Speaker Tweeter
0.75" (19mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber
Speaker Woofer
(2) 5.25" (133mm) Aluminum Cone, Santoprene Surround
Frequency Response (+/- 3db)
60Hz - 20kHz
Sensitivity
88dB (2.83V/1m)
Recommended Power Range
50 - 100W
Enclosure
Aircraft Marine Grade Aluminum
Nominal Impedance (Ohms)
4 ohms
Dispersion
Quadratech Tweeter with Cymatic Diffuser
Dimensions (WxHxD)
22.0" x 5.86" x 6.24" (558.8mm x 148.84mm x 158.5mm)
