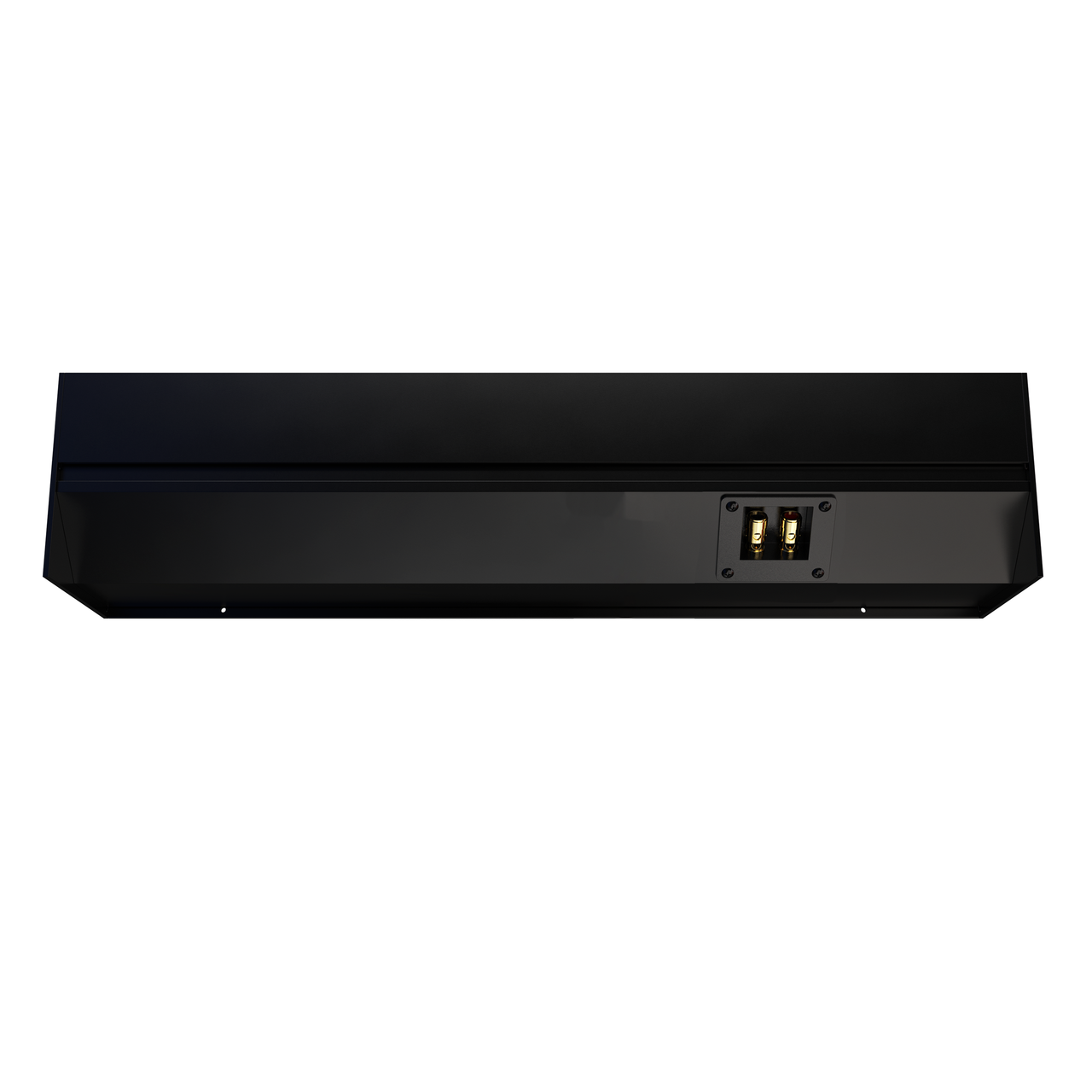

WX48QT

Now Shipping

WX48QT

Wedge

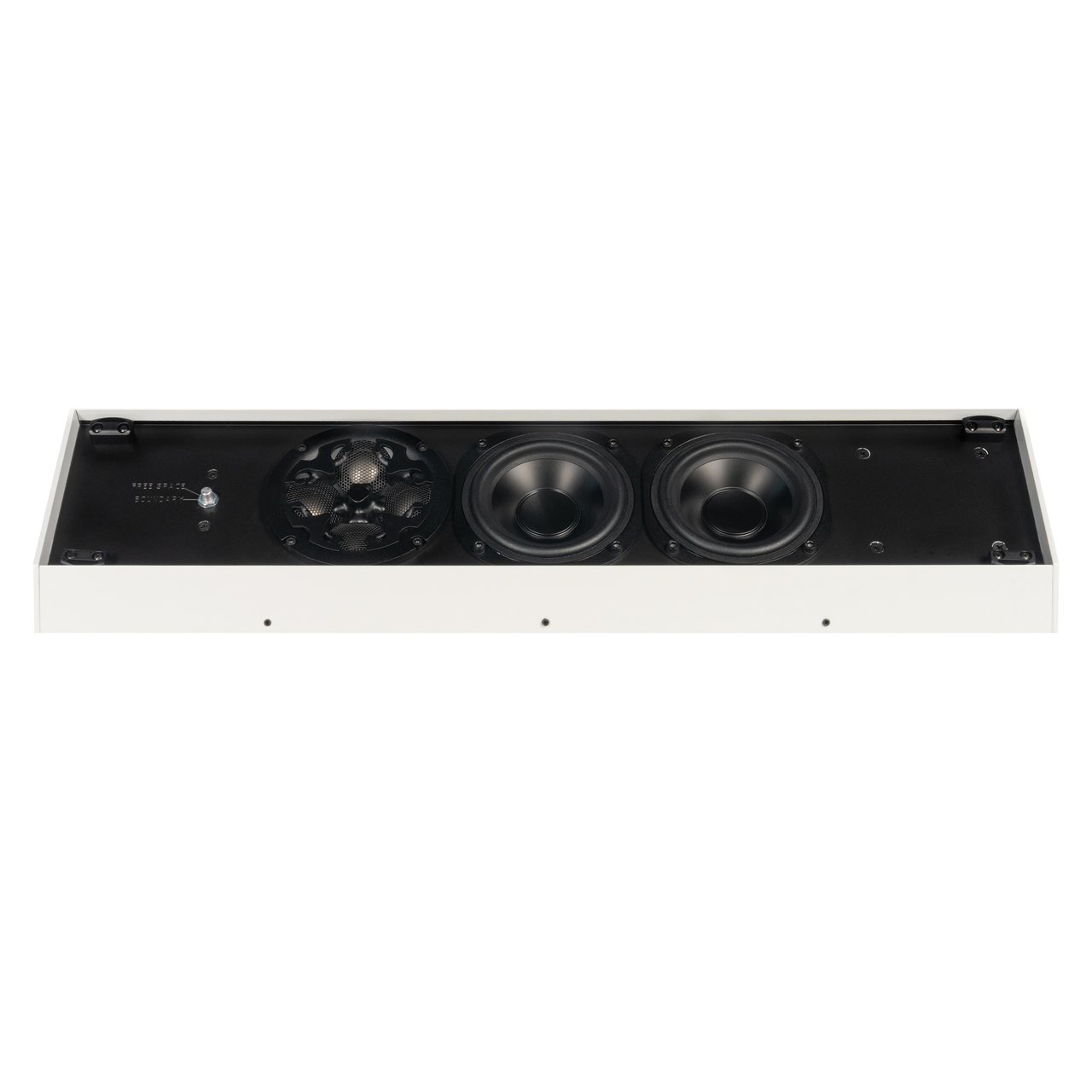

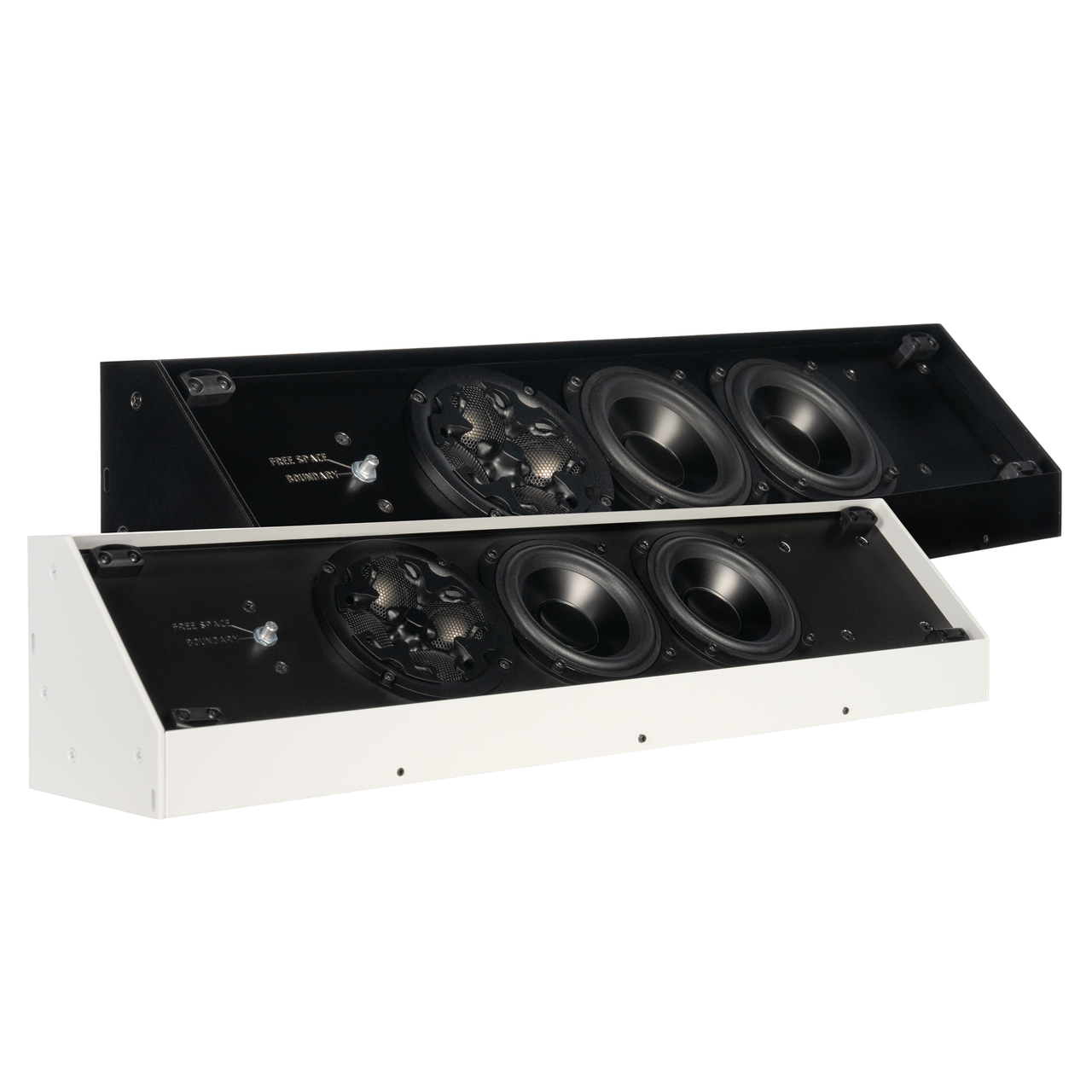

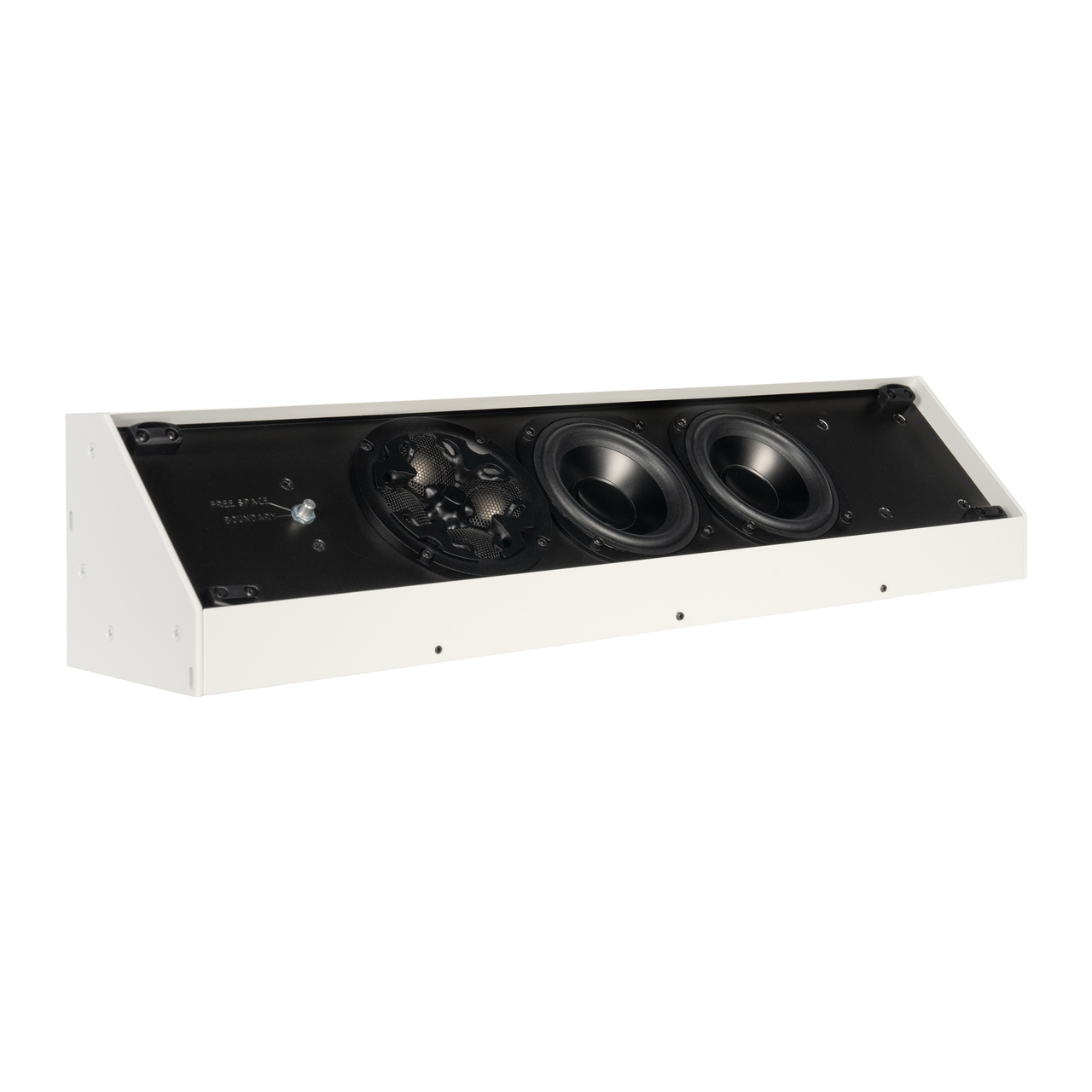

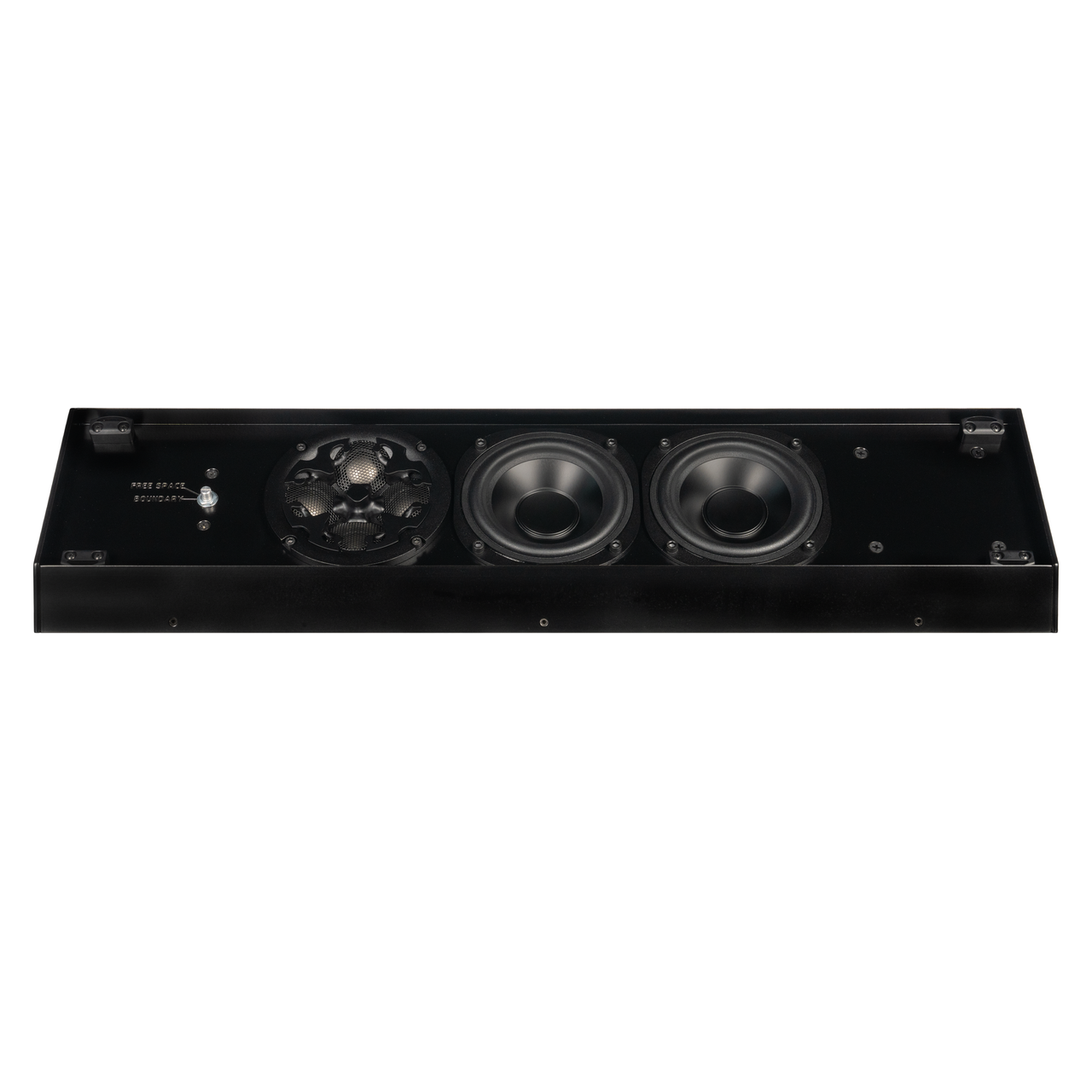

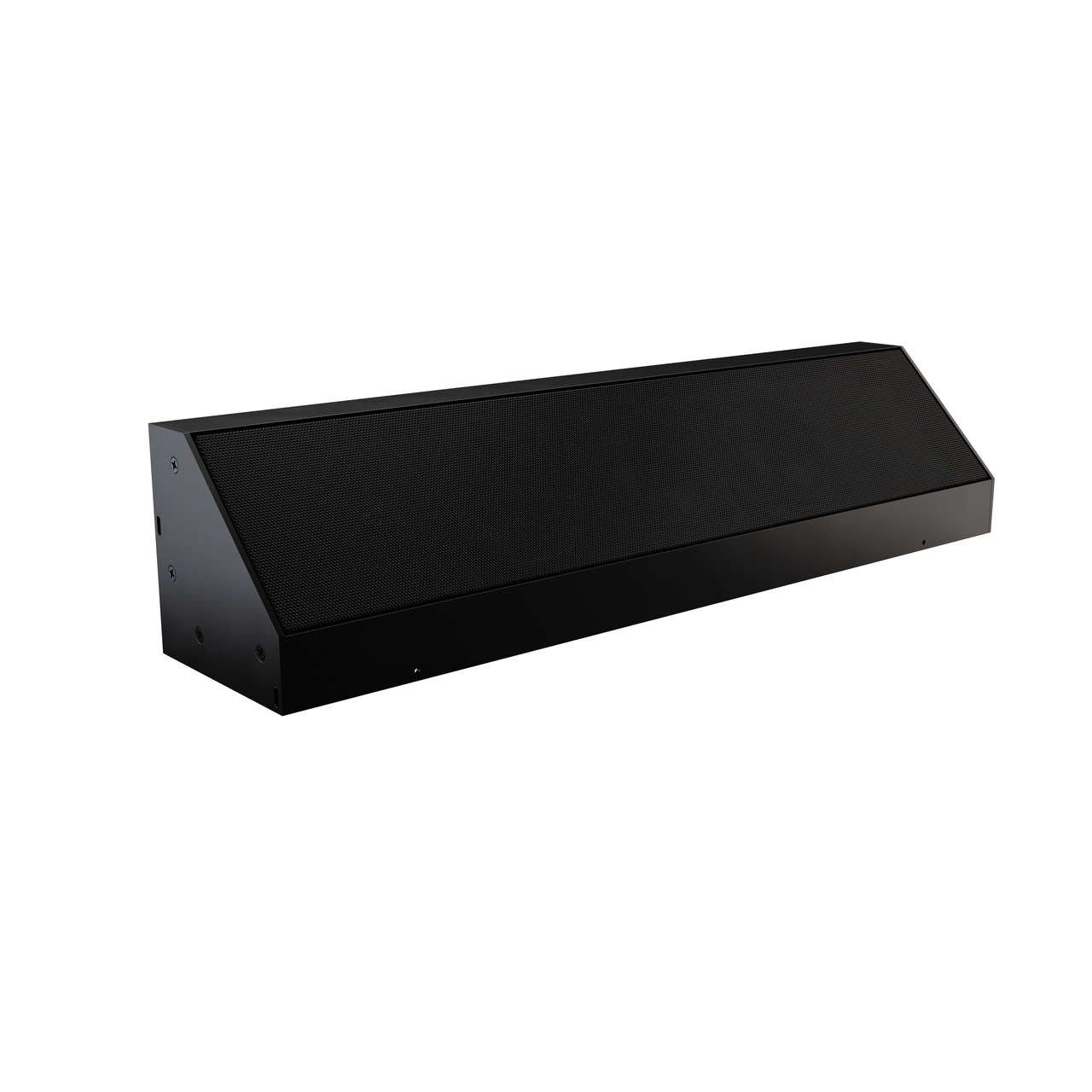

The WX48QT is a specialized corner speaker designed for 90-degree boundaries between walls or wall/ceiling junctions, providing excellent sound performance with minimal visible intrusion. Featuring high-excursion woofers, James Quadratech Tweeter, and boundary switch to optimize performance based on speaker placement, WX48QT integrates beautifully into indoor and outdoor environments.

WX48QT

Key Features
Specifications
Related Products
Downloads
Videos
Learn More

Key Features

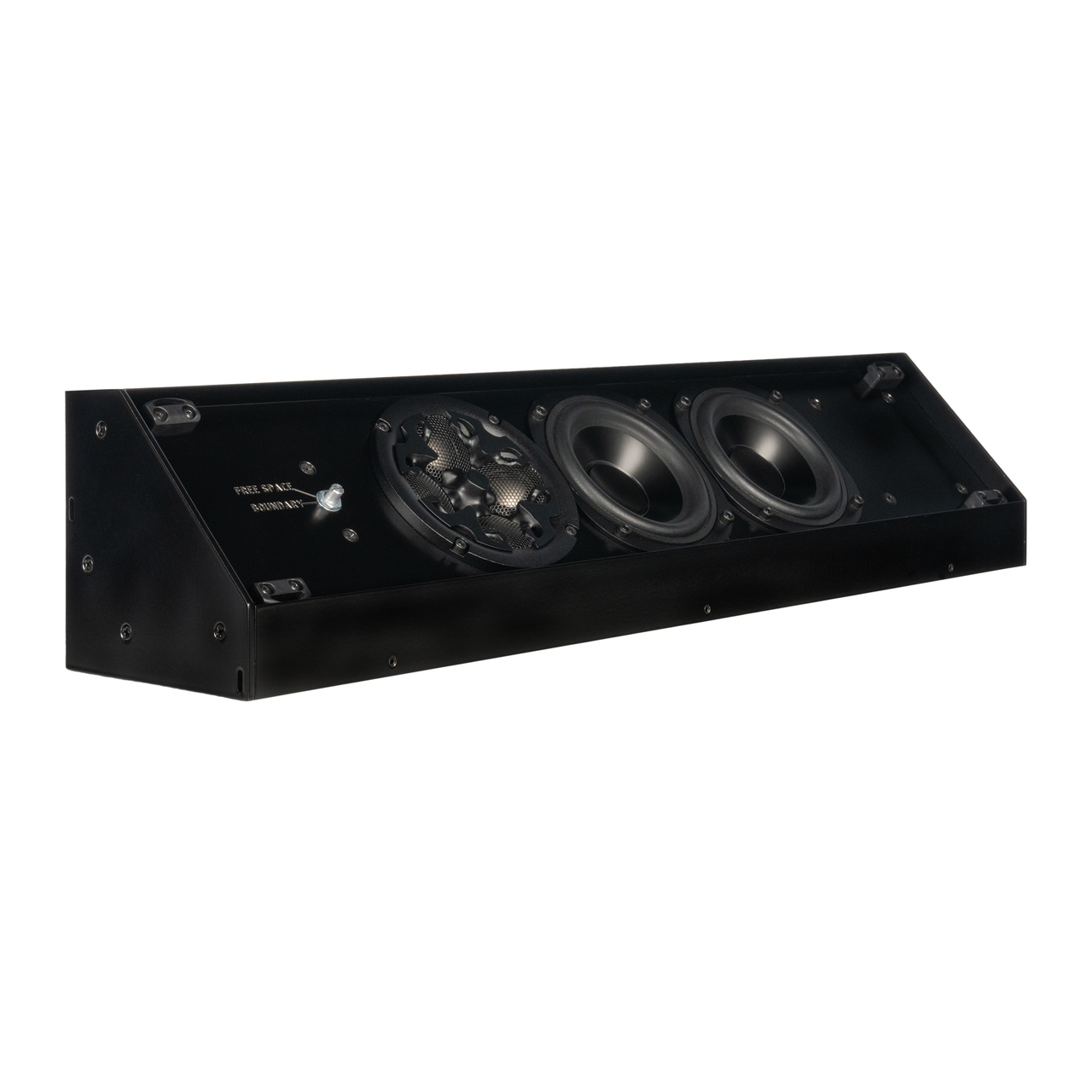

Quadratech Tweeter
4" High Excursion Woofers
WX Boundary Switch optimizes performance for mounting location

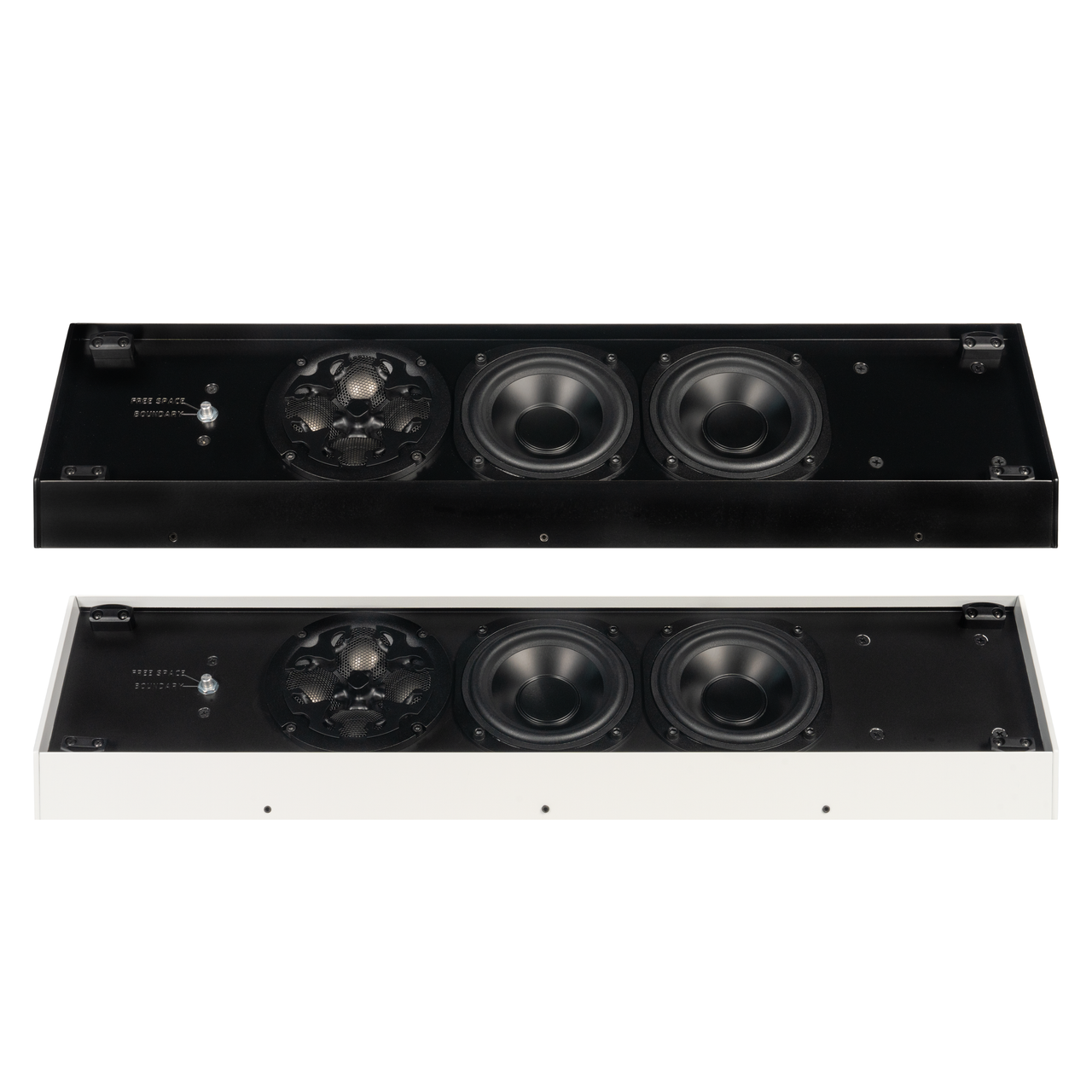

Available in 16 standard finishes or any custom finish
TAA Compliant

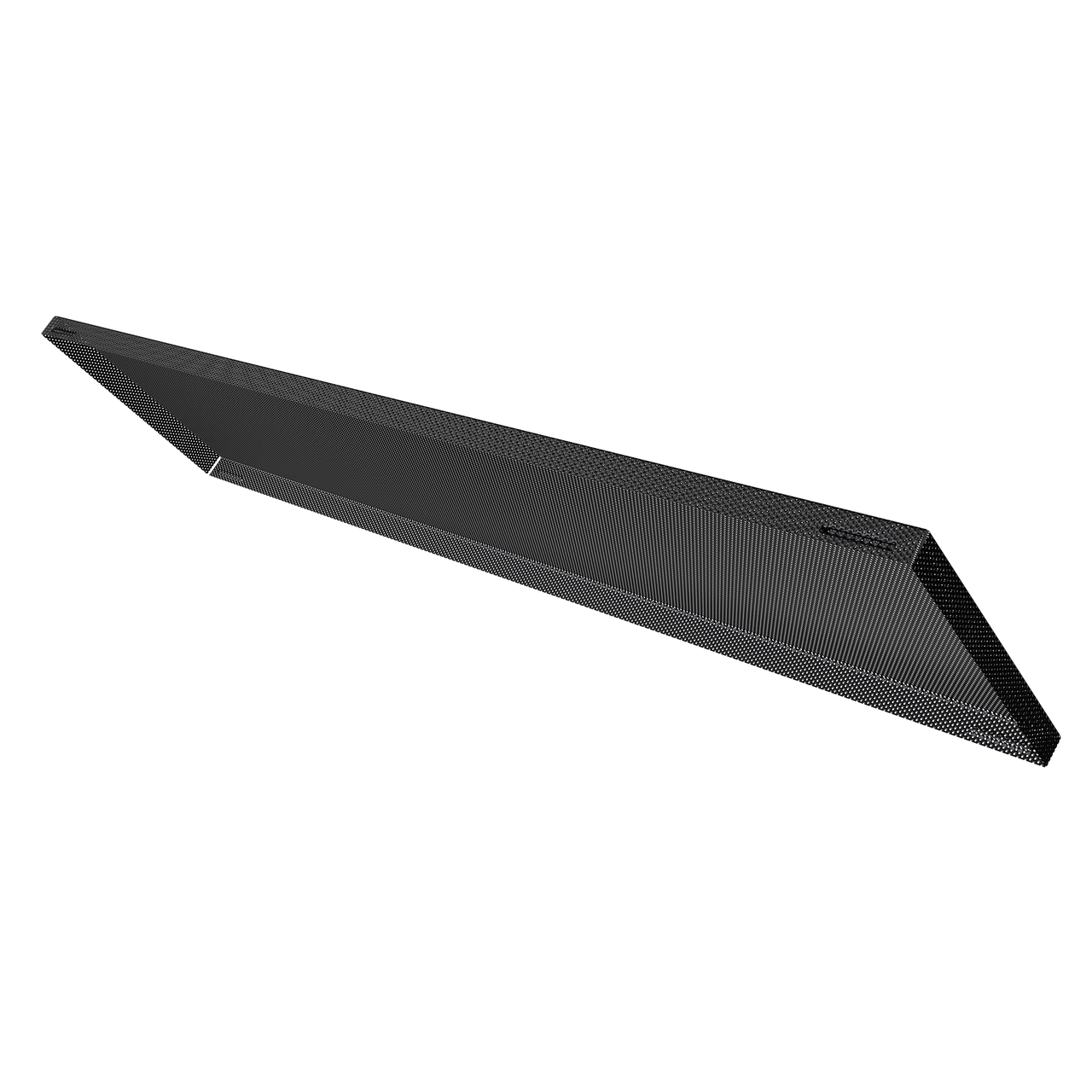

Grille clip retention system keeps grille intact

Specifications

SKU

WX48QT

Speaker Tweeter

0.75" (19mm) Four titanium domes, Ferrofluid-cooled, acoustic back chamber

Speaker Woofer

(2) 4.00" (102mm) Aluminum Cone, Santoprene Surround

Frequency Response (+/- 3db)

70Hz - 20kHz

Sensitivity

86dB (2.83V/1m)

Recommended Power Range

50 - 100W

Enclosure

Aircraft Marine Grade Aluminum

Nominal Impedance (Ohms)

4 ohms

Dispersion

Quadratech Tweeter with Cymatic Diffuser

Dimensions (WxHxD)

22.0" x 4.76" x 4.76" (558.8mm x 120.9mm x 120.9mm)

Copy All Specs
