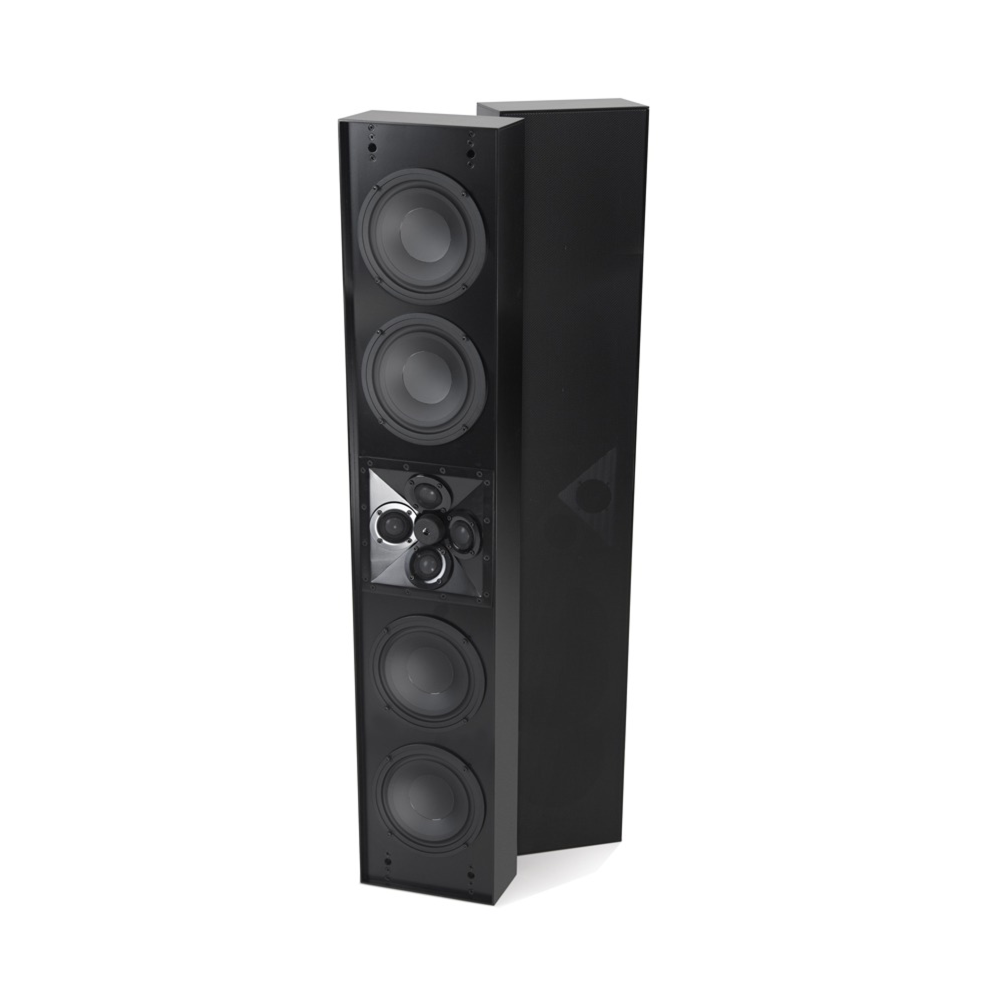

OW68Q-M

On Wall

With the James high excursion proprietary woofers, and an ultra-low distortion titanium dome quad-array tweeter, this compact speaker offers silky smooth response across a broad range of frequencies from 40kHz all the way down to below 60Hz, with an impressive sensitivity of 96dB. The OW68Q-M is constructed entirely of aircraft grade aluminum for strength, sonic performance, and durability, and includes an aluminum perforated grille to provide years of trouble free use. Blind through holes are incorporated into each speaker for wall mounting or brackets can added during configuration.

Key Features

Quad Tweeter Array for wide dispersion and crisp fidelity (“Q” models only)
Marine grade aluminum construction with fluoropolymer coating for solid, secure, and long-lasting performance indoors or outdoors (marine models only; must be specified when ordering)
Available in low impedance or 70V configurations
Simple through-hole installation
TAA Compliant

Specifications

Speaker Tweeter

(4) 1" (25mm) Titanium Quad-array

Speaker Woofer

(4) 6.5" (165mm) Aluminum

Frequency Response (+/- 3db)

60Hz - 40kHz

Sensitivity

96dB (2.83V/1m)

Recommended Power Range

25 - 200W

Enclosure

Aircraft Marine Grade Aluminum

Nominal Impedance (Ohms)

4 ohms

Dimensions (WxHxD)

8.13" x 40.0" x 4.0" (206.38mm x 1016.0mm x 101.6mm)

Copy All Specs
