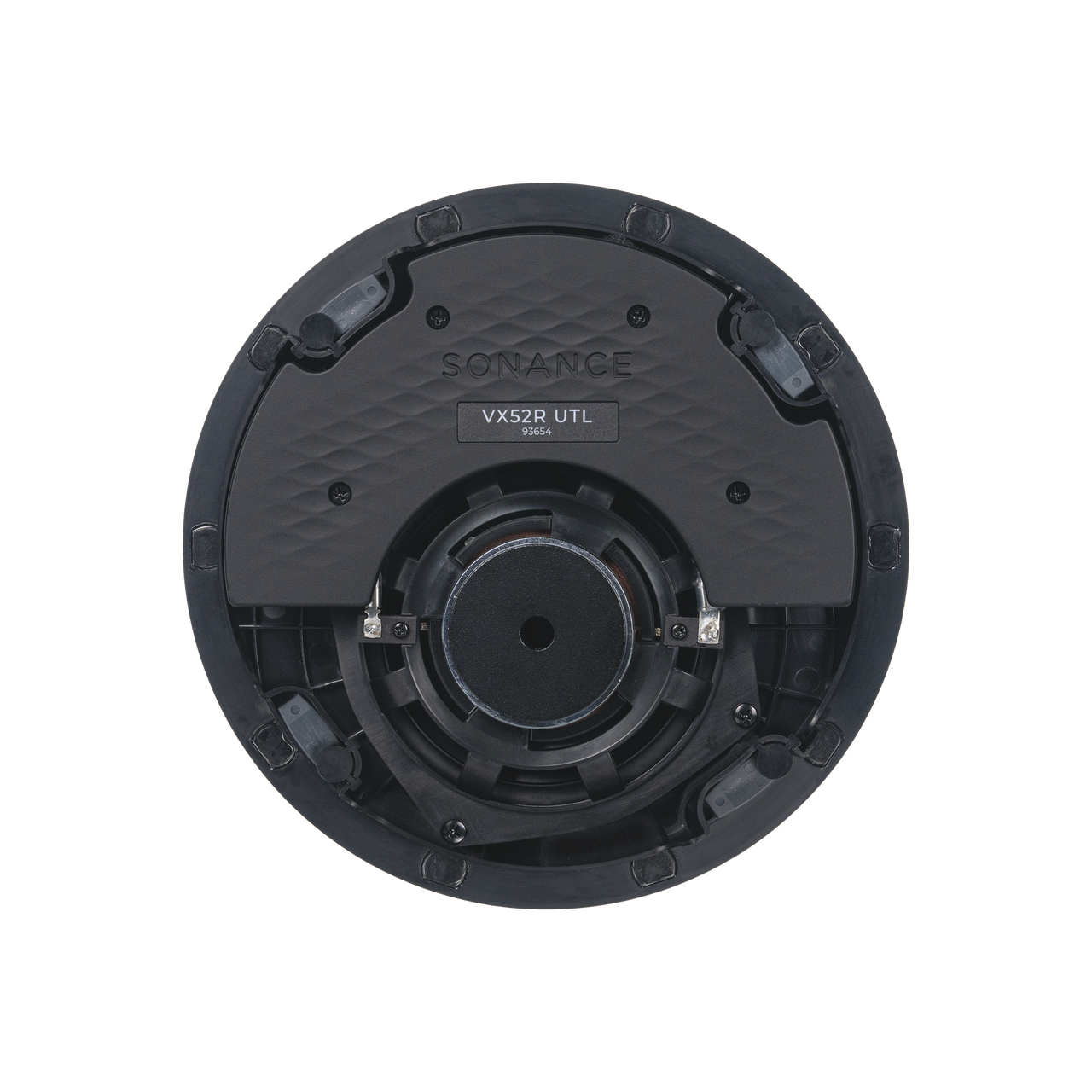

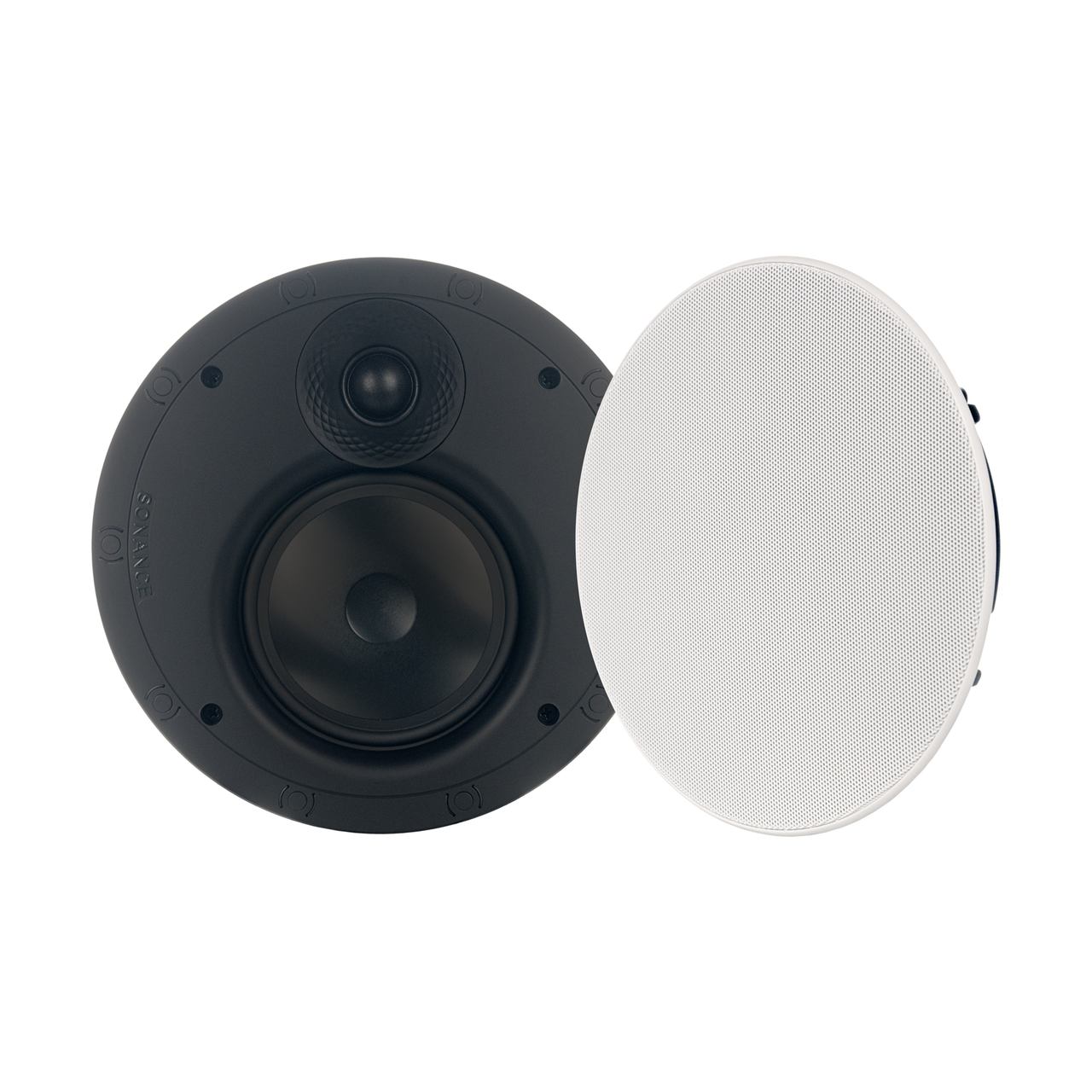

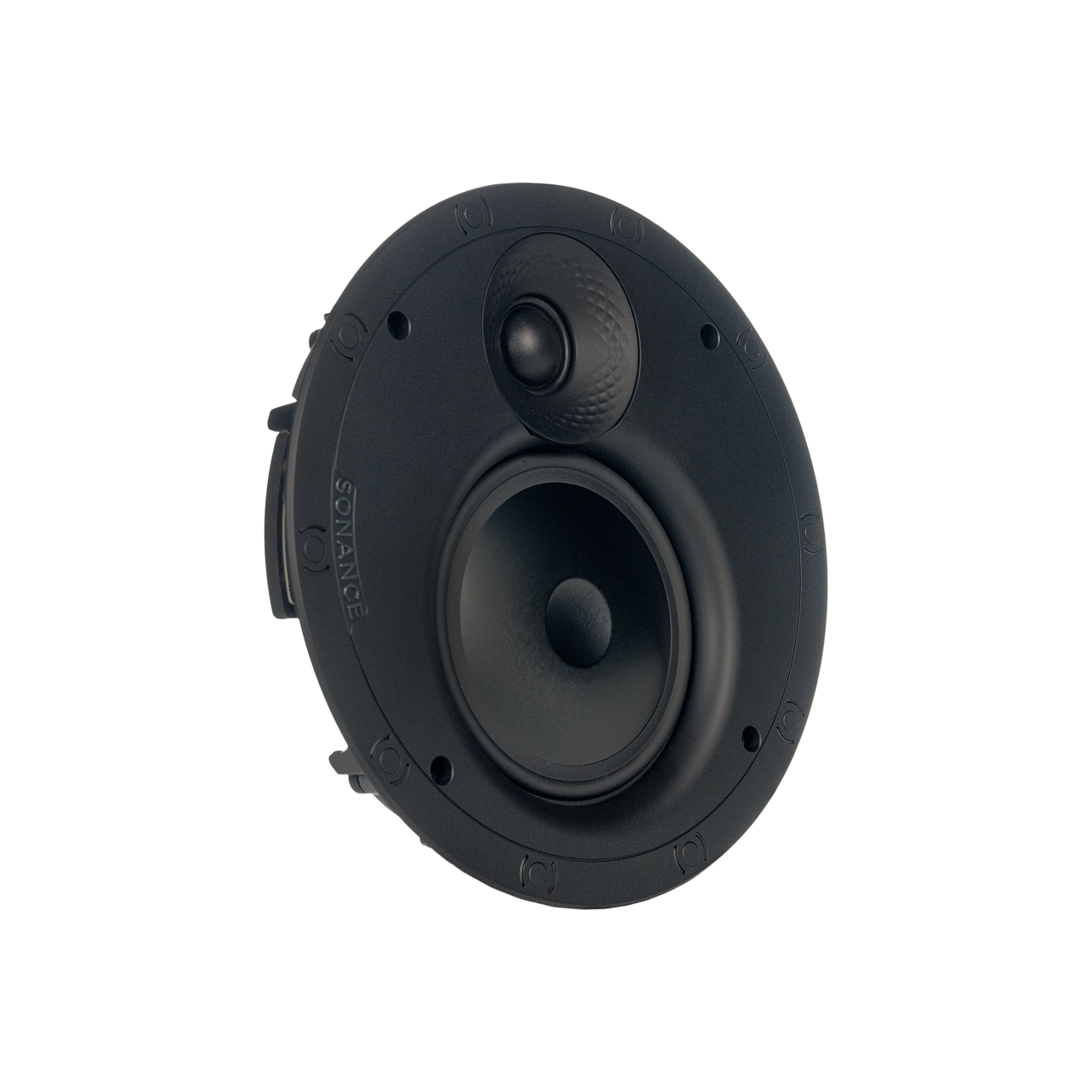

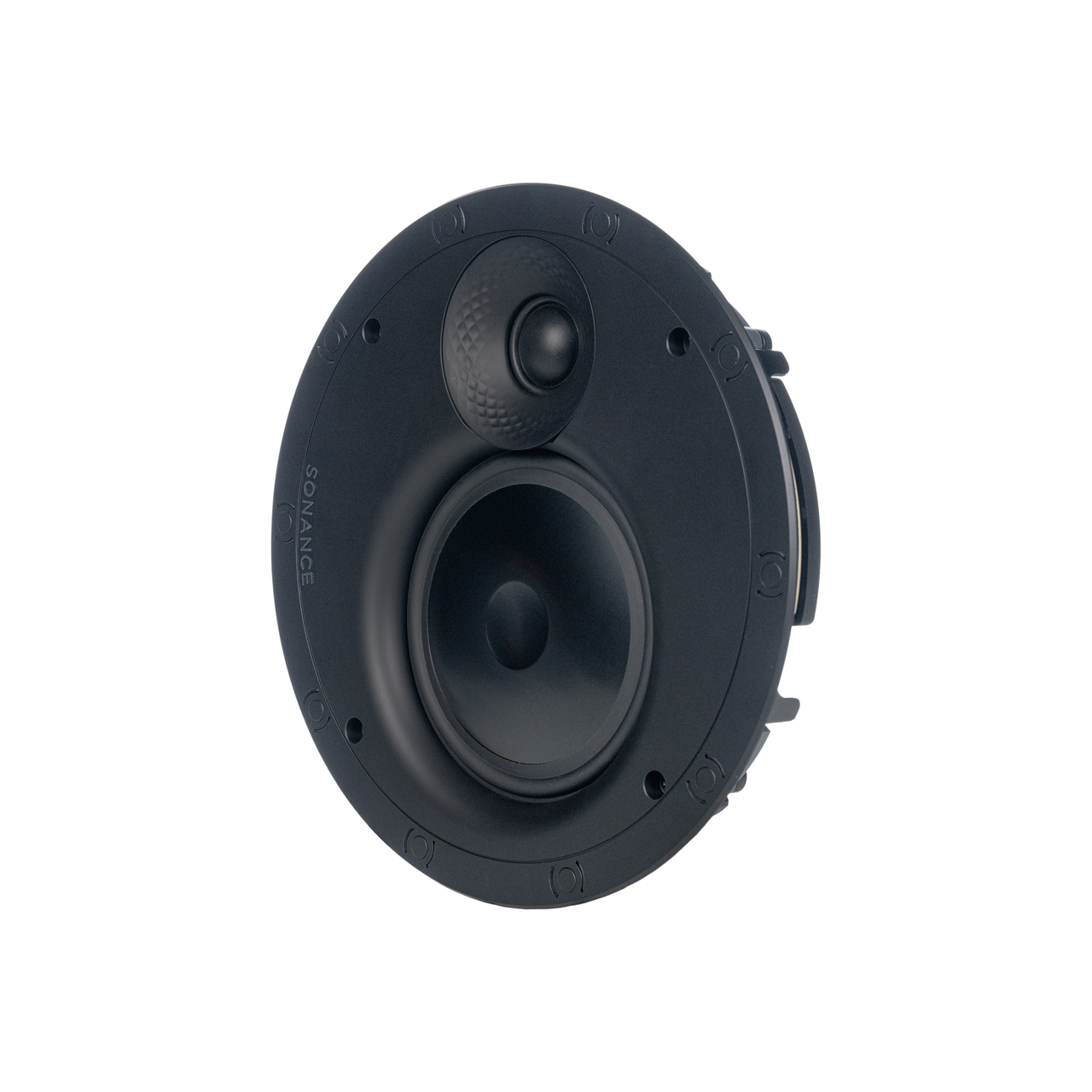

VX52R UTL
Visual Experience
Key Features
- Shallow Depth Design: Engineered to fit 2.5” metal framing in concrete ceiling applications, opening VX performance to MDUs, high-rises, and challenging builds
- VX Transducer Technology: Next-generation drivers deliver the high-fidelity performance and dynamic range the VX Series is known for, now in an ultra-slim form factor
- VX Waveguides: Sinusoidal textured waveguide design ensures consistent tonality and optimized dispersion across the listening space.

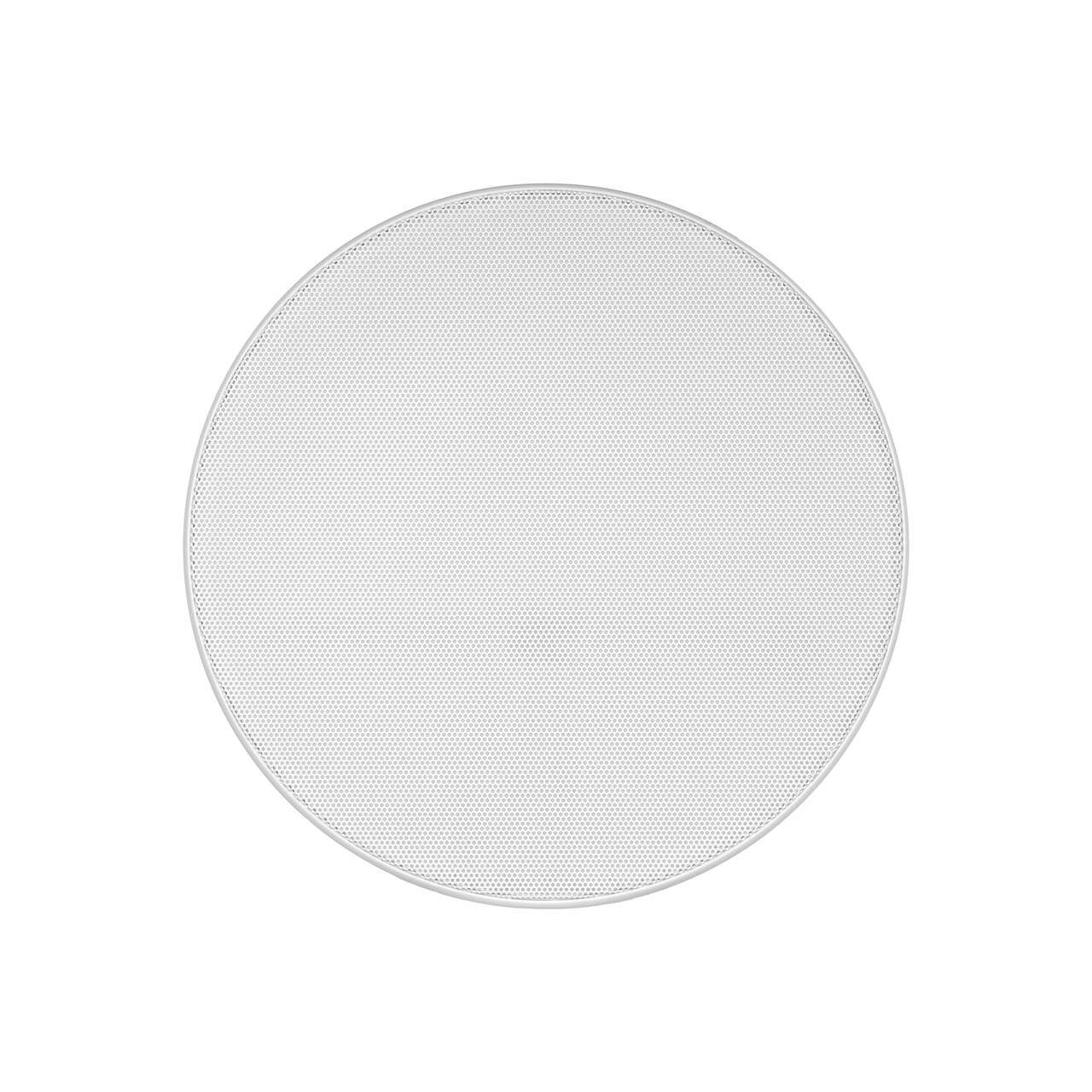

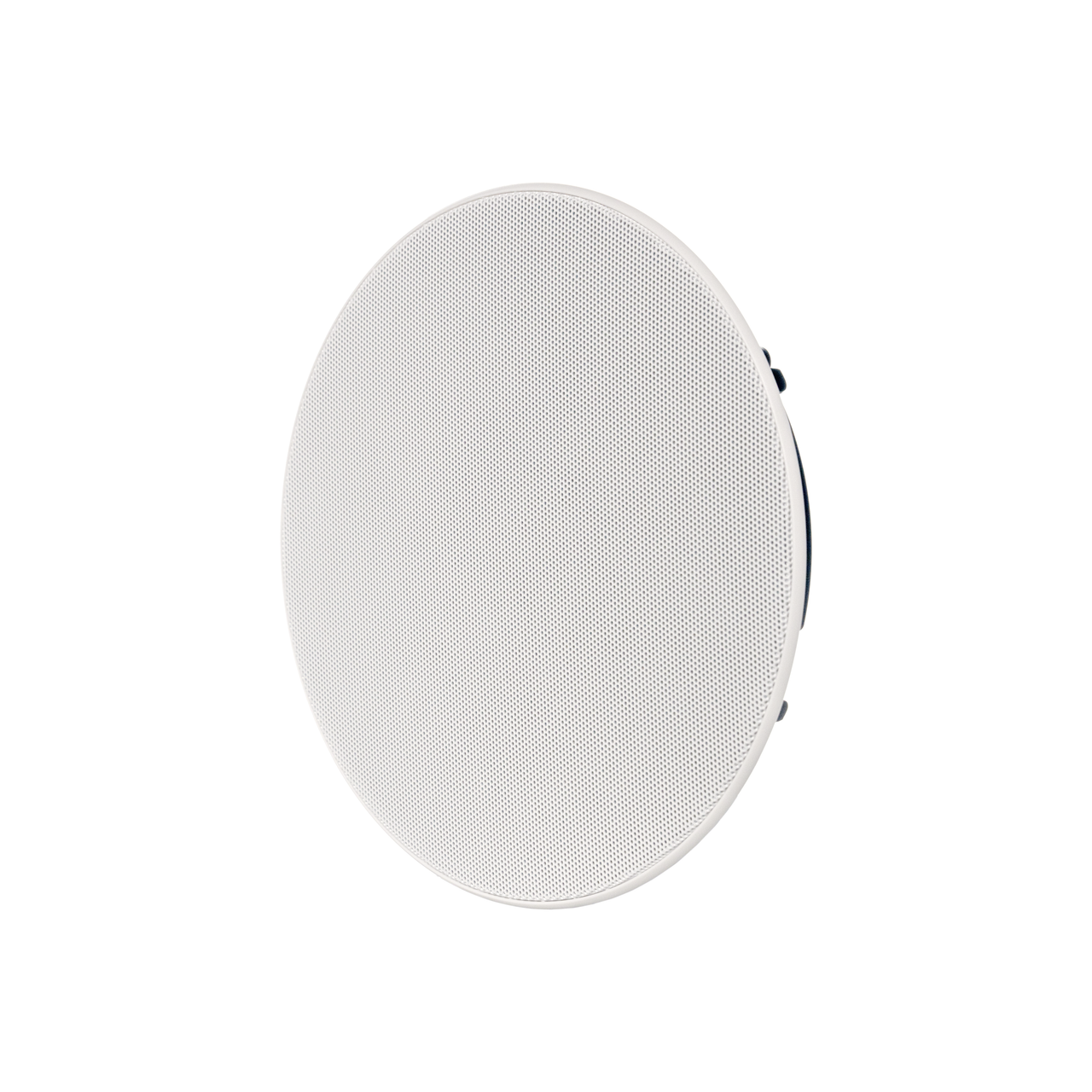

- VX Grilles: Available in micro trim and trimless paintable grilles in Sonance brilliant white, disappearing beautifully into any ceiling

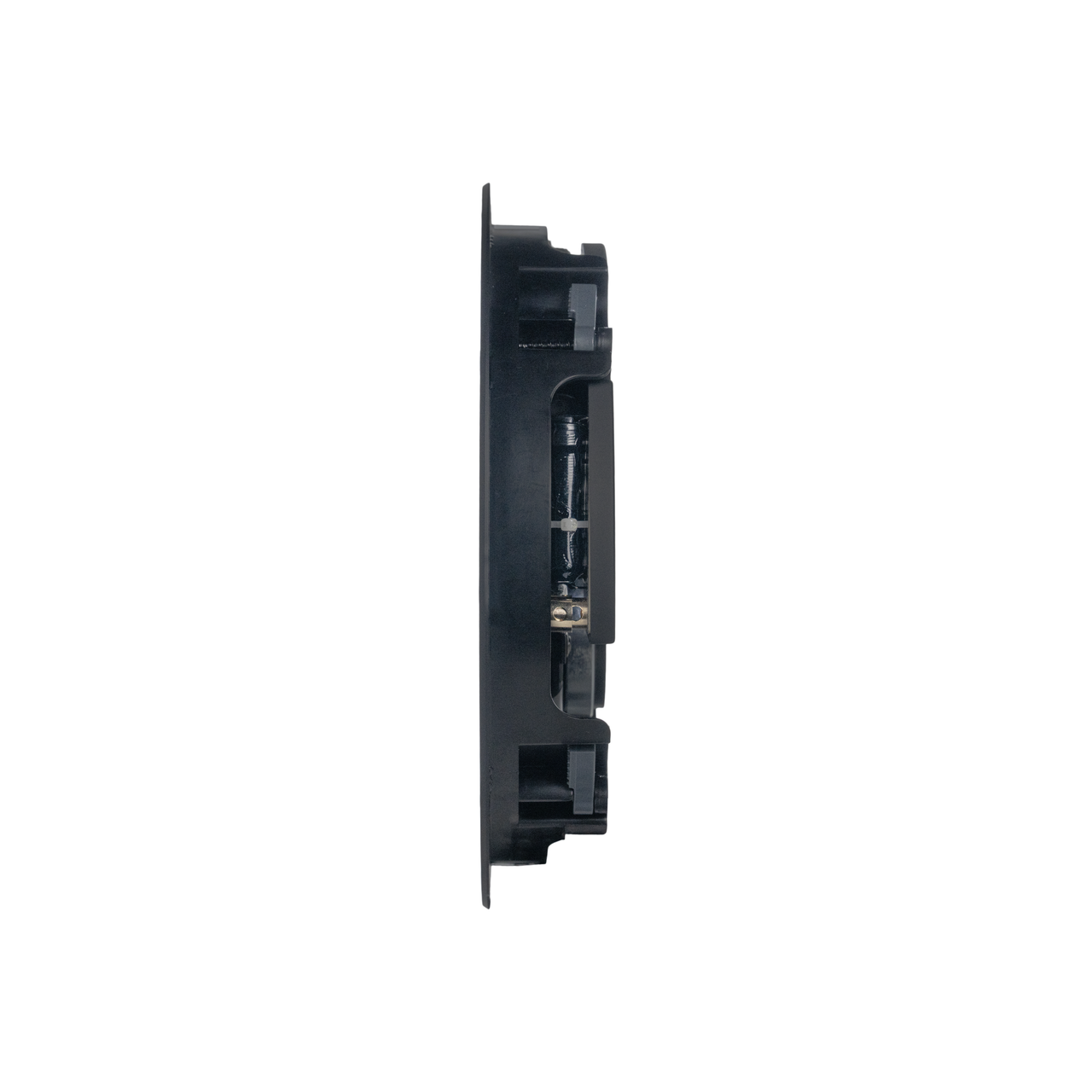

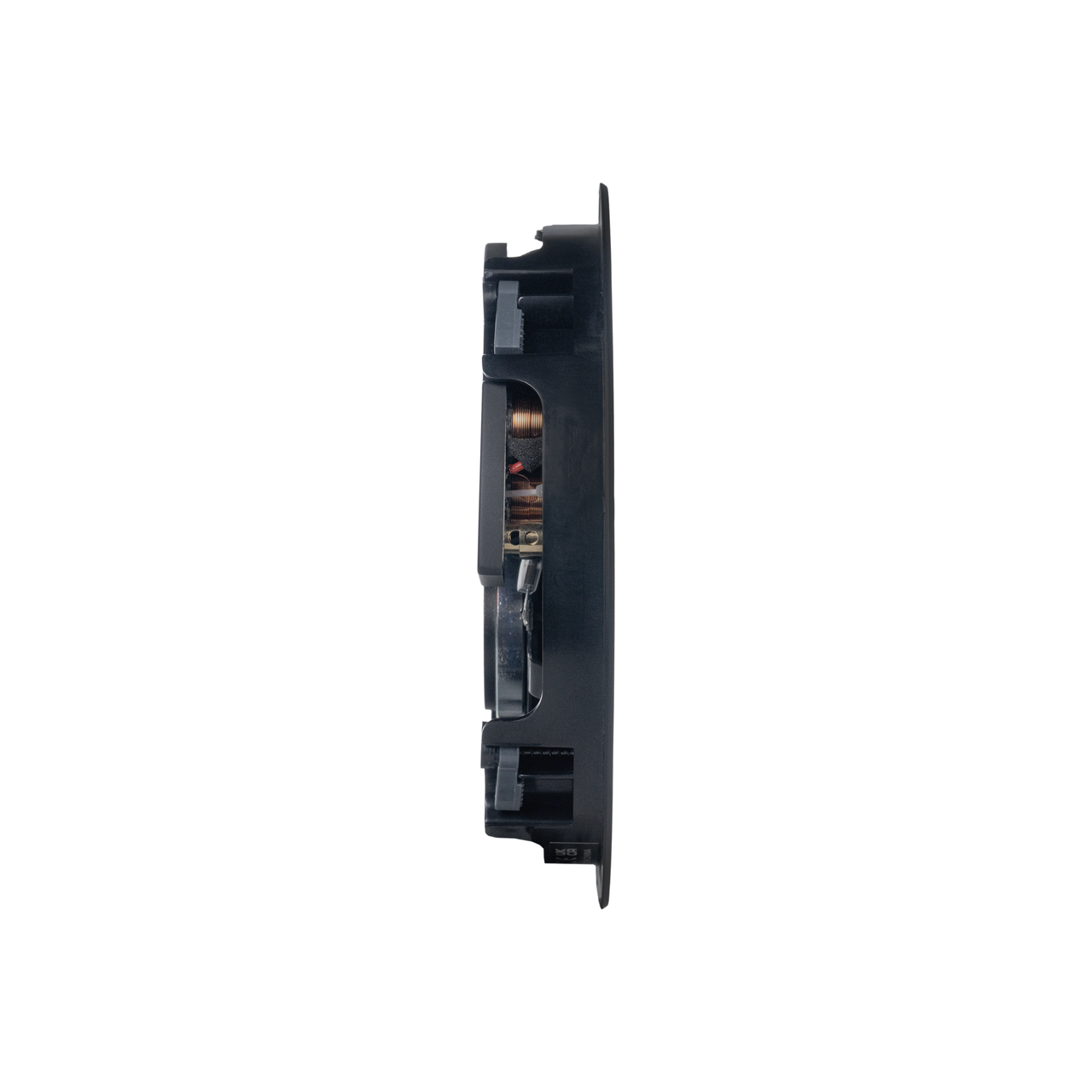

- Decreased Depth: At just 1.41” (35.7mm) (3mm thinner than ever) the VX52R UTL fits where standard speakers simply can’t
- One-Stage Install: The same intuitive, award-winning installation process as the full VX Series. No learning curve, no extra steps
Specifications
SKU
93654 (Brilliant White)

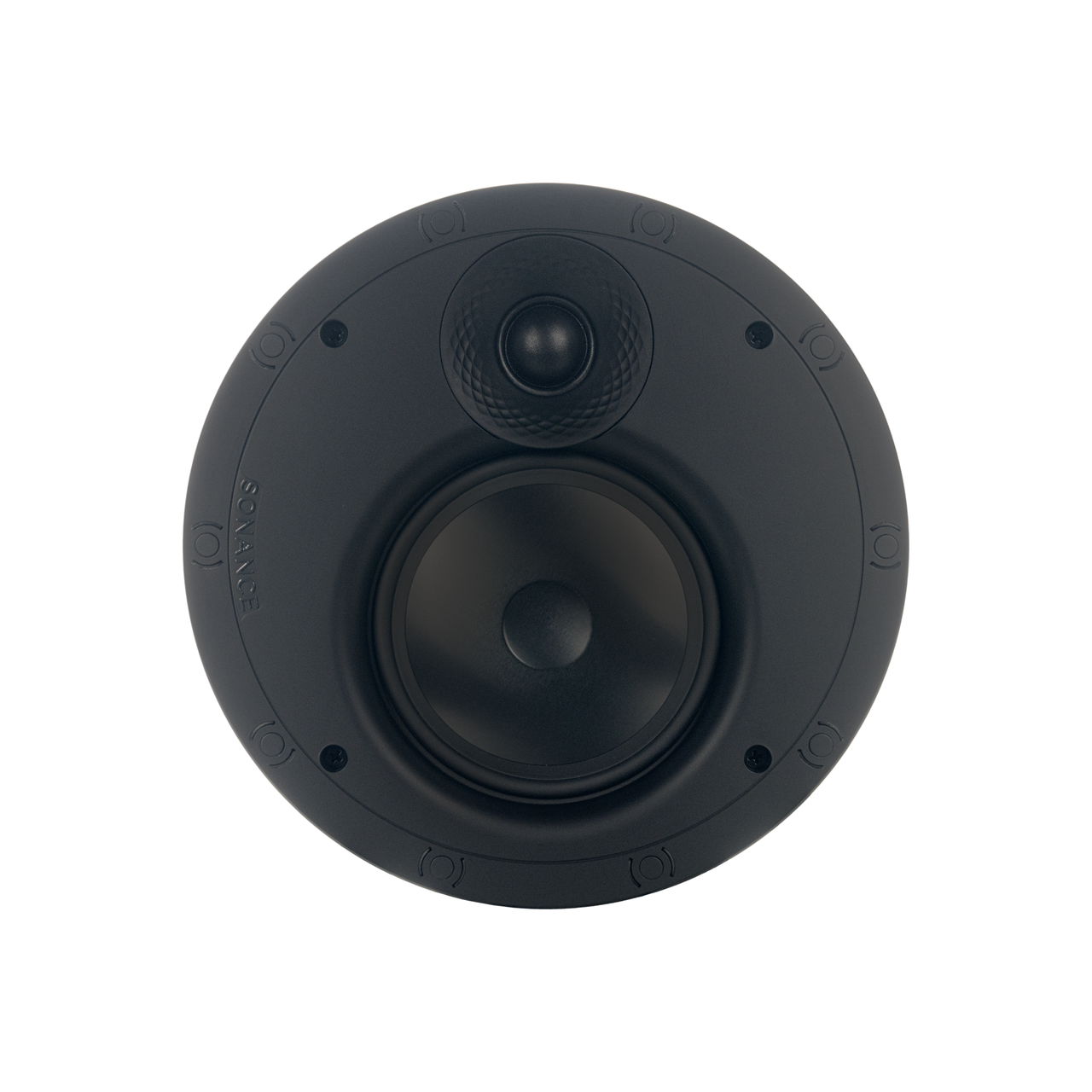

Speaker Tweeter
1" (25mm) cloth dome, Ferrofluid cooled, acoustic back chamber
Speaker Woofer
5.25" (130mm) Anodized aluminum cone, rubber surround
Frequency Response (+/- 3db)
55Hz - 20kHz
Power Handling (RMS)
5 watts minimum; 100 watts maximum
Sensitivity
89dB (2.83V/1m)
Dimensions (Diameter x D)
9.17" x 1.41" (232.92mm x 35.81mm)
Cut-Out Dimensions (Diameter)
8.25" (209.55mm)
