Invisible Series
IS15W
Invisible Series

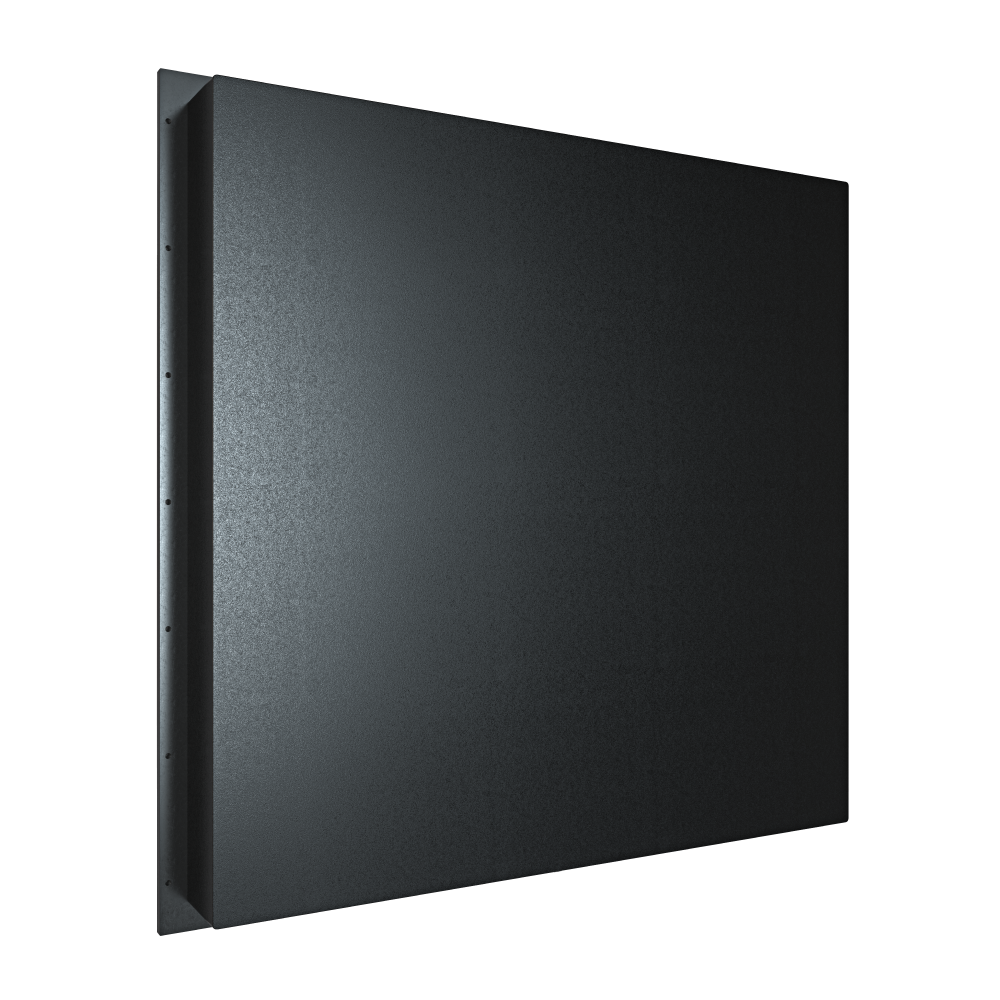

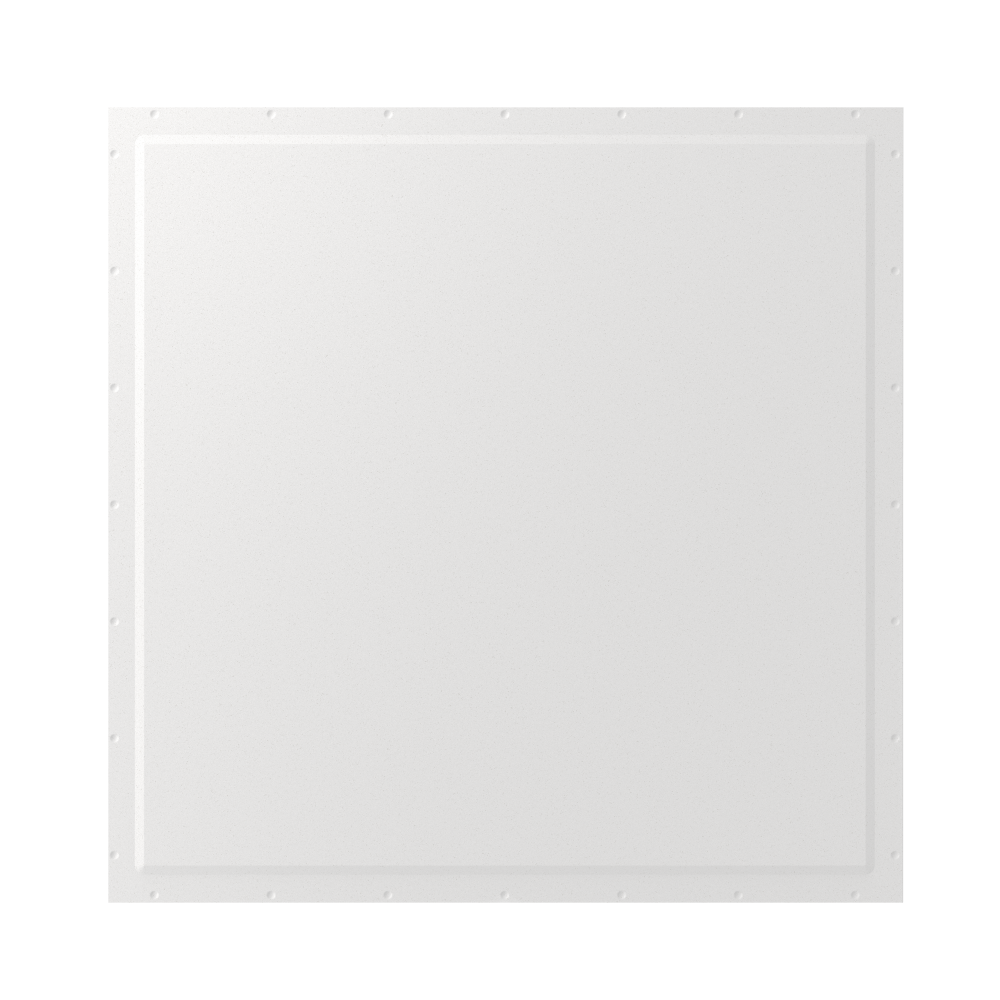

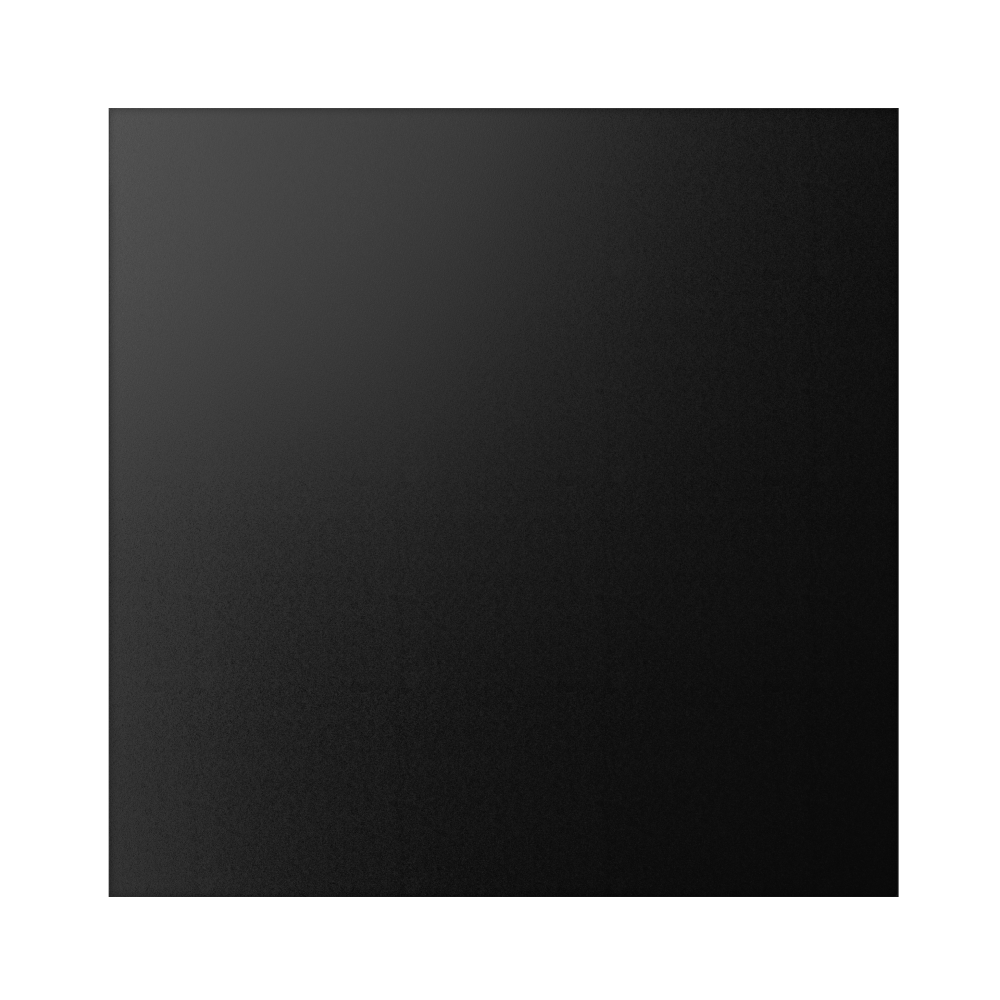

The Sonance Invisible Series IS15W Subwoofer features dual 15" woofers in an in-wall design, delivering powerful, invisible bass for refined spaces. Its narrow, integrated enclosure fits 16" on-center stud construction, achieving impressive bass response with straightforward installation. This subwoofer is designed for in-wall use only.
Key Features
- 6 Ohms nominal impedance with select models for professional use (IS6T and IS8T feature Sonance Laminated Core Transformer for 6 Ohm/70v/00V tap selection)
- 180 degree sound
- Motion Flex Technology features acoustically isolated baffle, Air Flex Woofer and Wave Flex Drive Unit for superior detail and range
- Sonance CDX Crossover Design - Warmth and detail at all volumes
- Accepts up to 3mm topping compound
- Install into drywall, select plasters, wallpaper. leather, and wood veneer applications
- Sonance DISC Depth Identification Sensing Calibration System to measure and standardize finish and performance
- Limited 15 Year Warranty valid on Invisible Series products purchased from an authorized Sonance dealer or distributor
Specifications
SKU | Color
93482 (White)
Air Flex Woofer
592in^2 (3819cm^2) air pulse diaphragm, 15in (381mm) carbon fiber woofer
Frequency Response (+/- 3db)
30Hz - 250Hz
Power Handling (RMS)
250 watts RMS
Sensitivity
93dB (2.83V/1m)
Dispersion
180 degree hemispherical up to 250Hz
Dimensions (WxHxD)
32.2" x 32.2" x 3.86" (817.88mm x 817.88mm x 98.04mm)
Dimensions No Feet (WxHxD)
32.2" x 32.2" x 3.86" (817.88mm x 817.88mm x 98.04mm)
Mounting Depth
3.39" (86.11mm)
