SR 2-125

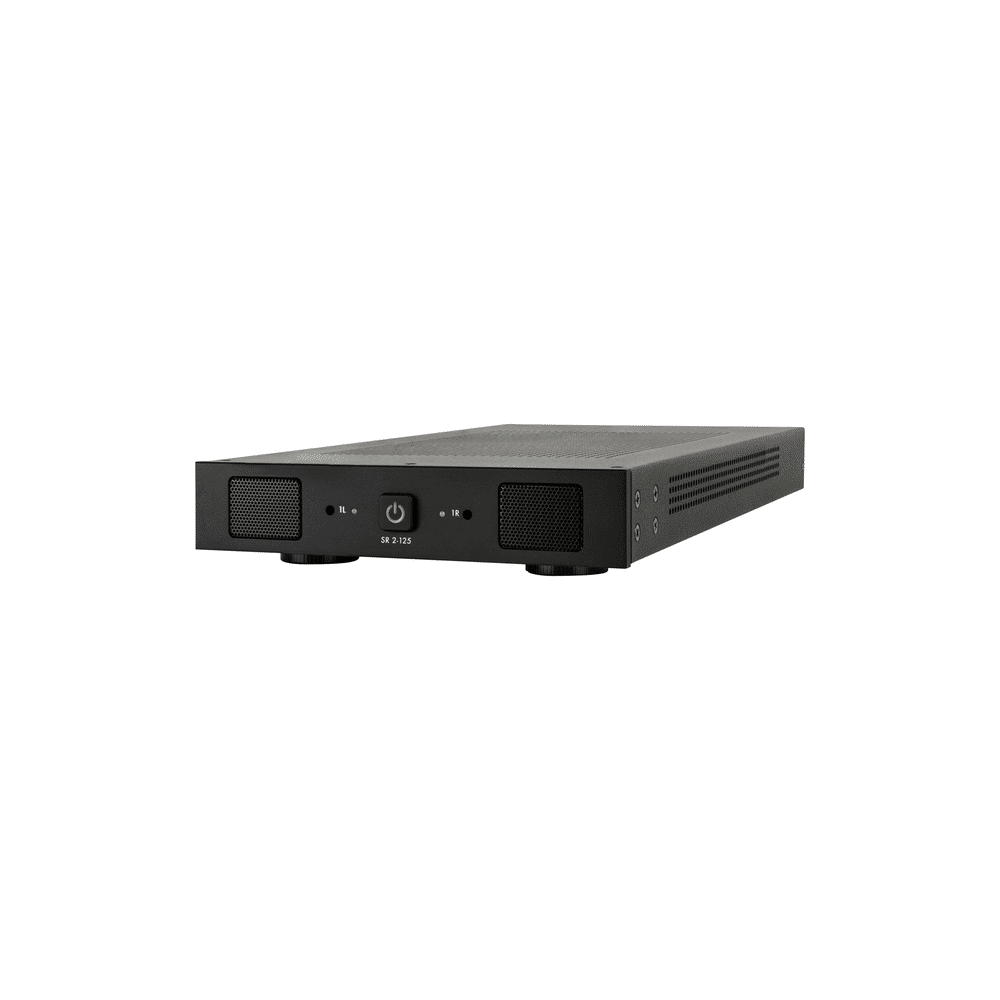

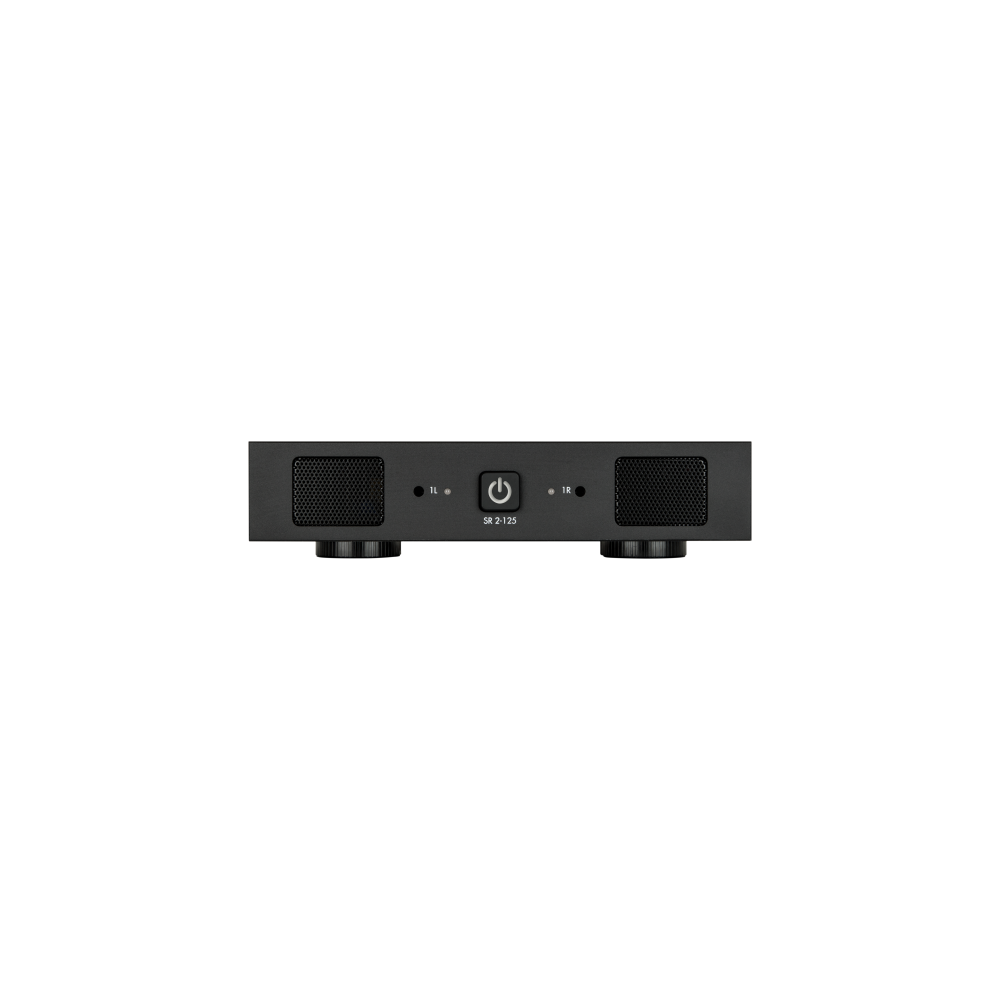

The SR 2-125 is a 125-watt stereo amplifier with DSP presets easily accessed through dials on the back of the amplifier.
Key Features
- The SR 2-125 is pre loaded with 20 DSP presets expertly designed to bring the Sonarray SR1 landscape audio system to life.

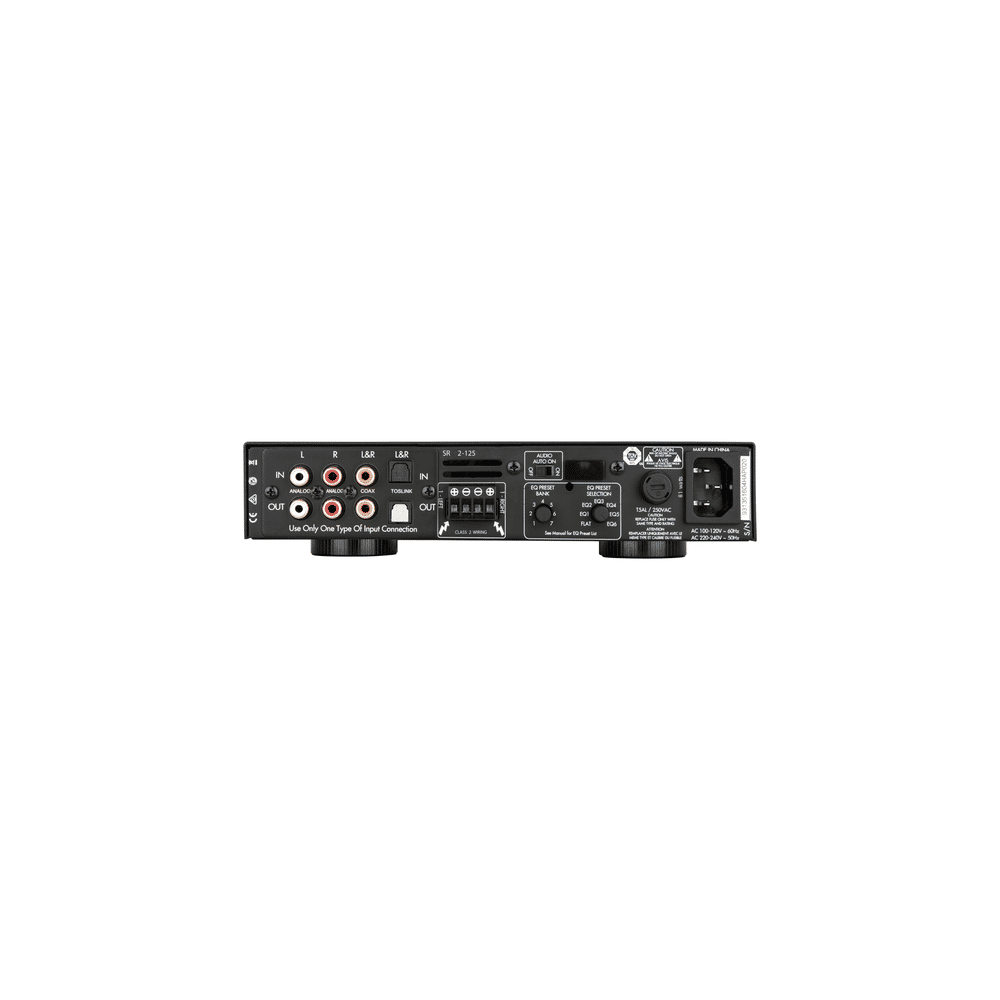

- The SR 2-125 amplifier has analog, coax and toslink LINE INPUTS and LOOP OUTPUTS. The analog loop outputs are non buffered. The maximum number of amplifiers that can be looped together will depend on the output capability of your source component. The digital outputs are buffered and can support multiple amplifiers. Only one output can be used at a time.
- Full array of input/output connectivity for maximum installation flexibility: line inputs, loop outputs, audio & voltage triggers, (2) Buss input/output, independent volume control per channel
- Powerful, audiophile grade Class-D power supply. Rated at 8 ohms, 4 ohms & stable into 2 ohms.
- Compact form factor allows for space savings in the equipment rack with ample power to the speakers.
- Convection cooled, fanless design allows for direct stacking with no air gap for even greater power density.
- Class-D design is 93% efficient for maximum power output with minimal power usage.
- Terminal blocks will accept up to 12AWG speaker cable for longer runs & higher performance.
- Rack ears and feet included
Specifications
SKU
93135
Dimensions No Feet (WxHxD)
8.62" x 1.75" x 16.75" (218.95mm x 44.45mm x 425.45mm)
Dimensions with Feet (WxHxD)
8.62" x 2.12" x 16.75" (218.95mm x 53.85mm x 425.45mm)
Weight
7.6 lbs. (3.45kg)
Built-in DSP
Yes
Rack Units
1U
