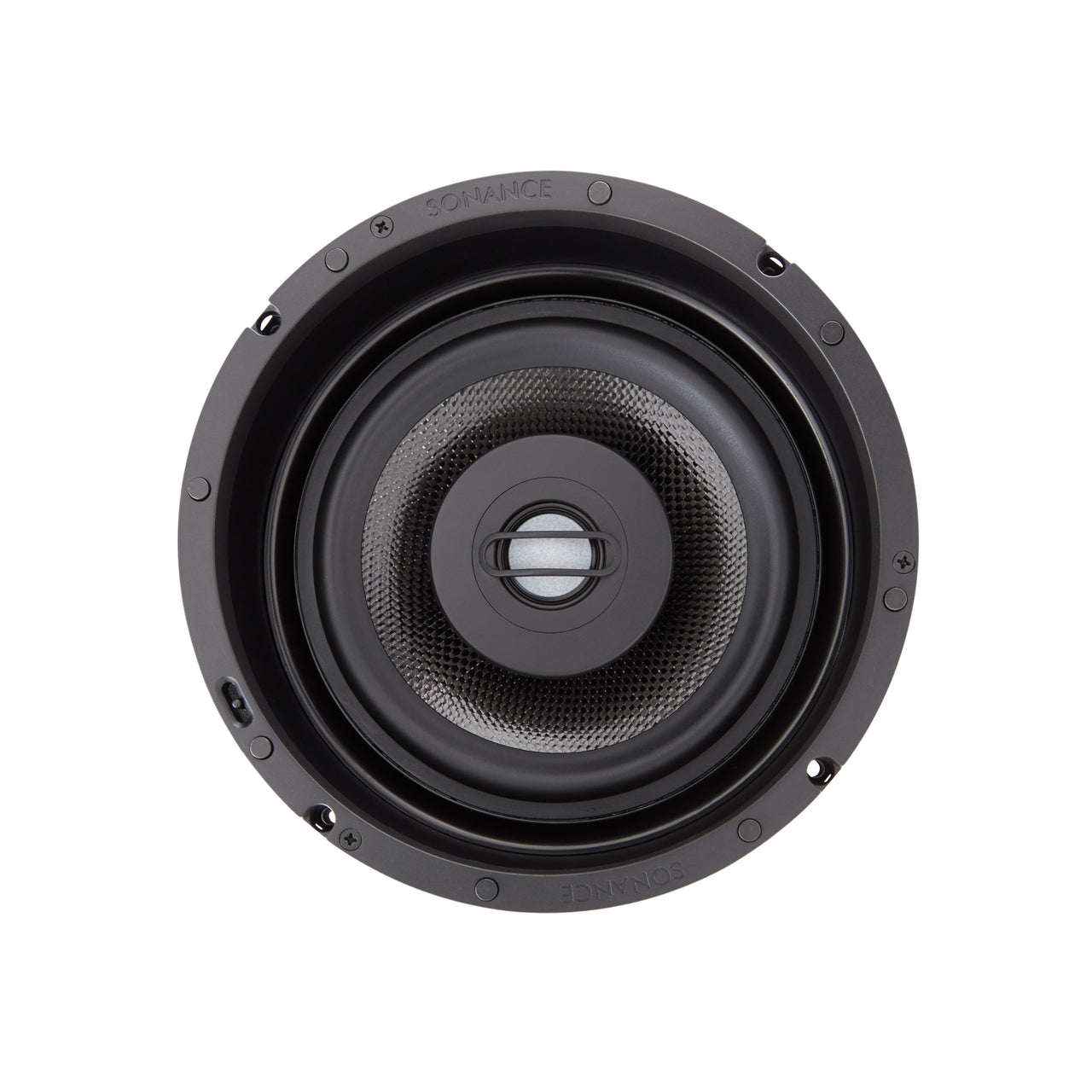

AS68RS
Architectural Series
Key Features
- Totally-flush and trim-less design provides minimalistic aesthetic without distracting shadow lines

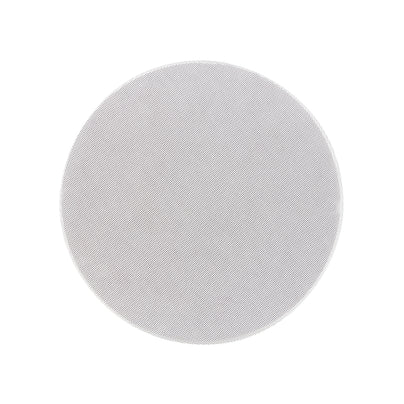

- Round or square grille aesthetic to match design cues of the space
- State-of-the-art driver materials combined with cutting-edge design technology ensures clean and accurate tonality and smooth powerful bass response

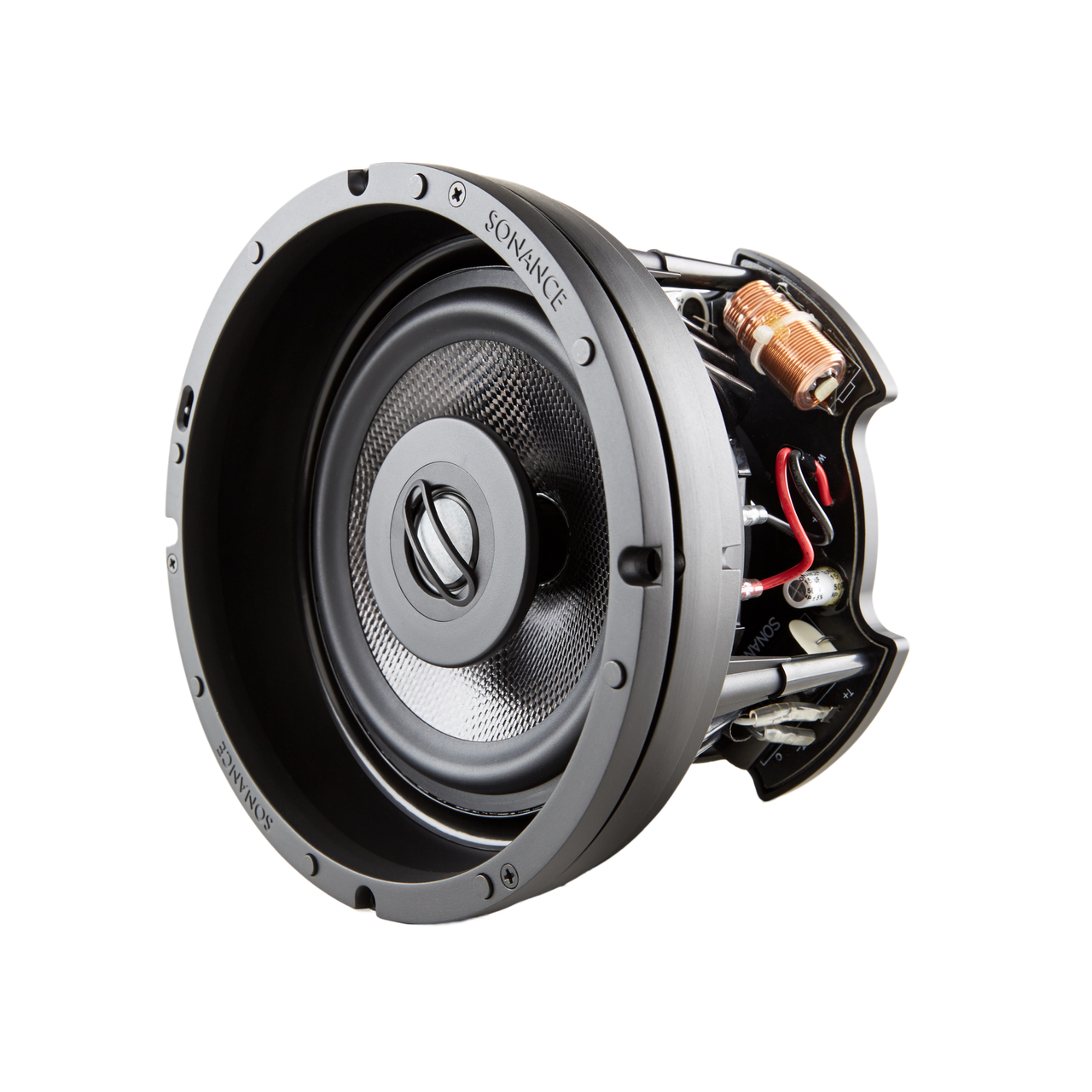

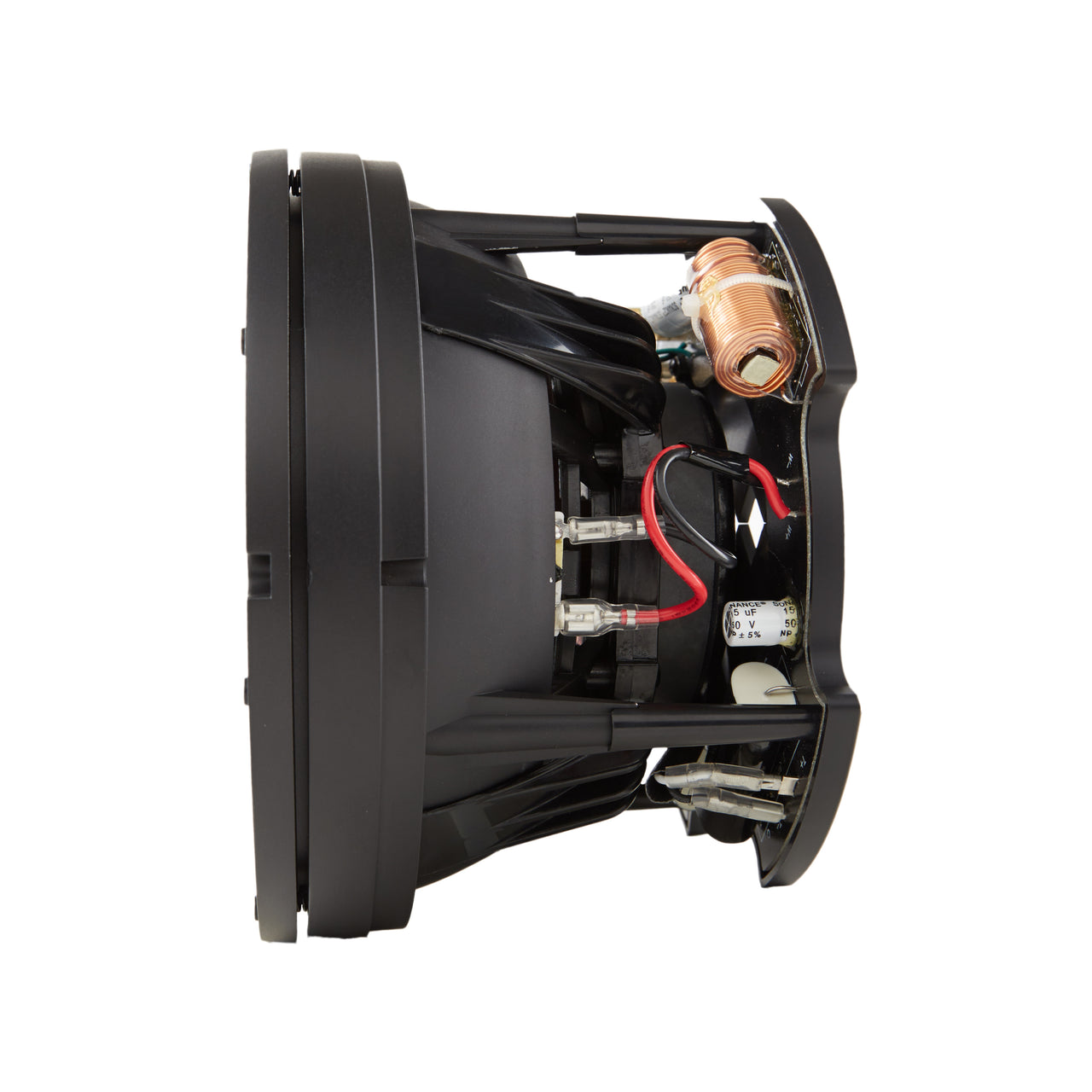

- AS68RS has an independently pivoting woofer and tweeter allowing speakers to be positioned for best aesthetic while achieving best sonic performance and coverage
- TRUFIG-inspired mounting platform with precision grille leveling; delivers a high-quality, repeatable installation process in drywall, plaster, wood, and other solid surfaces
- Optional bandpass subwoofer BPS8 utilizing same grille aesthetic delivers large speaker performance from a medium-sized form-factor
Specifications
SKU
93042
Speaker Tweeter
1" (25mm) ceramic dome, Ferrofluid-cooled, pivoting, in acoustic back chamber
Speaker Woofer
6.5" (165mm) carbon fiber / Rohacell laminated cone with a rubber surround, pivoting
Frequency Response (+/- 3db)
40Hz - 20kHz
Power Handling (RMS)
5 watts minimum; 150 watts maximum
Sensitivity
90dB (2.83V/1m)
Dimensions (Diameter x D)
8.0" x 5.19" (203.2mm x 131.76mm)
Grille
Perforated Steel
